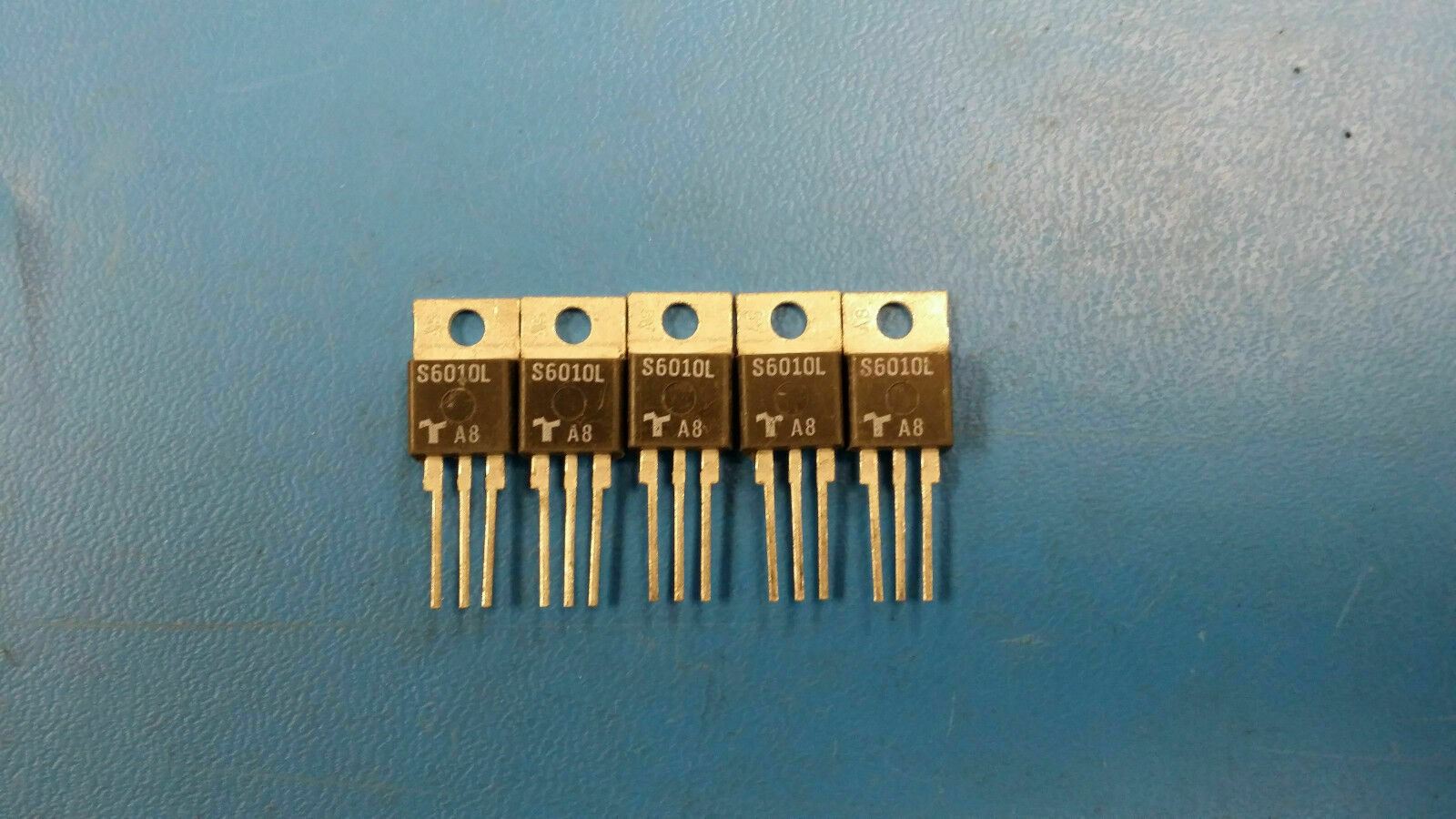

(5 PCS) S6010L TECCOR Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Isolated
(5 PCS) S6010L TECCOR Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Isolated

(5 PCS) S6010L TECCOR Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Isolated

Tax included.
Only 28 left!
THIS LISTING IS FOR (5 PCS) OF S6010L BY TECCOR
Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Isolated
Manufacturer:

Littelfuse
Product Category: SCRs
Breakover Current IBO Max: 100 A
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 0.01 mA
On-State RMS Current - It RMS: 10 A
Vf - Forward Voltage: 1.6 V
Gate Trigger Voltage - Vgt: 1.5 V
Gate Trigger Current - Igt: 15 mA
Holding Current Ih Max: 30 mA
Mounting Style: Through Hole
Package / Case: TO-220
Packaging: Tube
Brand: Littelfuse
Current Rating: 10 A
Features: Glass passivated Chip junction
Height: 9.4 mm (Max)
Length: 10.67 mm (Max)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Non Repetitive On-State Current: 100 A
