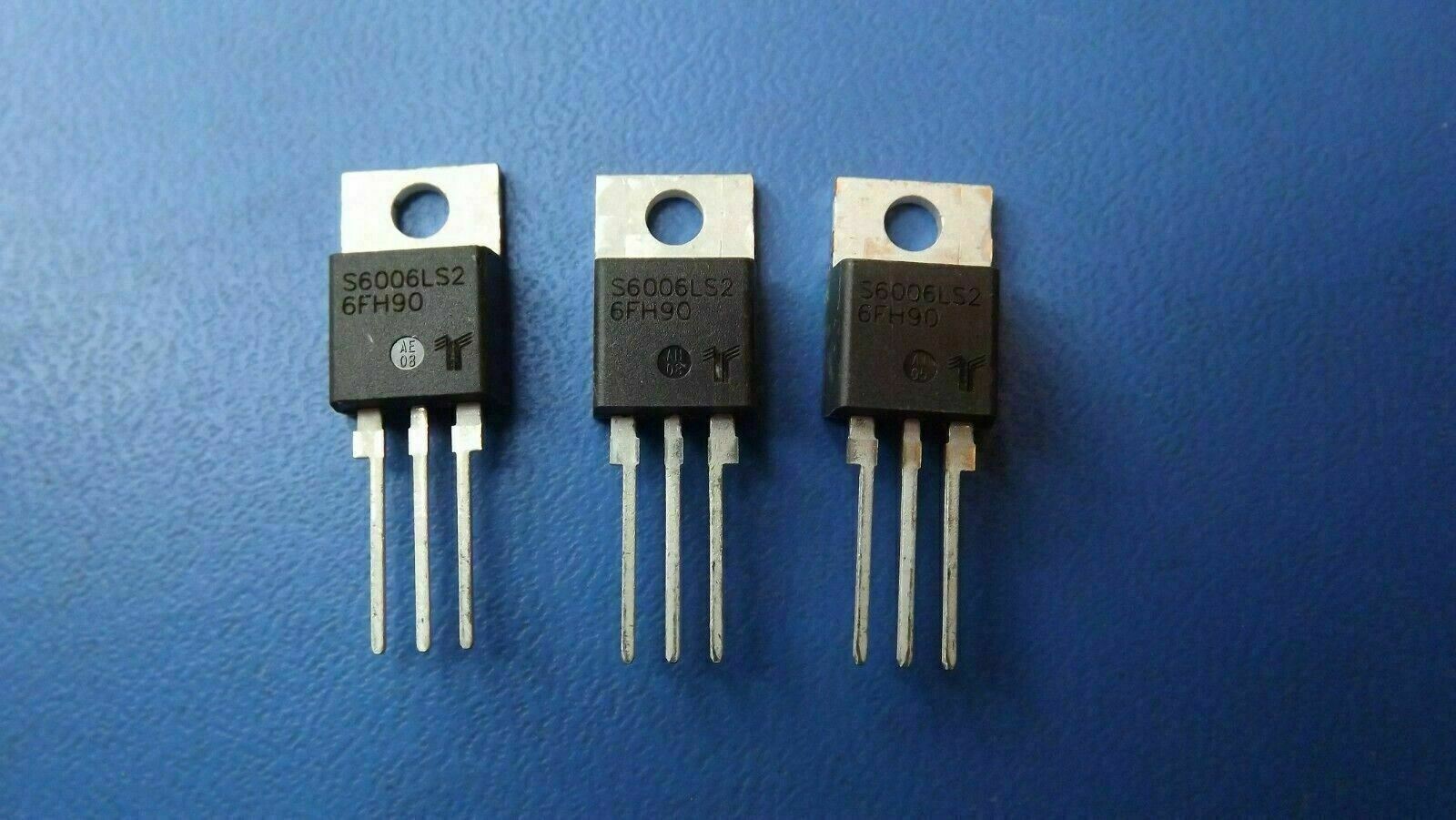

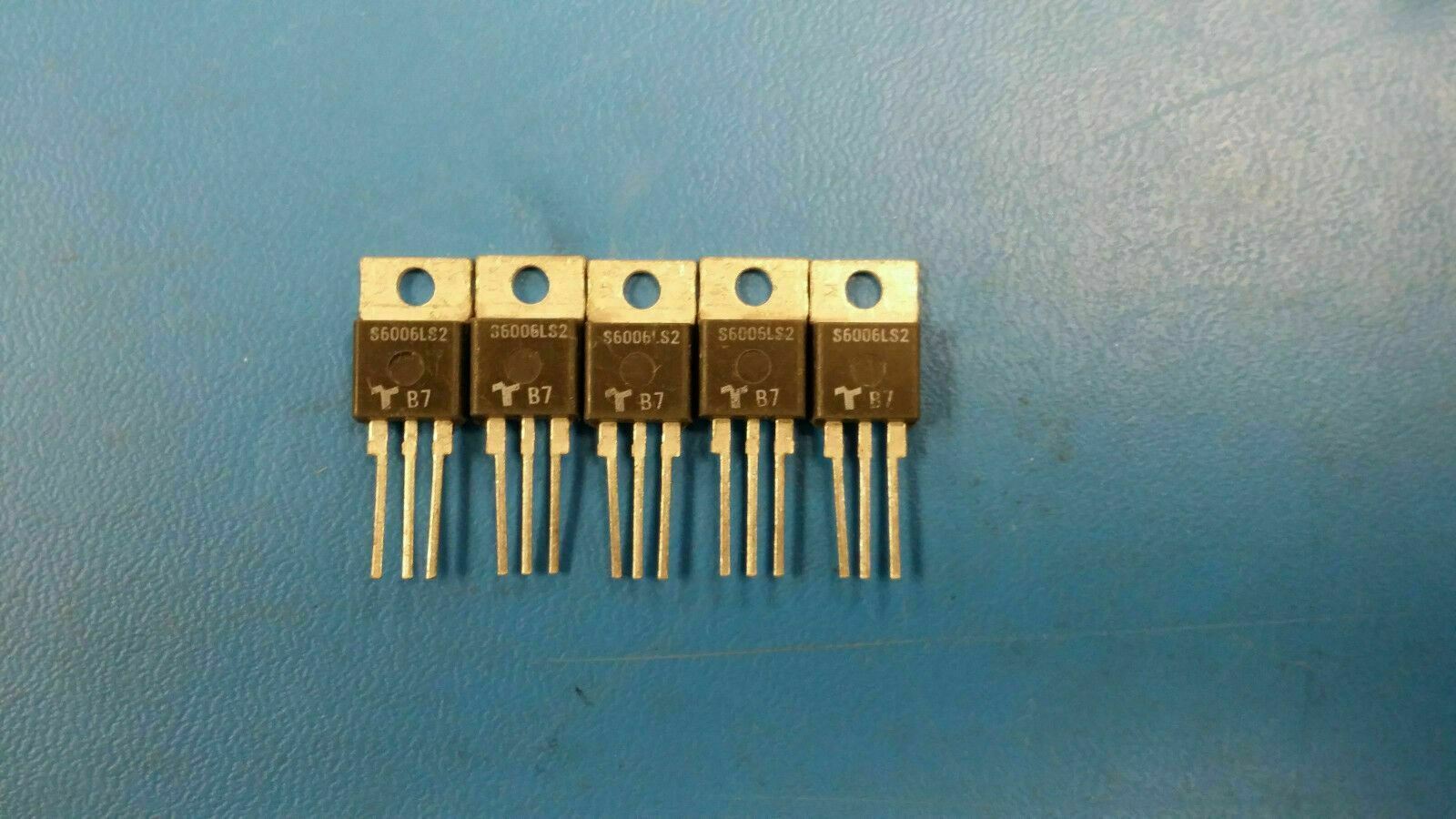

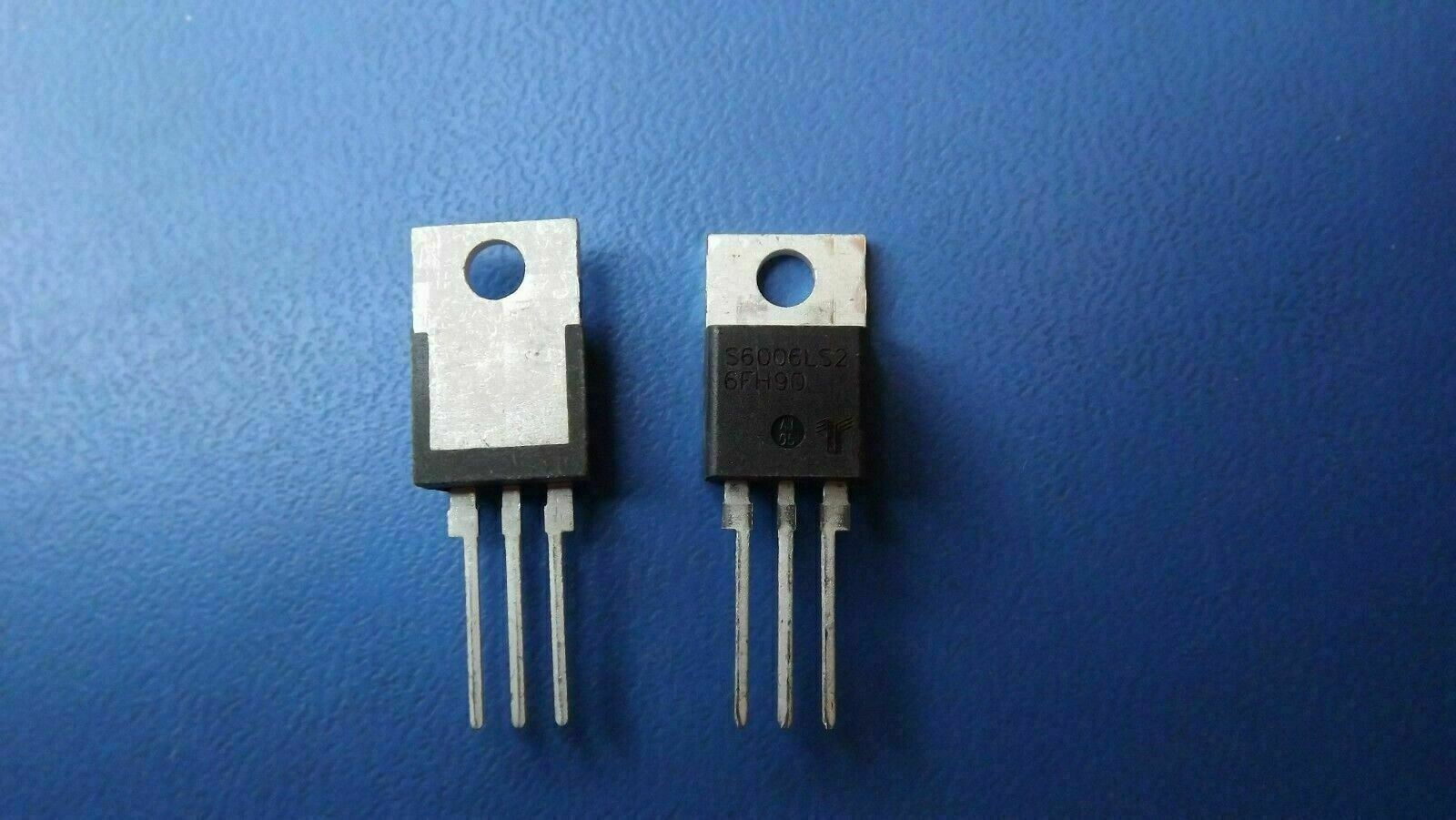

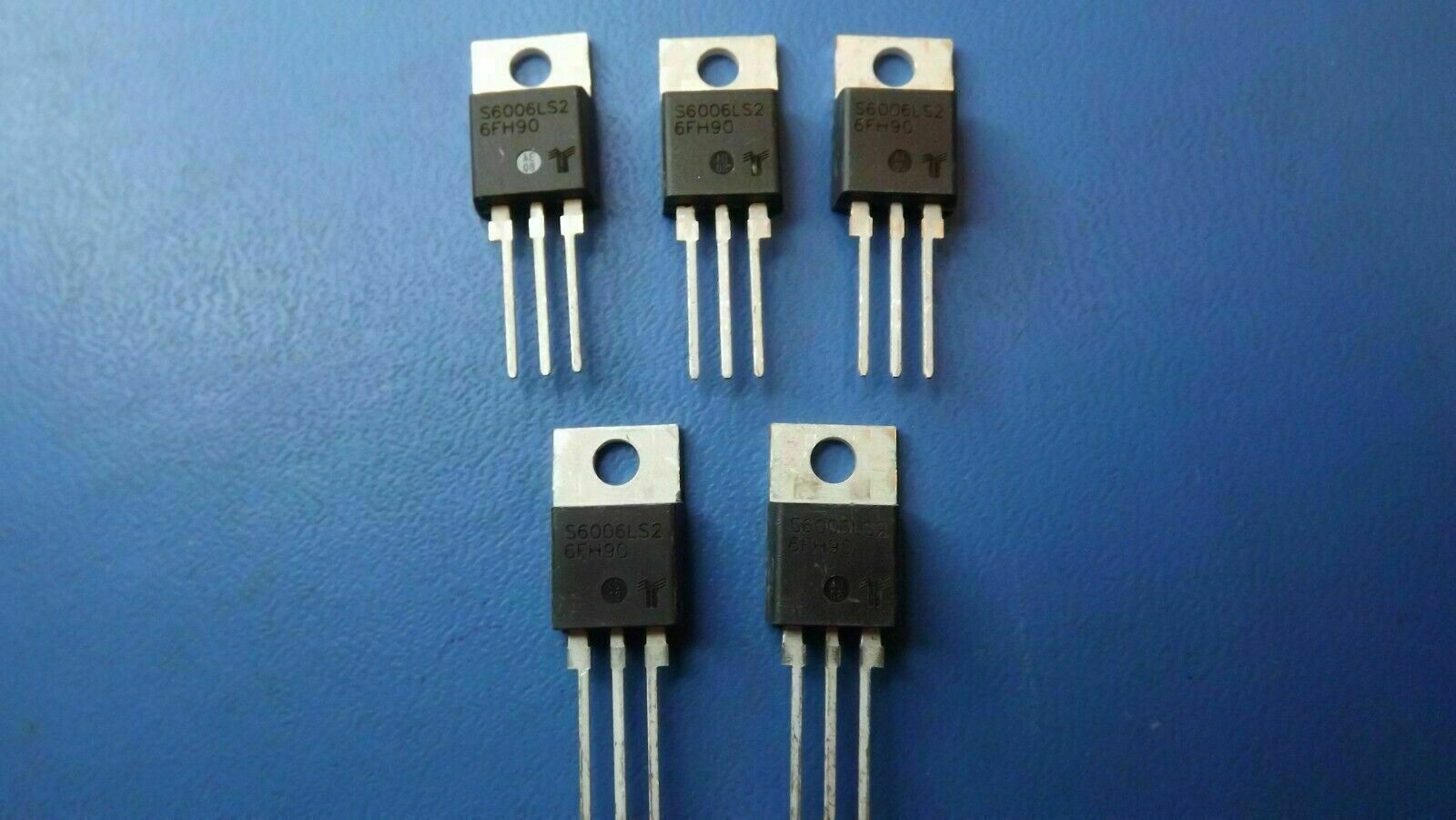

(5 PCS) S6006LS2 S6006LS2TP Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Iso
(5 PCS) S6006LS2 S6006LS2TP Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Iso
(5 PCS) S6006LS2 S6006LS2TP Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Iso
(5 PCS) S6006LS2 S6006LS2TP Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Iso

(5 PCS) S6006LS2 S6006LS2TP Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Iso

Tax included.
Only 68 left!

THIS LISTING IS FOR (5 PCS) OF S6006LS2 BY TECCOR
Thyristor SCR 600V 100A 3-Pin(3+Tab) TO-220AB Isolated
Manufacturer:


 Littelfuse
Product Category: SCRs



Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 0.005 mA
On-State RMS Current - It RMS: 6 A
Vf - Forward Voltage: 1.6 V
Maximum Gate Peak Inverse Voltage: 1 V
Gate Trigger Voltage - Vgt: 0.8 V
Gate Trigger Current - Igt: 200 uA
Holding Current Ih Max: 6 mA
Mounting Style: Through Hole
Package / Case: TO-220
Packaging: Bulk
Brand: Littelfuse
Current Rating: 6 A
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
Non Repetitive On-State Current: 100 A
