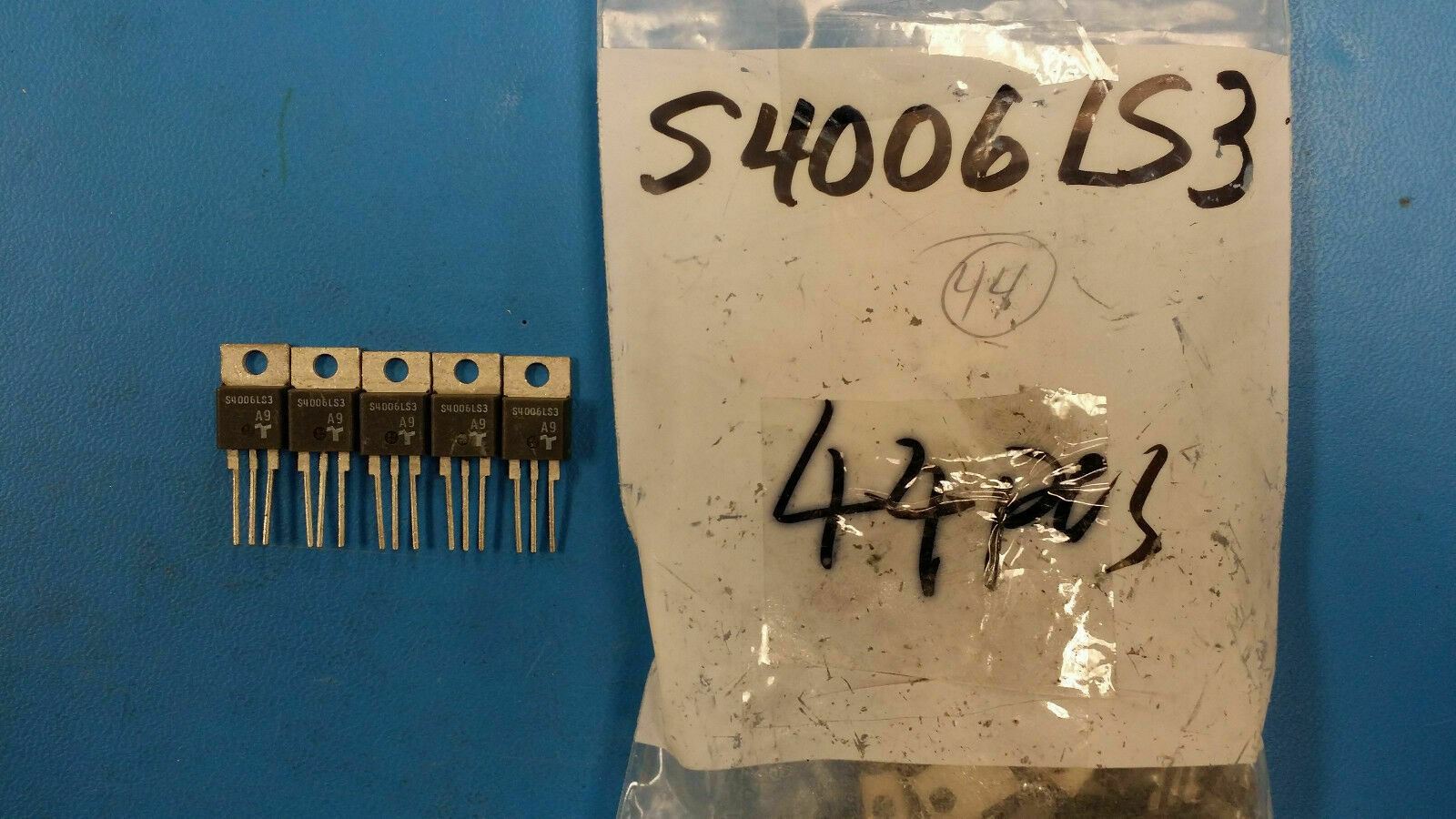

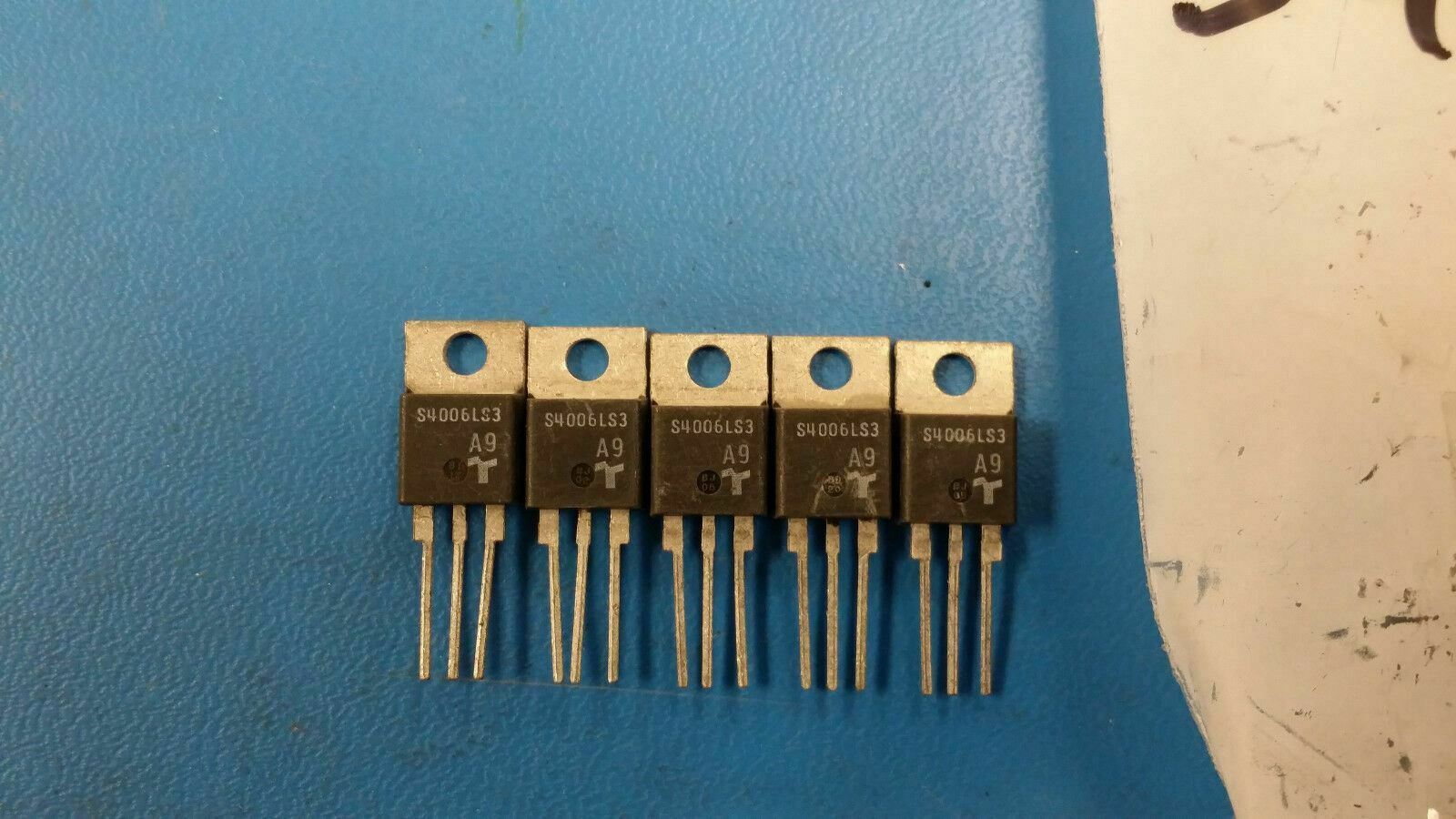

(5 PCS) S4006LS3 TECCOR Sen SCR 400V6A 500µA TO-220 Isolated
Tax included.
THIS LISTING IS FOR (5 PCS) OF S4006LS3 BY TECCOR
Sen SCR 400V6A 500µA TO-220 Isolated
Manufacturer:
Sen SCR 400V6A 500µA TO-220 Isolated
Manufacturer:
| Littelfuse | ||
| Product Category: | SCRs | |
| Rated Repetitive Off-State Voltage VDRM: | 400 V | |
| Off-State Leakage Current @ VDRM IDRM: | 0.005 mA | |
| On-State RMS Current - It RMS: | 6 A | |
| Vf - Forward Voltage: | 1.6 V | |
| Maximum Gate Peak Inverse Voltage: | 1 V | |
| Gate Trigger Voltage - Vgt: | 0.8 V | |
| Gate Trigger Current - Igt: | 500 uA | |
| Holding Current Ih Max: | 8 mA | |
| Mounting Style: | Through Hole | |
| Package / Case: | TO-220 | |
| Packaging: | Tube | |
| Brand: | Littelfuse |
|
| Current Rating: | 6 A |
|
| Maximum Operating Temperature: | + 110 C |
|
| Minimum Operating Temperature: | - 40 C |
|
| Non Repetitive On-State Current: | 100 A |
