(5 PCS) S2012R TECCOR SCR NON-SENS 200V 12A TO-220

  • $12.95
    Unit price per
Tax included.

Only 6 left!

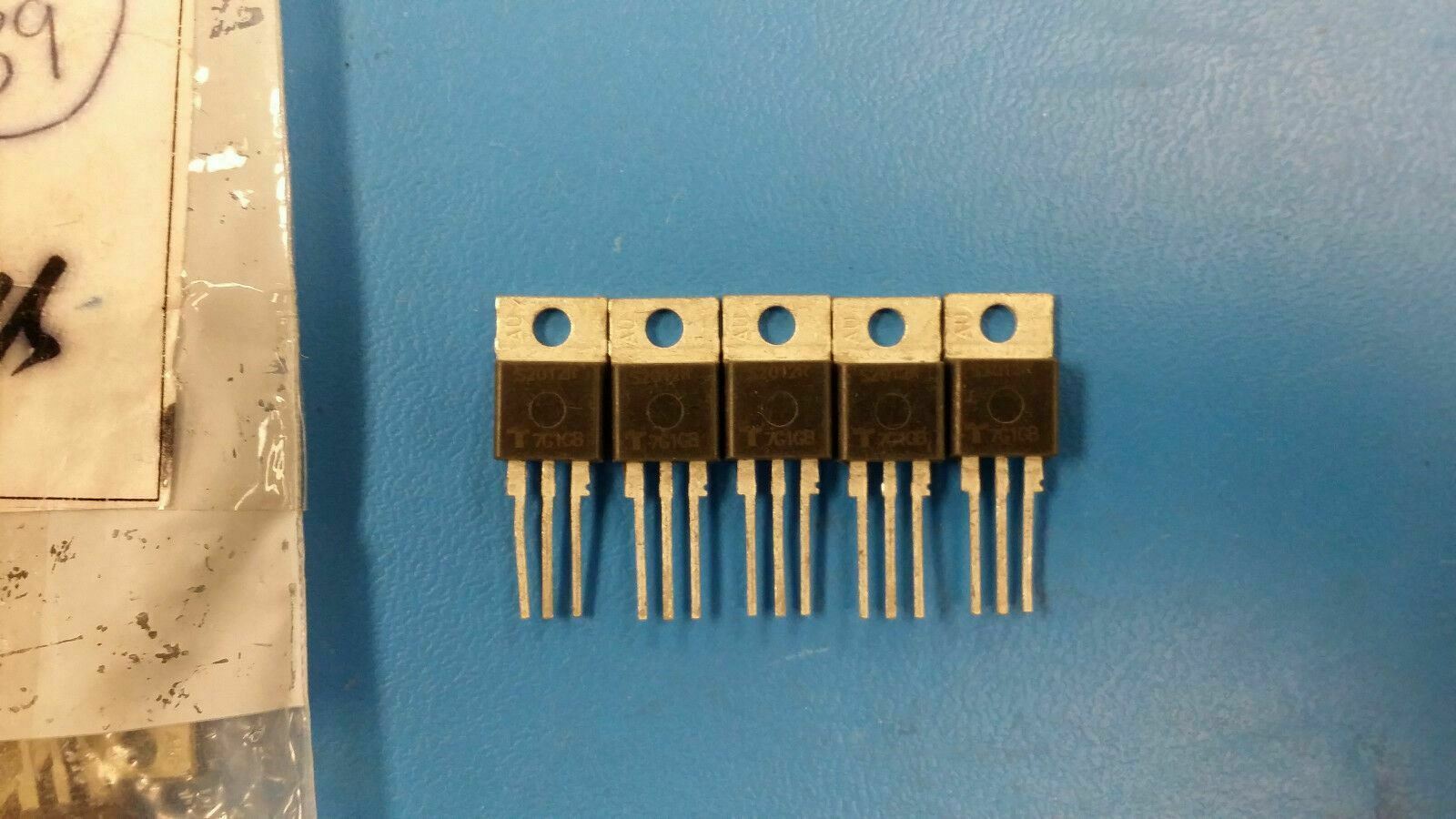

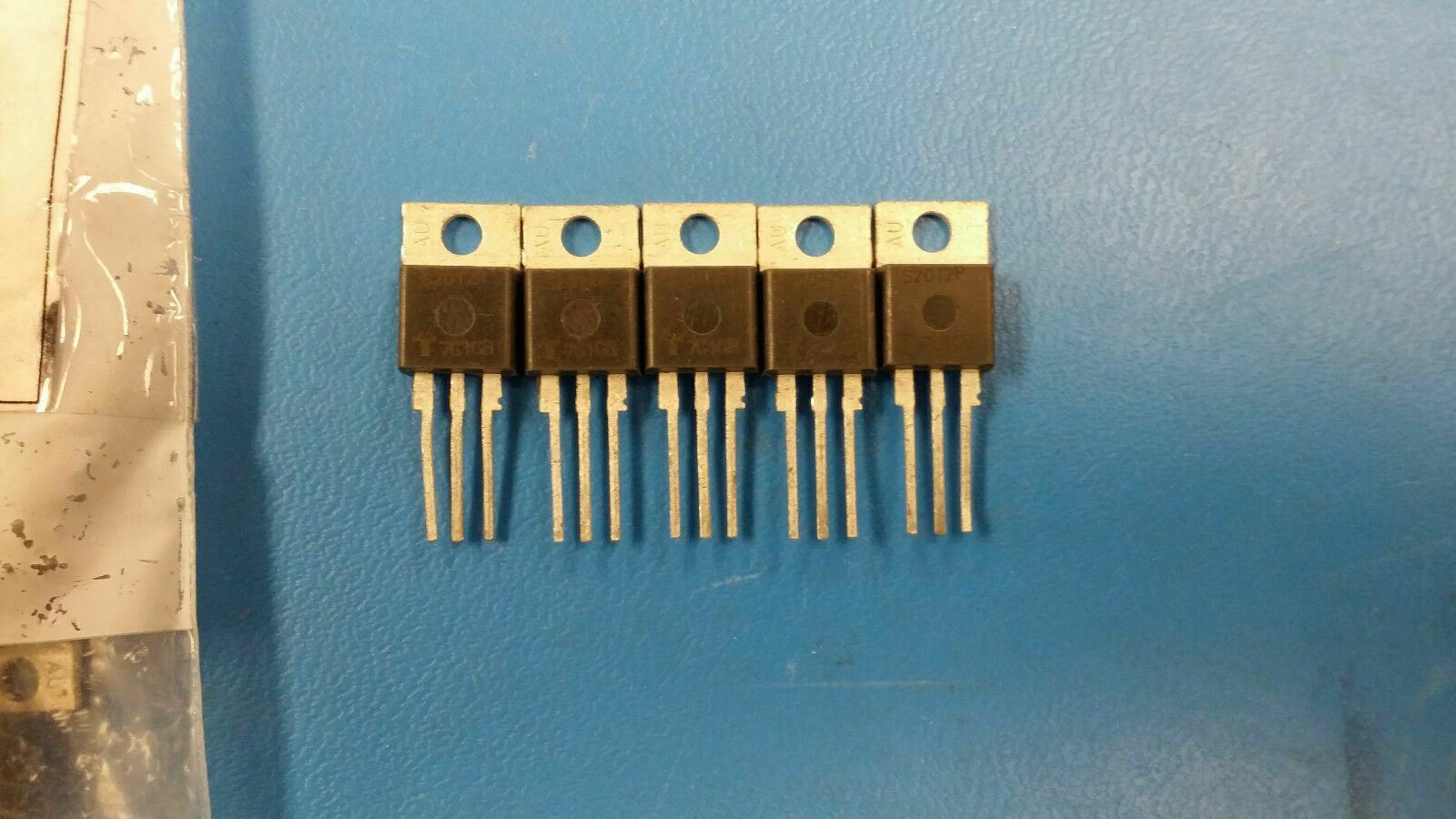

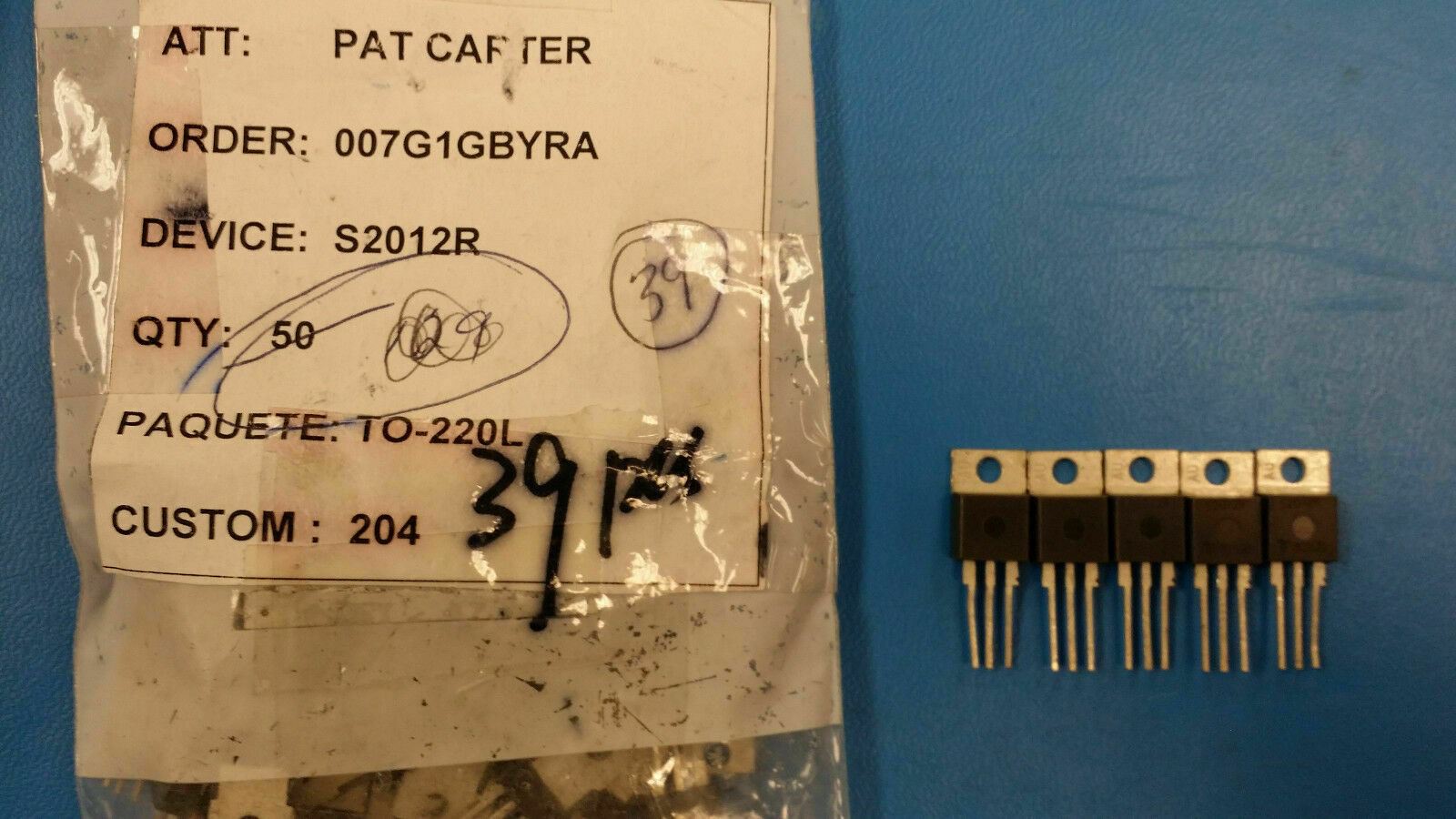

THIS LISTING IS FOR (5 PCS) OF S2012R BY TECCOR
SCR NON-SENS 200V 12A TO-220
Manufacturer:

Littelfuse
Product Category: SCRs
Breakover Current IBO Max: 120 A
Rated Repetitive Off-State Voltage VDRM: 200 V
Off-State Leakage Current @ VDRM IDRM: 0.01 mA
On-State RMS Current - It RMS: 12 A
Vf - Forward Voltage: 1.6 V
Gate Trigger Voltage - Vgt: 1.5 V
Gate Trigger Current - Igt: 20 mA
Holding Current Ih Max: 40 mA
Mounting Style: Through Hole
Package / Case: TO-220
Packaging: Bulk
Brand: Littelfuse
Current Rating: 12 A
Height: 9.4 mm (Max)
Length: 10.67 mm (Max)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Non Repetitive On-State Current: 120 A
