(5 PCS) S2008LS3 TECCOR SCR SENS 200V 8A ISO TO-220
Tax included.

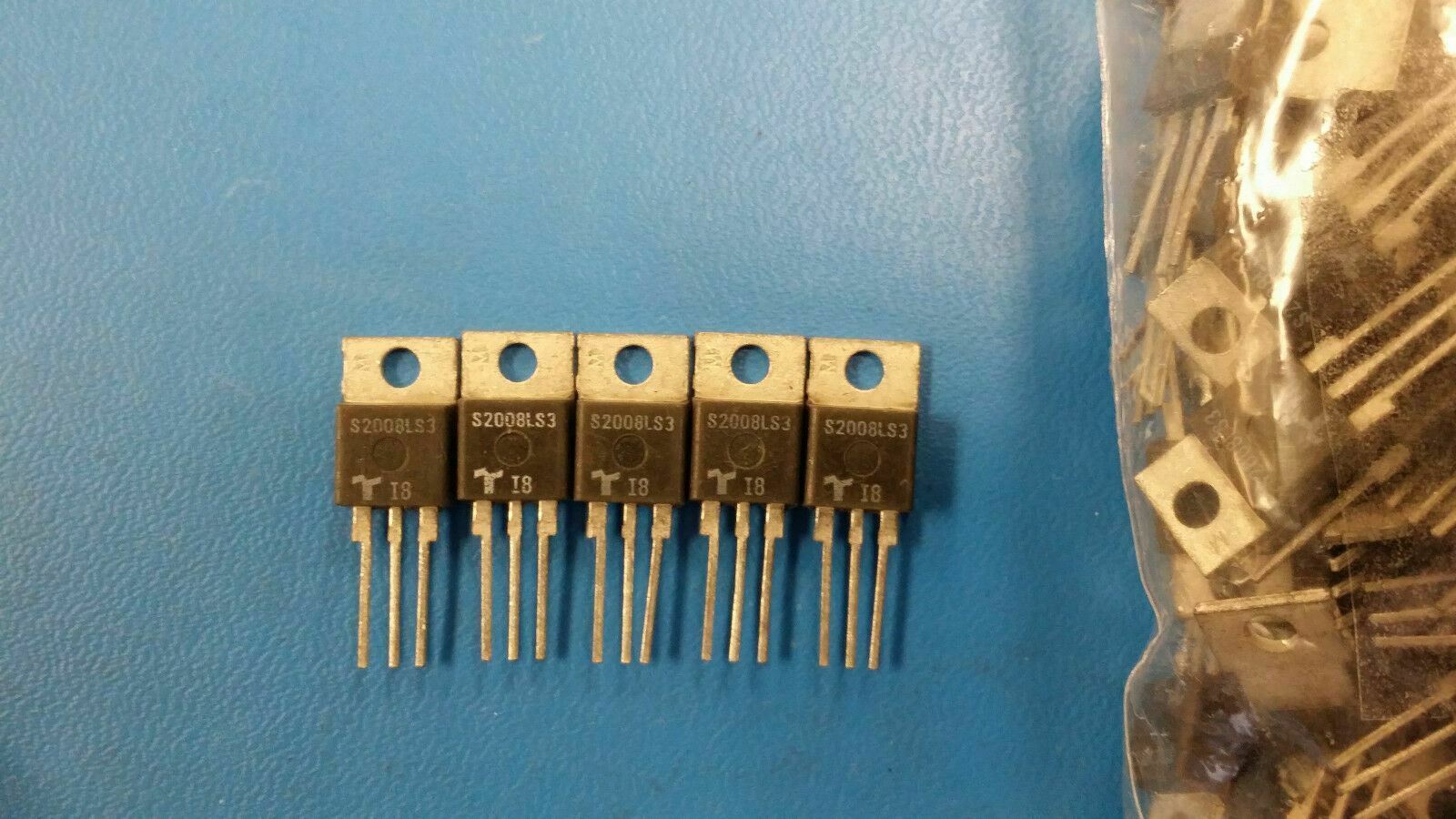

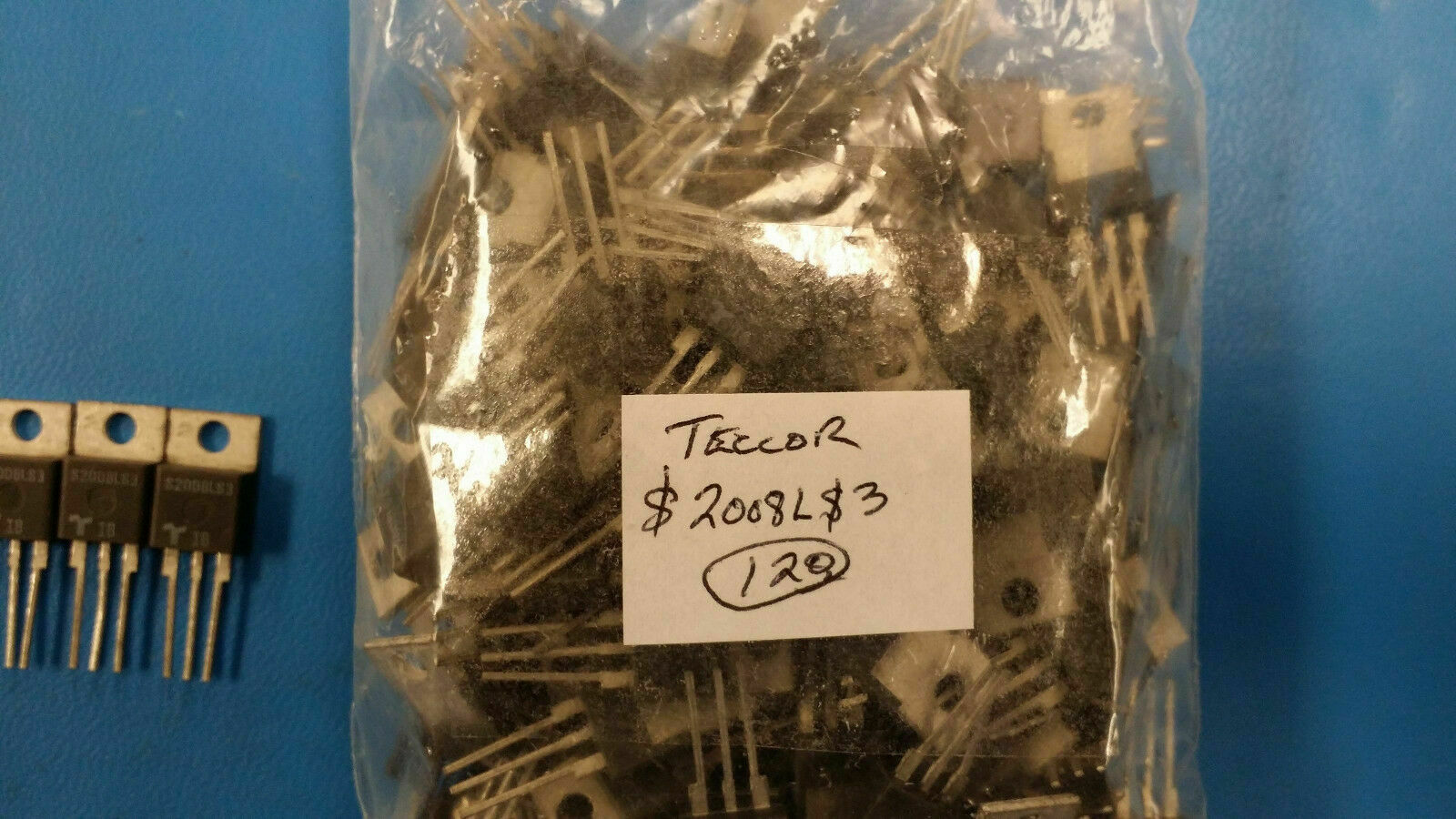

THIS LISTING IS FOR (5 PCS) OF S2008LS3 BY TECCOR
SCR SENS 200V 8A ISO TO-220
Manufacturer:
SCR SENS 200V 8A ISO TO-220
Manufacturer:
| Littelfuse | ||
| Product Category: | SCRs | |
| Rated Repetitive Off-State Voltage VDRM: | 200 V | |
| Off-State Leakage Current @ VDRM IDRM: | 0.005 mA | |
| On-State RMS Current - It RMS: | 8 A | |
| Vf - Forward Voltage: | 1.6 V | |
| Maximum Gate Peak Inverse Voltage: | 1 V | |
| Gate Trigger Voltage - Vgt: | 0.8 V | |
| Gate Trigger Current - Igt: | 500 uA | |
| Holding Current Ih Max: | 8 mA | |
| Mounting Style: | Through Hole | |
| Package / Case: | TO-220 | |
| Packaging: | Bulk | |
| Brand: | Littelfuse | |
| Current Rating: | 8 A |
|
| Maximum Operating Temperature: | + 110 C |
|
| Minimum Operating Temperature: | - 40 C |
|
| Non Repetitive On-State Current: | 100 A |
