(5 PCS) RL855-222K JW MILLER FIXED IND 2.2mH 180mA 11.1 Ohm 10%
Tax included.

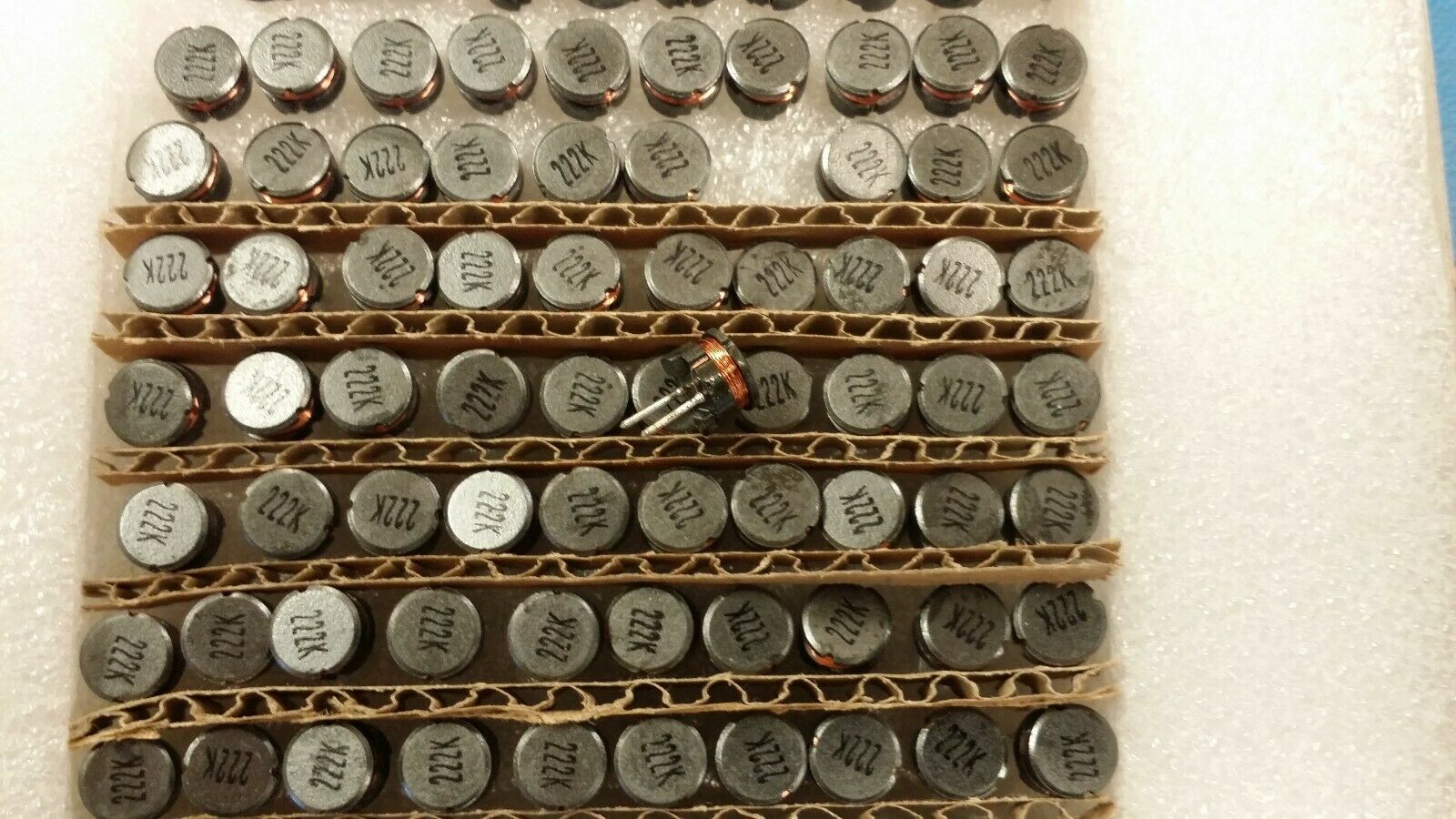

THIS LISTING IS FOR (5 PCS) OF RL855-222K BY JW MILLER
FIXED IND 2.2mH 180mA 11.1 Ohm 10%
Categories Inductors, Coils, Chokes
Fixed Inductors
Manufacturer JW Miller/Bourns Inc.
Series RL855
Packaging Bulk
Part Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 2.2mH
Tolerance ±10%
Current Rating (Amps) 180mA
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 11.1Ohm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -30°C ~ 100°C
Inductance Frequency - Test 1kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Supplier Device Package -
Size / Dimension 0.307" Dia (7.80mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Part Number RL855
