(5 PCS) RC4560M RAYTHEON OP AMP 2 Func 7000uV Offset-Max BIPolar SOIC-8
Tax included.

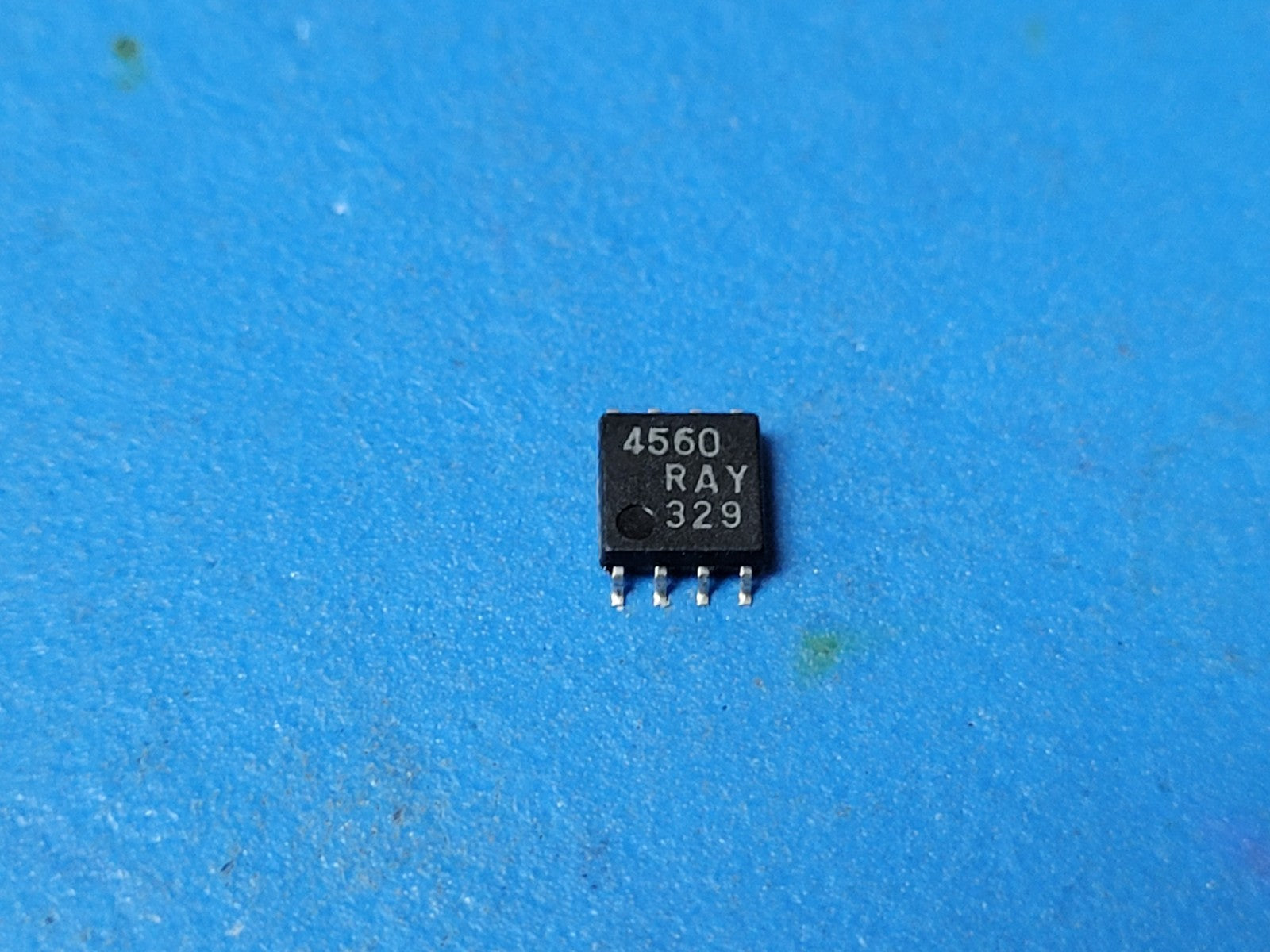

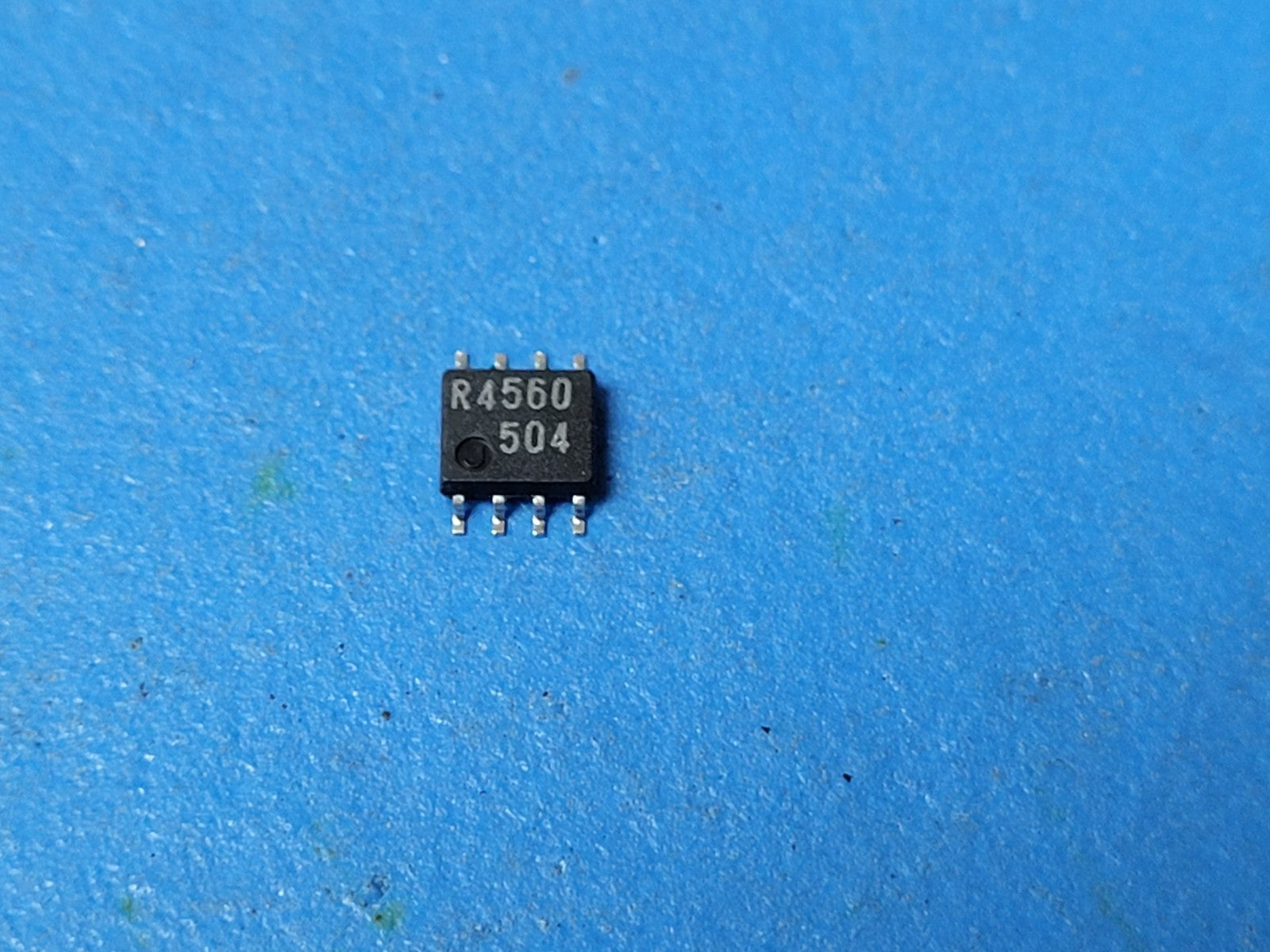

THIS IS FOR (5 PCS) OF RC4560M BY RAYTHEON
OP AMP 2 Func 7000uV Offset-Max BIPolar SOIC-8
Part #: RC4560M
Obsolete
Part Category: Operational Amplifiers
Manufacturer: RAYTHEON SEMICONDUCTOR
Description: Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Amp Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) (uA) 0.8000000000000000
Bias Current-Max (IIB) @25C (uA) 0.5000000000000000
Common-mode Reject Ratio-Nom (dB) 90
Frequency Compensation YES
Input Offset Voltage-Max (uV) 7000.00000000
JESD-30 Code R-PDSO-G8
J-STD-609 Code e0
Low-Offset NO
Neg Supply Voltage Limit-Max (V) -18.0000
Negative Supply Voltage-Nom (V) -15.0000
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max (Cel) 75
Operating Temperature-Min (Cel) -20.0000
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
DLA Qualification Not Qualified
Slew Rate-Nom (V/us) 4.00000000
Supply Current-Max (mA) 7.70000000
Supply Voltage Limit-Max (V) 18.0000
Supply Voltage-Nom (V) 15
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Unity Gain BW-Nom (kHz) 10000.0000000000000000
Voltage Gain-Min 15000.0000000000000000
