(5 PCS) QS74FCT373ATSO QUALITY Bus Driver, 1-Func, 8-Bit, CMOS, SOIC-20
Tax included.

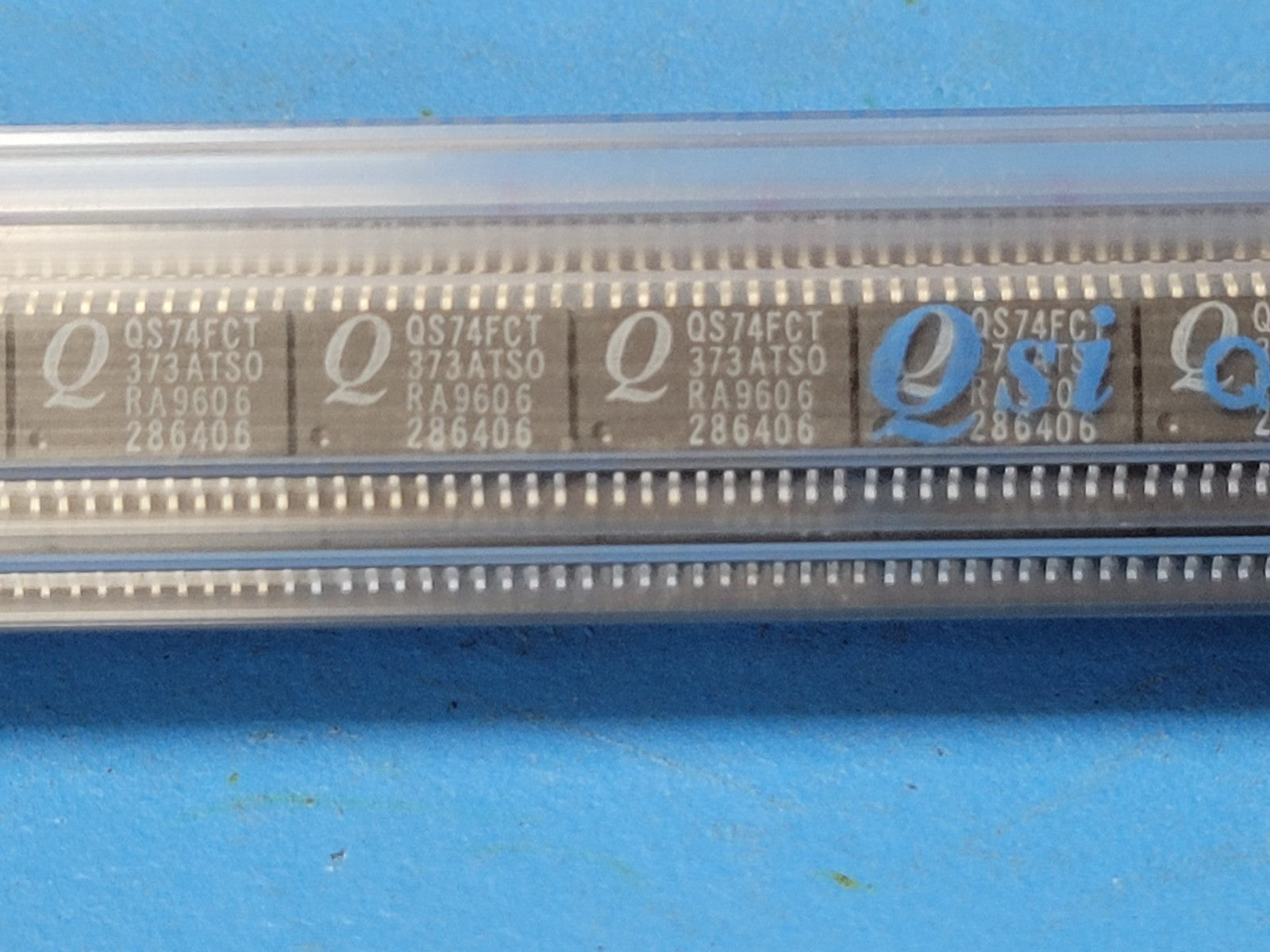

THIS IS FOR (5 PCS) OF QS74FCT373ATSO BY QUALITY
Bus Driver, 1-Func, 8-Bit, CMOS, SOIC-20
Part #: QS74FCT373ATSO
Obsolete
Part Category: Bus Driver/Transceivers
Manufacturer: QUALITY SEMICONDUCTOR INC
Description: Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20
Status Discontinued
Family FCT
JESD-30 Code R-PDSO-G20
J-STD-609 Code e0
Length (mm) 12.8270
Load Capacitance (pF) 50.0000
Logic IC Type BUS DRIVER
Output Low Current-Max (mA) 48.000000000000000
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Propagation Delay-Max@Nom-Sup (ns) 5.200000000000000000
Propagation Delay (ns) 8.5000
DLA Qualification Not Qualified
Seated Height-Max (mm) 2.6416
Supply Voltage-Max (V) 5.2500
Supply Voltage-Min (V) 4.7500
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 7.5000
