(5 PCS) QS74FCT2574ATQ Bus Driver 1-Func 8-Bit True Output CMOS SSOP20

$4.95
Unit price per

Tax included.

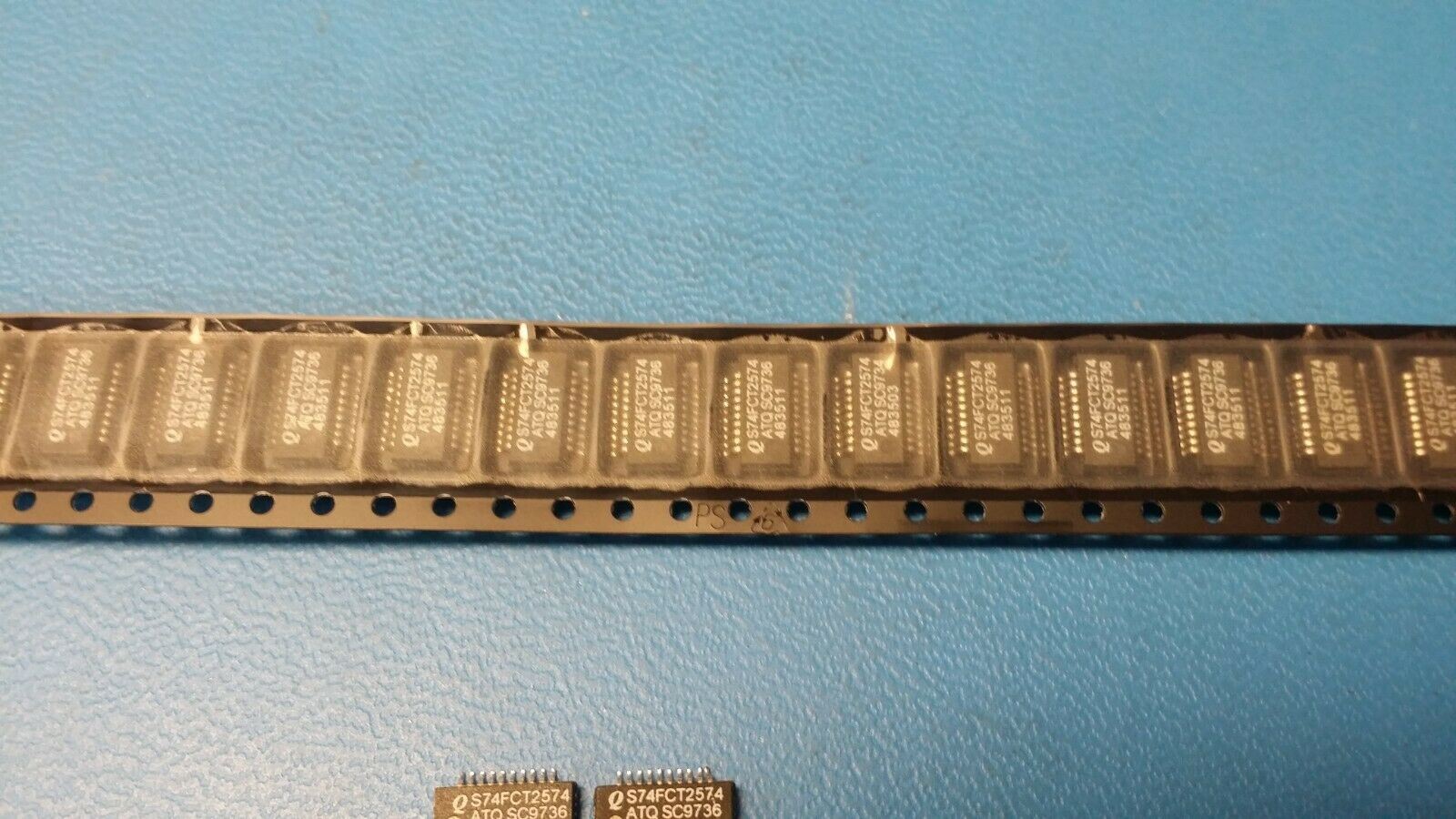

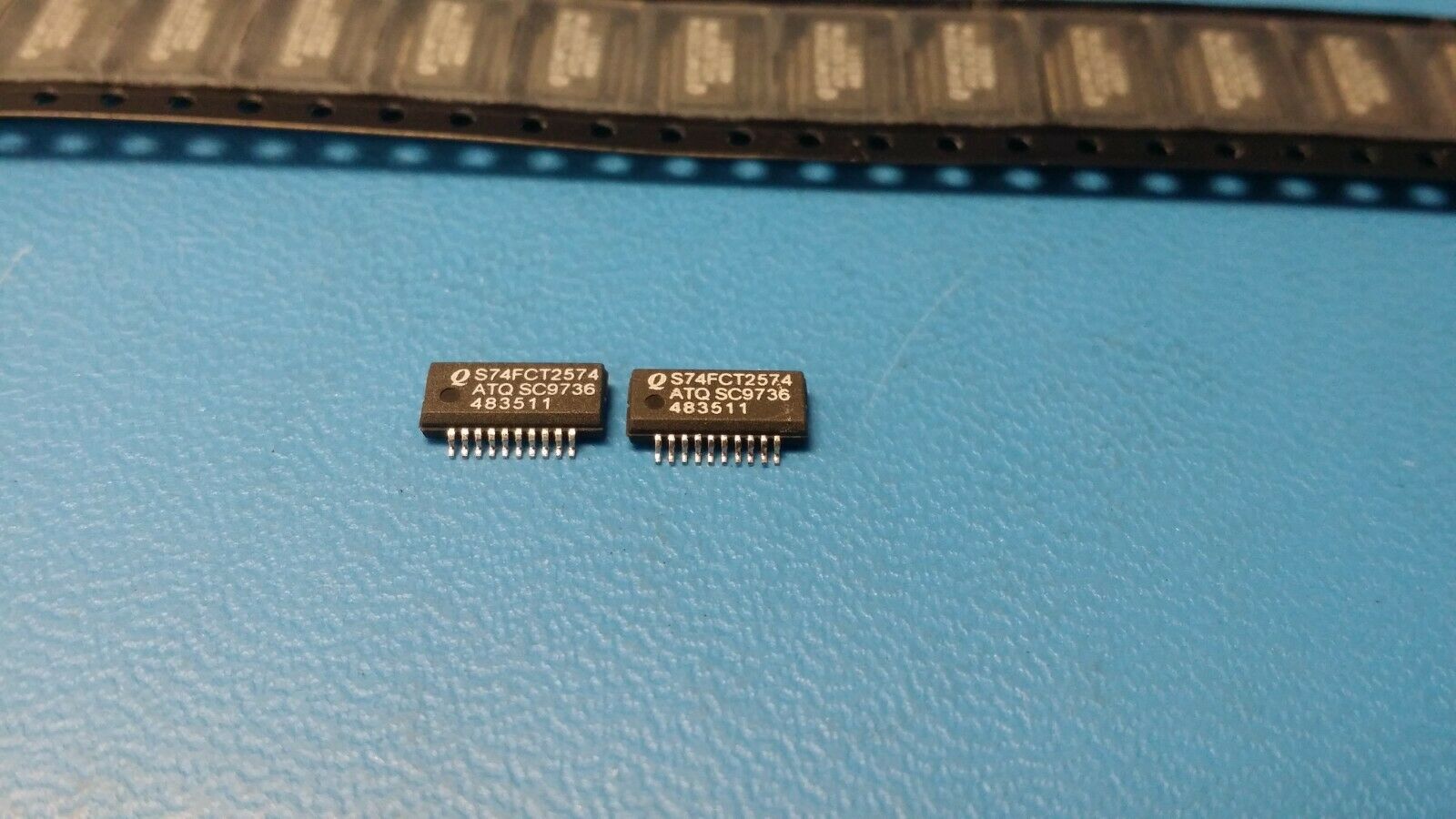

THIS LISTING IS FOR (5 PCS) OF QS74FCT2574ATQ BY QUALITY SEMI

Bus Driver 1-Func 8-Bit True Output CMOS SSOP20

Part #: QS74FCT2574ATQ

Part Category: Logic ICs

Manufacturer: Integrated Device Technology (QUALITY SEMICONDUCTOR)

Description: Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20

Status Discontinued

Logic IC Type BUS DRIVER

Sub Category FF/Latches

Family FCT

JESD-30 Code R-PDSO-G20

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Max I(ol) 0.012 Amp

Number of Bits 8

Number of Functions 1

Number of Ports 2

Number of Terminals 20

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Characteristics 3-STATE WITH SERIES RESISTOR

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code SSOP

Package Equivalence Code SSOP20,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Prop. Delay@Nom-Sup 6.5 ns

Propagation Delay (tpd) 6.5 ns

Qualification Status Not Qualified

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount YES

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 0.635 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Trigger Type POSITIVE EDGE

Additional Feature BROADSIDE VERSION OF 2374
