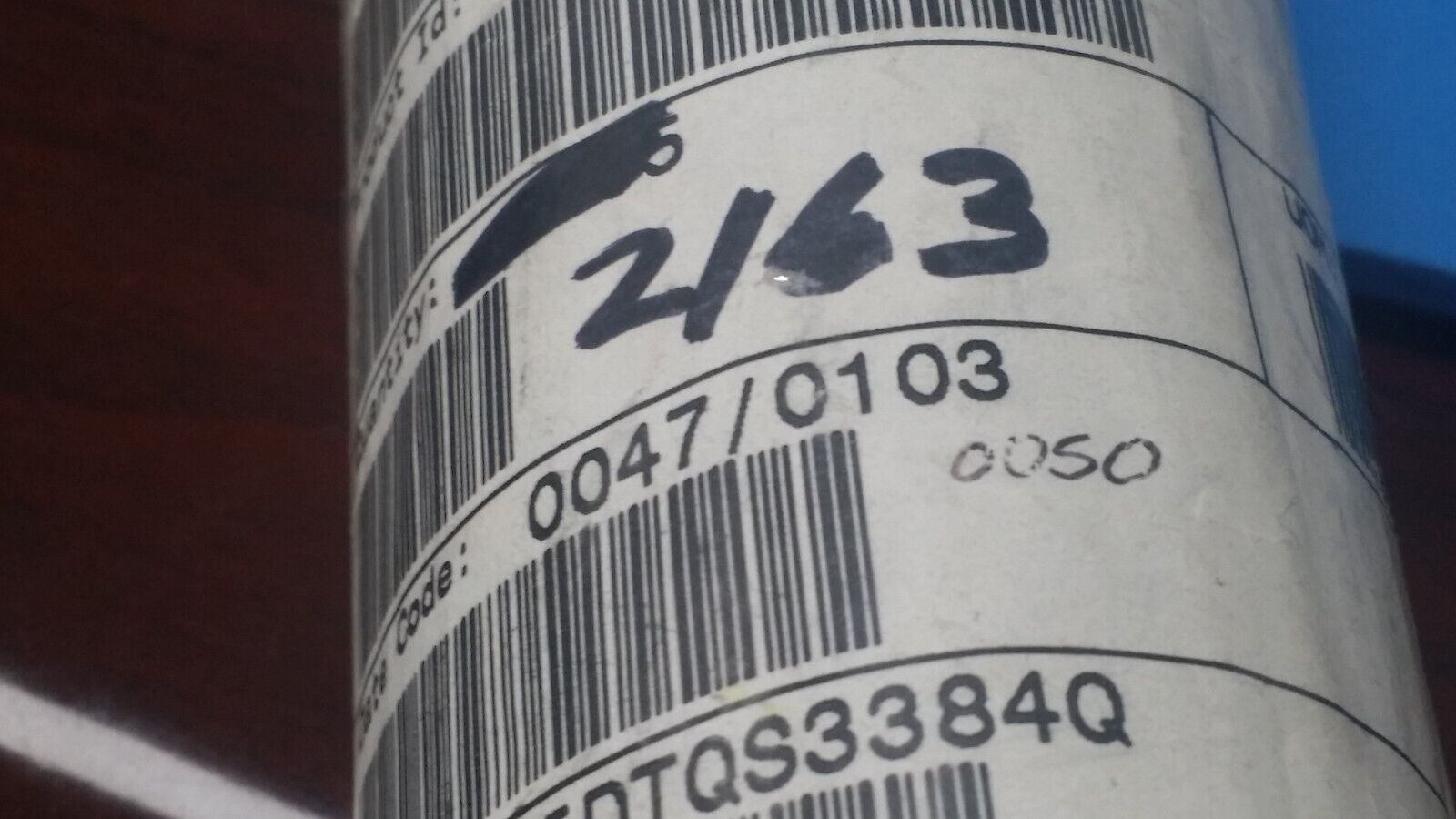

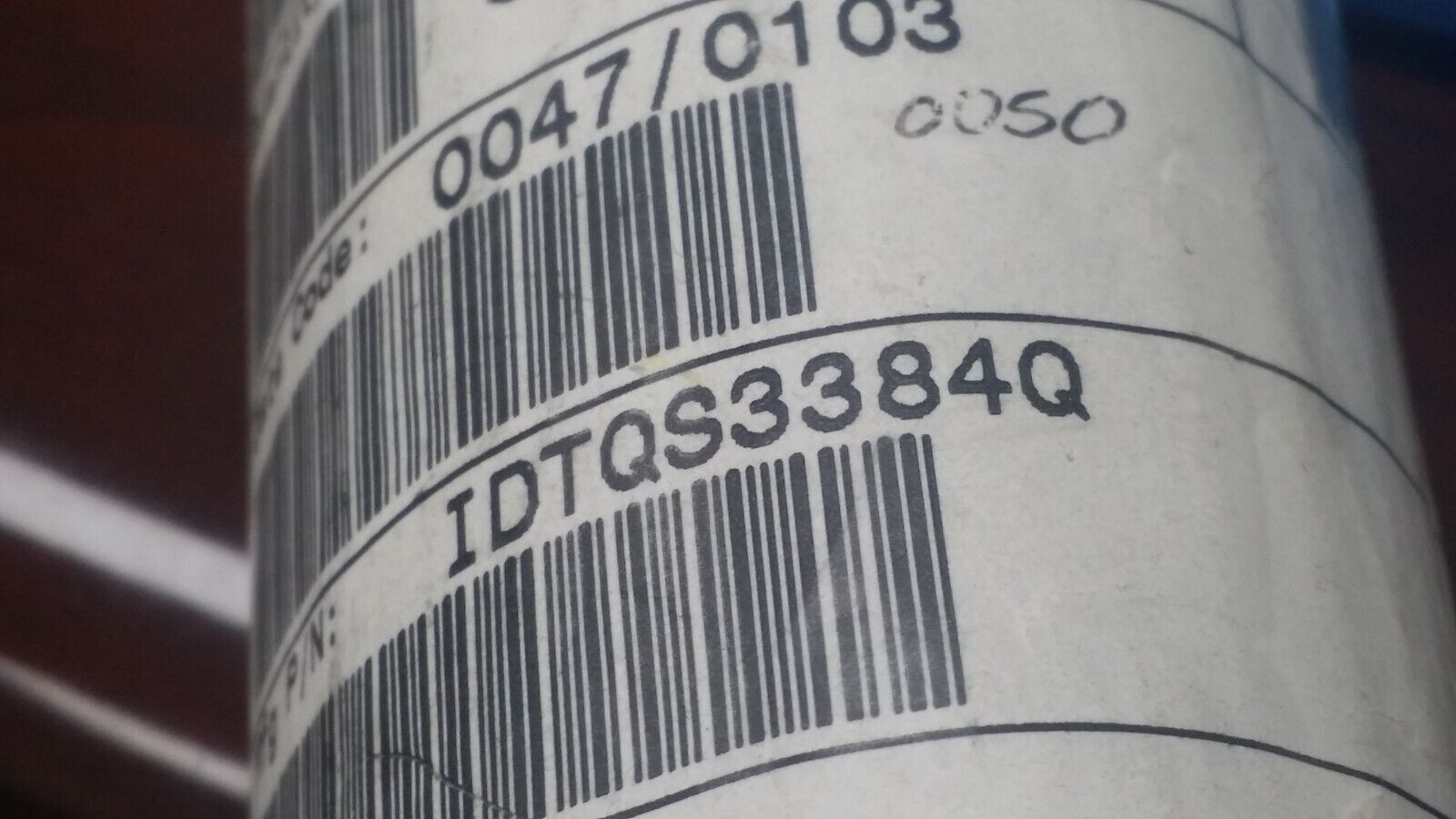

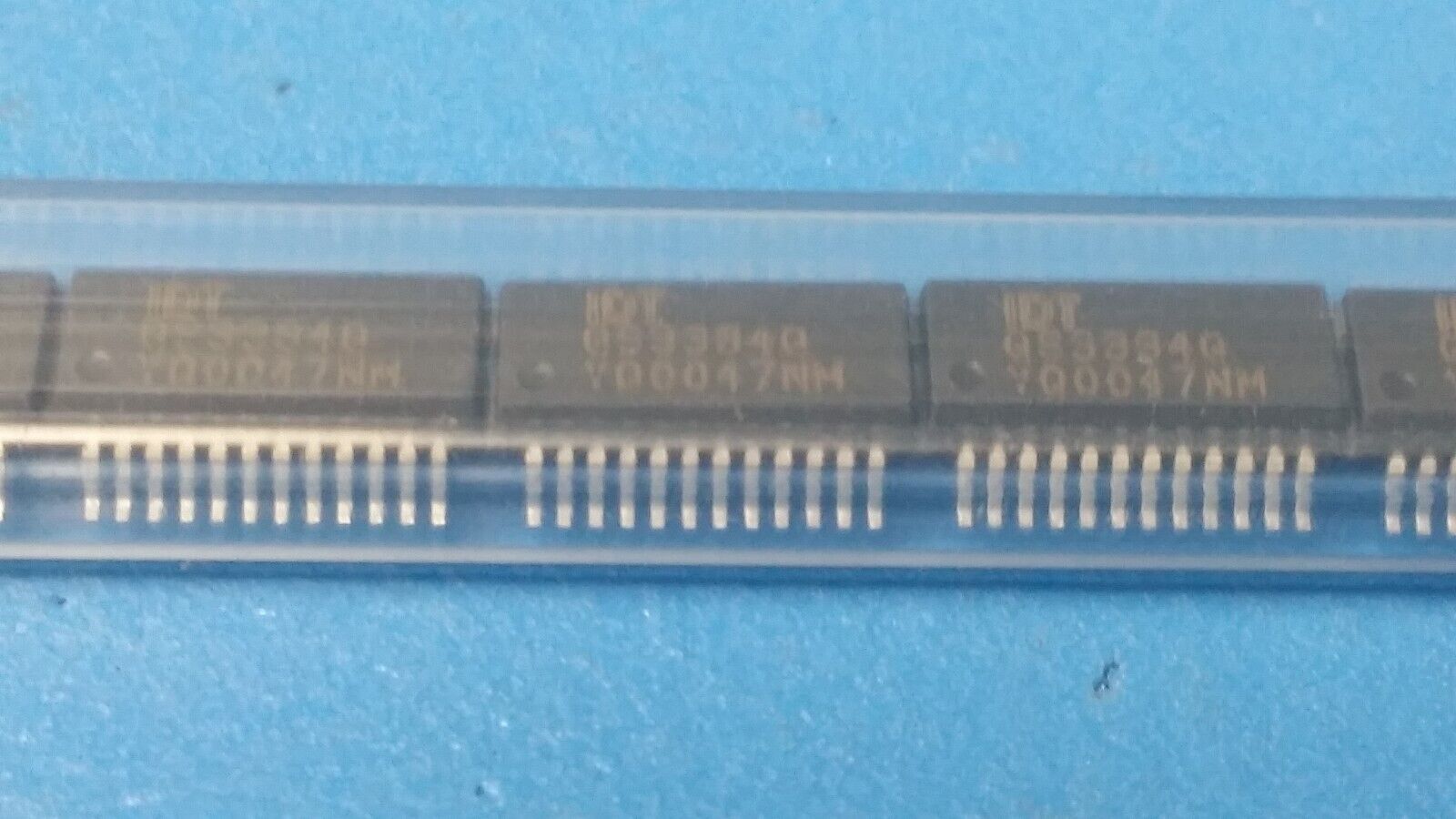

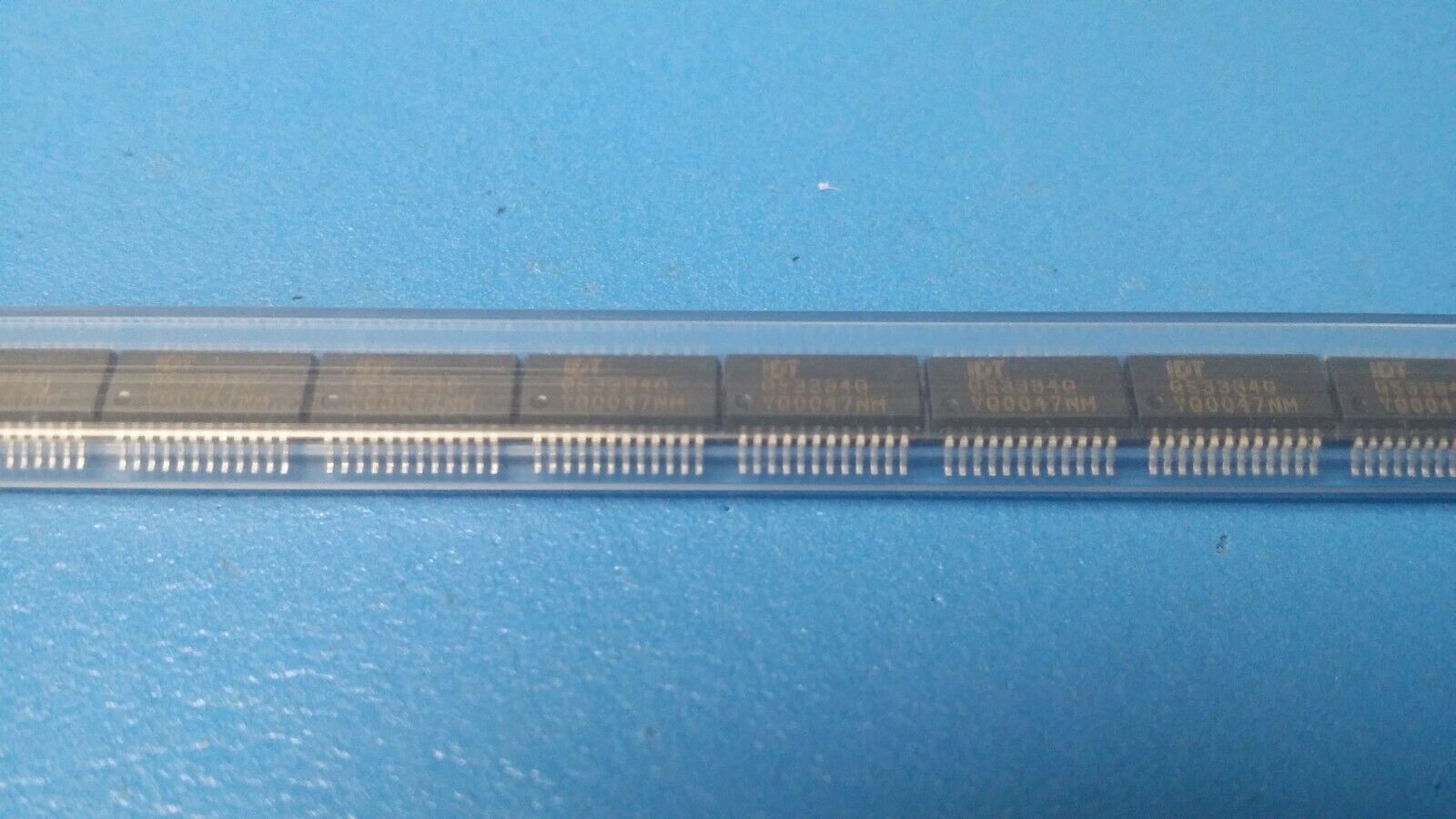

(5 PCS) QS3384Q IDT High-Speed CMOS 10-Bit Bus Switch QSOP-24
(5 PCS) QS3384Q IDT High-Speed CMOS 10-Bit Bus Switch QSOP-24
(5 PCS) QS3384Q IDT High-Speed CMOS 10-Bit Bus Switch QSOP-24
(5 PCS) QS3384Q IDT High-Speed CMOS 10-Bit Bus Switch QSOP-24

(5 PCS) QS3384Q IDT High-Speed CMOS 10-Bit Bus Switch QSOP-24

Tax included.
Only 100 left!
THIS IS FOR (5 PCS) OF QS3384Q BY IDT
High-Speed CMOS 10-Bit Bus Switch QSOP-24

Part #: QS3384Q
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: Bus Driver, 3384 Series, 1-Func, 10-Bit, True Output, CMOS, PDSO24

Mfr Package Description QSOP-24
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Family 3384
JESD-30 Code R-PDSO-G24
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Bits 10
Number of Functions 1
Number of Ports 2
Number of Terminals 24
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP24,.24
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
Propagation Delay (tpd) 0.25  ns
Qualification Status Not Qualified
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75  V
Supply Voltage-Max (Vsup) 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.635  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 8.65  mm
Width 3.9116  mm
Additional Feature TTL COMPATIBLE BUS SWITCH
