(5 PCS) QS3245Q QUALITY SEMI, Bus Transceiver, 1-Func, 8-Bit, CMOS, SSOP20

$4.95
Unit price per

Tax included.

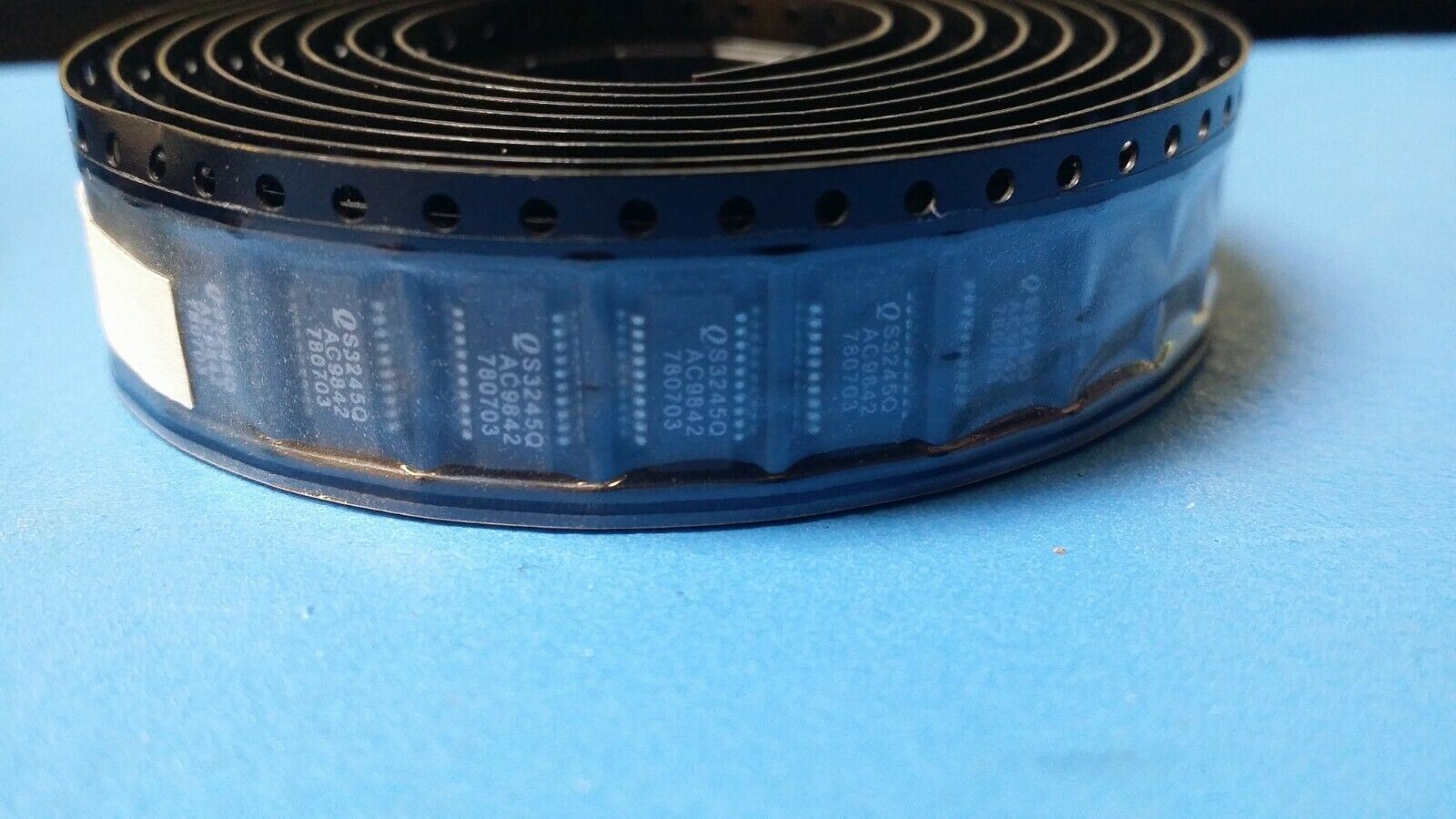

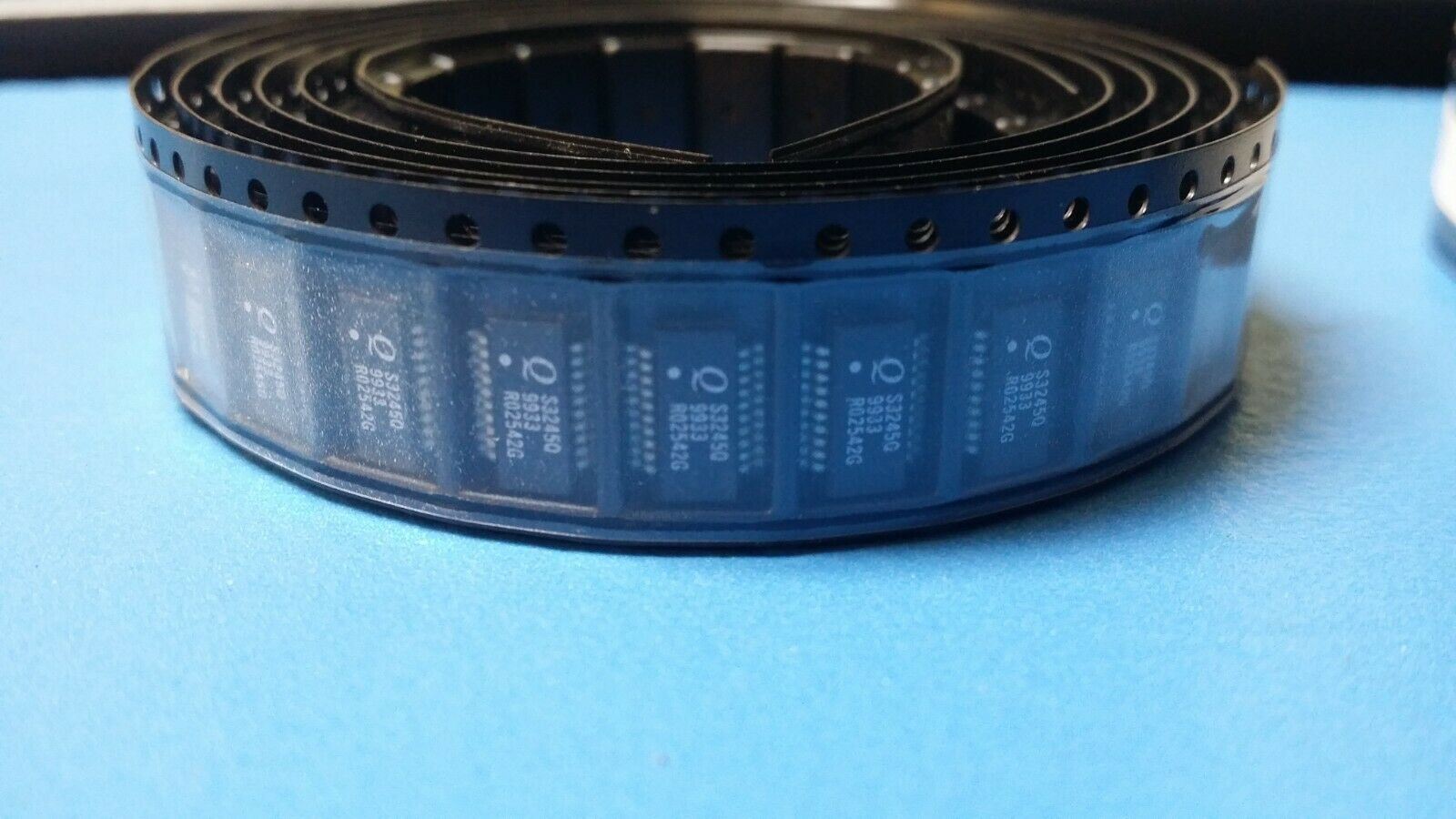

THIS LISTING IS FOR (5 PCS) OF QS3245Q BY QUALITY SEMI

Bus Transceiver, 1-Func, 8-Bit, CMOS, SSOP20

Part #: QS3245Q

Part Category: Logic ICs

Manufacturer: Integrated Device Technology (QUALITY SEMICONDUCTOR)

Description: Bus Transceiver, 3245 Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20

Logic IC Type BUS TRANSCEIVER

Sub Category Bus Driver/Transceivers

Family 3245

JESD-30 Code R-PDSO-G20

JESD-609 Code e0

Number of Bits 8

Number of Functions 1

Number of Ports 2

Number of Terminals 20

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code SSOP

Package Equivalence Code SSOP20,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Propagation Delay (tpd) 0.25 ns

Qualification Status Not Qualified

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 0.635 mm

Terminal Position DUAL
