(5 PCS) Q8016LH6 TECCOR Thyristor TRIAC 800V 16A 3-Pin(3+Tab) TO-220AB Isolated
(5 PCS) Q8016LH6 TECCOR Thyristor TRIAC 800V 16A 3-Pin(3+Tab) TO-220AB Isolated

(5 PCS) Q8016LH6 TECCOR Thyristor TRIAC 800V 16A 3-Pin(3+Tab) TO-220AB Isolated

Tax included.
Only 12 left!

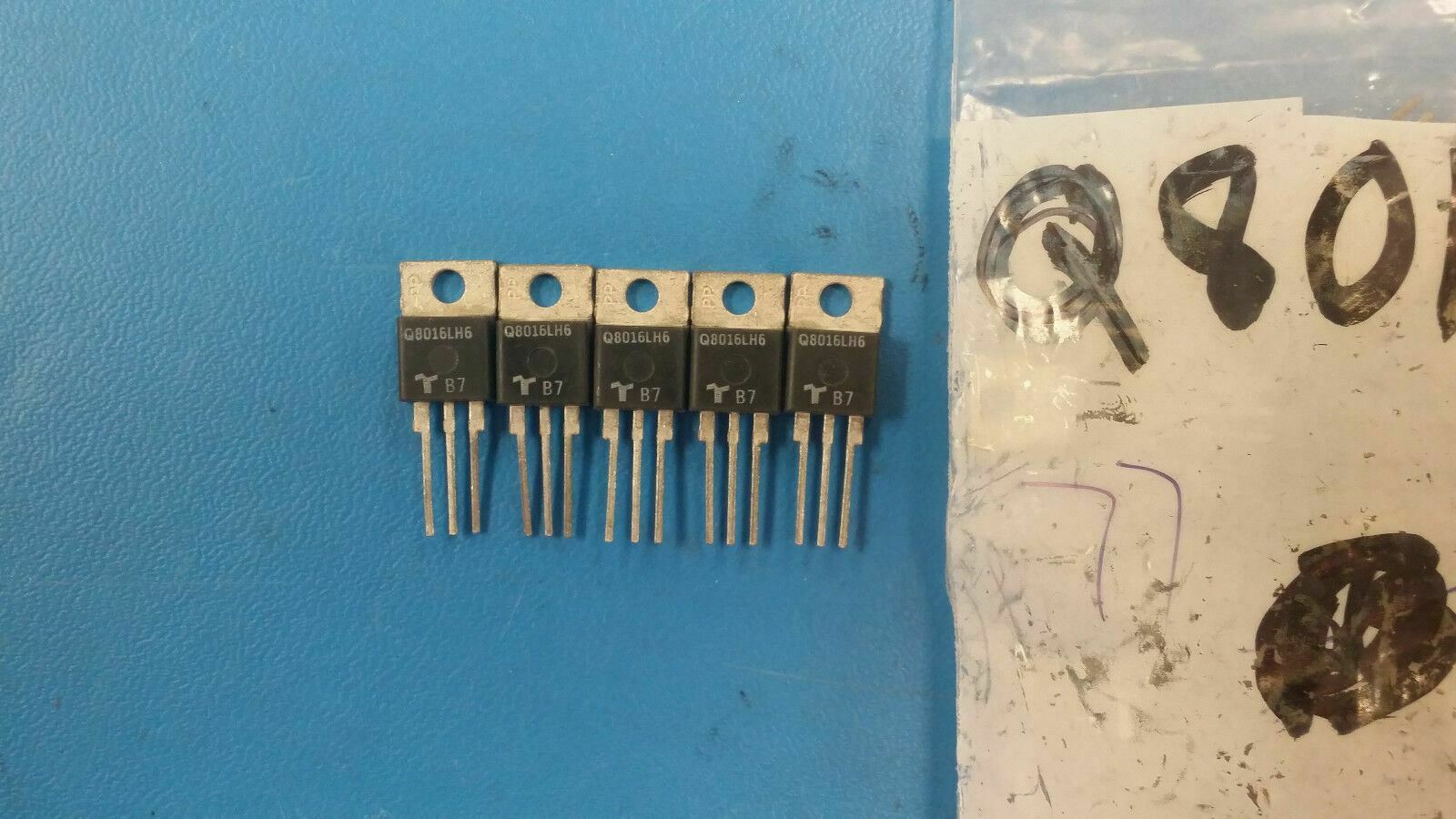

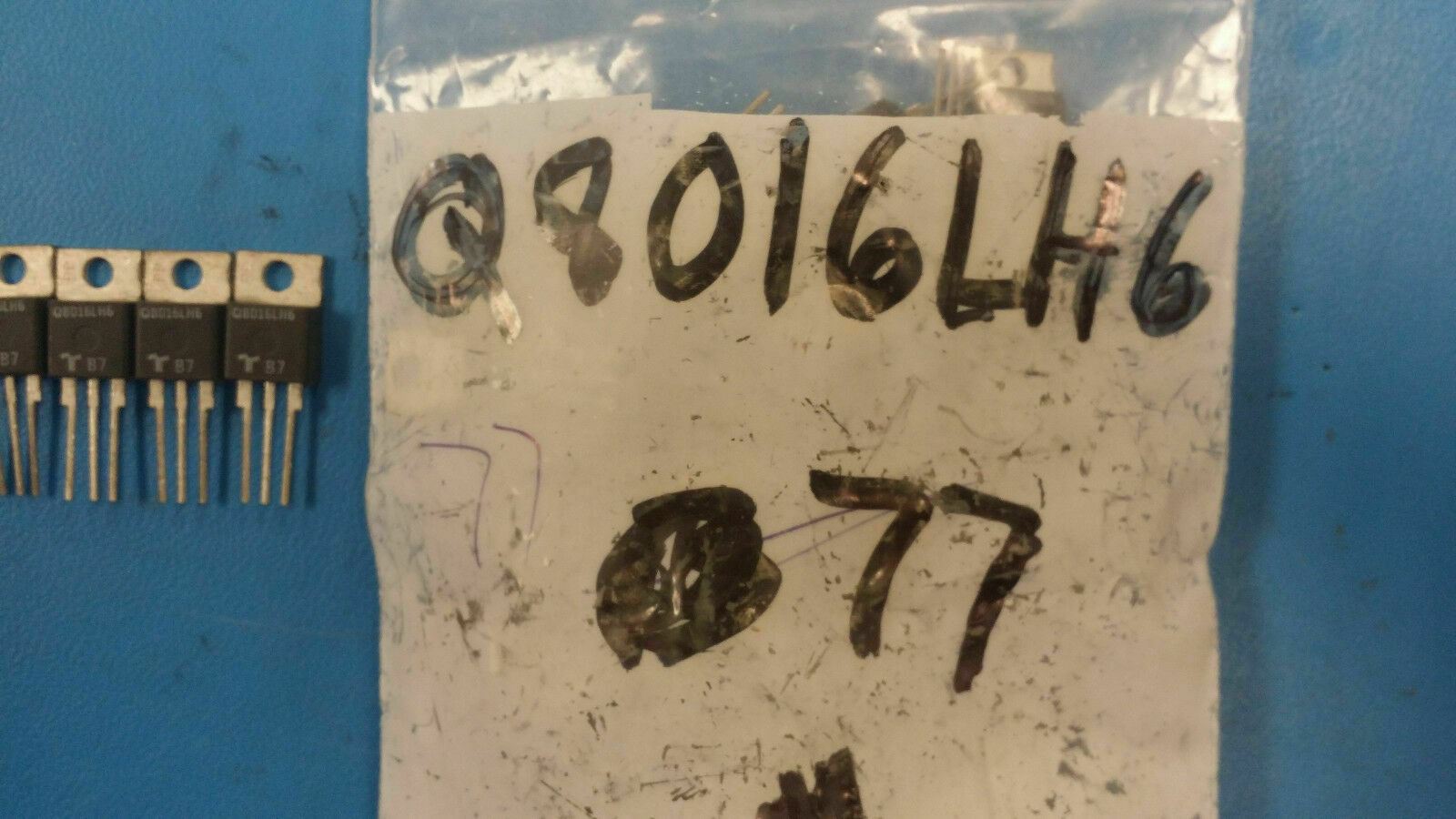

THIS LISTING IS FOR (5 PCS) OF Q8016LH6 BY TECCOR
Thyristor TRIAC 800V 16A 3-Pin(3+Tab) TO-220AB Isolated
Manufacturer:

Littelfuse
Product Category: Triacs
On-State RMS Current - It RMS: 16 A
Non Repetitive On-State Current: 167 A, 200 A
Rated Repetitive Off-State Voltage VDRM: 800 V
Off-State Leakage Current @ VDRM IDRM: 100 uA
On-State Voltage: 1.6 V
Holding Current Ih Max: 70 mA
Gate Trigger Voltage - Vgt: 2.5 V
Gate Trigger Current - Igt: 80 mA
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220-3
Brand: Littelfuse
Current Rating: 16 A
Minimum Operating Temperature: - 40 C
