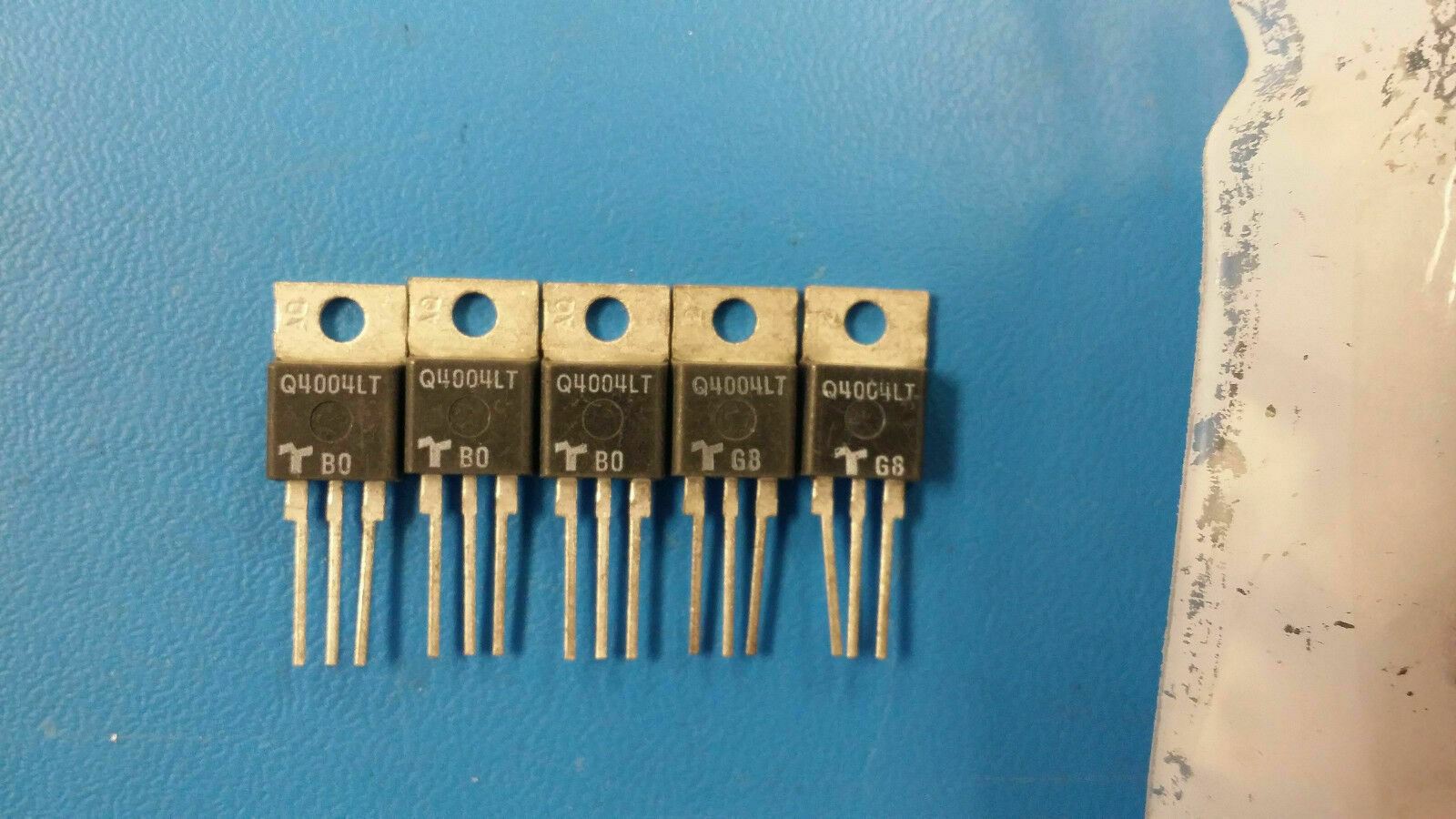

(5 PCS) Q4004LT TECCOR Thyristor TRIAC 400V 4A 3-Pin(3+Tab) TO-220AB Isolated
(5 PCS) Q4004LT TECCOR Thyristor TRIAC 400V 4A 3-Pin(3+Tab) TO-220AB Isolated
(5 PCS) Q4004LT TECCOR Thyristor TRIAC 400V 4A 3-Pin(3+Tab) TO-220AB Isolated

(5 PCS) Q4004LT TECCOR Thyristor TRIAC 400V 4A 3-Pin(3+Tab) TO-220AB Isolated

Tax included.
Only 0 left!
Will be in stock after
THIS LISTING IS FOR (5 PCS) OF Q4004LT BY TECCOR
Thyristor TRIAC 400V 4A 3-Pin(3+Tab) TO-220AB Isolated
Manufacturer:

Littelfuse
Product Category: Triacs
On-State RMS Current - It RMS: 4 A
Non Repetitive On-State Current: 46 A, 55 A
Rated Repetitive Off-State Voltage VDRM: 400 V
Off-State Leakage Current @ VDRM IDRM: 50 uA
On-State Voltage: 1.6 V
Holding Current Ih Max: 30 mA
Gate Trigger Current - Igt: 1.2 A
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220-3
Brand: Littelfuse
Breakover Current IBO Max: 25 uA
Breakover Voltage VBO: 33 V to 43 V
Current Rating: 4 A
Minimum Operating Temperature: - 40 C
Off-State Capacitance CO: 0.1 uF
