(5 PCS) PLHS16L8AA SIGNETICS OT PLD, 20ns, PAL-Type, TTL, PLCC20
Tax included.

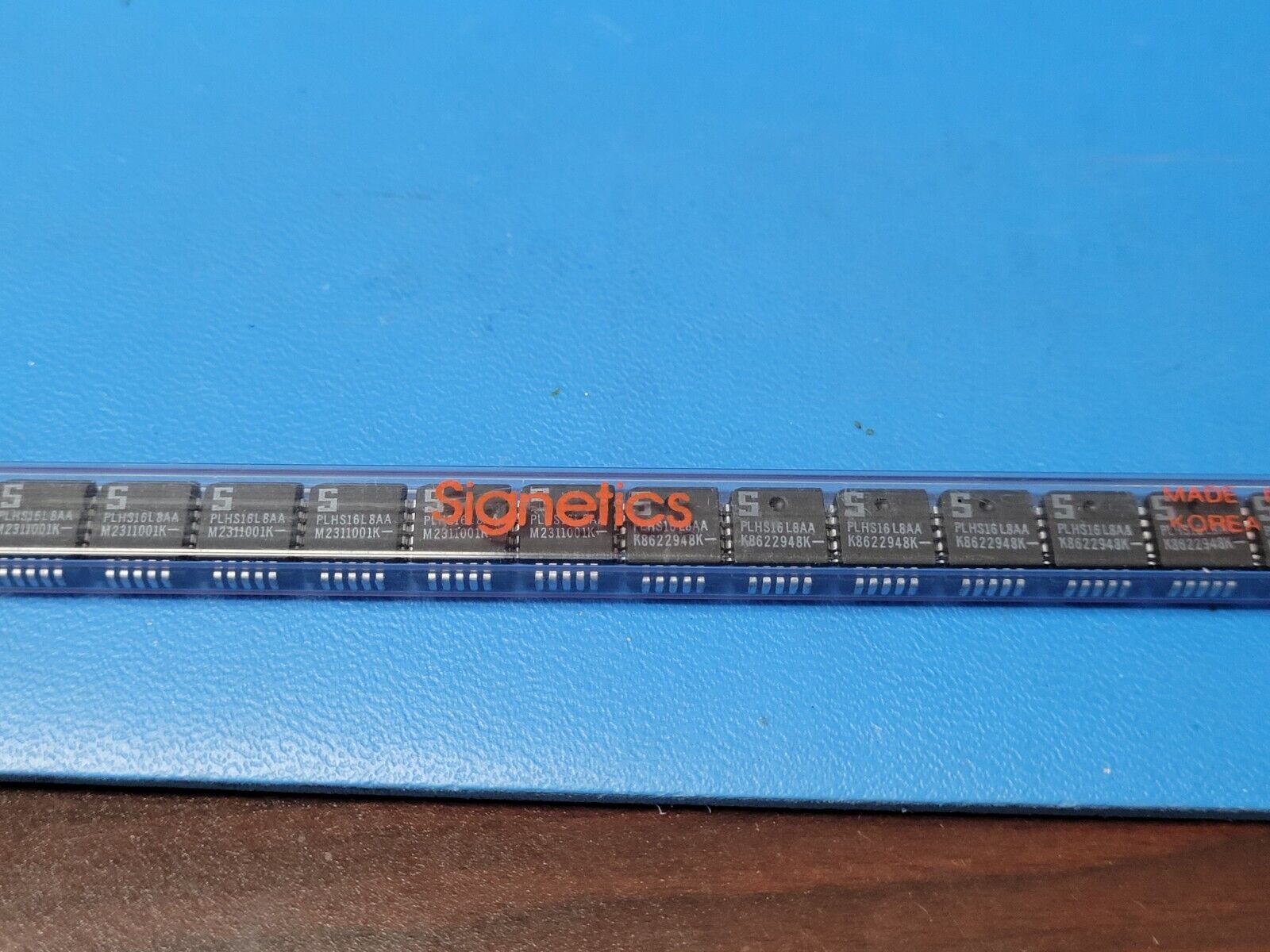

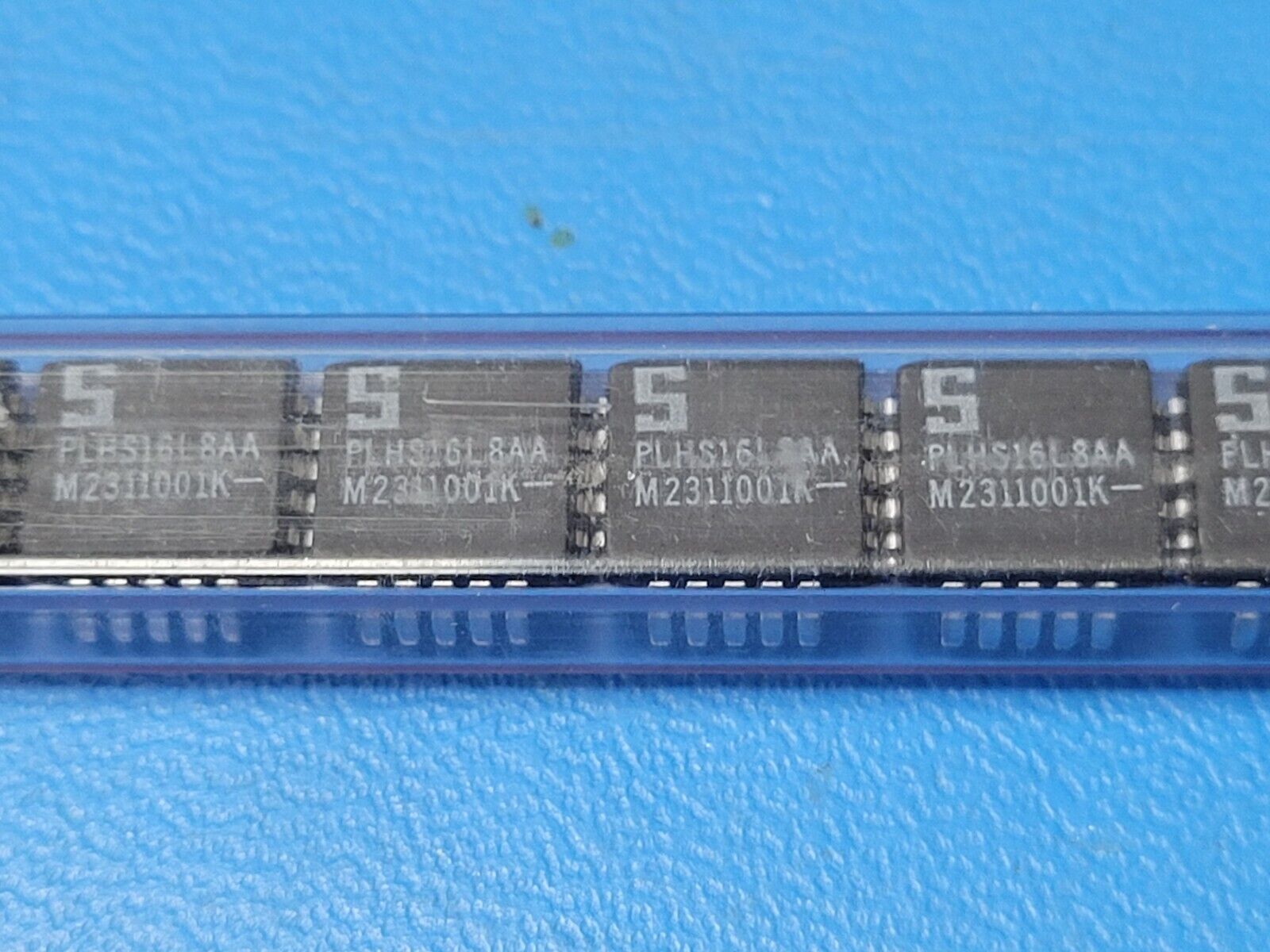

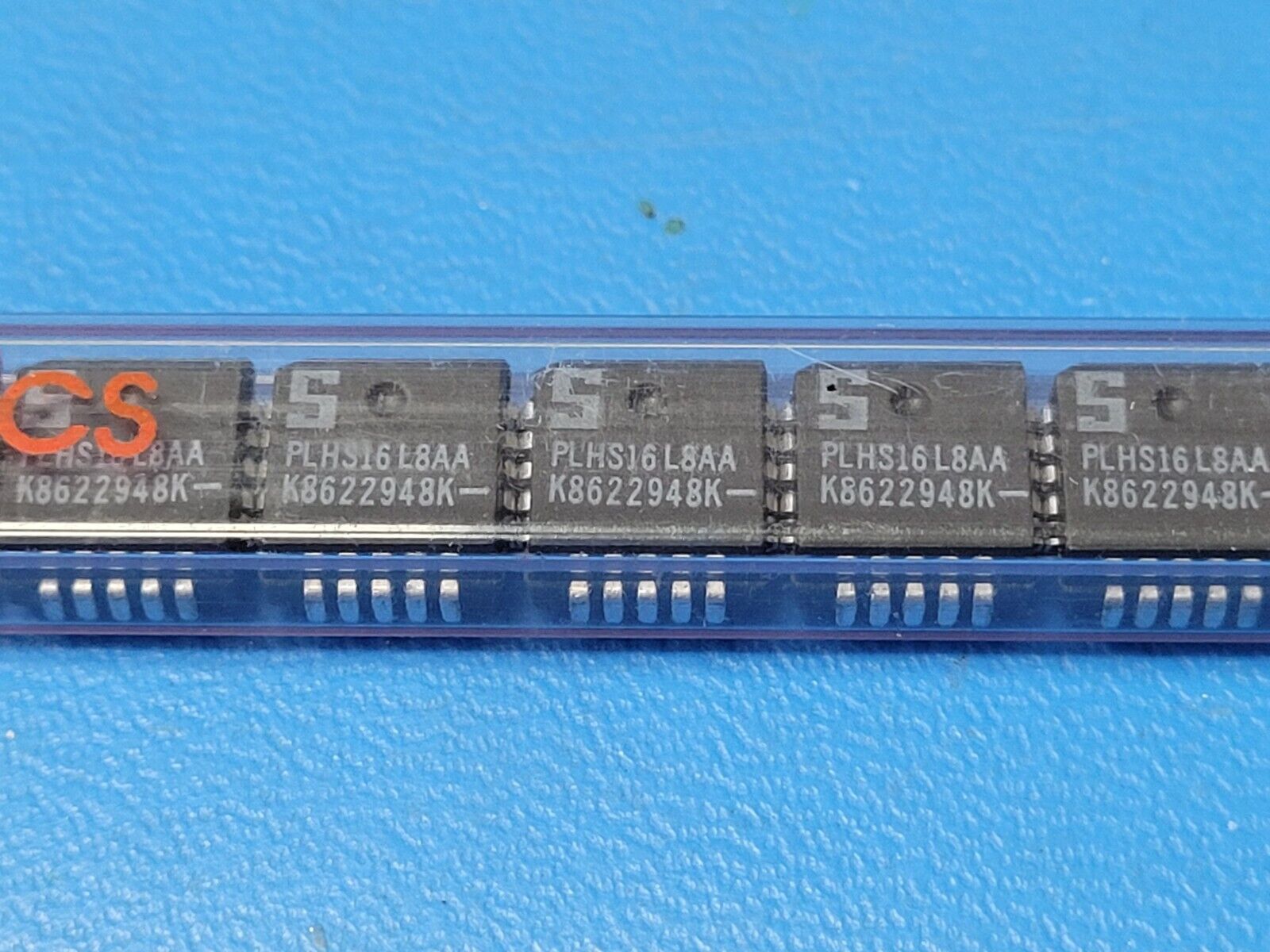

THIS IS FOR (5 PCS) OF PLHS16L8AA BY SIGNETICS
OT PLD, 20ns, PAL-Type, TTL, PLCC20
Status Transferred
Programmable Logic Type OT PLD
Architecture PAL-TYPE
JESD-30 Code S-PQCC-J20
JESD-609 Code e0
Number of Inputs 16.0
Number of Outputs 8.0
Number of Product Terms 64.0
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Function COMBINATORIAL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC20,.4SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Propagation Delay 20.0 ns
Qualification Status Not Qualified
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
