(5 PCS) PI74FCT244TSX Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS SOIC20
Tax included.

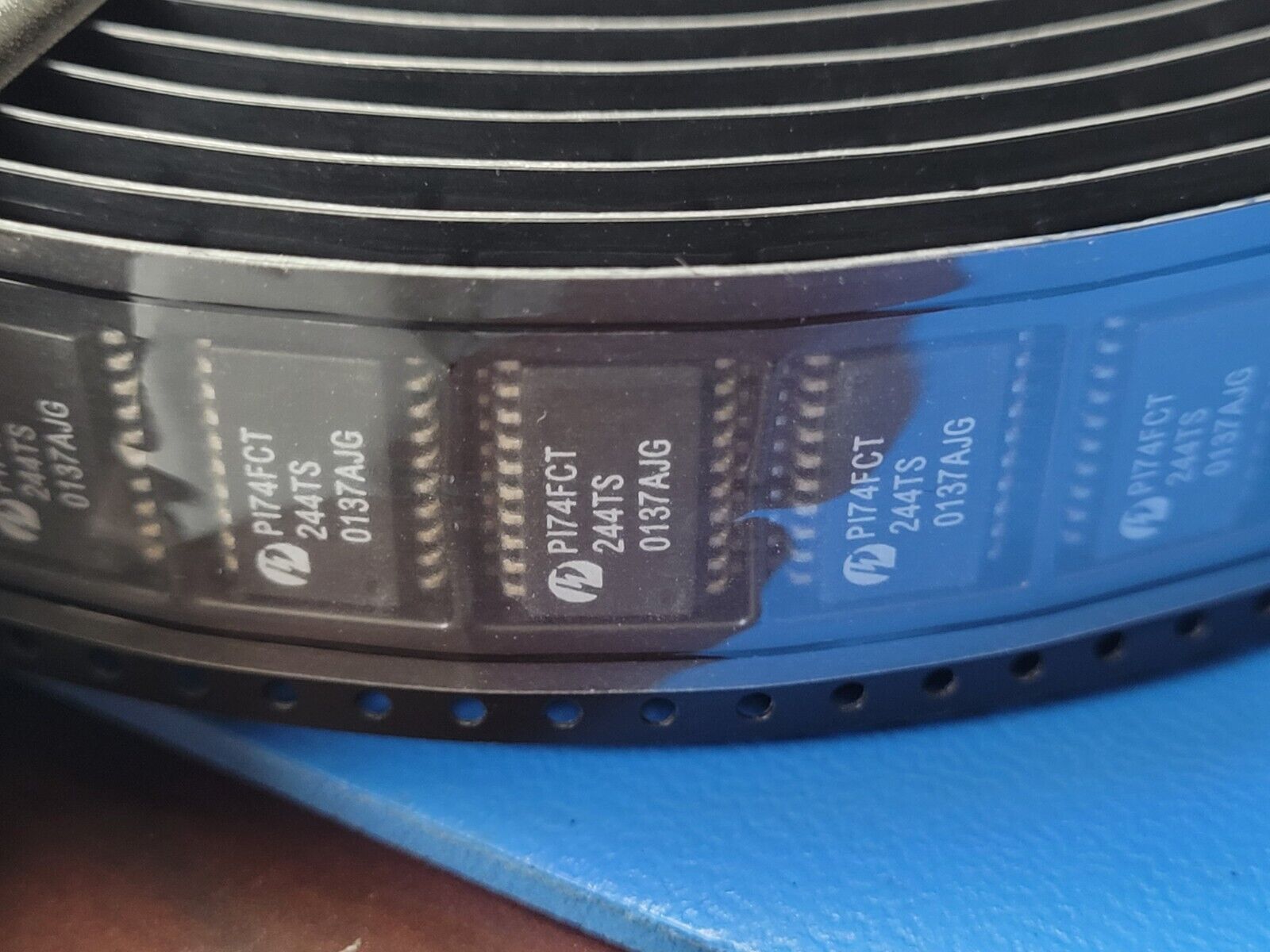

THIS IS FOR (5 PCS) OF PI74FCT244TSX BY PERICOM
Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, SOIC20

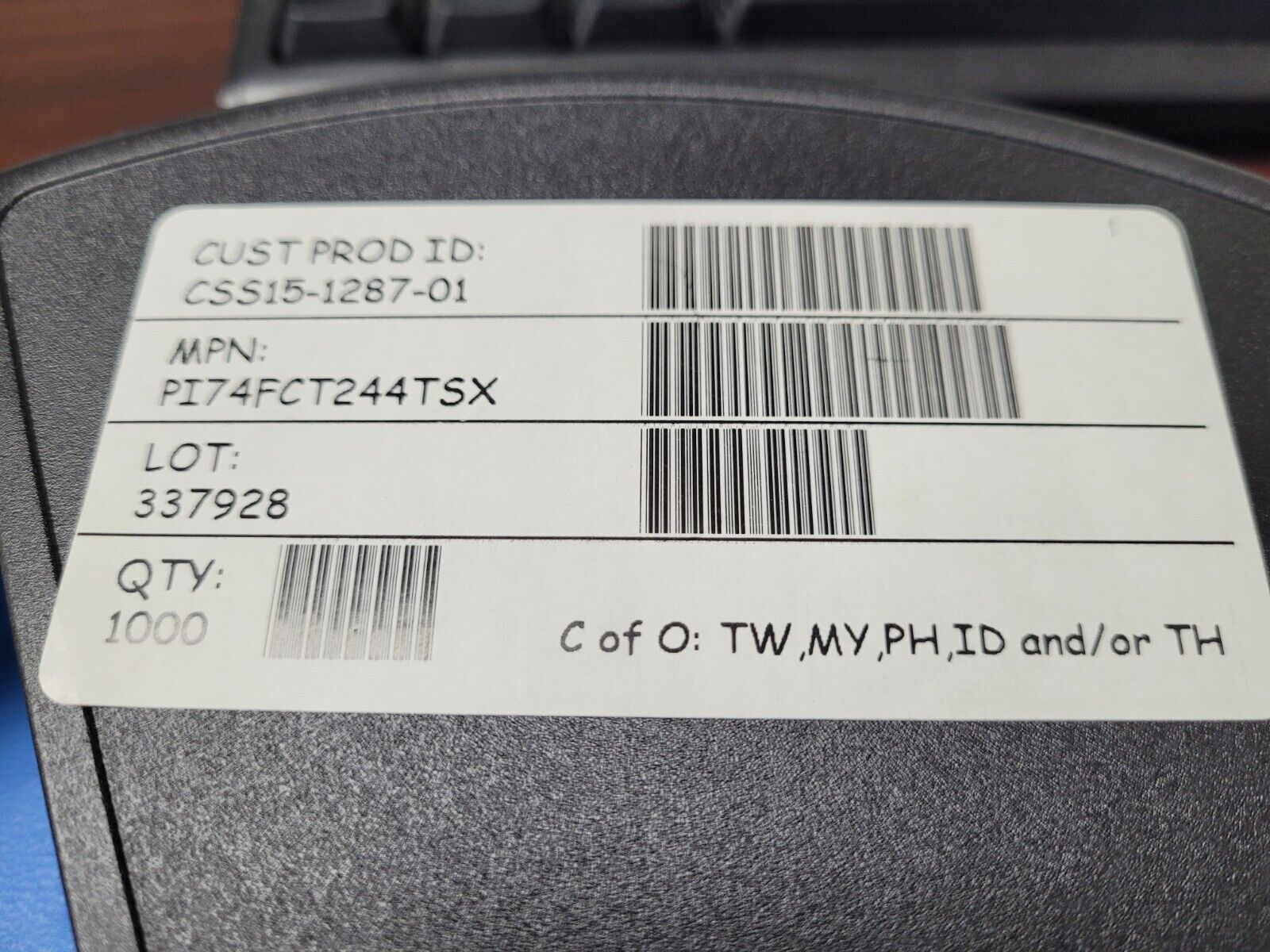

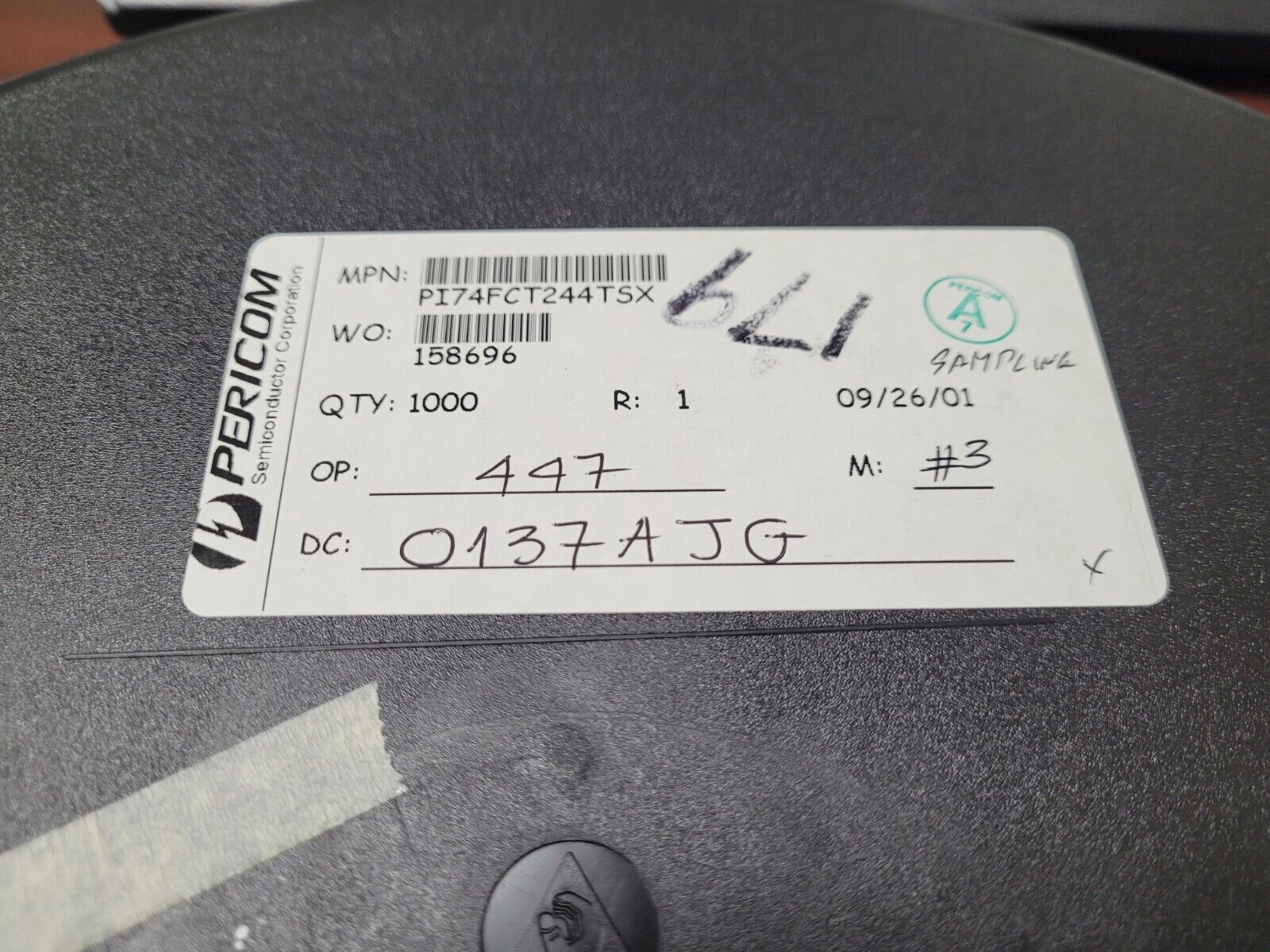

Part #: PI74FCT244TSX
Part Category: Logic ICs
Manufacturer: Pericom Semiconductor Corp.
Description: Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20
Mfr Package Description 0.300 INCH, PLASTIC, SOIC-20
REACH Compliant Yes
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE LOW
Family FCT
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.064 Amp
Number of Bits 4
Number of Functions 2
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Prop. Delay@Nom-Sup 6.5 ns
Propagation Delay (tpd) 6.5 ns
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 12.795 mm
Width 7.5 mm
