(5 PCS) PI74FCT2257TQ Multiplexer 4-Func 2 Line Input 1 Line Output Cmos SSOP16

$4.95
Unit price per

Tax included.

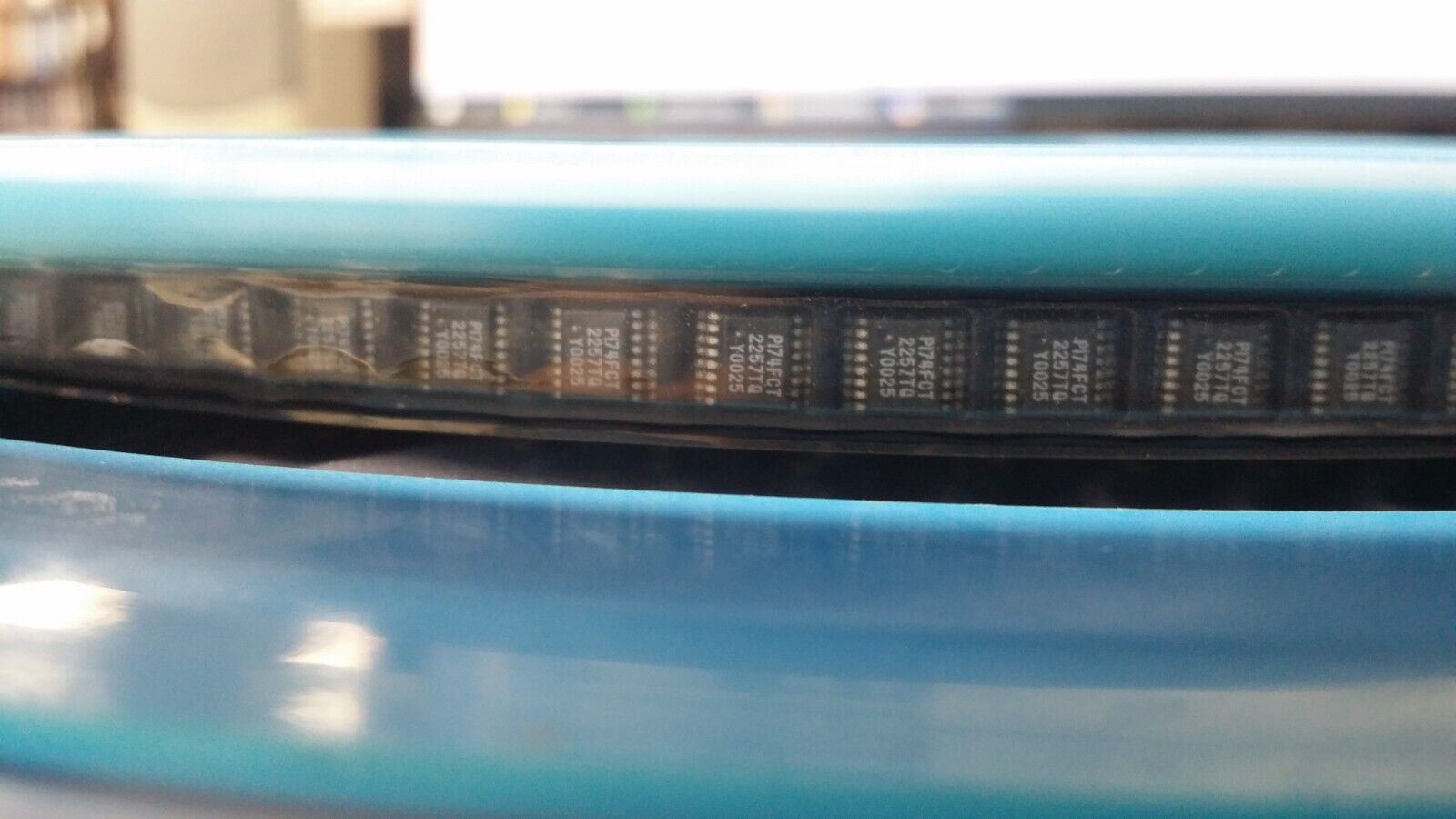

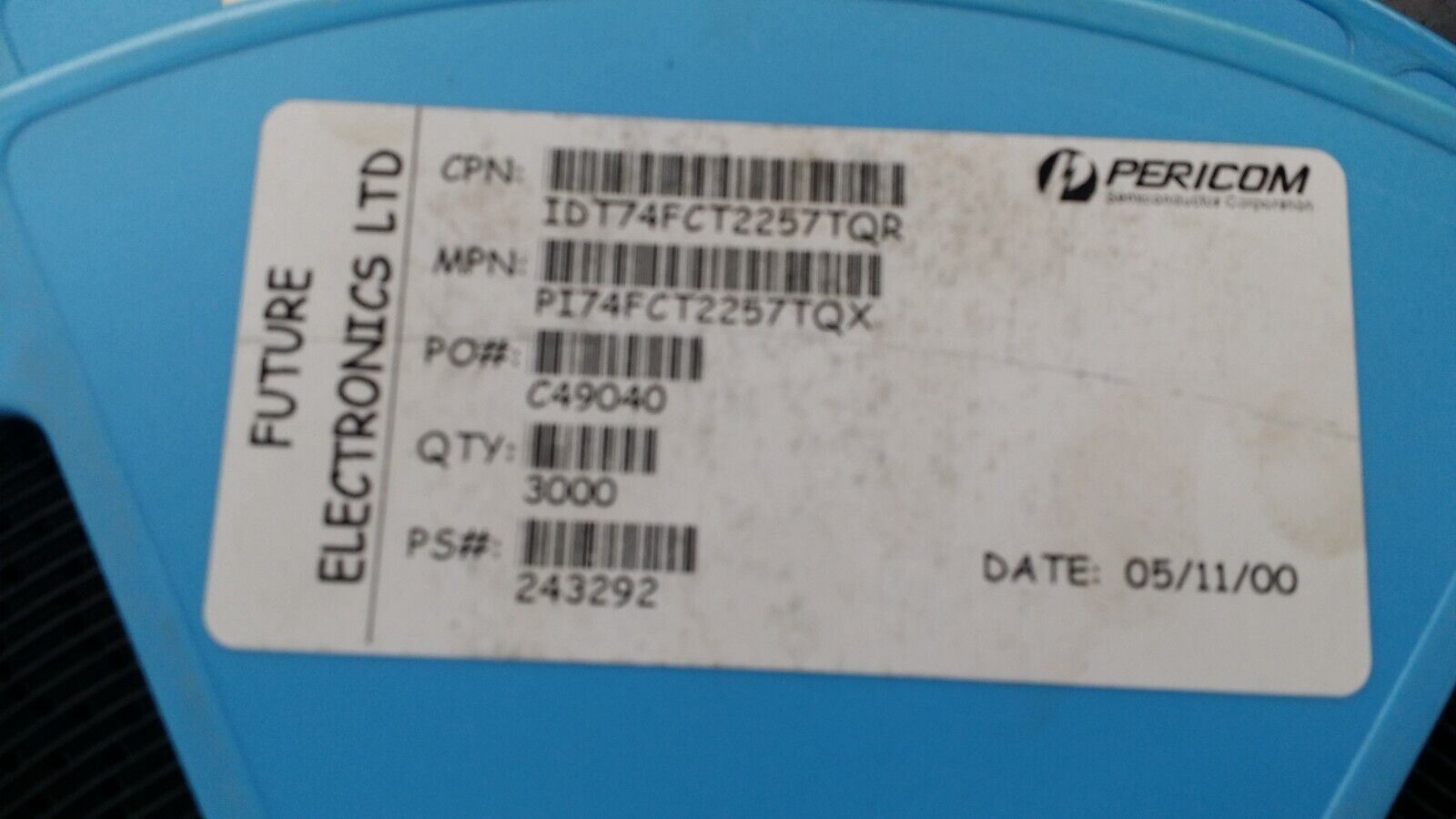

THIS IS FOR (5 PCS) OF PI74FCT2257TQ BY PERICOM / IDT

Multiplexer 4-Func 2 Line Input 1 Line Output Cmos SSOP16

Part #: IDT74FCT2257TQ

Part Category: Logic ICs

Manufacturer: Integrated Device Technology

Description: Multiplexer, FCT Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16

Mfr Package Description QSOP-16

Status Discontinued

Logic IC Type MULTIPLEXER

Sub Category Multiplexer/Demultiplexers

Family FCT

JESD-30 Code R-PDSO-G16

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Max I(ol) 0.012 Amp

Moisture Sensitivity Level 1

Number of Functions 4

Number of Inputs 2.0

Number of Outputs 1.0

Number of Terminals 16

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Characteristics 3-STATE WITH SERIES RESISTOR

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code SSOP

Package Equivalence Code SSOP16,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, SHRINK PITCH

Prop. Delay@Nom-Sup 6.0 ns

Propagation Delay (tpd) 6.0 ns

Qualification Status Not Qualified

Seated Height-Max 1.75 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish Tin/Lead (Sn85Pb15)

Terminal Form GULL WING

Terminal Pitch 0.635 mm

Terminal Position DUAL

Length 4.9 mm

Width 3.9116 mm
