(5 PCS) PI74FCT2151ATW PERICOM Multiplexer, Single, 8-Input, CMOS, 16-SOIC

$4.95
Unit price per

Tax included.

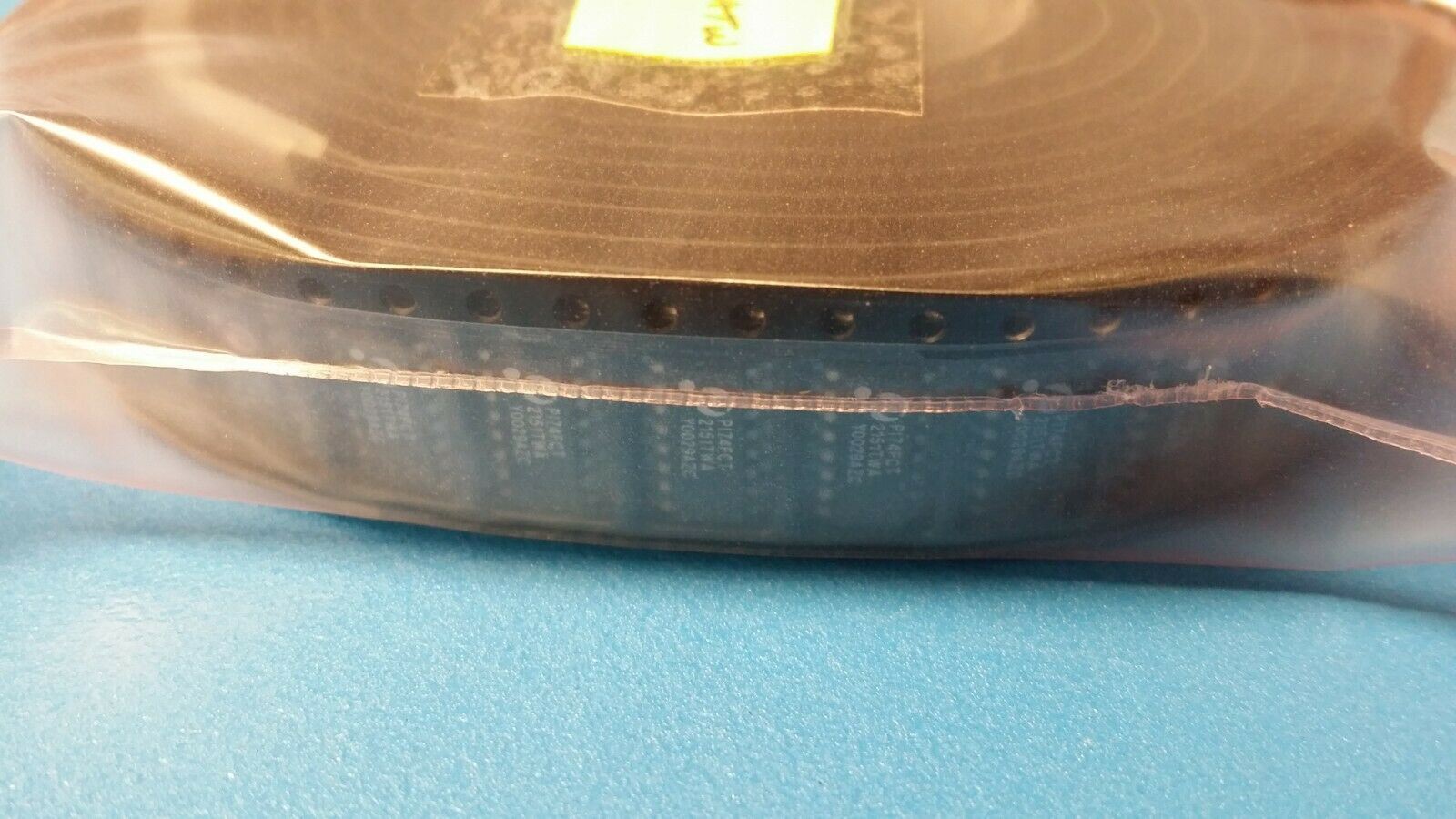

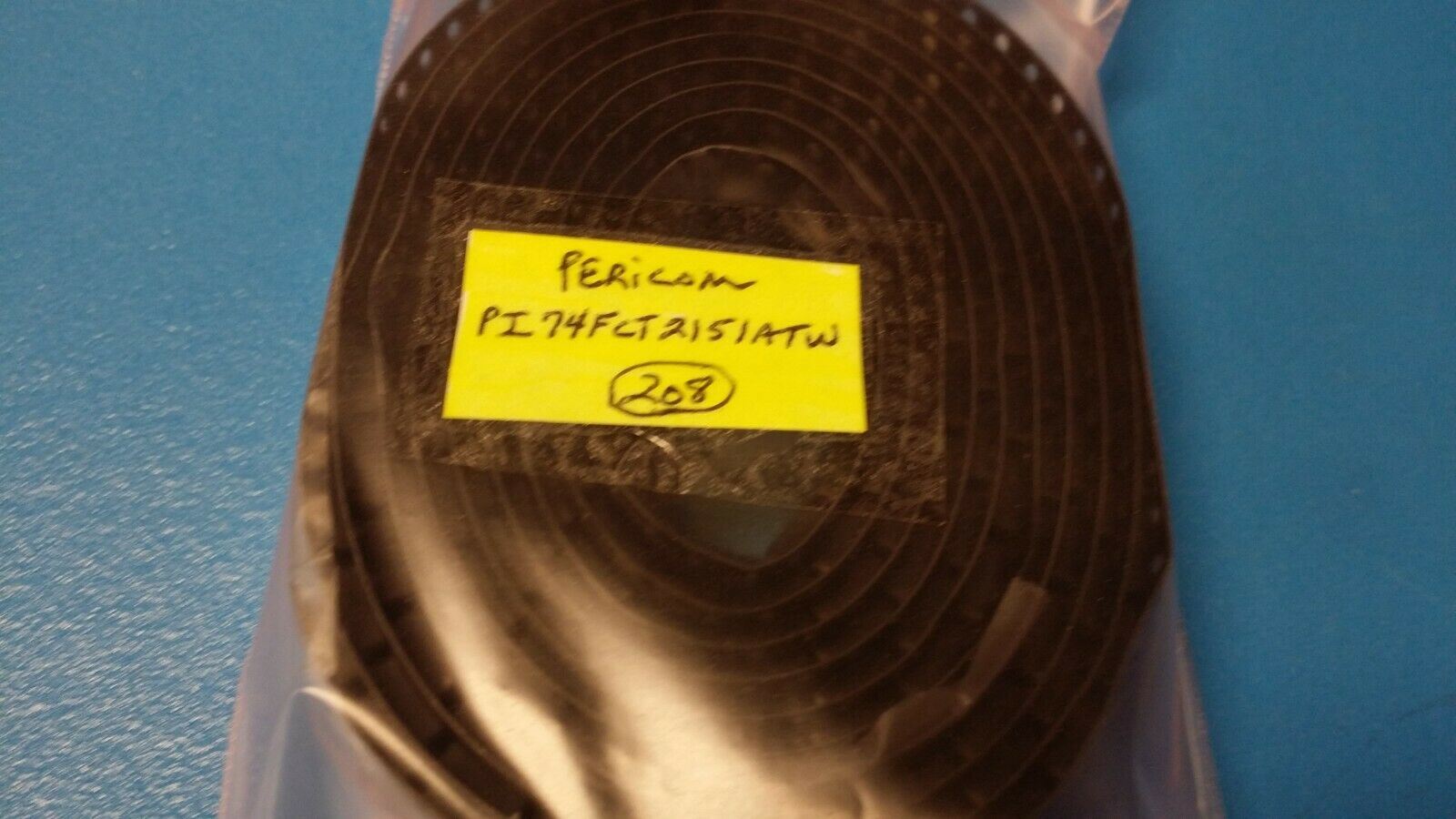

THIS IS FOR (5 PCS) OF PI74FCT2151ATW BY PERICOM

Multiplexer, Single, 8-Input, CMOS, 16-SOIC

Mfr Package Description 0.150 INCH, PLASTIC, SOIC-16

Part #: PI74FCT2151ATW

Part Category: Logic ICs

Manufacturer: Pericom Semiconductor Corp.

Description: Multiplexer, FCT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDSO16

Status Discontinued

Logic IC Type MULTIPLEXER

Sub Category Multiplexer/Demultiplexers

Family FCT

JESD-30 Code R-PDSO-G16

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Max I(ol) 0.012 Amp

Number of Functions 1

Number of Inputs 8.0

Number of Outputs 1.0

Number of Terminals 16

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Characteristics SERIES-RESISTOR

Output Polarity COMPLEMENTARY

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP16,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Prop. Delay@Nom-Sup 5.5 ns

Propagation Delay (tpd) 5.5 ns

Qualification Status Not Qualified

Seated Height-Max 1.75 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 9.9 mm

Width 3.9 mm
