(5 PCS) PI6C185-01BL PERICOM Clock Fanout Buffer 5-OUT 16-Pin TSSOP

$6.95
Unit price per

Tax included.

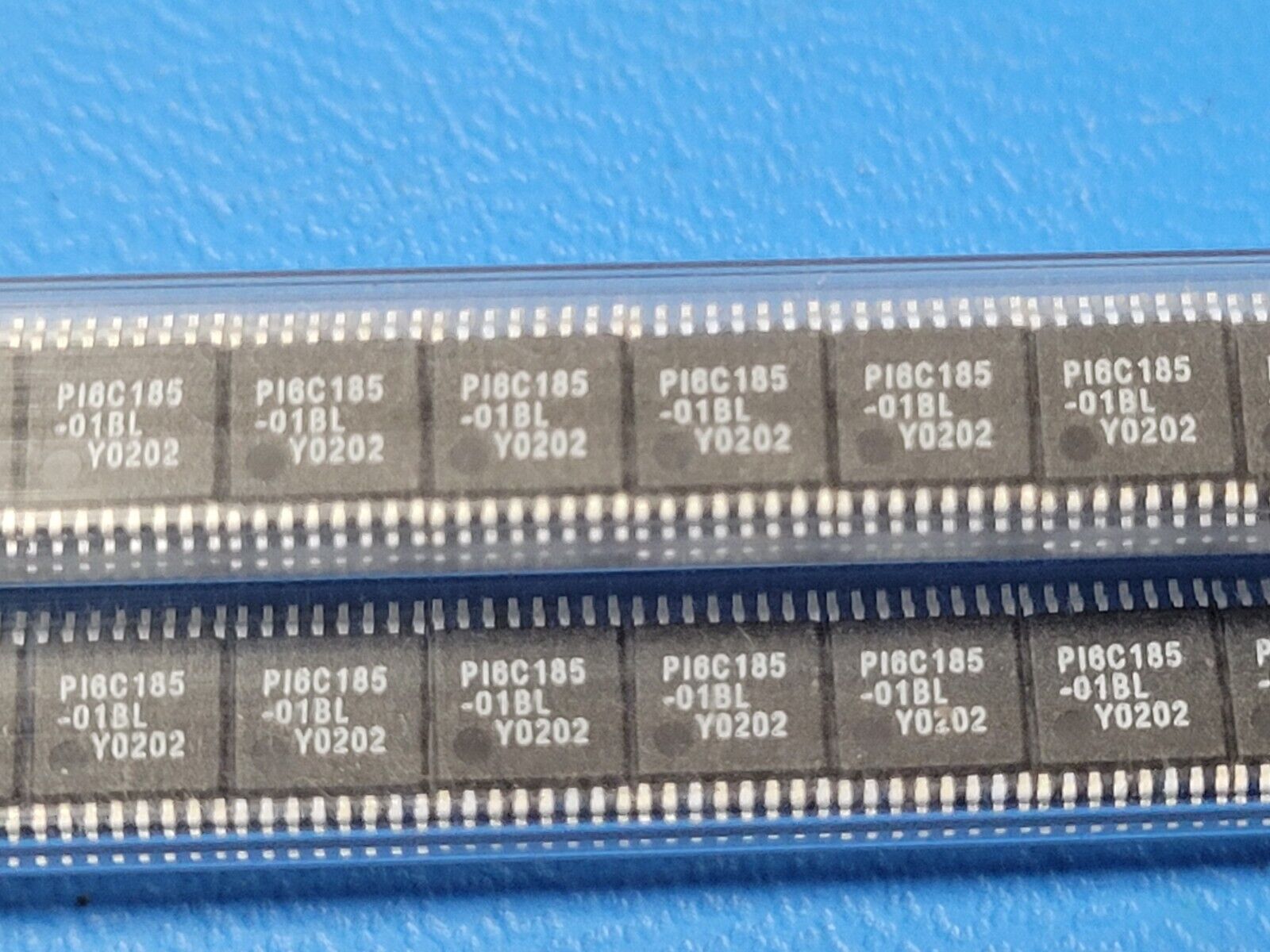

THIS IS FOR (5 PCS) OF PI6C185-01BL BY PERICOM

Clock Fanout Buffer 5-OUT 16-Pin TSSOP

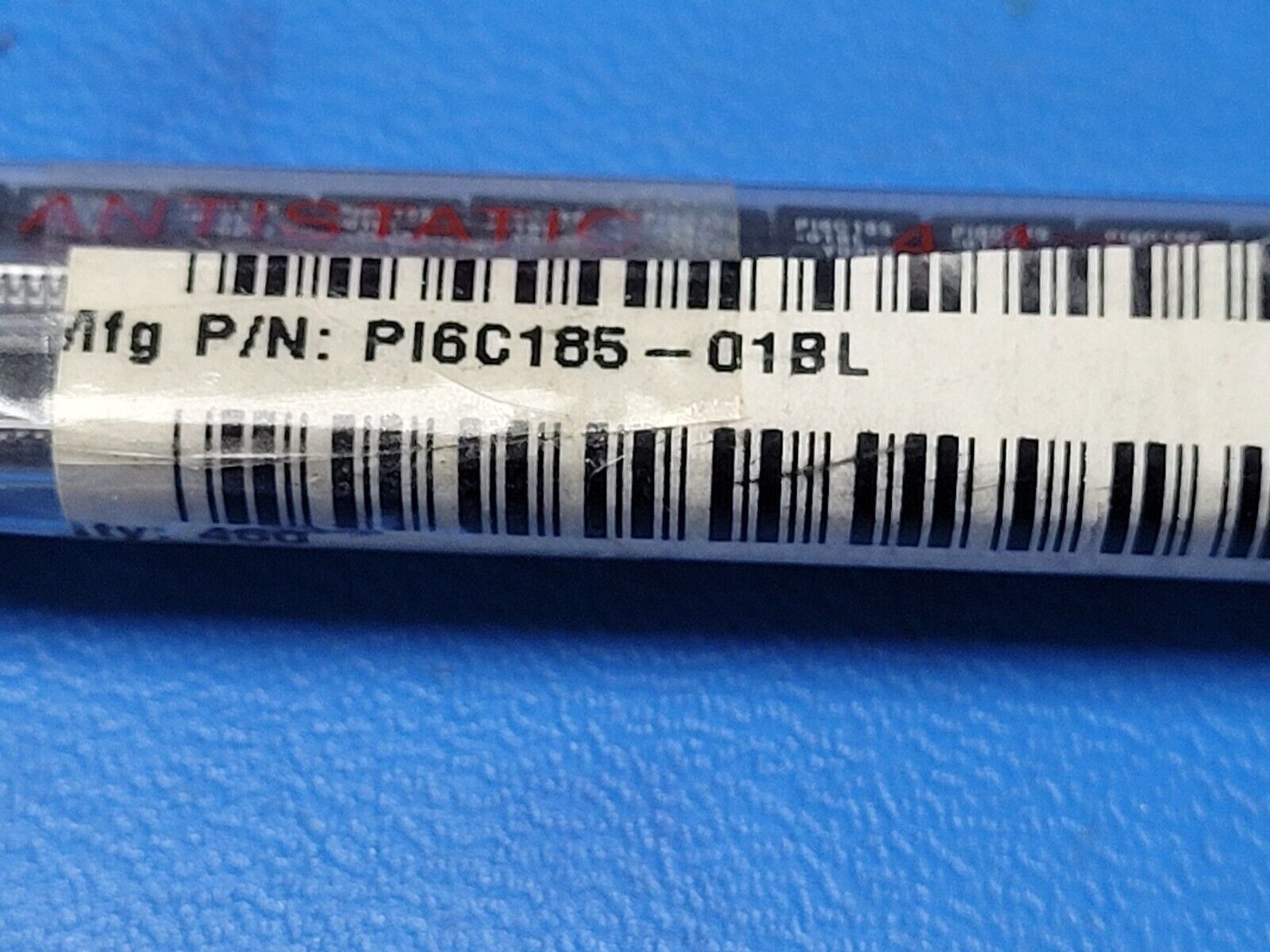

Part #: PI6C185-01BL

Part Category: Logic ICs

Manufacturer: Pericom Semiconductor Corp.

Description: Low Skew Clock Driver, 6C Series, 4 True Output(s), 0 Inverted Output(s), CMOS, PDSO16

Mfr Package Description TSSOP-16

REACH Compliant Yes

Status Discontinued

Logic IC Type LOW SKEW CLOCK DRIVER

Sub Category Clock Drivers

Family 6C

fmax-Min 133.0 MHz

Input Conditioning STANDARD

JESD-30 Code R-PDSO-G16

JESD-609 Code e0

Number of Functions 1

Number of Inverted Outputs 0.0

Number of Terminals 16

Number of True Outputs 4.0

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Characteristics 3-STATE

Package Body Material PLASTIC/EPOXY

Package Code TSSOP

Package Equivalence Code TSSOP16,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

Qualification Status Not Qualified

Same Edge Skew-Max (tskwd) 0.25 ns

Seated Height-Max 1.2 mm

Supply Voltage-Nom (Vsup) 3.3

Supply Voltage-Min (Vsup) 3.135 V

Supply Voltage-Max (Vsup) 3.465 V

Surface Mount YES

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch 0.65 mm

Terminal Position DUAL

Length 5.0 mm

Width 4.4 mm
