(5 PCS) PI5C3401S PERICOM, Bus Exchanger 1-Func 6-Bit True Output CMOS SOIC24

$7.95
Unit price per

Tax included.

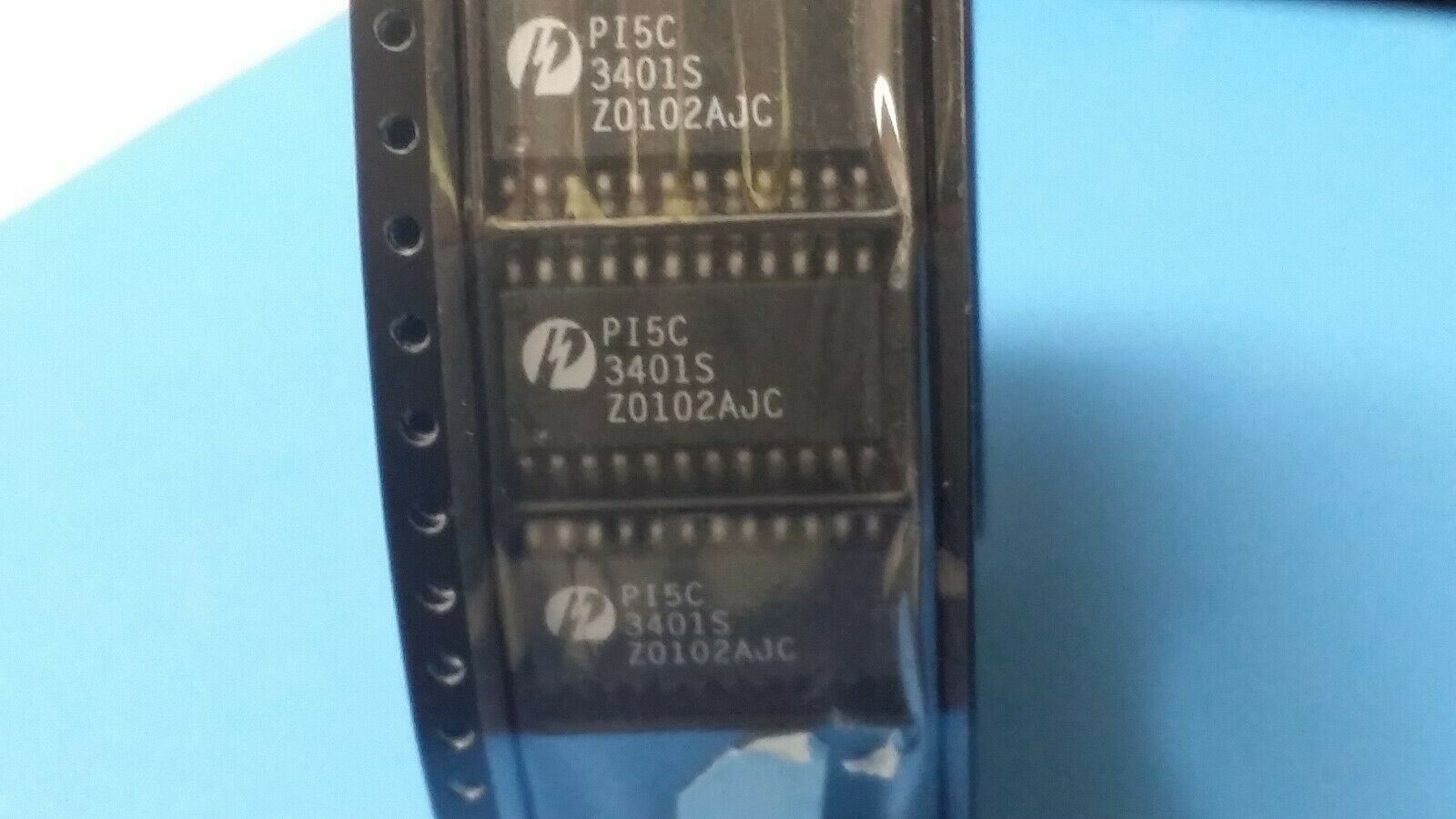

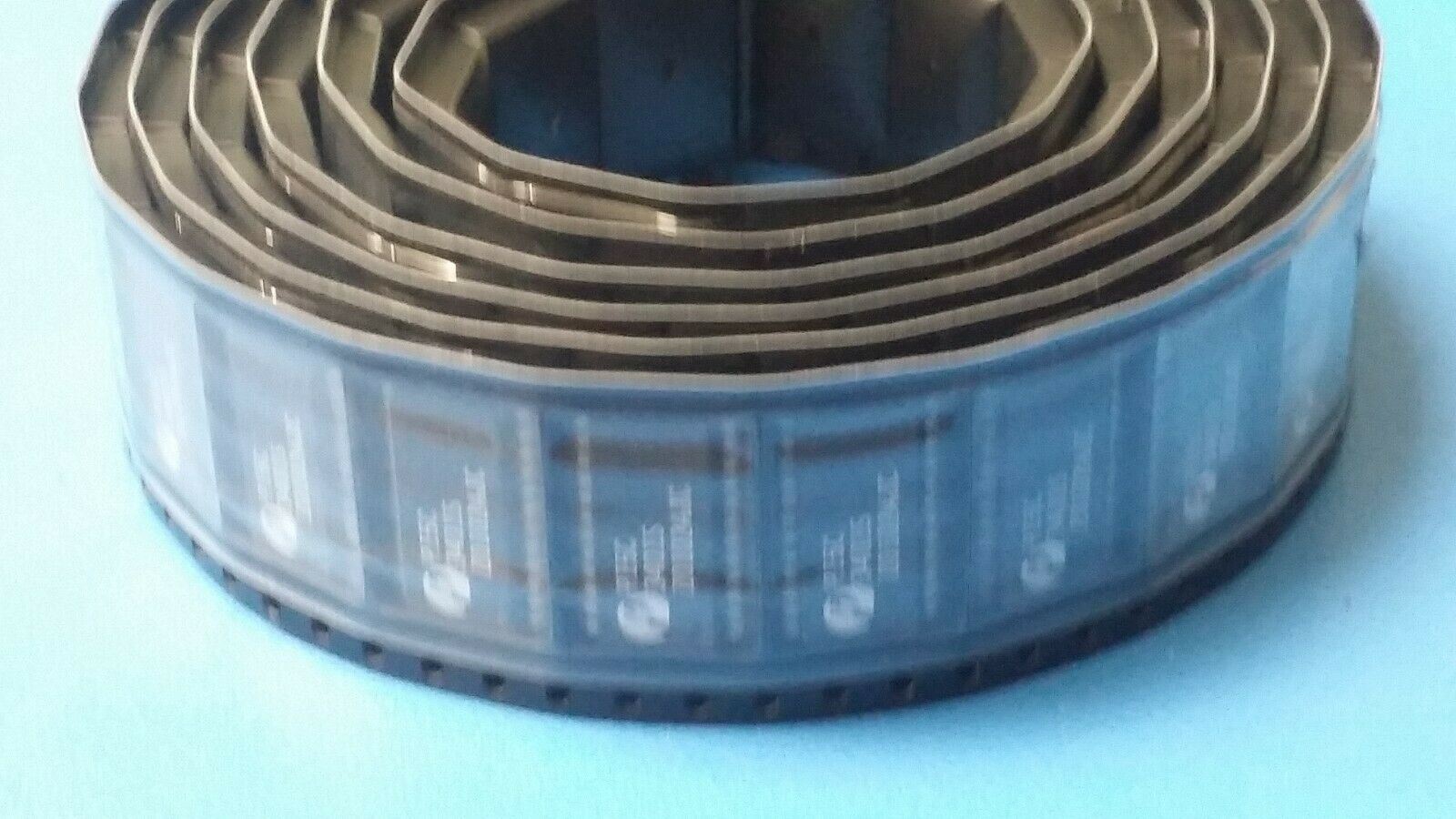

THIS IS FOR (5 PCS) OF PI5C3401S BY PERICOM

Bus Exchanger 1-Func 6-Bit True Output CMOS SOIC24

Part #: PI5C3401S

Part Category: Logic ICs

Manufacturer: Pericom Semiconductor Corp.

Description: Bus Exchanger, CBT/FST/QS/5C/B Series, 1-Func, 6-Bit, True Output, CMOS, PDSO24

Mfr Package Description 0.300 INCH, PLASTIC, SOIC-24

REACH Compliant Yes

Status Discontinued

Logic IC Type BUS EXCHANGER

Sub Category Other Logic ICs

Family CBT/FST/QS/5C/B

JESD-30 Code R-PDSO-G24

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Number of Bits 6

Number of Functions 1

Number of Ports 3

Number of Terminals 24

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP24,.4

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Propagation Delay (tpd) 0.25 ns

Qualification Status Not Qualified

Seated Height-Max 2.65 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 15.4 mm

Width 7.5 mm

Additional Feature TTL COMPATIBLE BUS SWITCH
