(5 PCS) PI29FCT520ATS PERICOM Pipeline Register, 8-Bit, CMOS, SOIC-24

$5.95
Unit price per

Tax included.

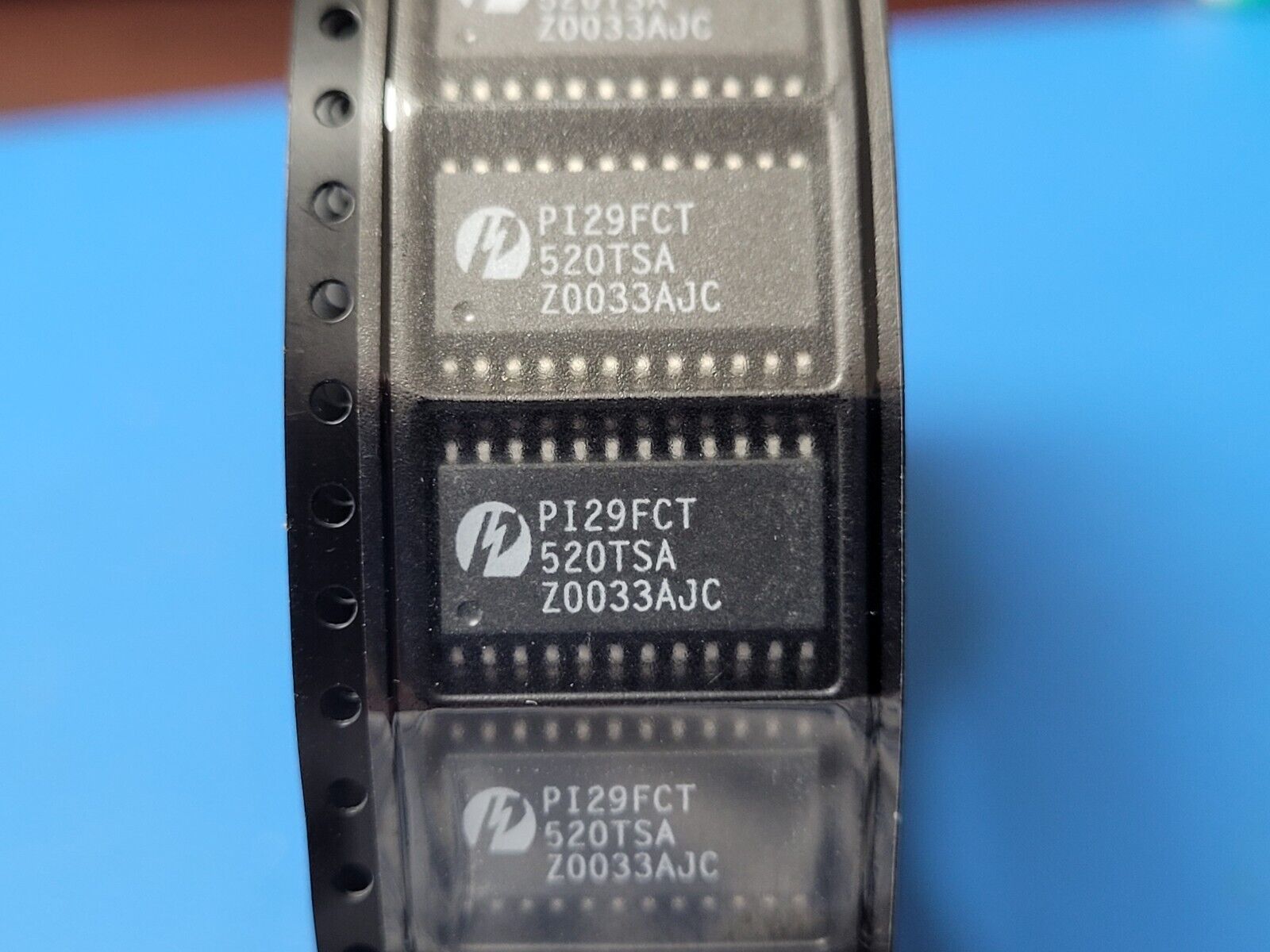

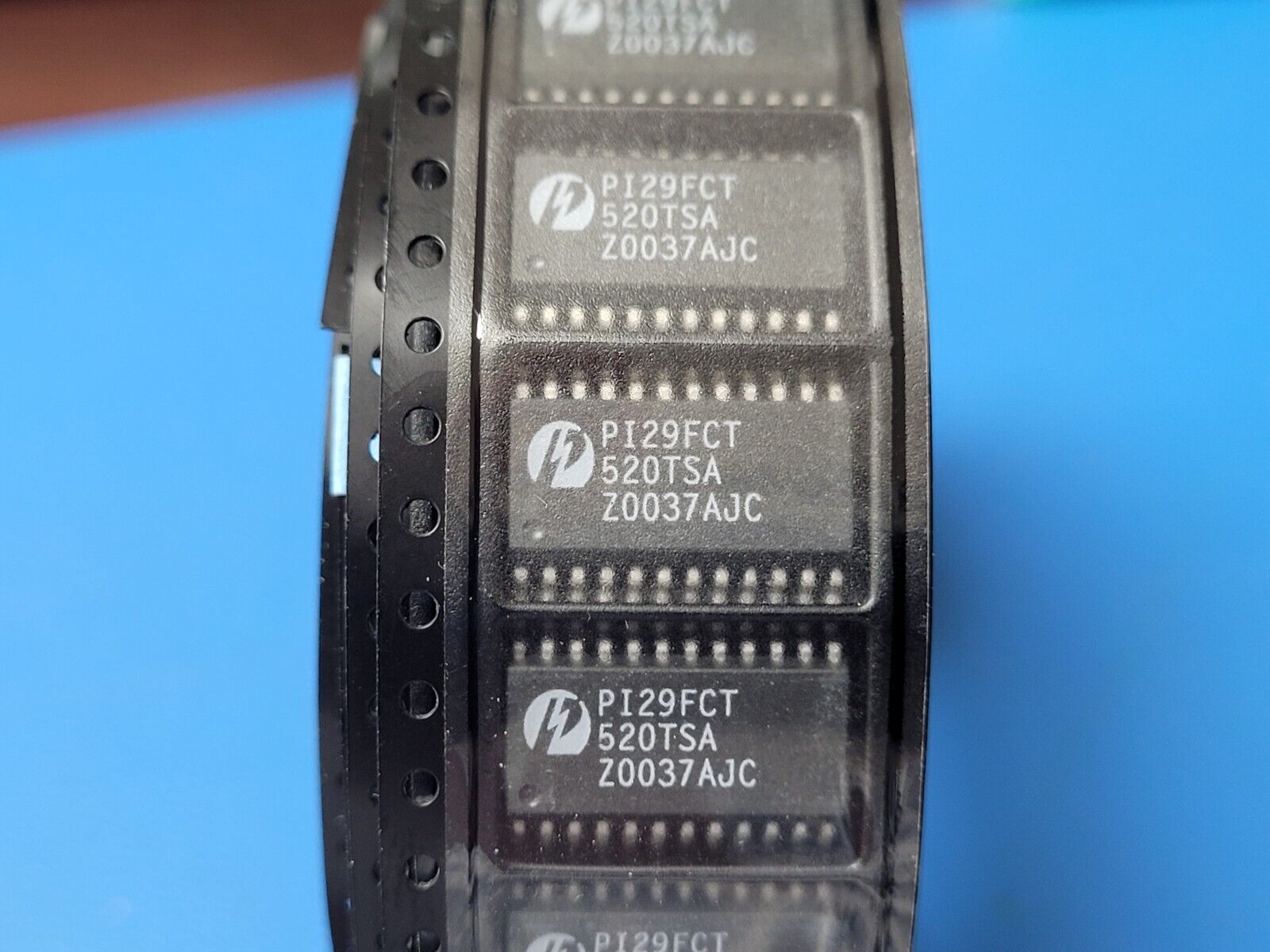

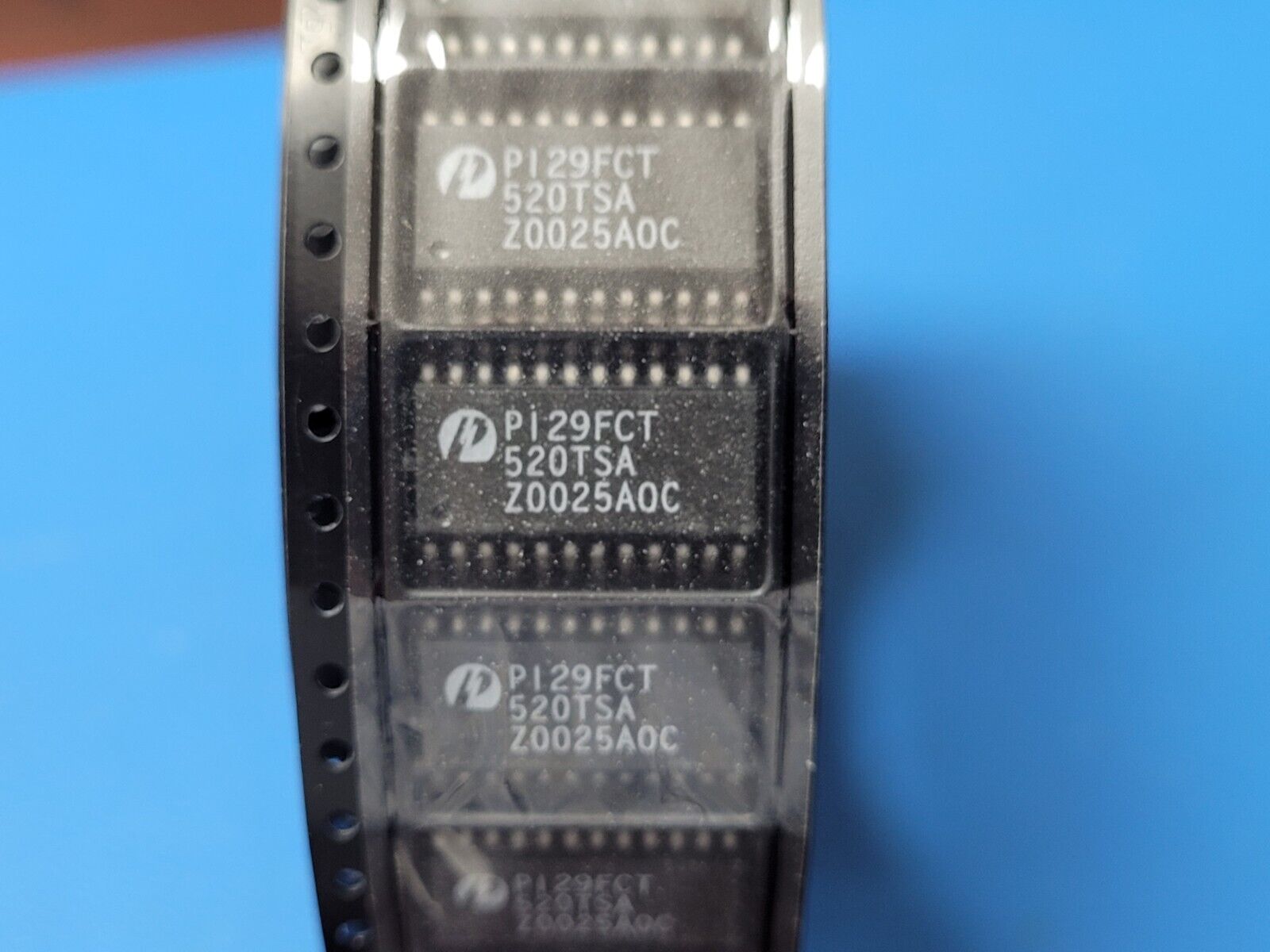

THIS IS FOR (5 PCS) OF PI29FCT520ATS BY PERICOM

Pipeline Register, 8-Bit, CMOS, SOIC-24

Part #: PI29FCT520ATS

Part Category: Microprocessors/Microcontrollers/Peripheral ICs

Manufacturer: Pericom Semiconductor Corp.

Description: Pipeline Register, 8-Bit, CMOS, PDSO24

Mfr Package Description 0.300 INCH, PLASTIC, SOIC-24

REACH Compliant Yes

Status Discontinued

Boundary Scan NO

Clock Frequency-Max 5.0 MHz

External Data Bus Width 8.0

JESD-30 Code R-PDSO-G24

JESD-609 Code e0

Low Power Mode NO

Moisture Sensitivity Level 1

Number of Terminals 24

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Data Bus Width 8.0

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP24,.4

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Power Supplies 5

Qualification Status Not Qualified

Seated Height-Max 2.65 mm

Sub Category DSP Peripherals

Supply Current-Max 16.3 mA

Supply Voltage-Nom 5.0 V

Supply Voltage-Min 4.75 V

Supply Voltage-Max 5.25 V

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Length 15.4 mm

Width 7.5 mm

Additional Feature MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ
