(5 PCS) PCI50-101M-RC ALLIED 100uH +/-20% Power Chip Inductor ROHS
Tax included.

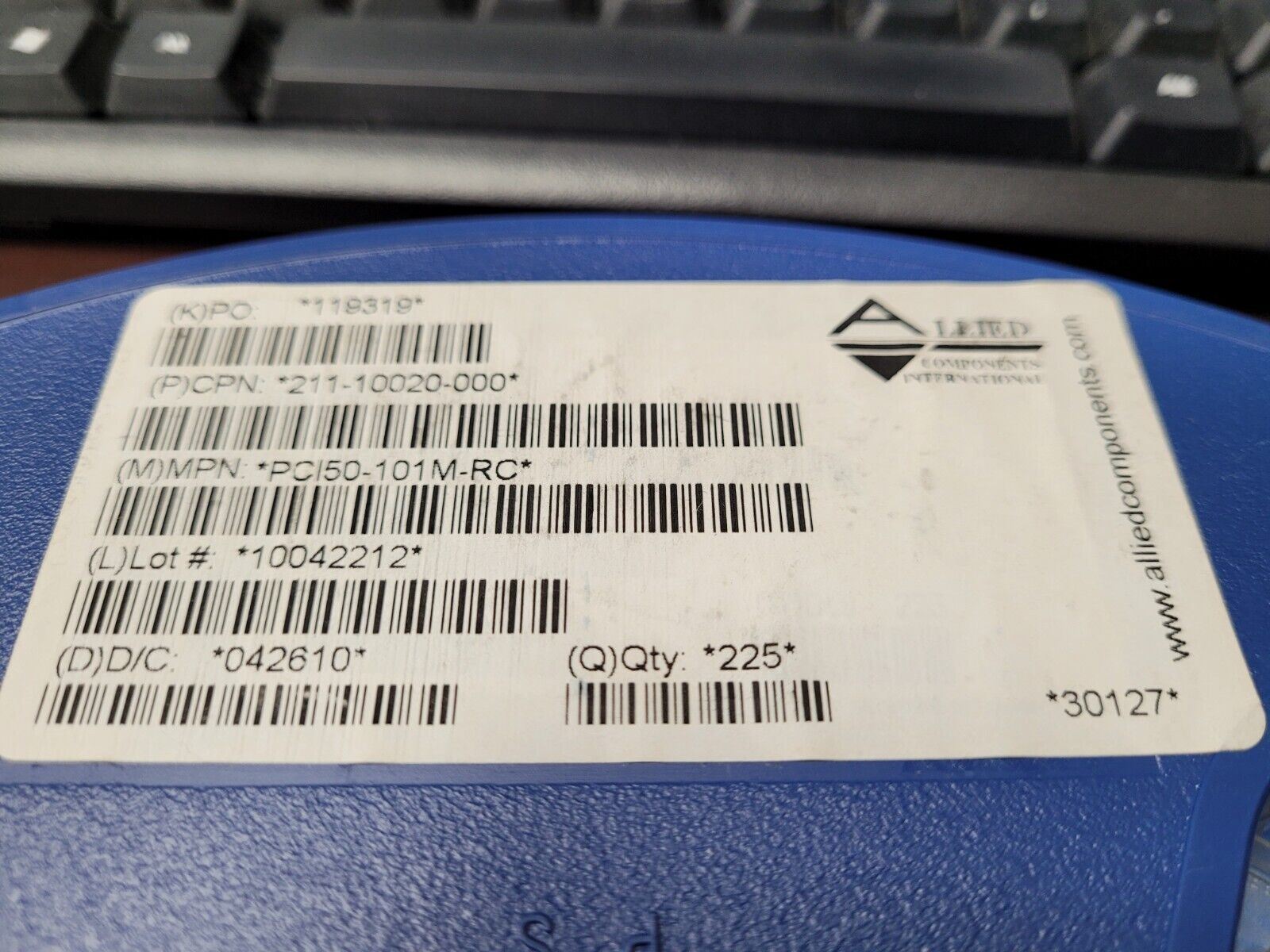

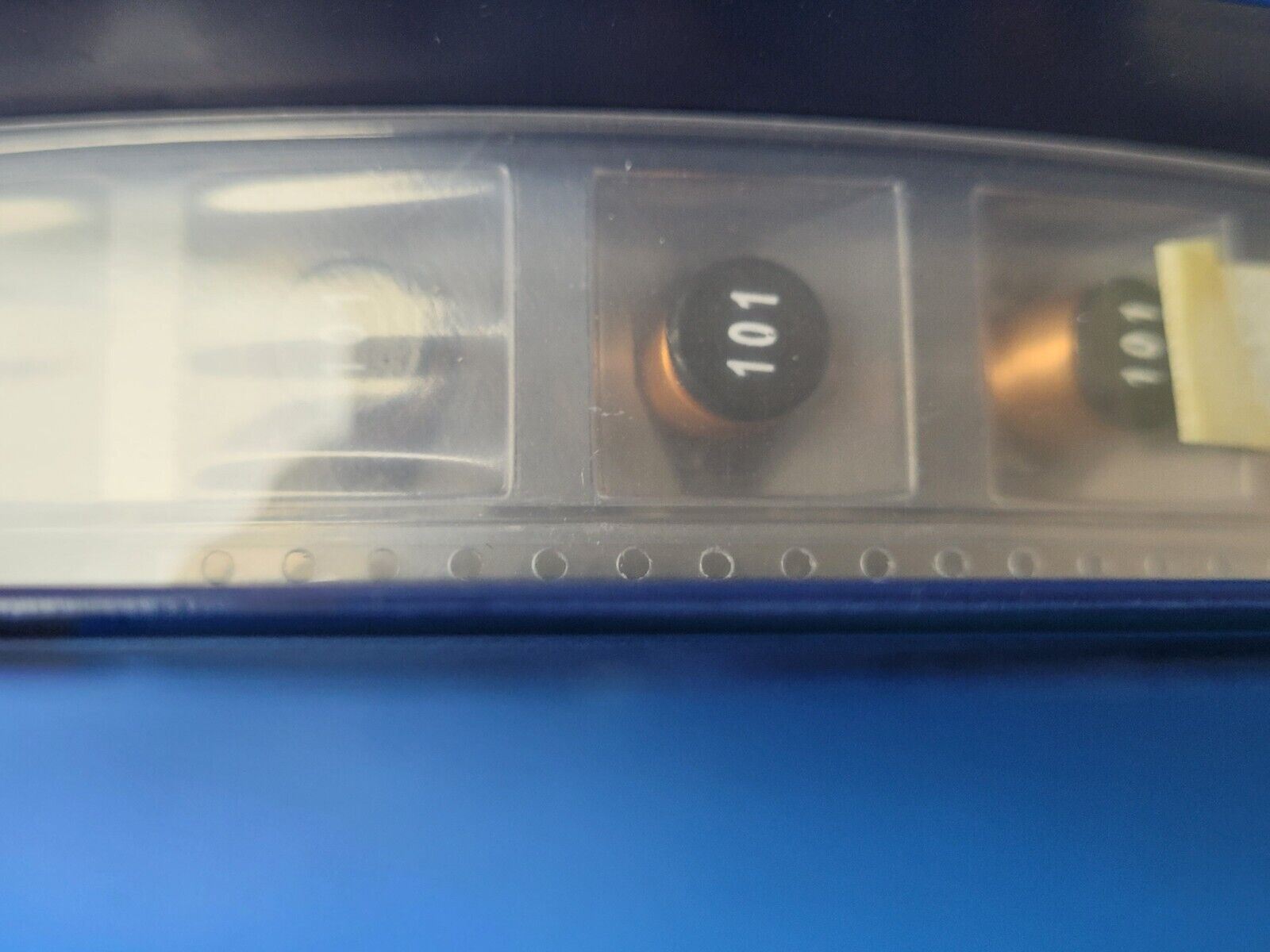

THIS IS FOR (5 PCS) OF PCI50-101M-RC BY ALLIED
100 µH Unshielded Wirewound Inductor 1.2 A 220mOhm Max Nonstandard ROHS
Mfr Allied Components International
Series PCI50

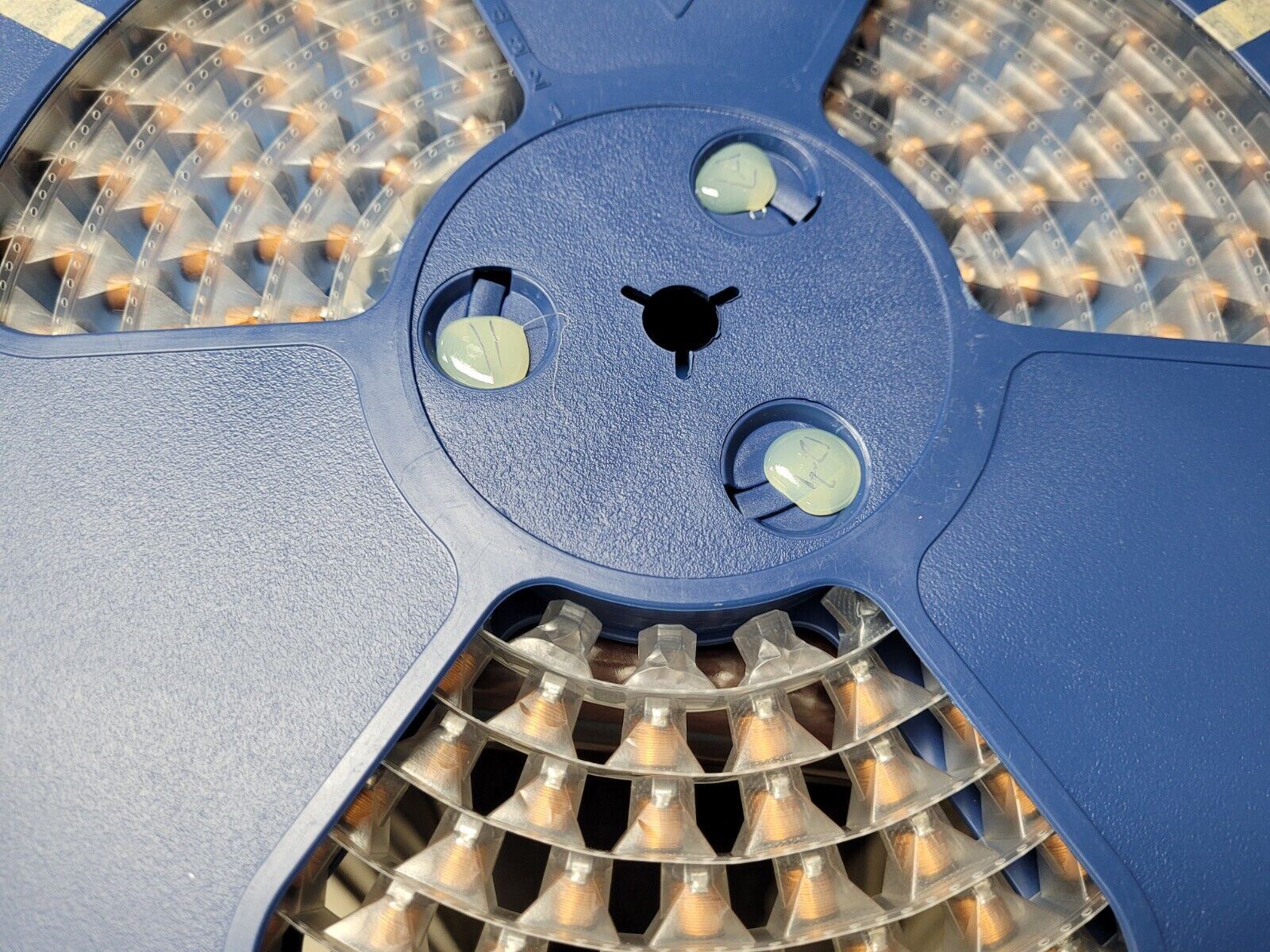

Package Tape & Reel (TR)
Product Status Active
Type Wirewound
Material - Core -
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 2.5A
Shielding Unshielded
DC Resistance (DCR) 220mOhm Max
Q @ Freq -
Frequency - Self Resonant 5MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.510" L x 0.370" W (12.95mm x 9.40mm)
Height - Seated (Max) 0.450" (11.43mm)
