(5 PCS) PCB80C552-5-16WP PHILIPS 8-BIT, 16 MHz, MICROCONTROLLER, PQCC68
Tax included.

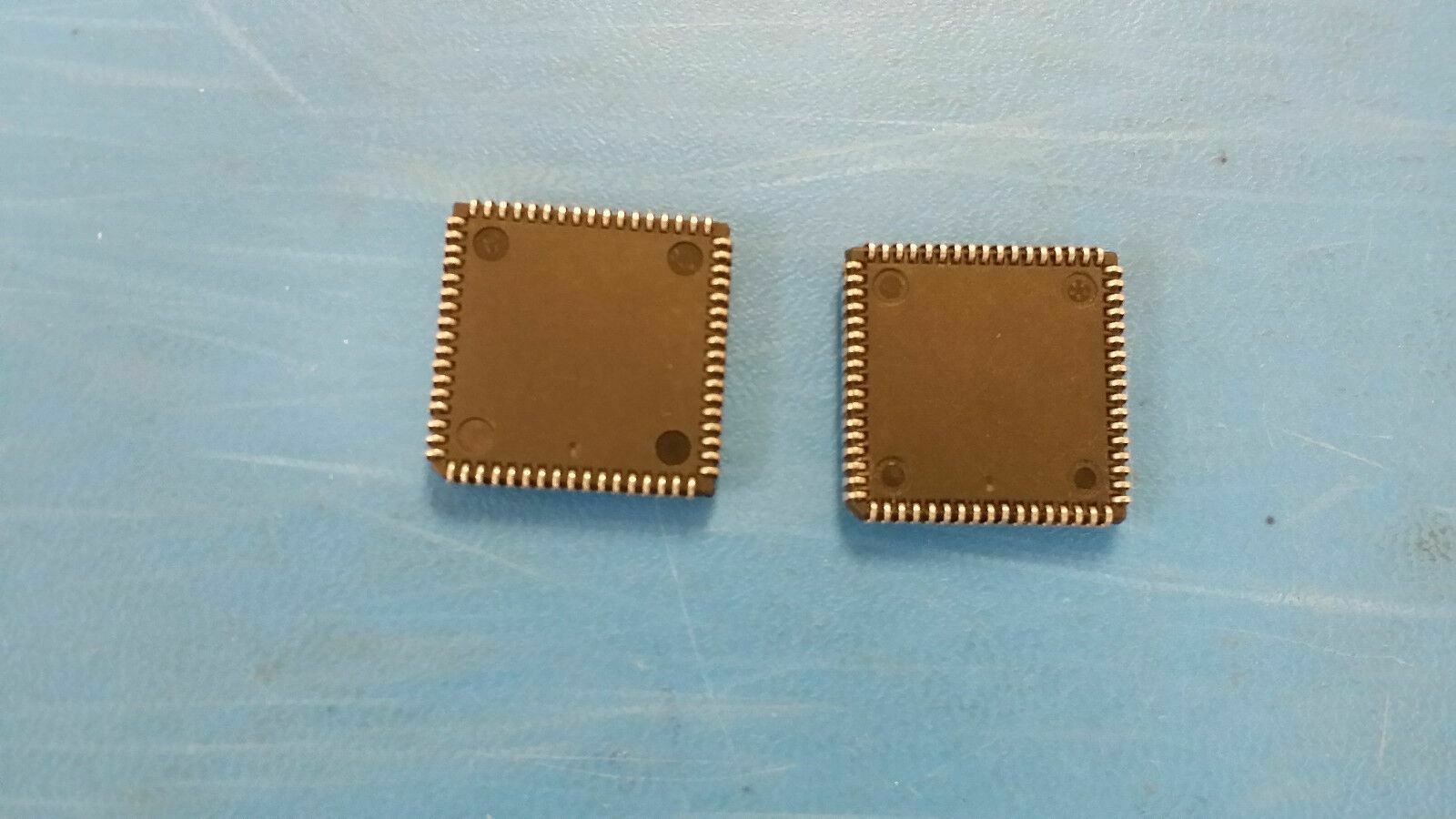

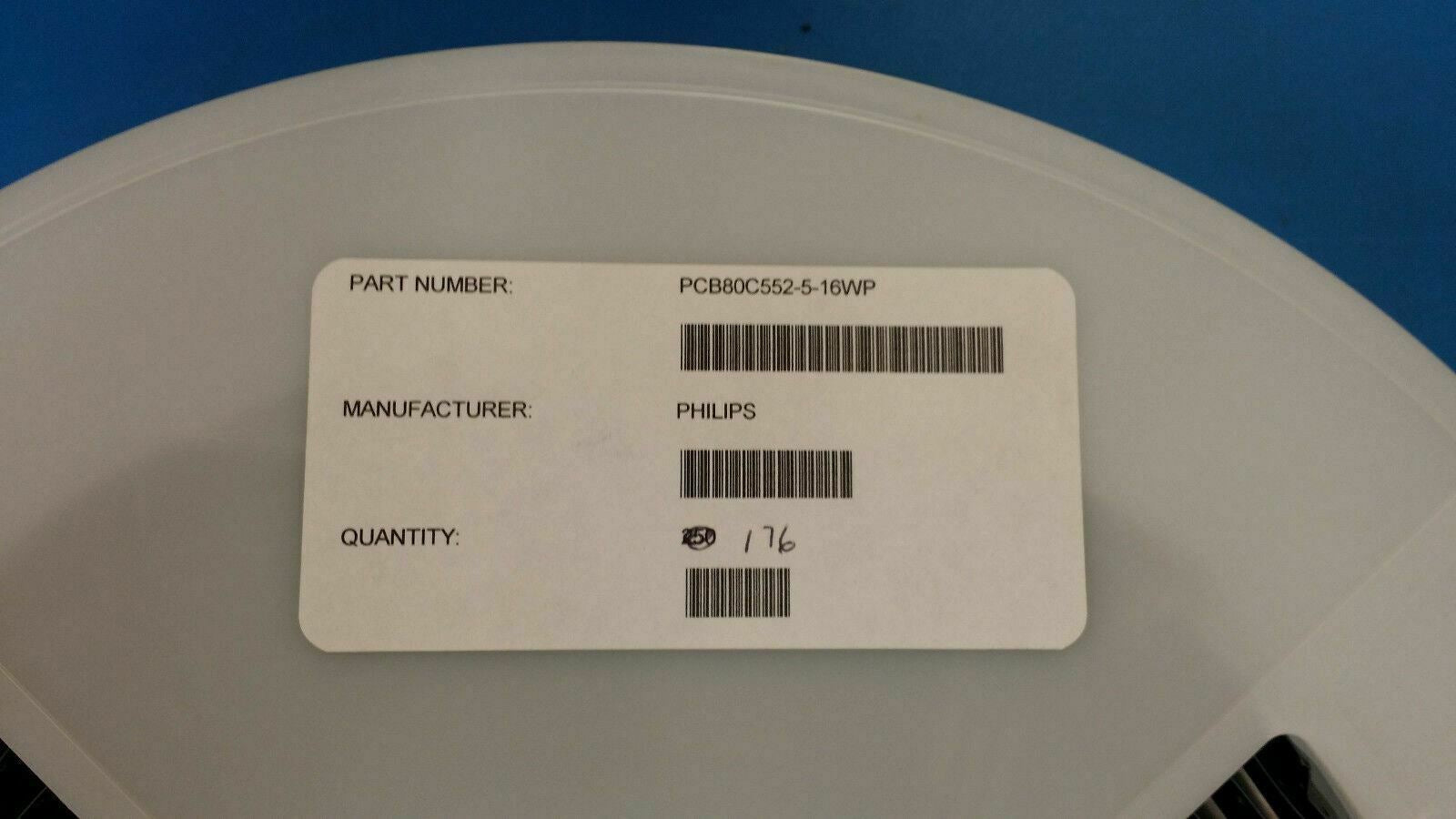

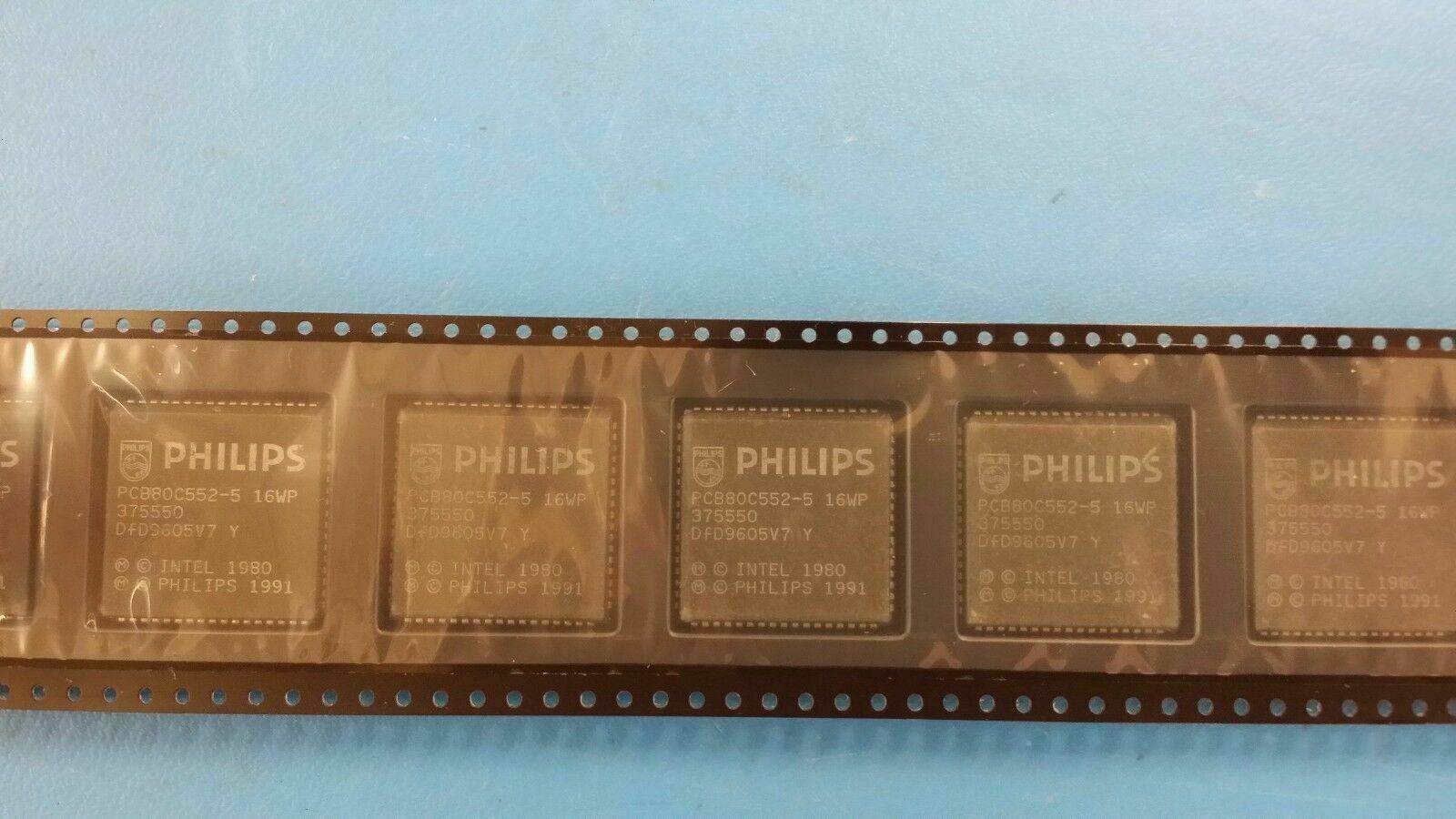

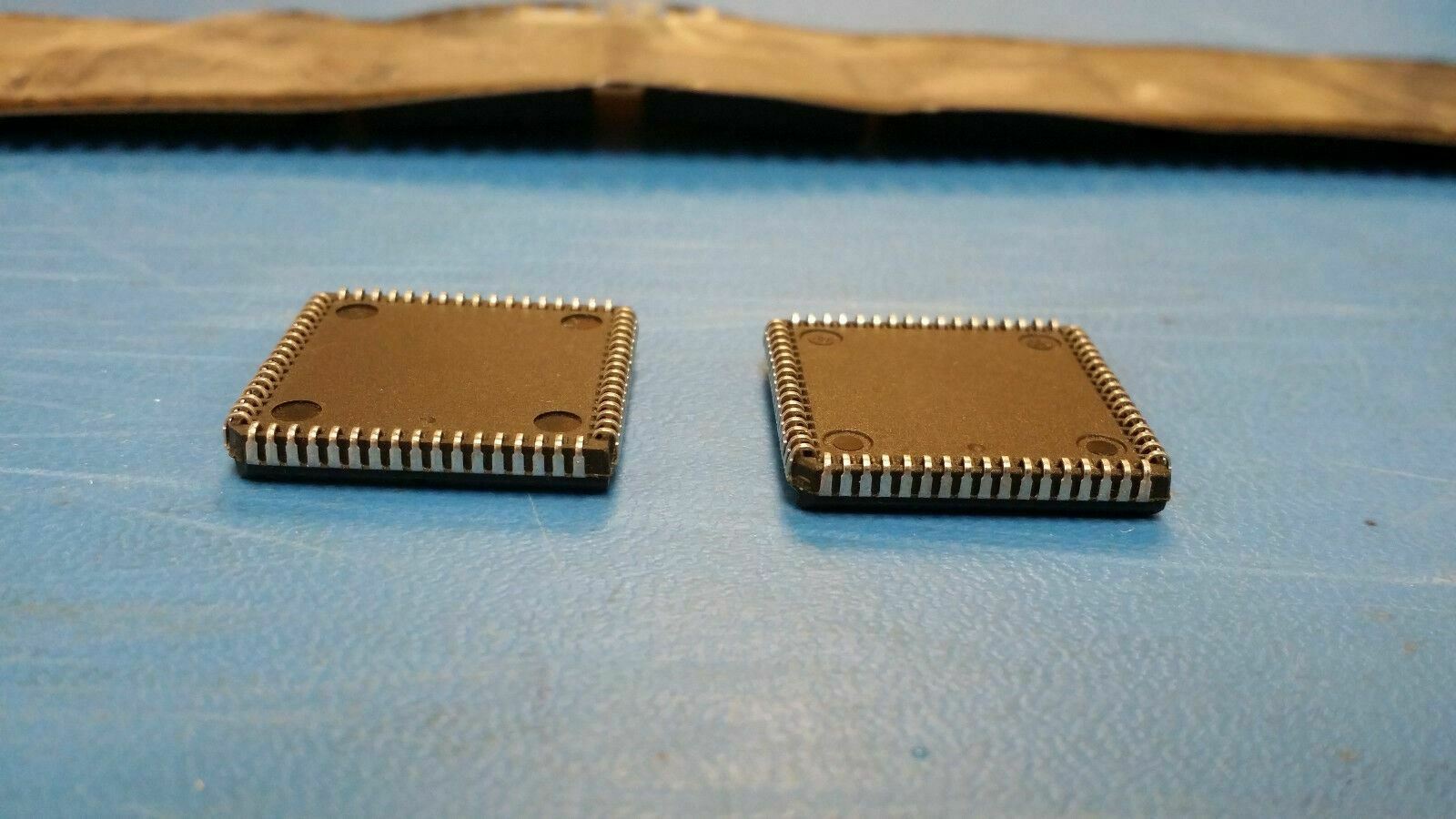

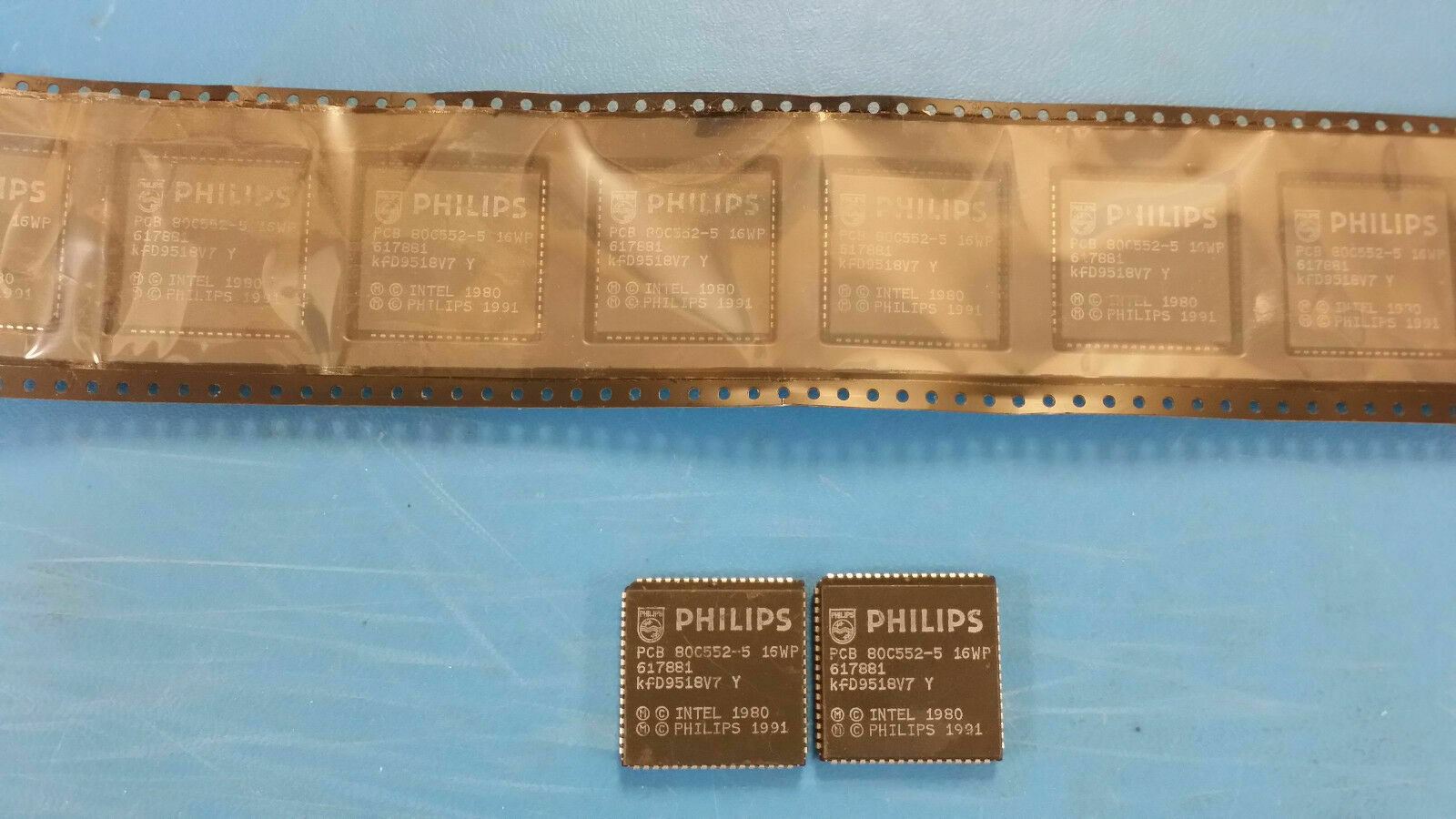

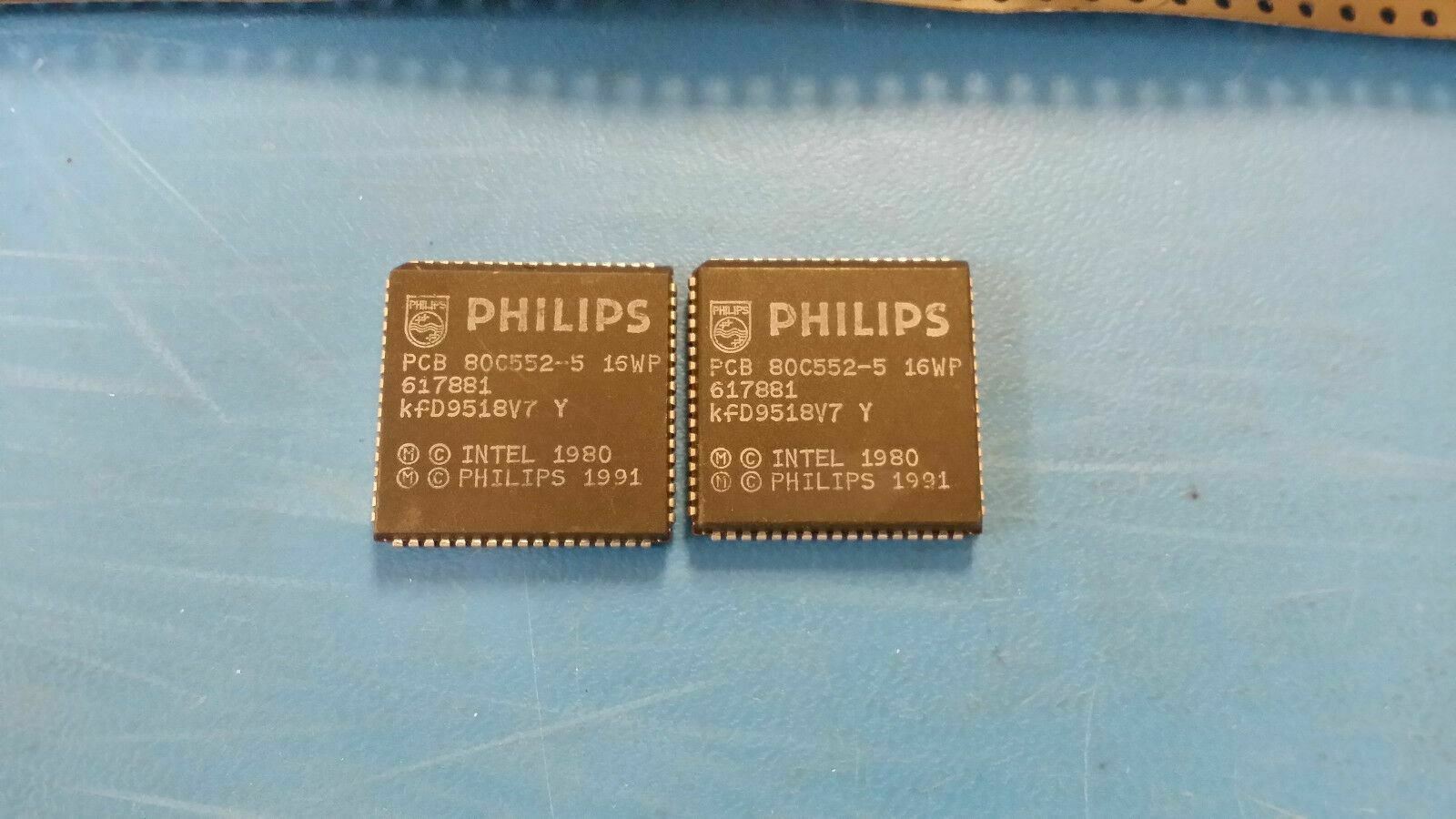

THIS LISTING IS FOR(5 PCS) OF PCB 80C552-5-16WP BY PHILIPS
8-BIT, 16 MHz, MICROCONTROLLER, PQCC68
(TAKEN OFF WORKING BOARDS AND REFURBISHED)
8-BIT, 16 MHz, MICROCONTROLLER, PQCC68
(TAKEN OFF WORKING BOARDS AND REFURBISHED)
SPECIFICATIONS
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | MICROCONTROLLER |
| ADC Channels | YES |
| Address Bus Width | 16 |
| Bit Size | 8 |
| Boundary Scan | NO |
| Clock Frequency-Max | 16 MHz |
| DAC Channels | NO |
| DMA Channels | NO |
| External Data Bus Width | 8 |
| Format | FIXED POINT |
| Integrated Cache | NO |
| JESD-30 Code | S-PQCC-J68 |
| Low Power Mode | YES |
| Number of DMA Channels | 0.0 |
| Number of External Interrupts | 2 |
| Number of I/O Lines | 48 |
| Number of Serial I/Os | 2 |
| Number of Terminals | 68 |
| Number of Timers | 3 |
| On Chip Data RAM Width | 8 |
| On Chip Program ROM Width | 0.0 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| PWM Channels | YES |
| Qualification Status | COMMERCIAL |
| RAM (words) | 256 |
| ROM (words) | 0 |
| Seated Height-Max | 4.57 mm |
| Speed | 16 MHz |
| Supply Current-Max | 45 mA |
| Supply Voltage-Nom | 5 V |
| Supply Voltage-Min | 4 V |
| Supply Voltage-Max | 6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Length | 24.23 mm |
| Width | 24.23 mm |
| Additional Feature | I2C SERIAL BUS INTERFACE |
