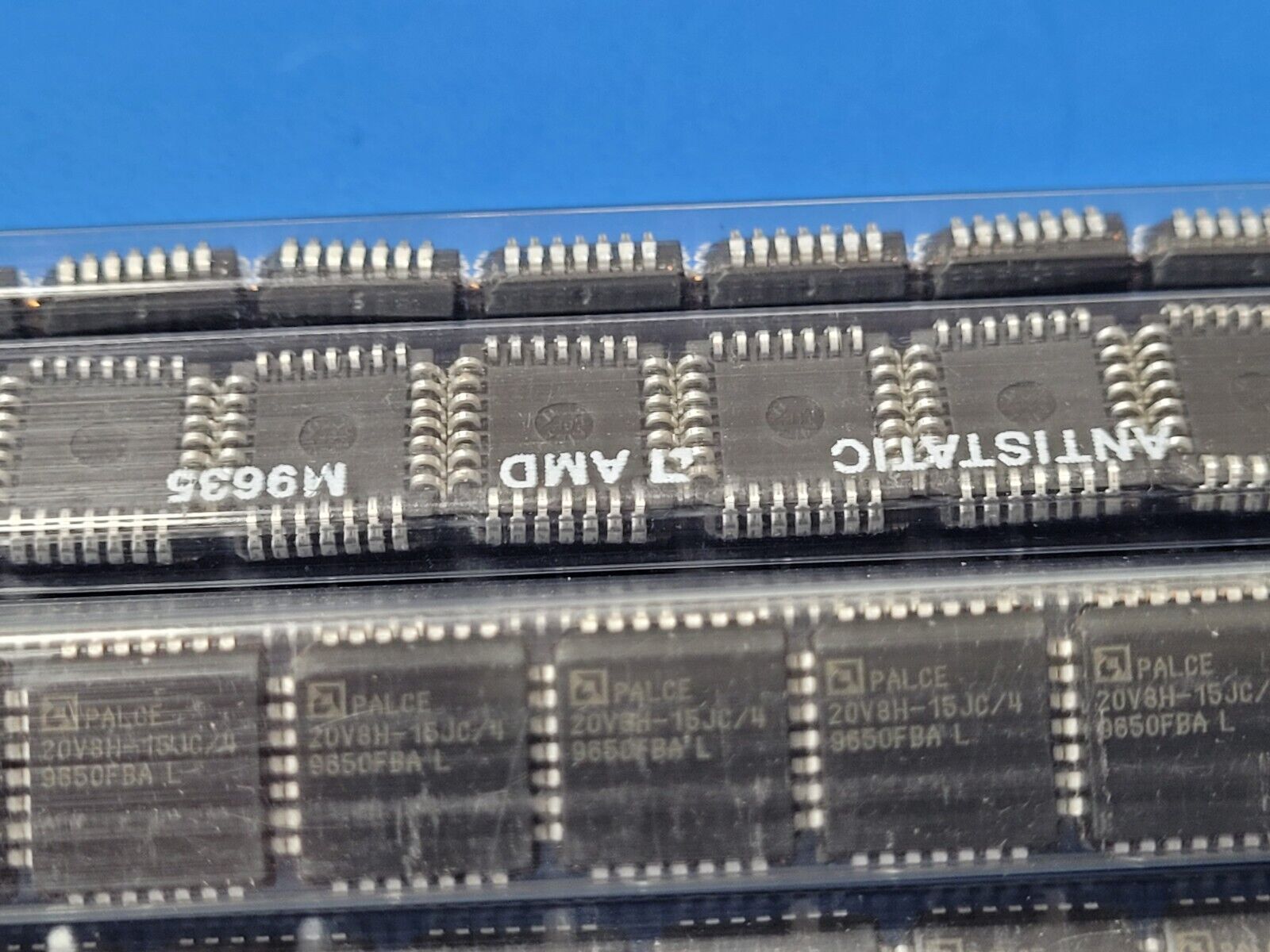

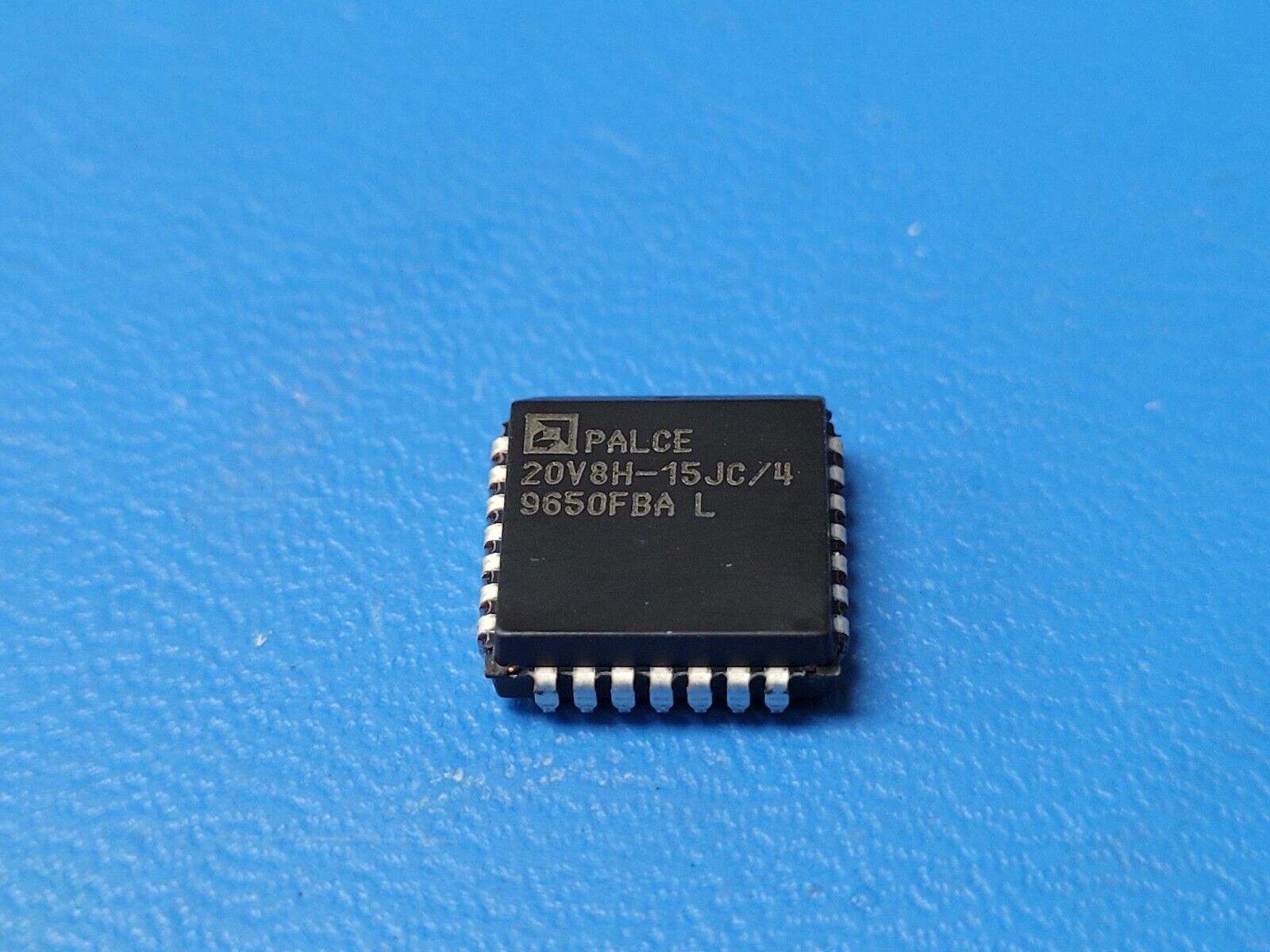

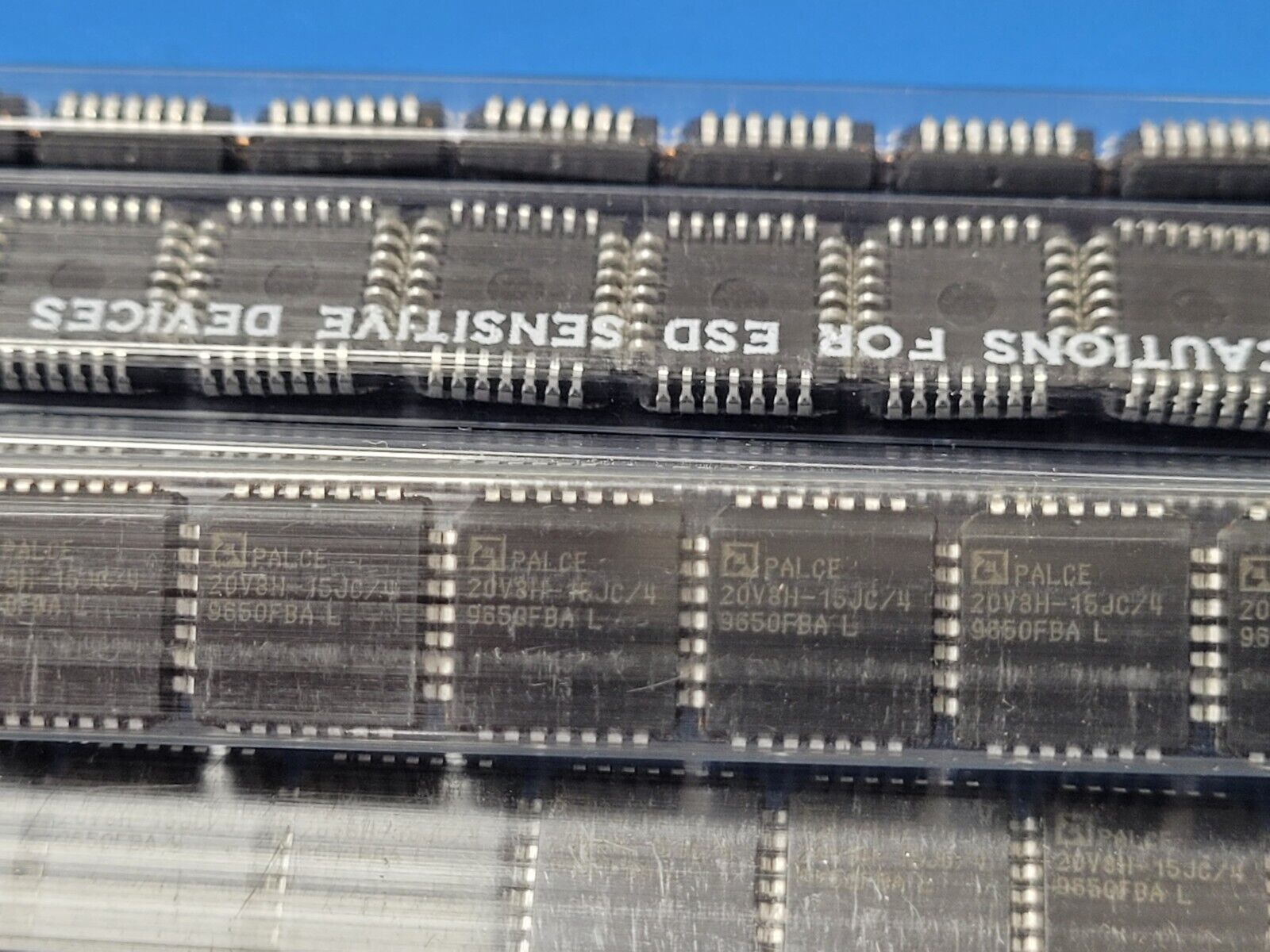

(5 PCS) PALCE20V8H-15JC/4 AMD EE PLD, 15ns, PAL-Type, CMOS, PLCC28
Tax included.
THIS IS FOR (5 PCS) OF PALCE20V8H-15JC/4 BY AMD
EE PLD, 15ns, PAL-Type, CMOS, PLCC28
Part #: PALCE20V8H-15JC/4
Part Category: Programmable Logic ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: EE PLD, 15ns, PAL-Type, CMOS, PQCC28
Mfr Package Description PLASTIC, LCC-28
Status Discontinued
Programmable Logic Type EE PLD
Architecture PAL-TYPE
Clock Frequency-Max 45.5 MHz
JESD-30 Code S-PQCC-J28
JESD-609 Code e0
Number of Dedicated Inputs 12.0
Number of I/O Lines 8.0
Number of Inputs 20.0
Number of Outputs 8.0
Number of Product Terms 64.0
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 75.0 Cel
Organization 12 DEDICATED INPUTS, 8 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC28,.5SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Propagation Delay 15.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 11.5062 mm
Width 11.5062 mm
Additional Feature PROGRAMMABLE OUTPUT POLARITY; 8 MACROCELLS; REGISTER PRELOAD; SHARED INPUT/CLOCK; 1 EXTERNAL CLOCK
