(5 PCS) PAL20L8BCFN AMD/MMI OT PLD, 15ns, PAL-Type, TTL, PLCC28
Tax included.

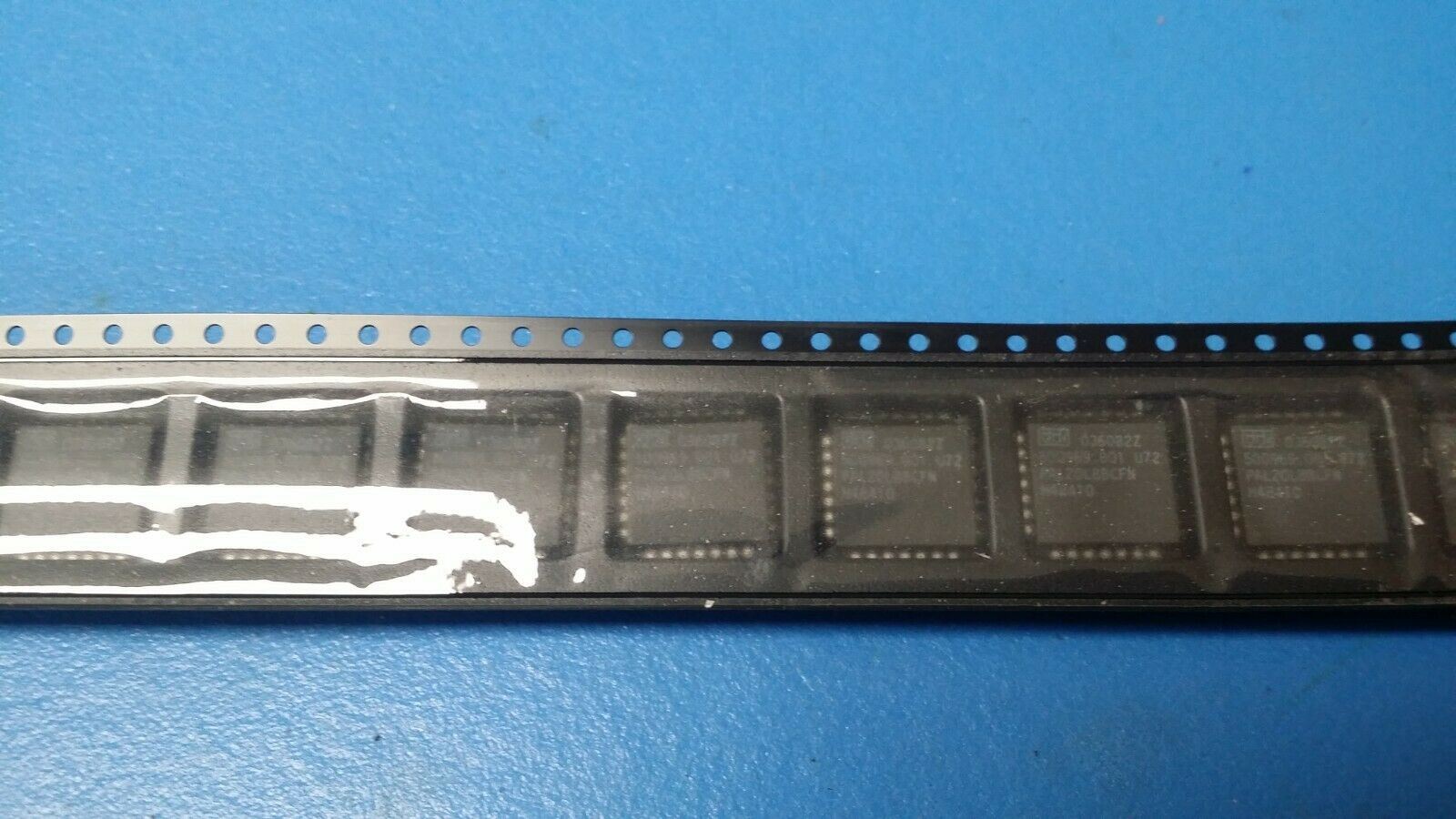

THIS LISTING IS FOR (5 PCS) OF PAL20L8BCFN BY AMD/MMI
OT PLD, 15ns, PAL-Type, TTL, PLCC28

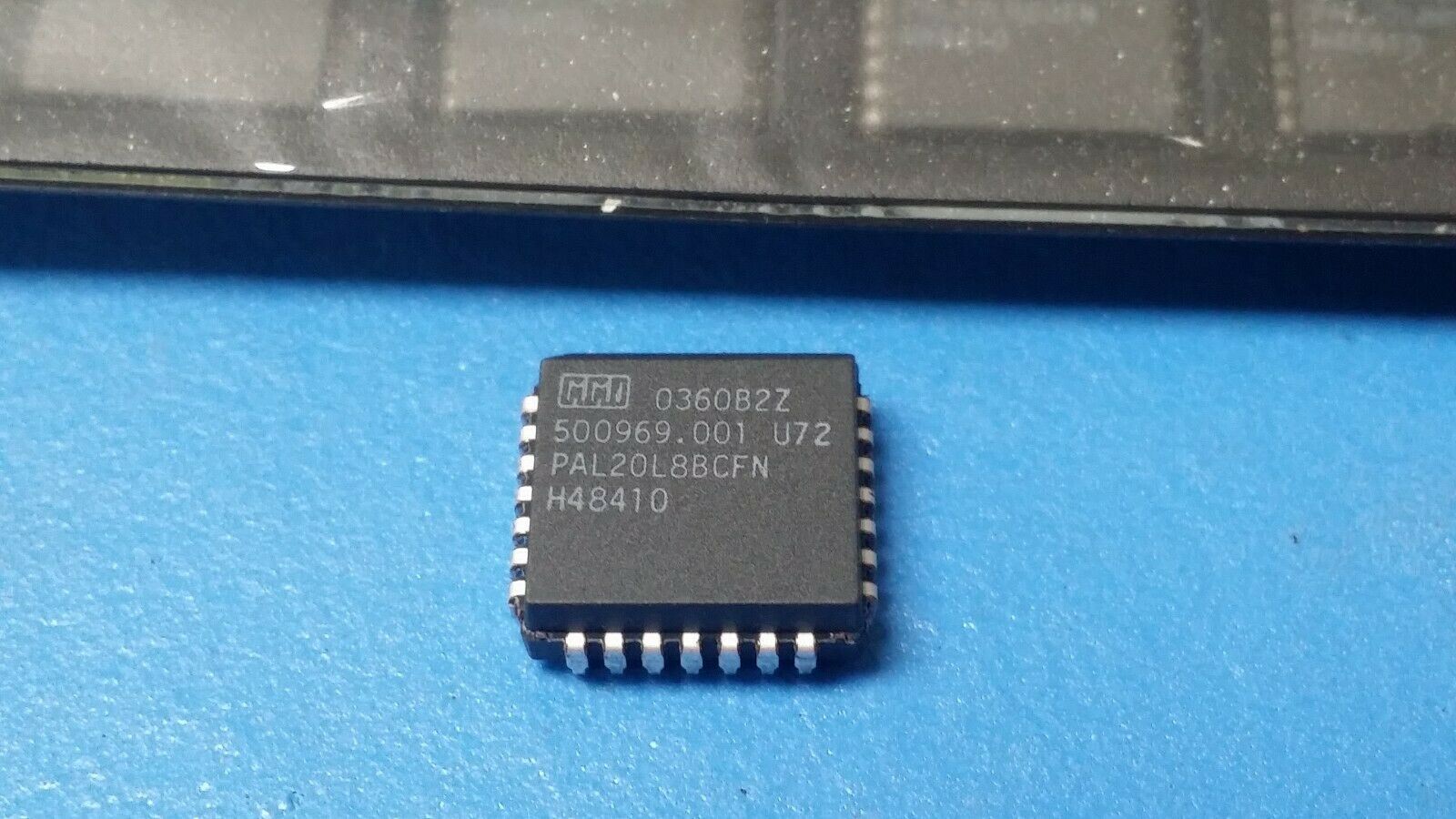

Part #: PAL20L8BCFN
Part Category: Programmable Logic ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: OT PLD, 15ns, PAL-Type, TTL, PQCC28
Part #: PAL20L8BCFN
Part Category: Programmable Logic ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: OT PLD, 15ns, PAL-Type, TTL, PQCC28
Status Discontinued
Programmable Logic Type OT PLD
Architecture PAL-TYPE
JESD-30 Code S-PQCC-J28
JESD-609 Code e0
Number of Inputs 20.0
Number of Outputs 8.0
Number of Product Terms 64.0
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Function COMBINATORIAL
Package Body Material PLASTIC
Package Code QCCJ
Package Equivalence Code LDCC28,.5SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Propagation Delay 15.0 ns
Qualification Status Not Qualified
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Surface Mount SURFACE MOUNT
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
