(5 PCS) PAL20L8ACFN AMD/MMI OT PLD, 25ns, PAL-Type, TTL, PLCC28
Tax included.

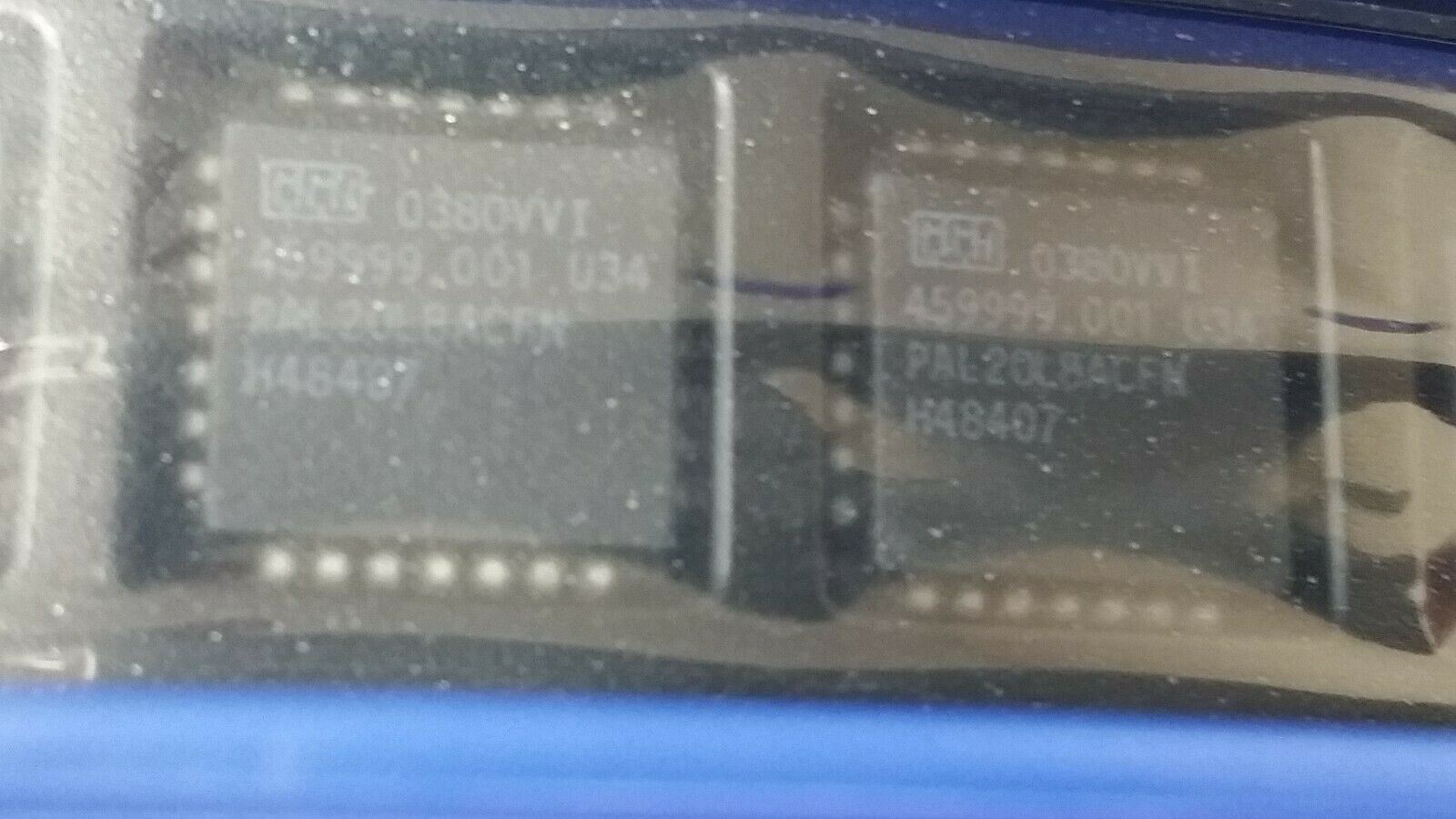

THIS LISTING IS FOR (5 PCS) OF PAL20L8ACFN BY AMD/MMI
OT PLD, 25ns, PAL-Type, TTL, PLCC28
Part #: PAL20L8ACFN
Part Category: Programmable Logic ICs
Manufacturer: (MMI) Advanced Micro Devices, Inc.
Description: OT PLD, 25ns, PAL-Type, TTL, CQCC28
Status Discontinued
Programmable Logic Type OT PLD
Architecture PAL-TYPE
JESD-30 Code S-XQCC-J28
JESD-609 Code e0
Number of Inputs 20.0
Number of Outputs 8.0
Number of Product Terms 64.0
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Function COMBINATORIAL
Package Body Material CERAMIC
Package Code QCCJ
Package Equivalence Code LDCC28,.5SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Propagation Delay 25.0 ns
Qualification Status Not Qualified
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Surface Mount SURFACE MOUNT
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
