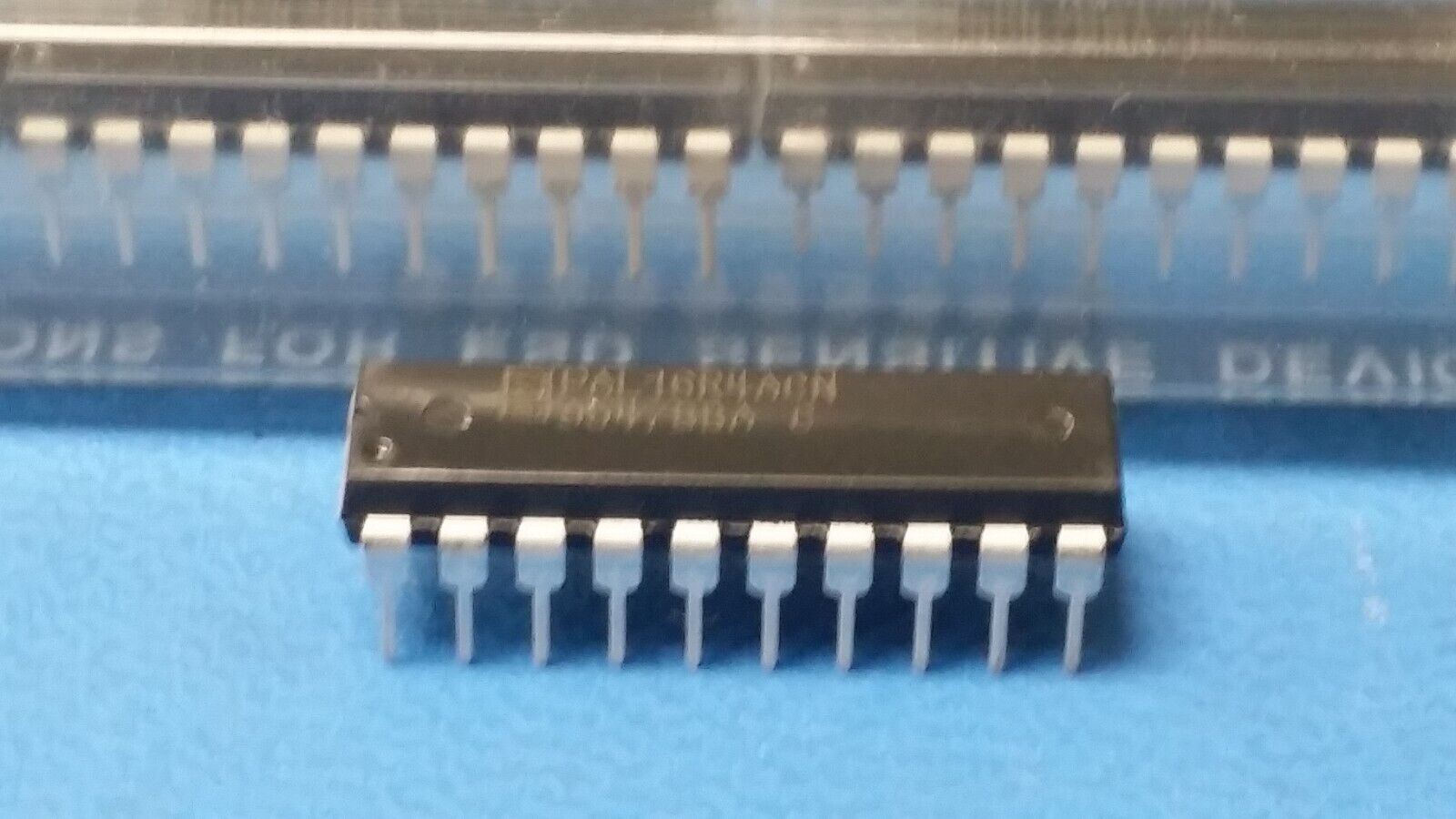

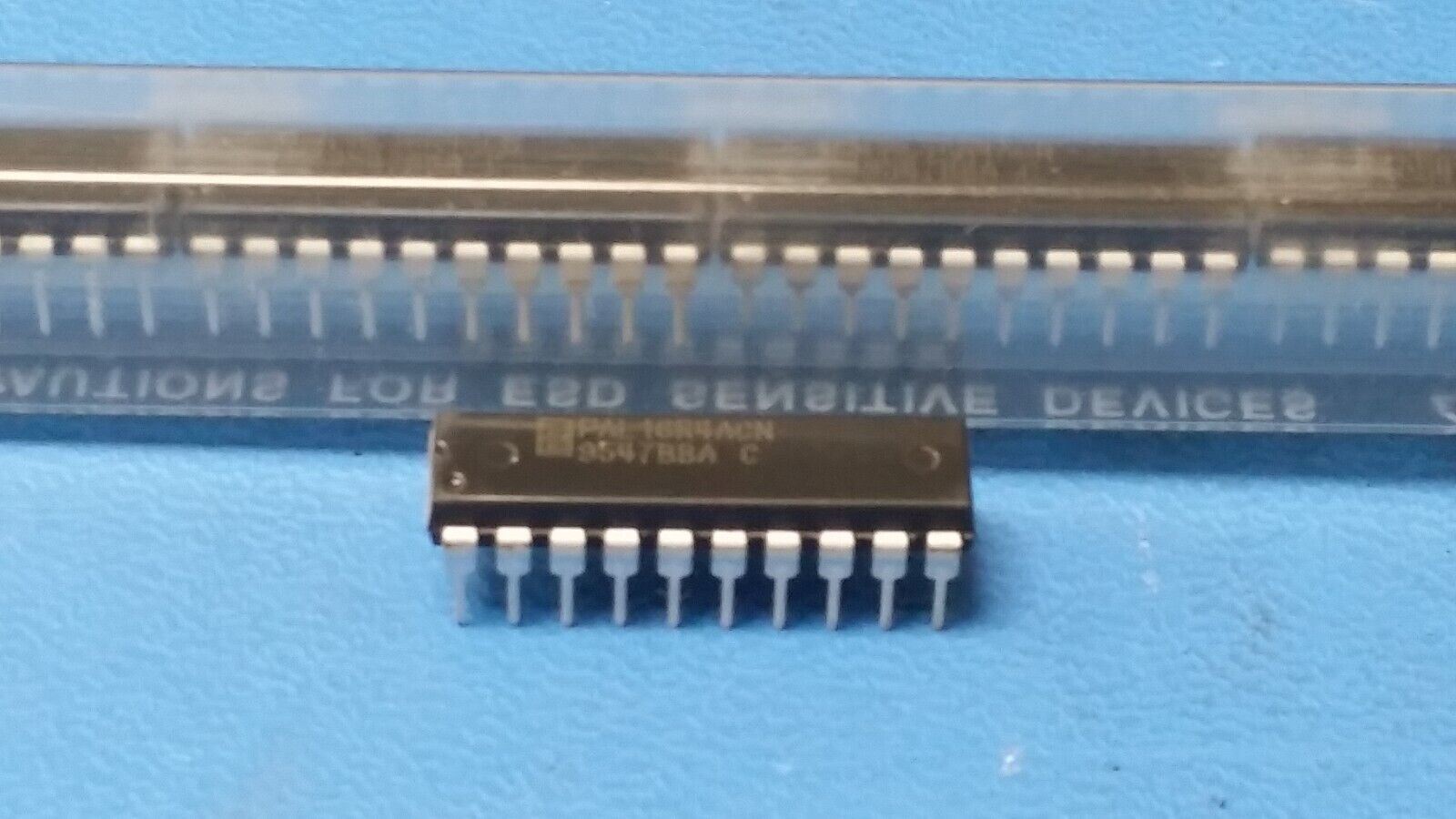

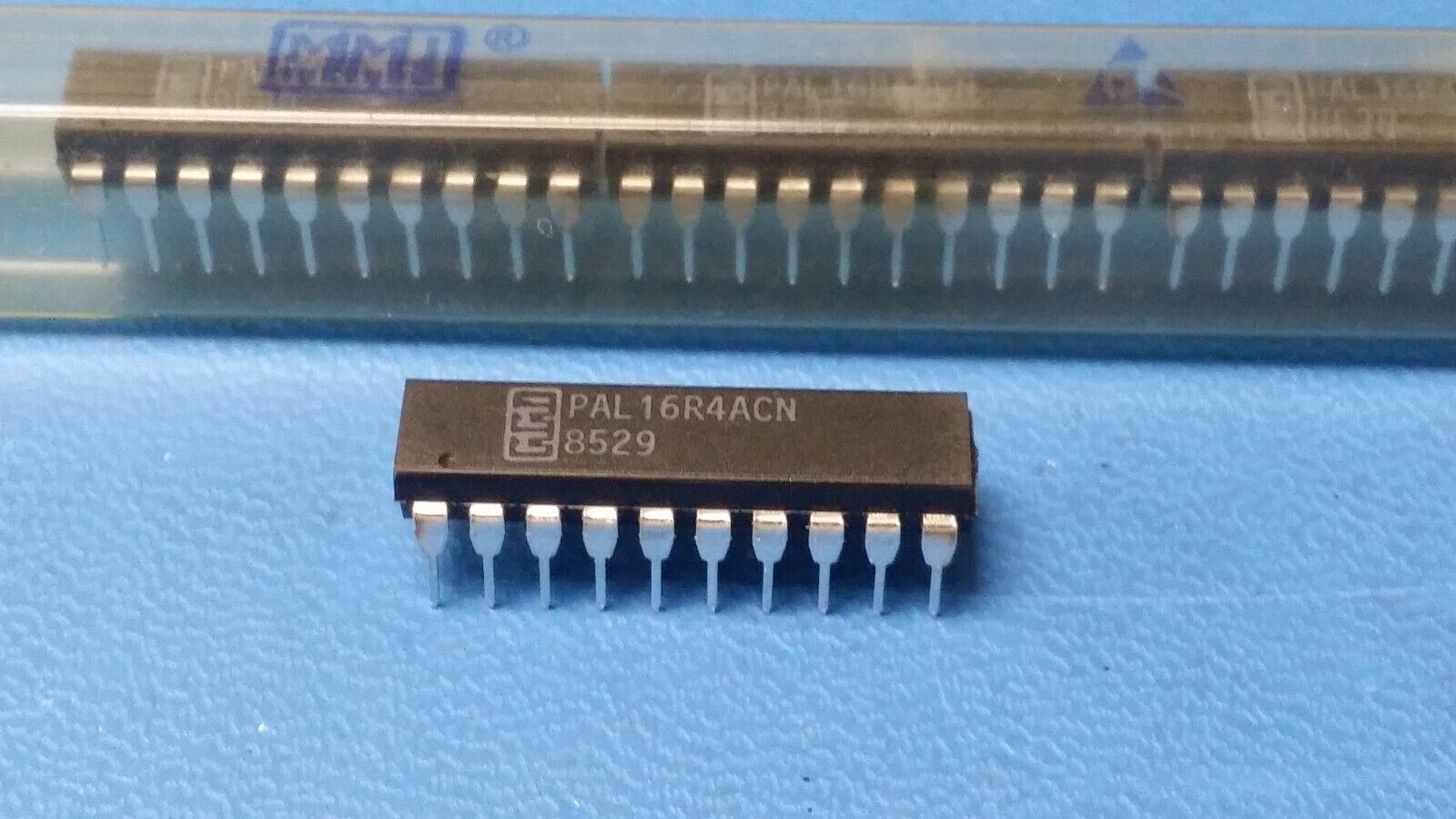

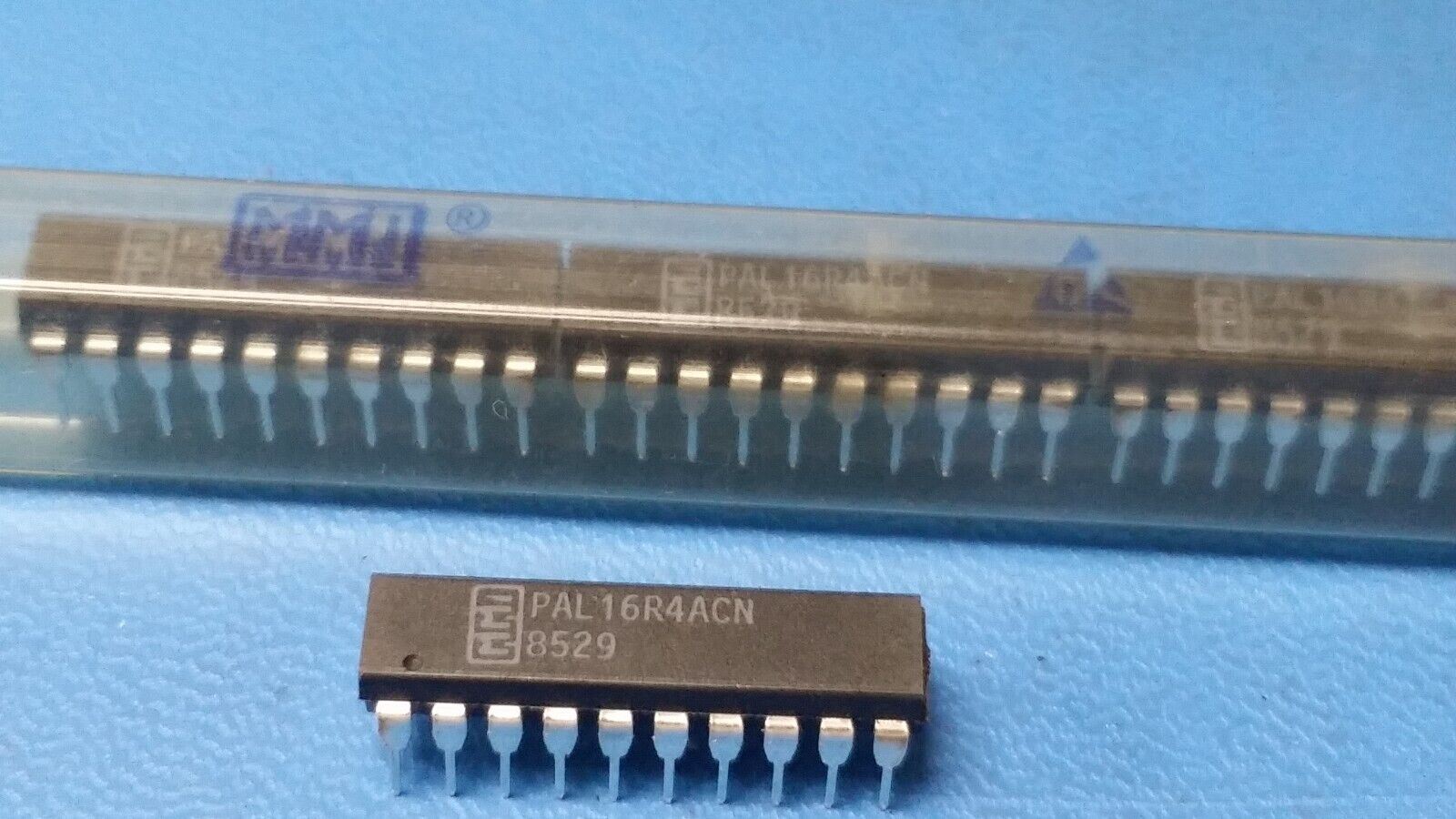

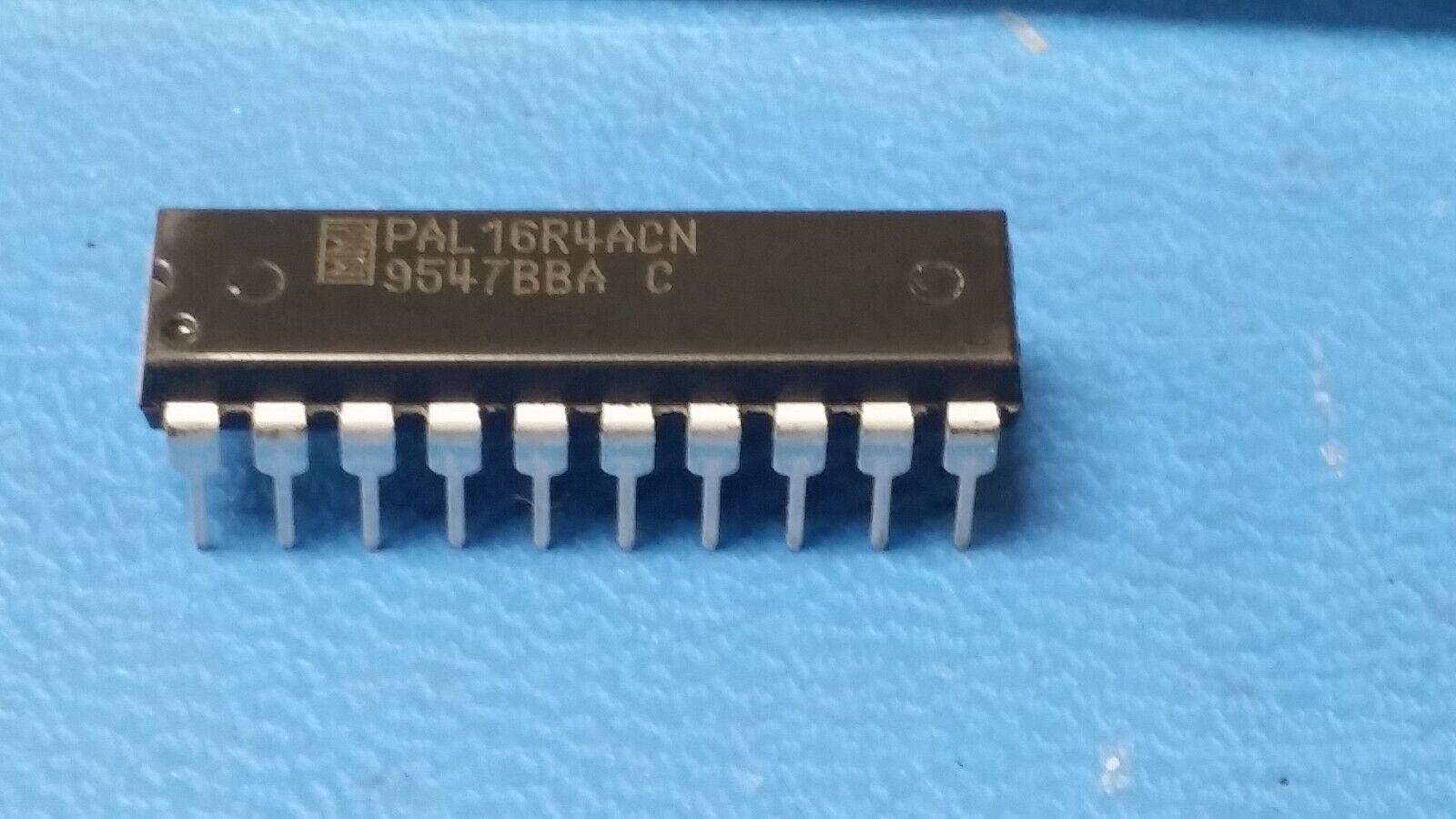

(5 PCS) PAL16R4ACN MMI OT PLD, 25ns, PAL-Type, TTL, PDIP20
Tax included.
THIS IS FOR (5 PCS) OF PAL16R4ACN BY MMI
OT PLD, 25ns, PAL-Type, TTL, PDIP20
Part #: PAL16R4ACN
Part Category: Programmable Logic ICs
Manufacturer: (MMI) Advanced Micro Devices, Inc.
Description: OT PLD, 25ns, PAL-Type, TTL, PDIP20
Mfr Package Description PLASTIC, DIP-20
Status Discontinued
Programmable Logic Type OT PLD
Architecture PAL-TYPE
Clock Frequency-Max 25.0 MHz
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Number of Dedicated Inputs 8.0
Number of I/O Lines 4.0
Number of Inputs 12.0
Number of Outputs 8.0
Number of Product Terms 64.0
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 75.0 Cel
Organization 8 DEDICATED INPUTS, 4 I/O
Output Function MIXED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Propagation Delay 25.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL EXTENDED
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 26.035 mm
Width 7.62 mm
Additional Feature POWER-UP RESET; REGISTER PRELOAD; 1 EXTERNAL CLOCK
