(5 PCS) OSTT7020150 ONSHORE TERM BLK 2P SIDE ENT 6.35MM PCB ROHS
Tax included.

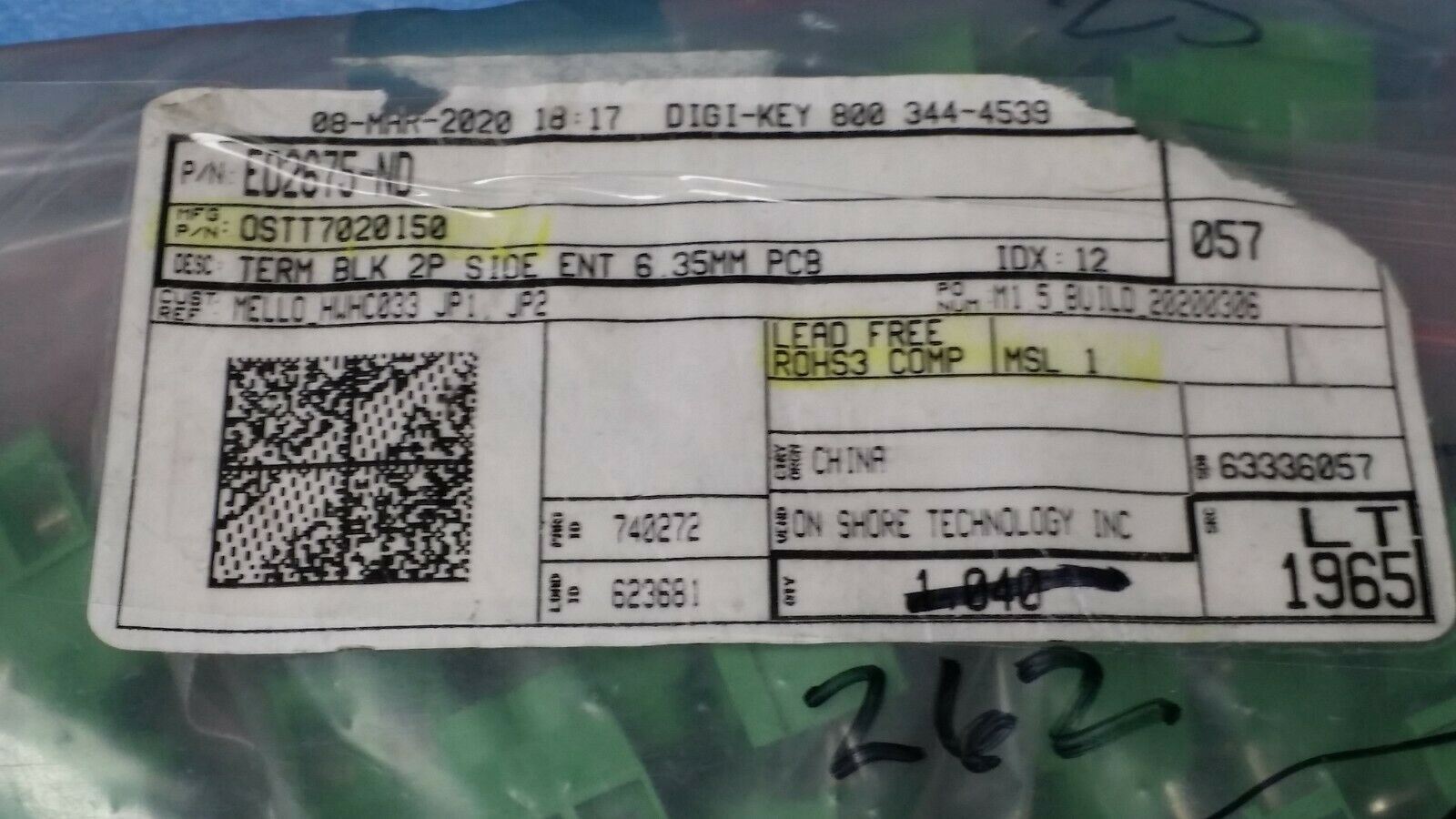

THIS IS FOR (5 PCS) OF OSTT7020150 BY ONSHORE
TERM BLK 2P SIDE ENT 6.35MM PCB ROHS
Mfr On Shore Technology Inc.
Series OSTT7
Package Bulk
Part Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.250" (6.35mm)
Mating Orientation Horizontal with Board
Current 25 A
Voltage 300 V
Wire Gauge 10-24 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Operating Temperature -30°C ~ 105°C
Housing Material Thermoplastic
Contact Material - Plating Brass
Clamp Material - Plating Brass
Screw Material - Plating Steel - Zinc Plated
Torque - Screw 1.0 Nm (8.9 Lb-In)
Screw Thread M3
Base Product Number OSTT702
