(5 PCS) N82S23N SIGNETICS 32X8 OTPROM, 50ns, PDIP16
Tax included.

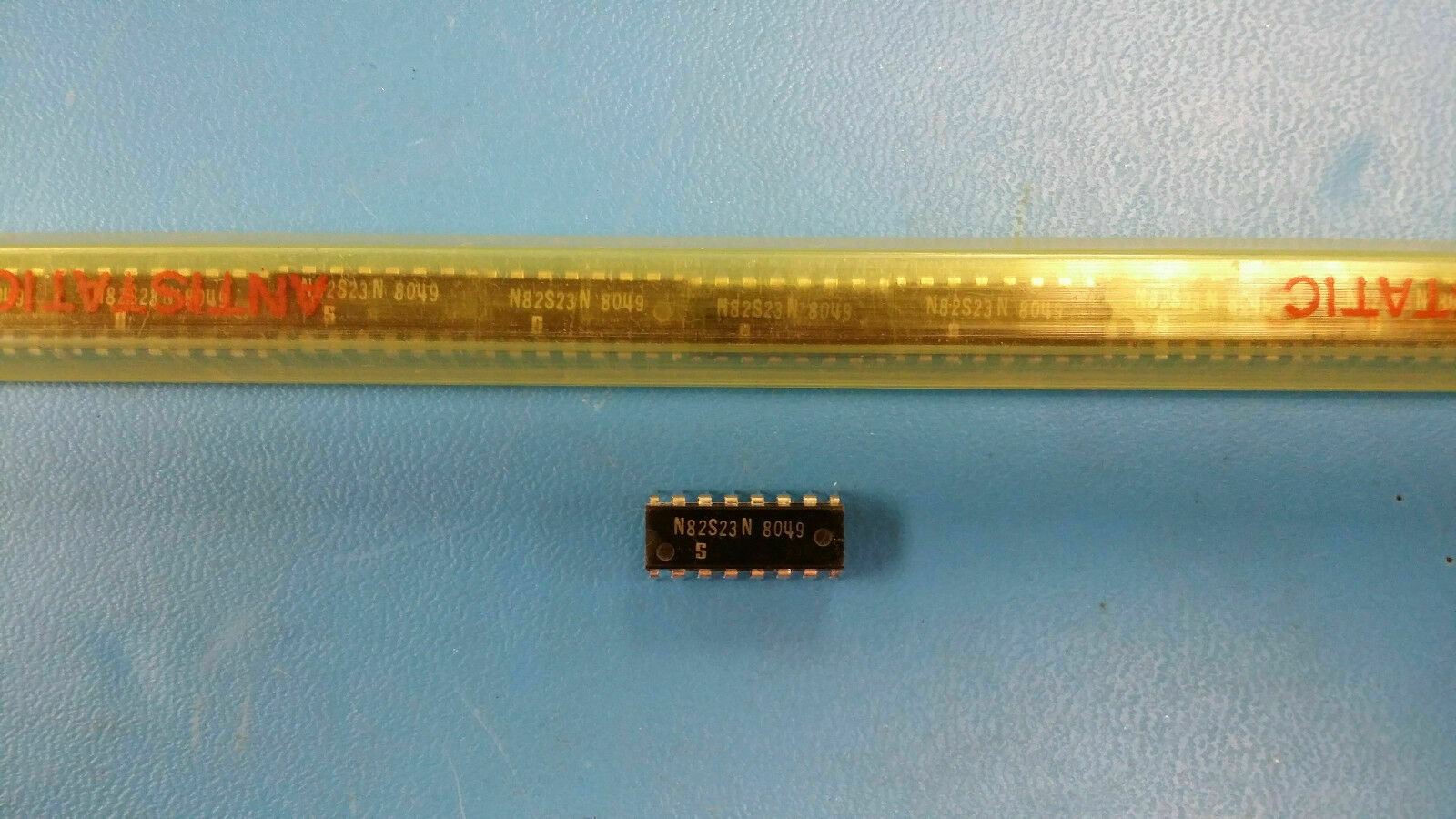

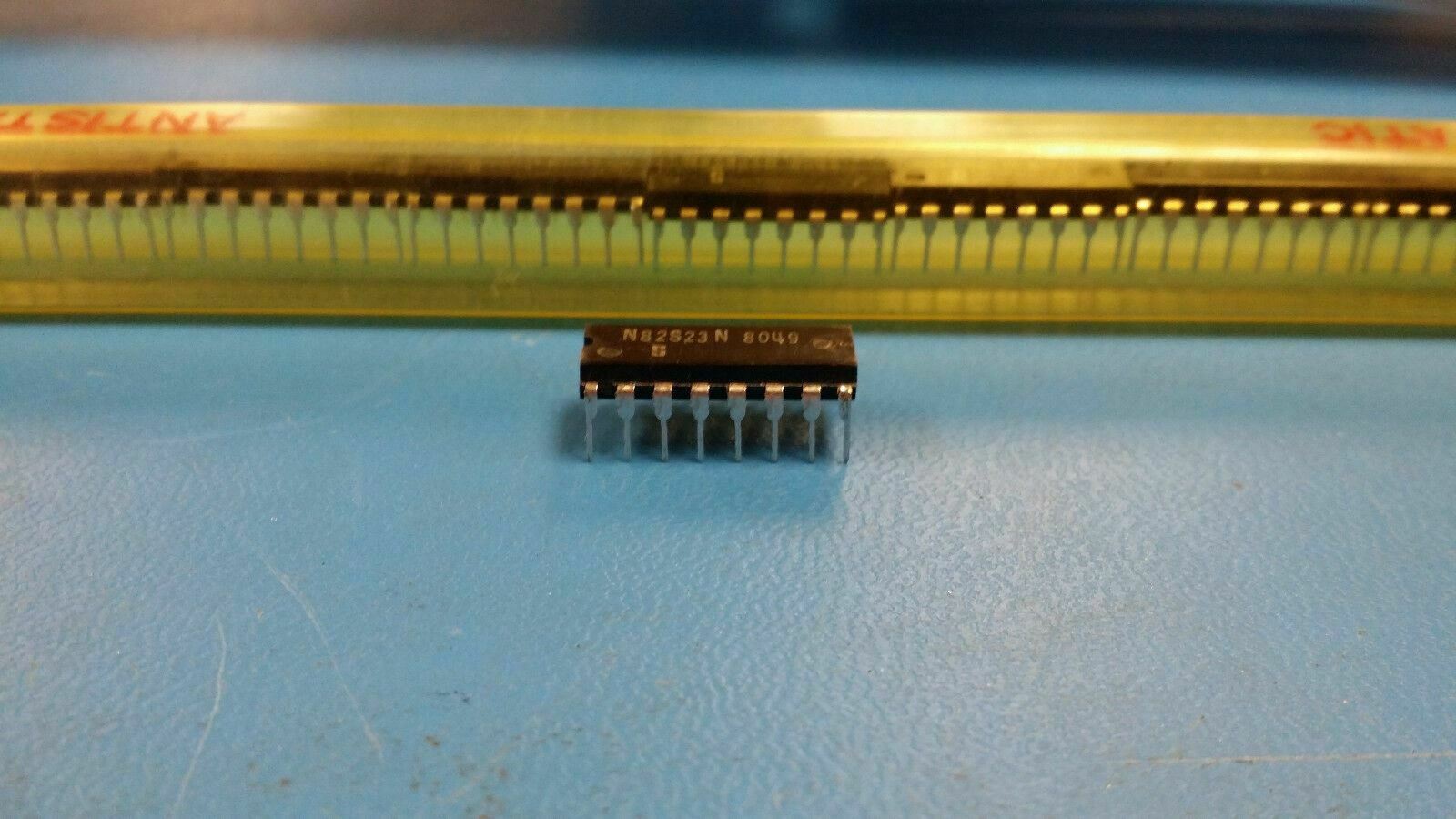

THIS LISTING IS FOR (5 PCS) OF N82S23N BY SIGNETICS
32X8 OTPROM, 50ns, PDIP16
Manufacturer: Signetics High Technology, Inc.
Description: 32X8 OTPROM, 50ns, PDIP16
Status
32X8 OTPROM, 50ns, PDIP16
Part #: N82S23N
Part Category: Memory ICsManufacturer: Signetics High Technology, Inc.
Description: 32X8 OTPROM, 50ns, PDIP16
Status
| Discontinued | |
| Sub Category | OTP ROMs |
| Access Time-Max | 50.0 ns |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Memory Density | 256.0 bit |
| Memory IC Type | OTP ROM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Number of Words | 32.0 words |
| Number of Words Code | 32 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 75.0 Cel |
| Organization | 32X8 |
| Output Characteristics | OPEN-COLLECTOR |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Supply Current-Max | 0.096 Amp |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| | |
