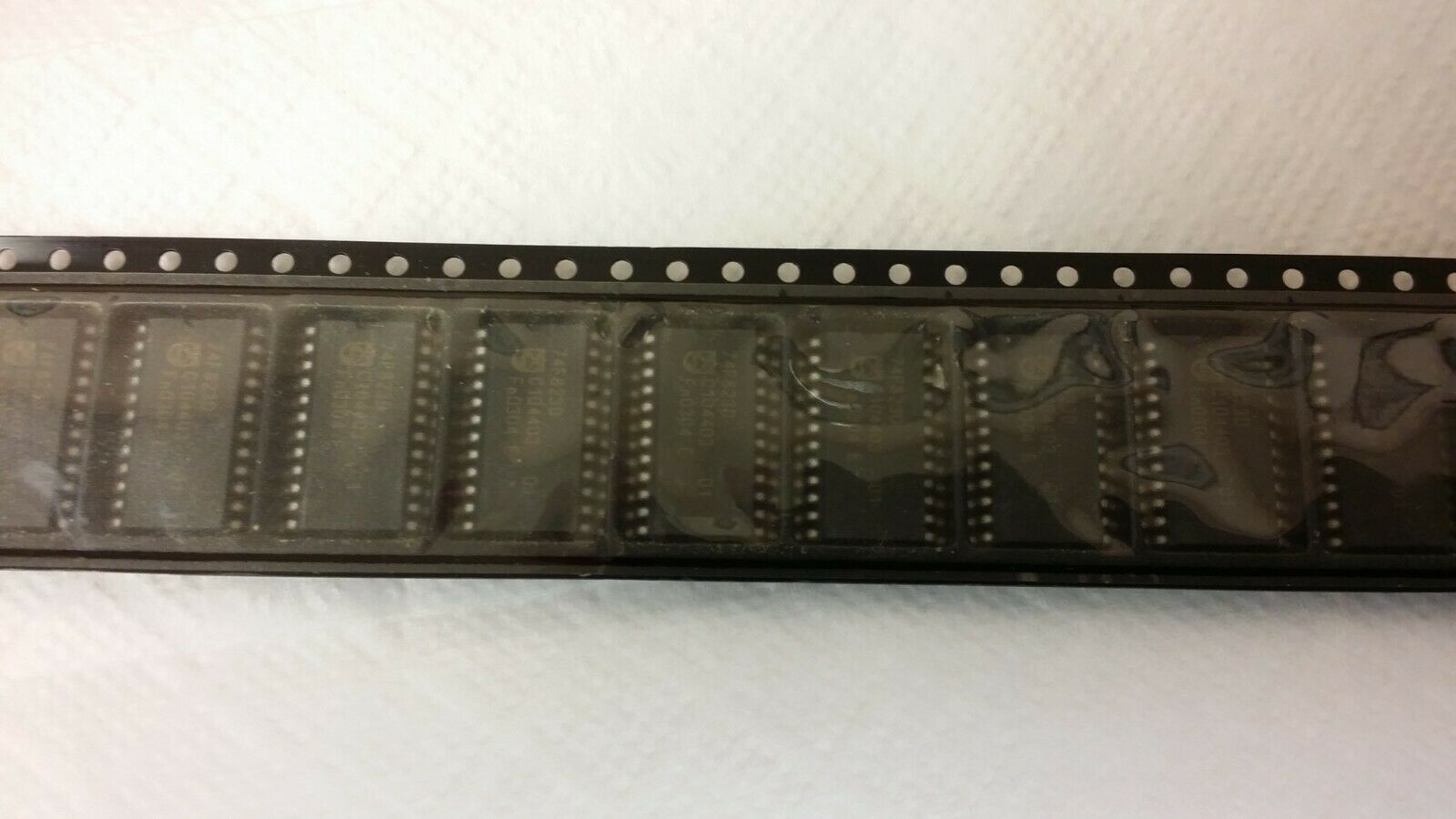

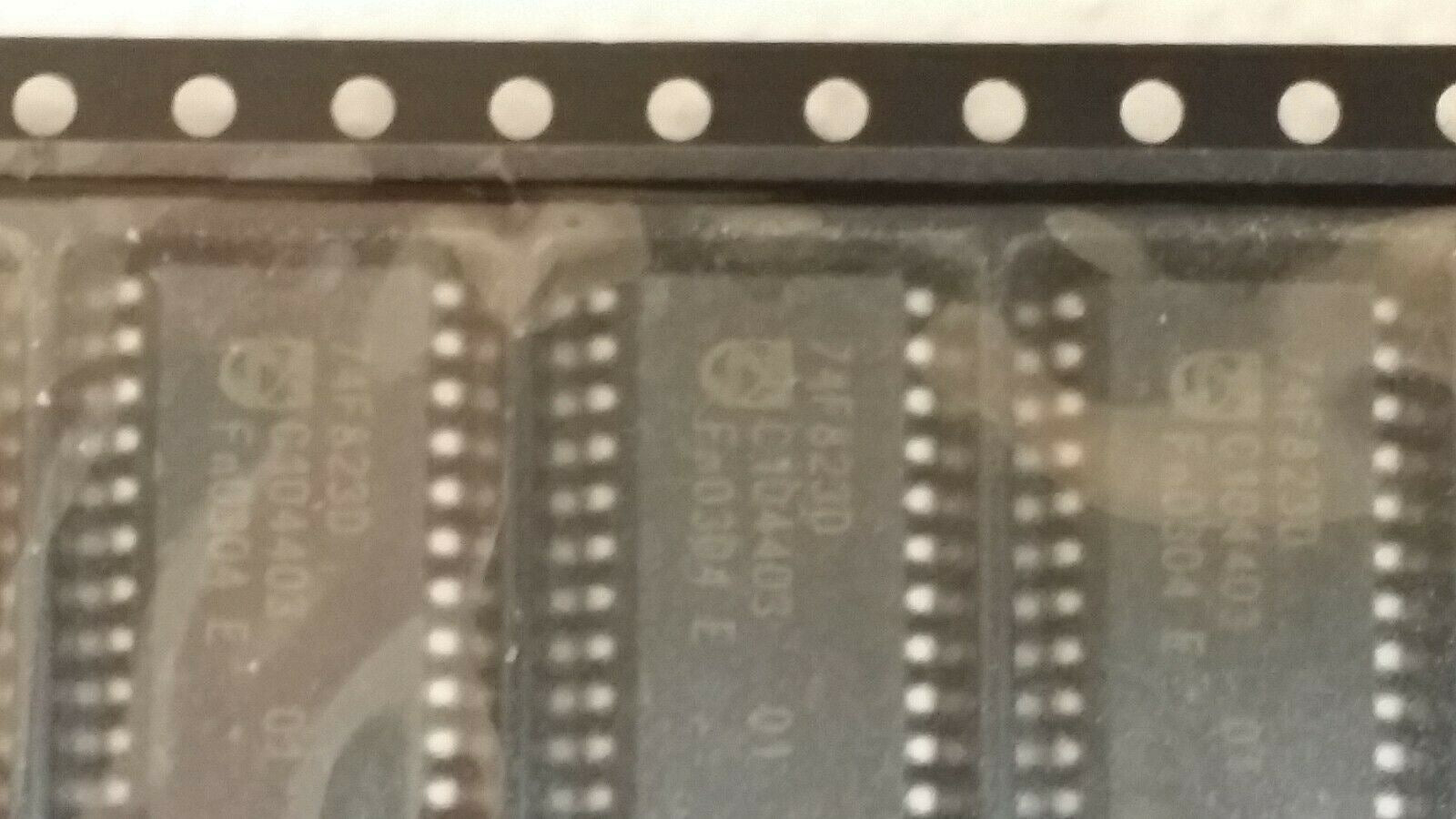

(5 pcs) N74F823D Bus Driver F/FAST Series 1-Func 9-Bit True Output TTL SOIC-24
Tax included.
THIS LISTING IS FOR (5 pcs) OF N74F823D BY Philips Semiconductor
Bus Driver F/FAST Series 1-Func 9-Bit True Output TTL SOIC-24
Part #: N74F823D
Part Category: Logic ICs
Manufacturer: Philips Semiconductor
Description: Bus Driver, F/FAST Series, 1-Func, 9-Bit, True Output, TTL, PDSO24
Mfr Package Description 7.50 MM, PLASTIC, SOT-137-1, SO-24
Status Discontinued
Logic IC Type BUS DRIVER
Family F/FAST
JESD-30 Code R-PDSO-G24
Load Capacitance (CL) 50.0 pF
Number of Bits 9
Number of Functions 1
Number of Ports 2
Number of Terminals 24
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Power Supply Current-Max (ICC) 105.0 mA
Propagation Delay (tpd) 9.5 ns
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 15.4 mm
Width 7.5 mm
Additional Feature WITH CLEAR AND CLOCK ENABLE
