(5 PCS) MSS7341-502NLD Fixed Inductors 5uH Shld 30% 4.7A 23mOhms ROHS
Tax included.

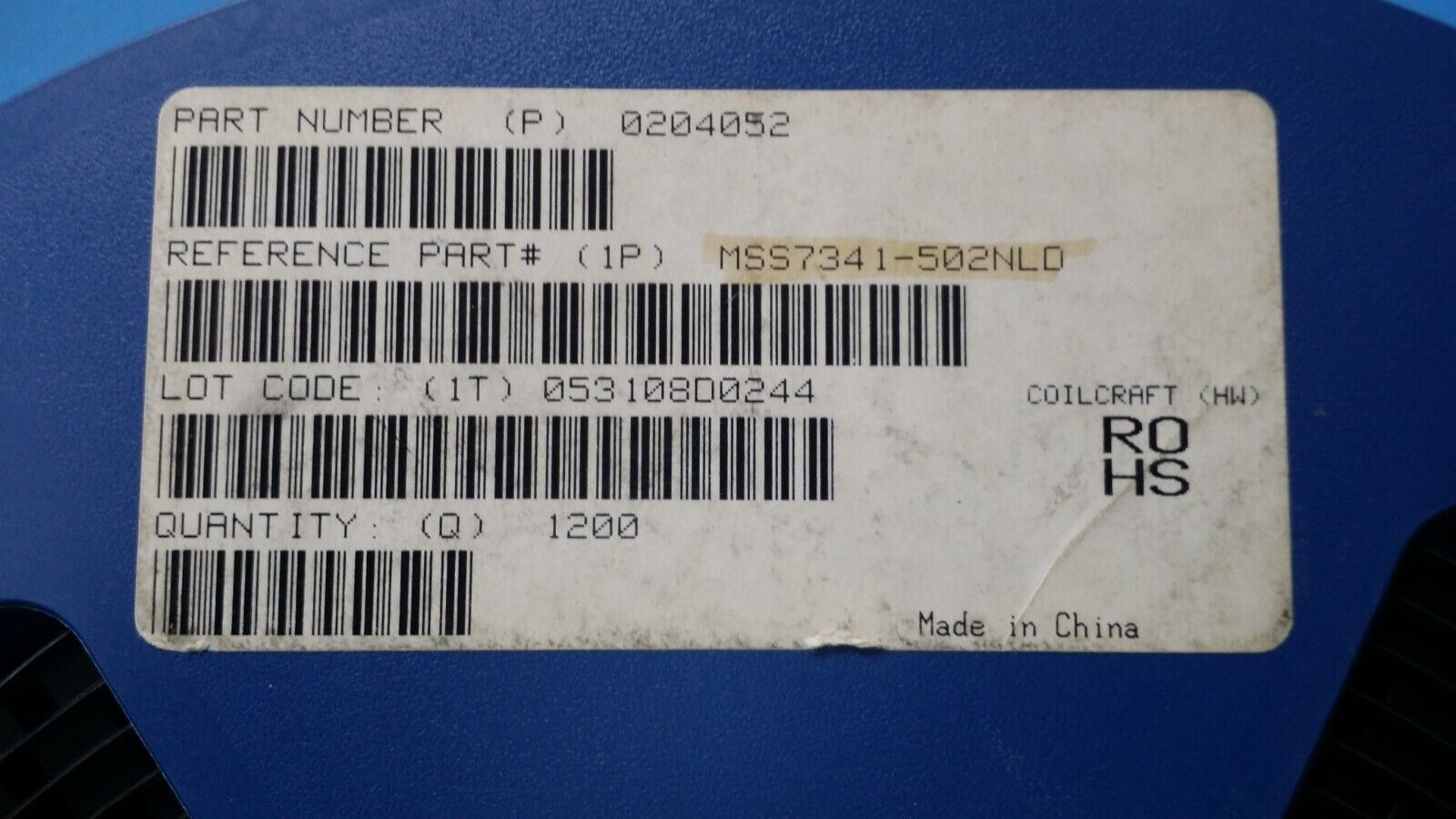

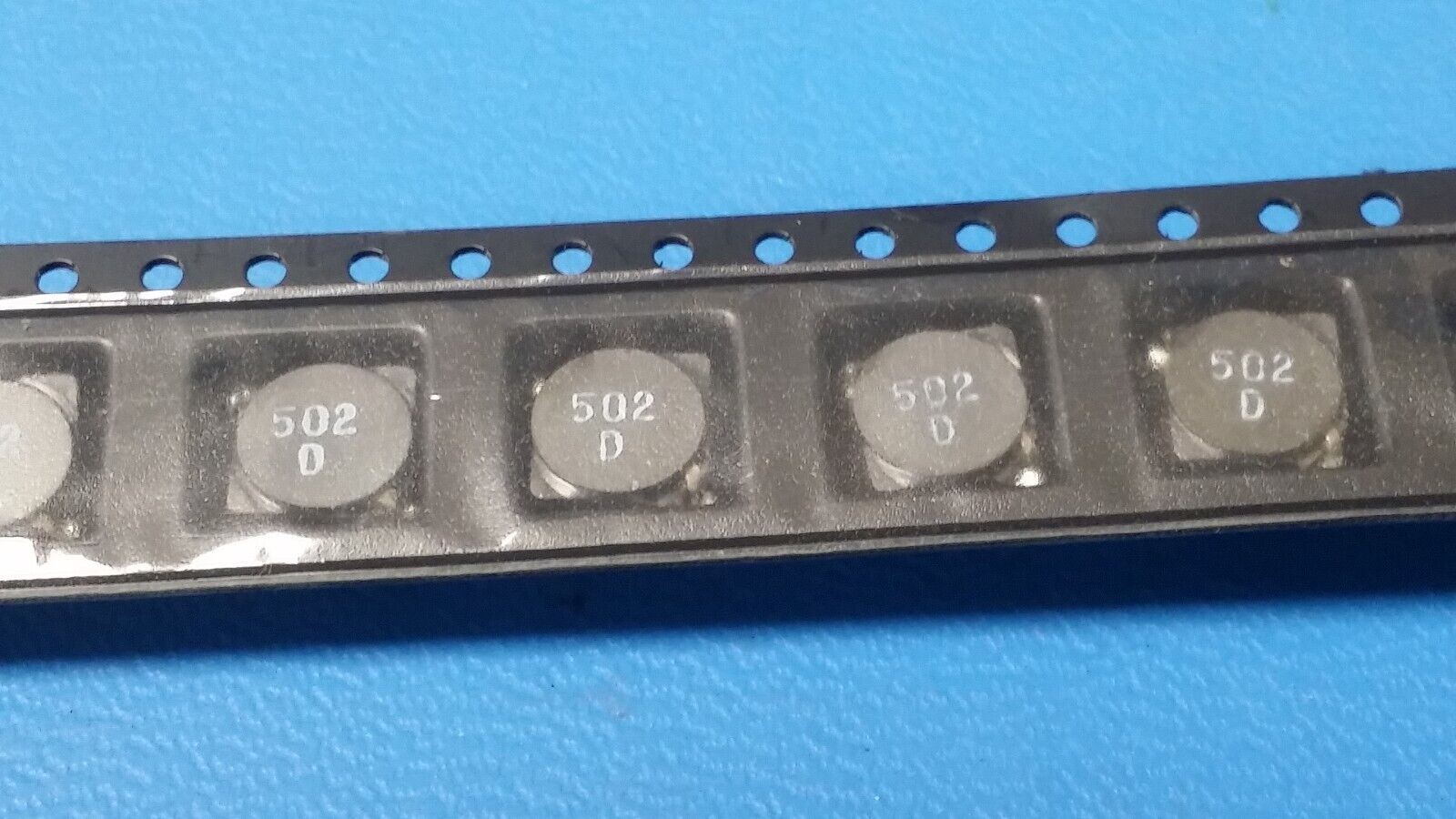

THIS IS FOR (5 PCS) OF MSS7341-502NLD BY COILCRAFT
Fixed Inductors 5uH Shld 30% 4.7A 23mOhms ROHS
Manufacturer: Coilcraft
Product Category: Fixed Inductors
Product: Power Inductors
Type: Wirewound
Termination Style: SMD/SMT
Package / Case: 2929 (7373 metric)
Shielding: Shielded
Inductance: 5 uH
Tolerance: 30 %
Maximum DC Current: 4.7 A
Maximum DC Resistance: 23 mOhms
Saturation Current: 3.16 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Q Minimum: -
Self Resonant Frequency: 49 MHz
Termination: Standard
Mounting Style: PCB Mount
Length: 7.3 mm
Width: 7.3 mm
Height: 4.1 mm
Diameter: -
Core Material: Ferrite
Series: MSS7341
Packaging: Reel
Packaging: Cut Tape
Application: Automotive
Brand: Coilcraft
Case Code - in: 2929
Case Code - mm: 7373
Core Type: Drum
Product Type: Fixed Inductors
1200
Subcategory: Inductors, Chokes & Coils
Test Frequency: 100 kHz
Part # Aliases: MSS7341-502NLB
Unit Weight: 0.023634 oz
