(5 PCS) MPIA4020V2-2R2-R EATON FIXED IND 2.2UH 3.8A 48 MOHM SMD ROHS
Tax included.

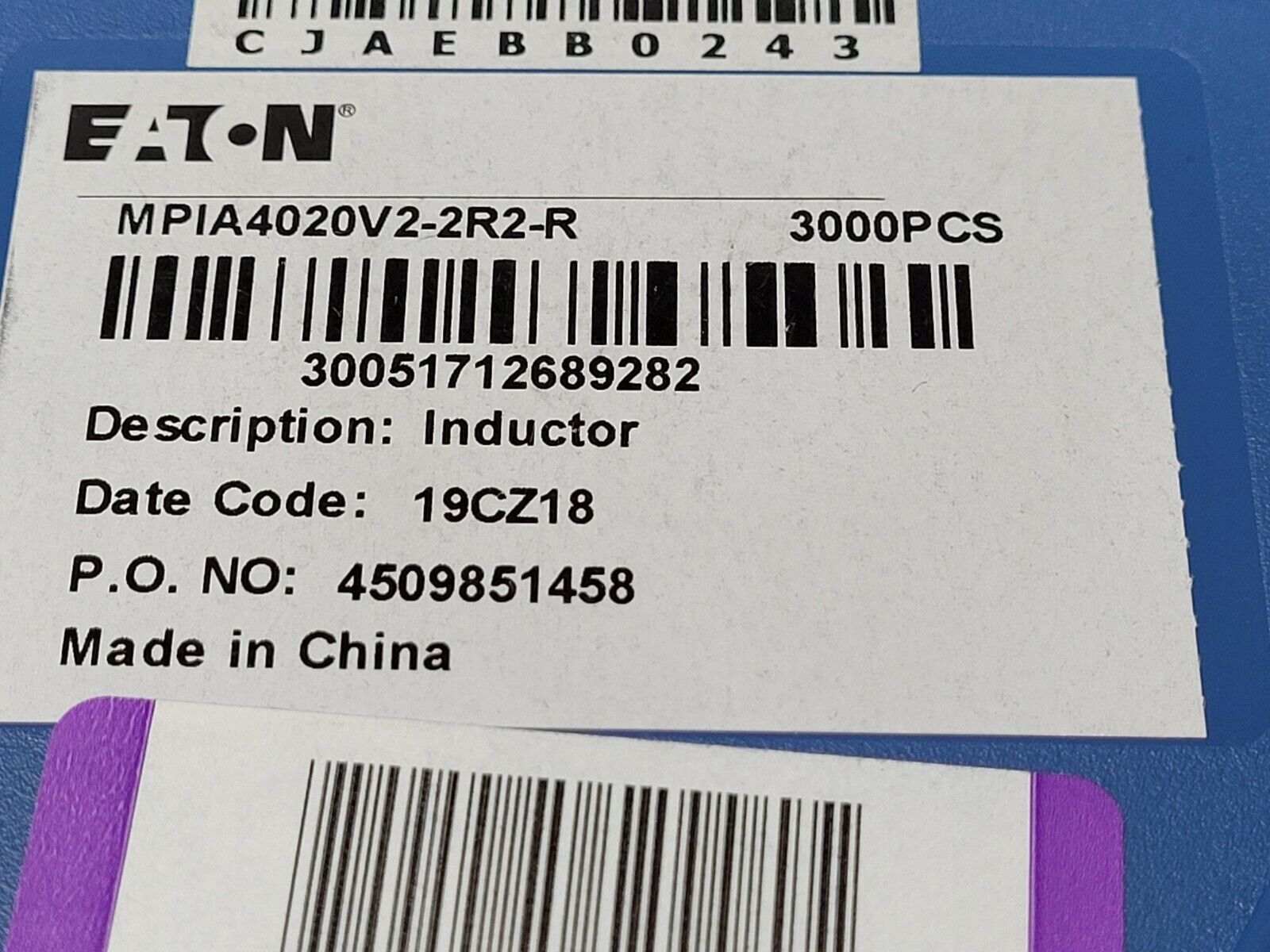

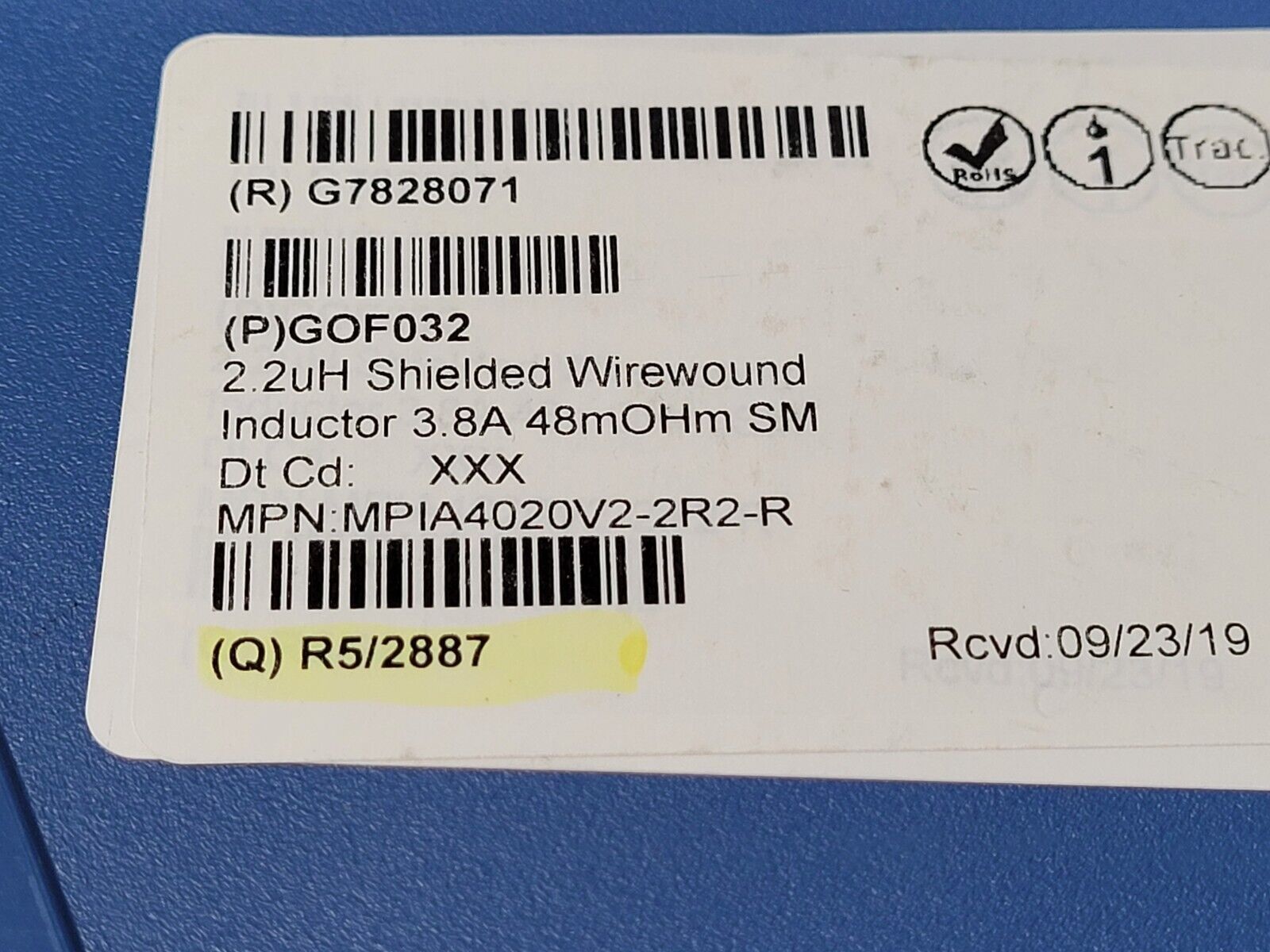

THIS IS FOR (5 PCS) OF MPIA4020V2-2R2-R BY EATON
FIXED IND 2.2UH 3.8A 48 MOHM SMD ROHS
Manufacturer: Eaton
Product Category: Power Inductors - SMD

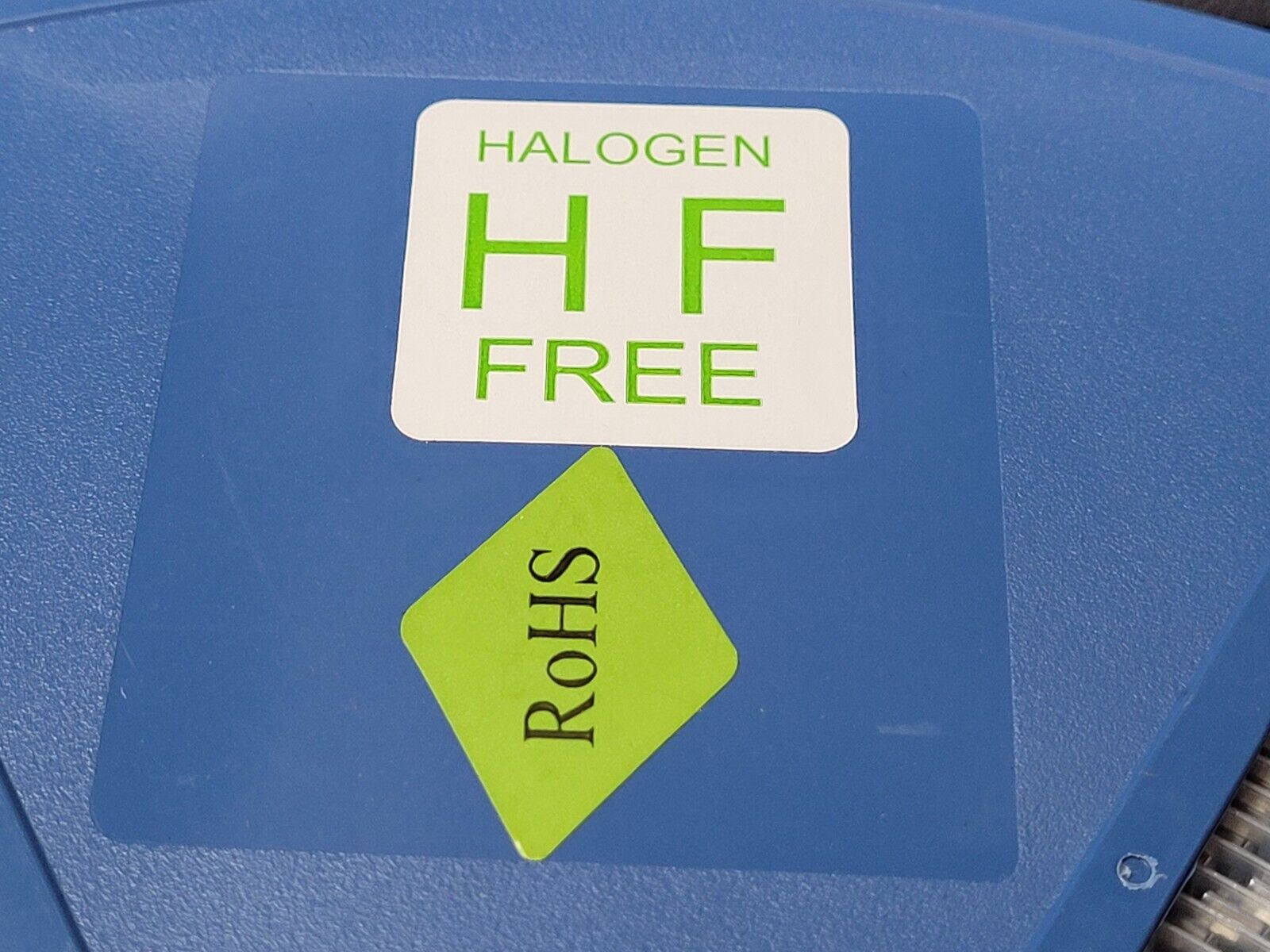

RoHS: YES
Type: High Power Choke
Termination Style: SMD/SMT
Shielding: Shielded
Inductance: 2.2 uH
Tolerance: 20 %
Maximum DC Current: 3.8 A
Maximum DC Resistance: 48 mOhms
Saturation Current: 5.5 A
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Q Minimum: -
Mounting Style: PCB Mount
Length: 4.75 mm
Width: 4.45 mm
Height: 2 mm
Diameter: -
Core Material: Metal Composite
Qualification: AEC-Q200
Series: MPIA40-V2

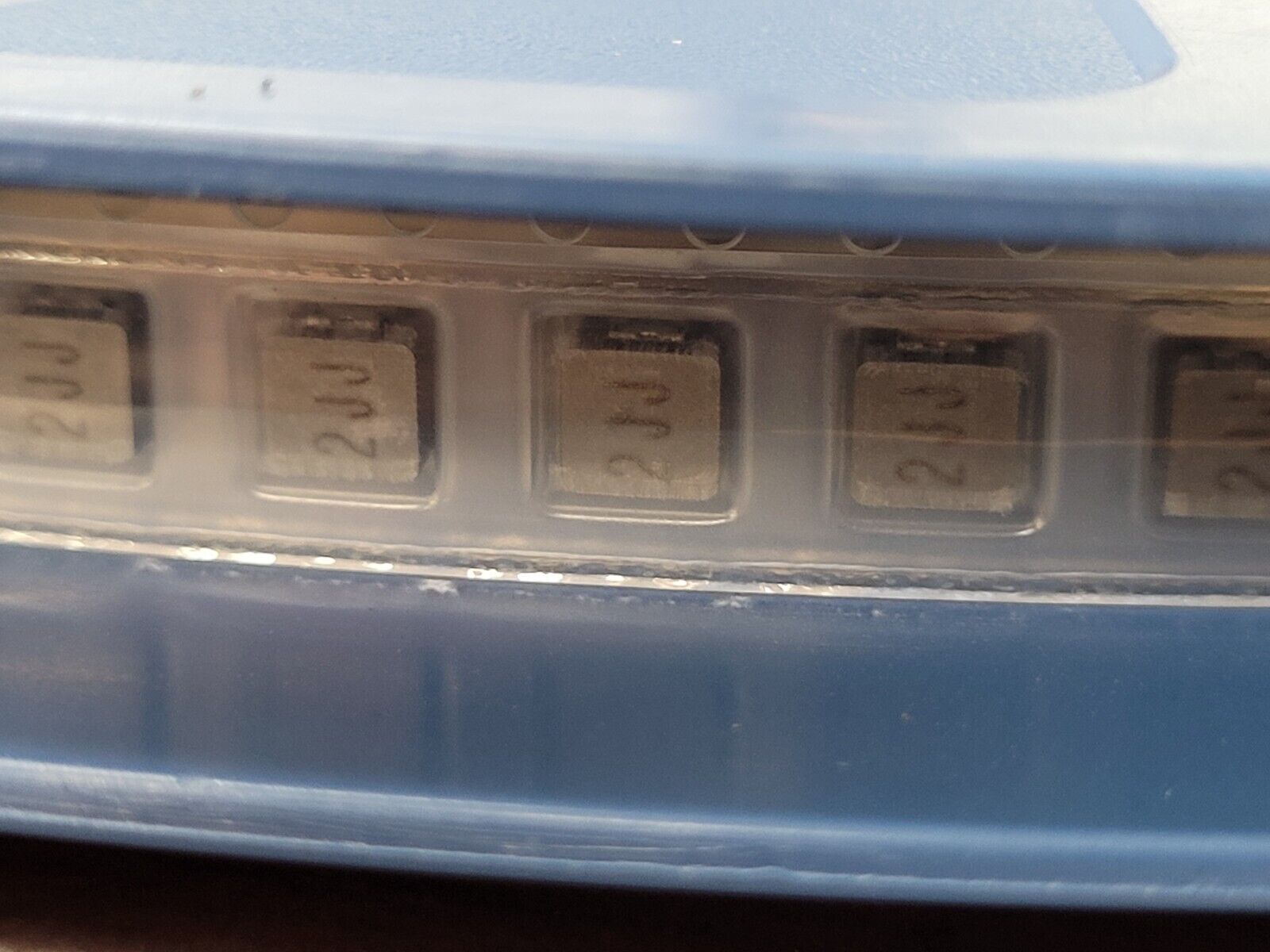

Packaging: Reel
Packaging: Cut Tape
Application: Automotive
Brand: Coiltronics / Eaton
Core Type: Molded
Product: Power Inductors
Product Type: Power Inductors - SMD
Self Resonant Frequency: 33 MHz
1488
Subcategory: Inductors, Chokes & Coils
Termination: Standard
