(5 PCS) MJE520 Bipolar Power Transistor NPN Amplifier/Switch 3A 30V 3-Pin TO-126
Tax included.

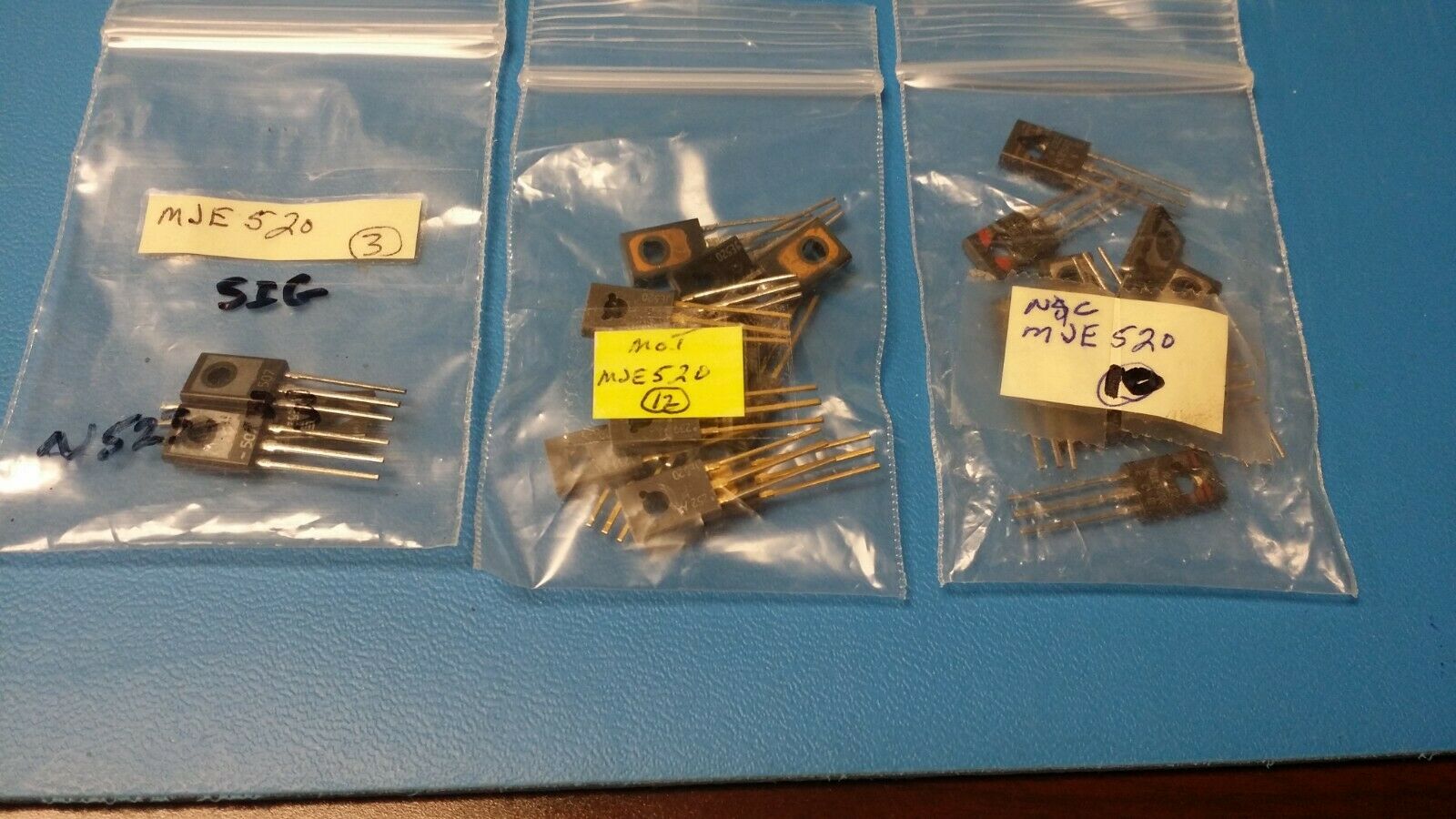

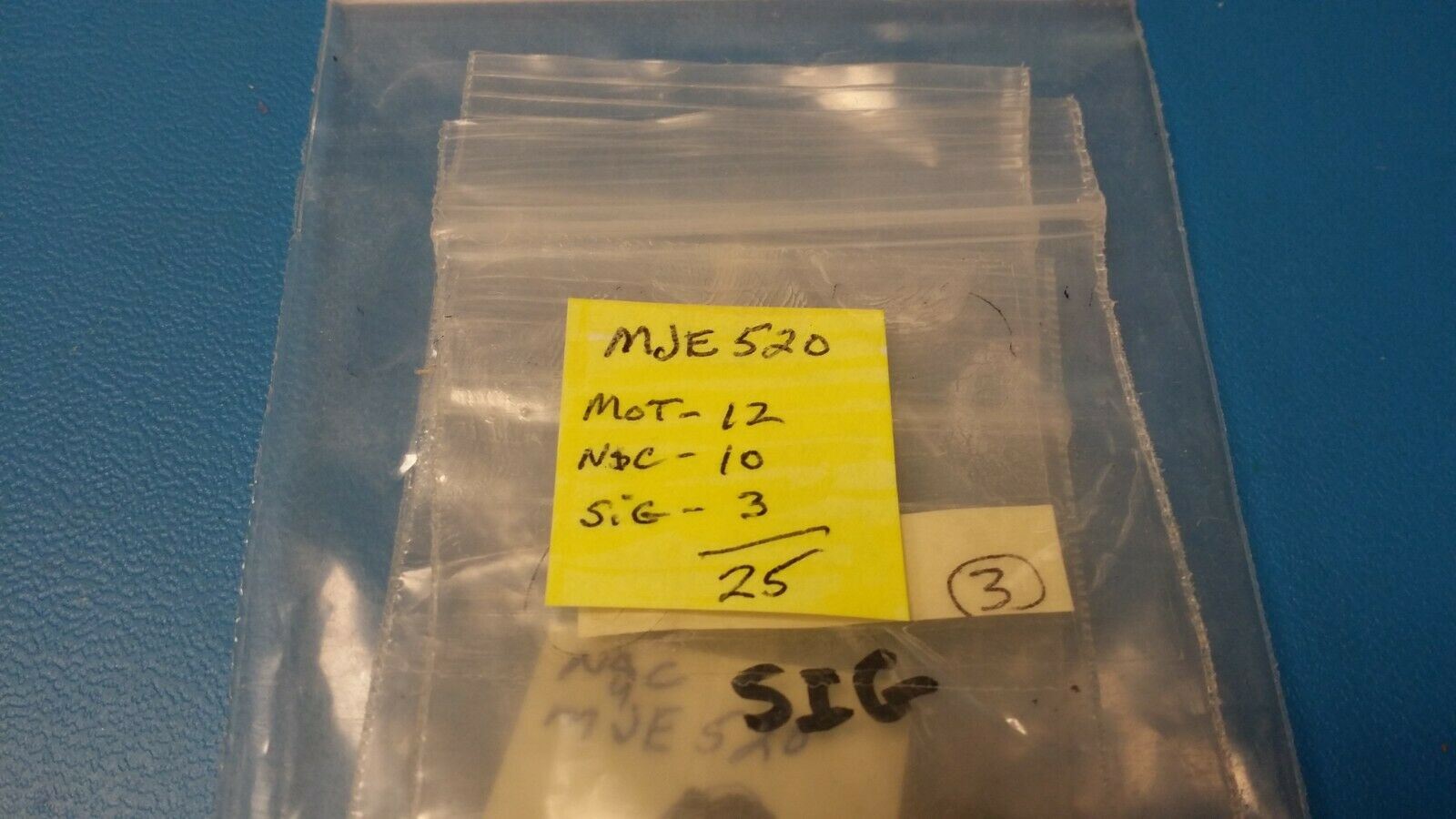

THIS LISTING IS FOR (5 PCS) OF MJE520 BY MOT OR NSC OR SIGNETICS
Bipolar Power Transistor NPN Amplifier/Switch 3A 30V 3-Pin TO-126
Mfr Package Description PLASTIC, CASE 77-04, 3 PIN
Status Discontinued
Collector Current-Max (IC) 3.0 A
Collector-emitter Voltage-Max 30.0 V
Configuration SINGLE
DC Current Gain-Min (hFE) 25.0
JEDEC-95 Code TO-126
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 25.0 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Element Material SILICON
