(5 PCS) MIC4575-3.3BU MICREL IC REG BCK BST 3.3V 1.7A TO263-5
Tax included.

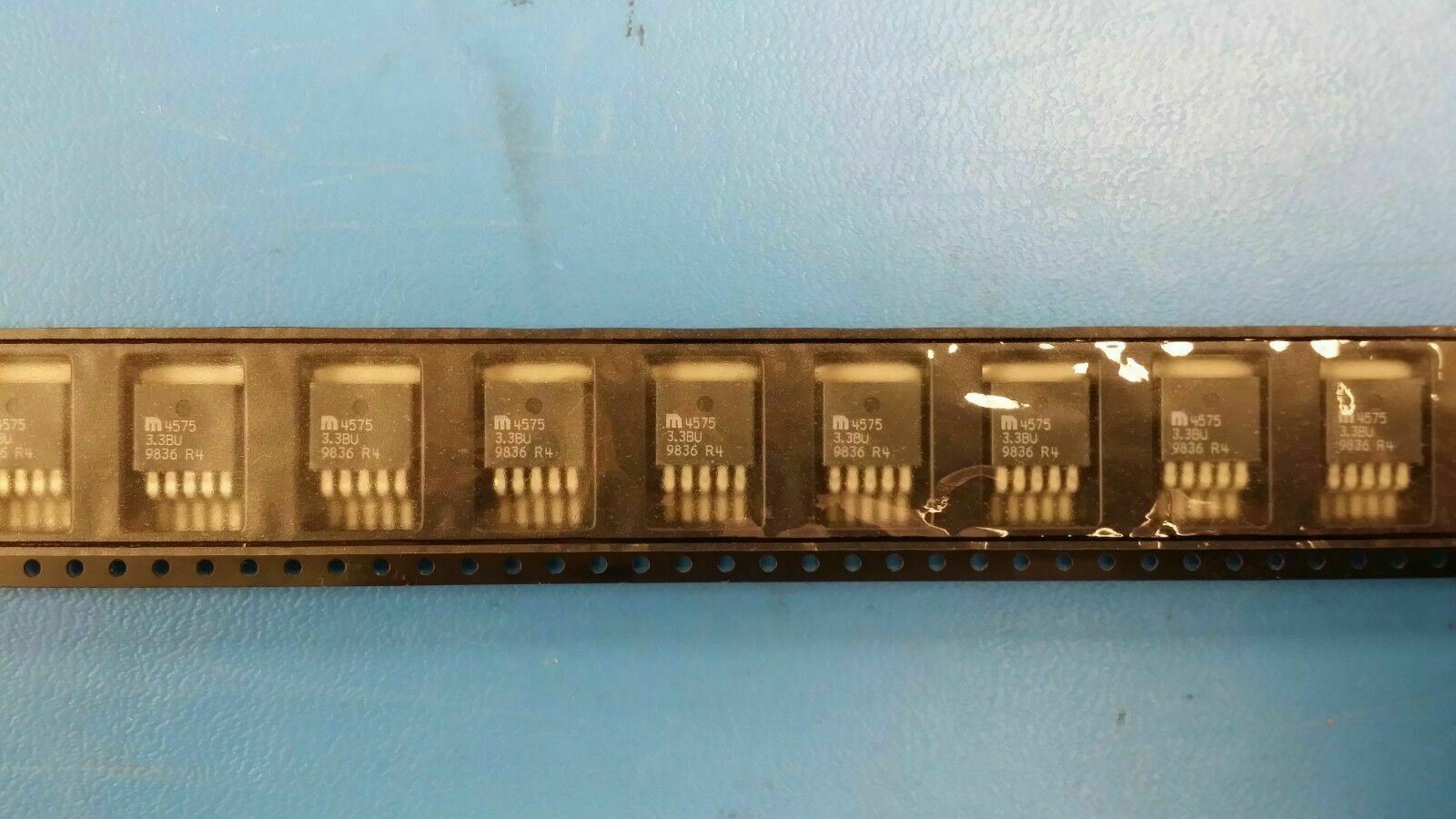

THIS LISTING IS FOR (5 PCS) OF MIC4575-3.3BU BY MICREL
IC REG BCK BST 3.3V 1.7A TO263-5
Mfr Package Description TO-263, 5 PIN
Status Discontinued
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Nom 12.0 V
Input Voltage-Min 4.0 V
Input Voltage-Max 24.0 V
JESD-30 Code R-PSSO-G5
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 5
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Current-Max 3.2 A
Output Voltage-Nom 3.3 V
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Equivalence Code SMSIP5H,.6,67TB
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 4.902 mm
Sub Category Switching Regulator or Controllers
Supply Current-Max (Isup) 10.0 mA
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 220.0 kHz
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 1.702 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Length 10.363 mm
Width 8.7757 mm
