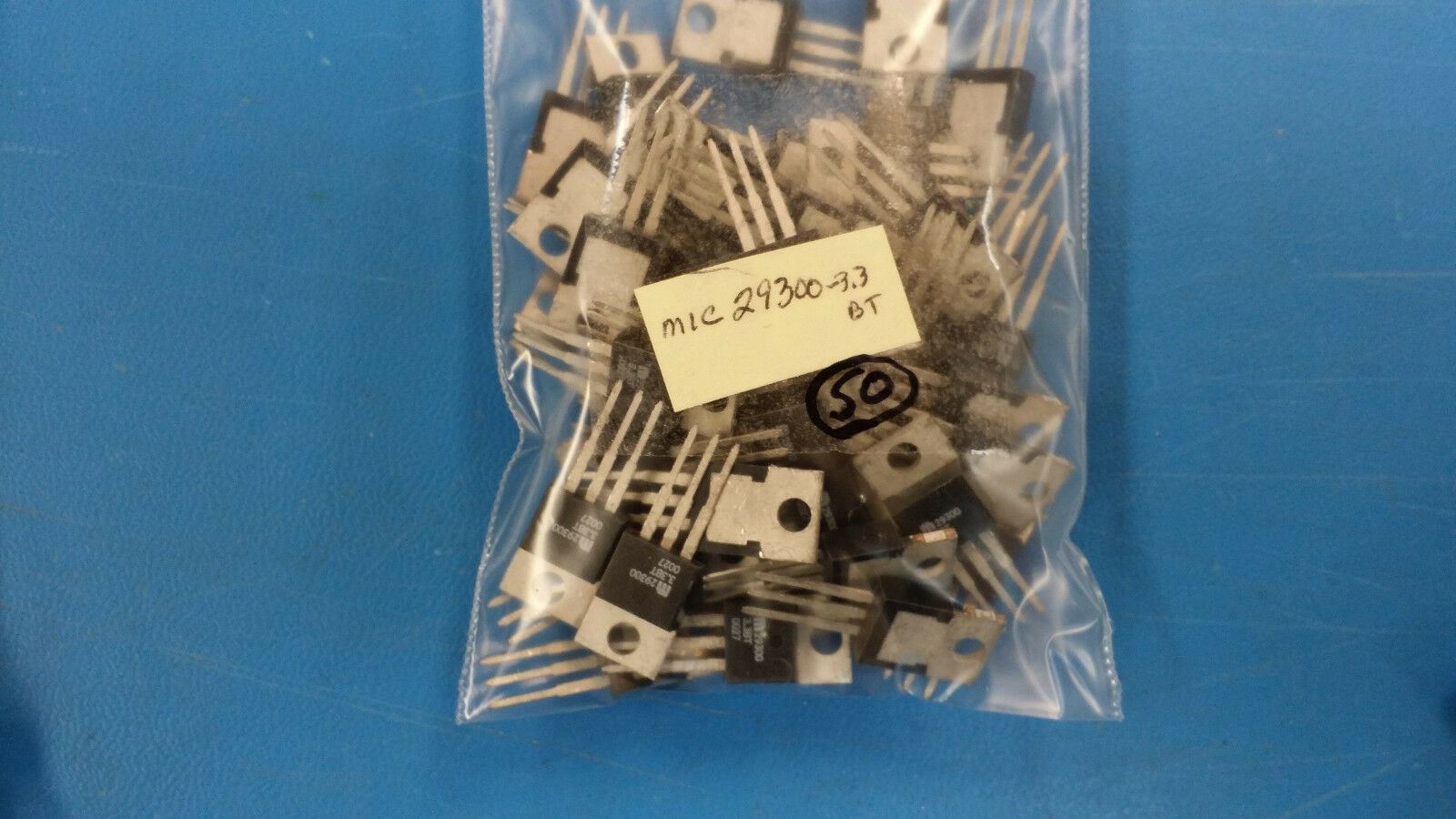

(5 PCS) MIC29300-3.3BT MICREL IC REG LDO 3.3V 3A TO220-3

$12.95
Unit price per

Tax included.

THIS LISTING IS FOR (5 PCS) OF MIC29300-3.3BT BY MICREL
IC REG LDO 3.3V 3A TO220-3

Part #: MIC29300-3.3BT

Part Category: Regulators
Manufacturer: Micrel, Inc.
Description: 3.3V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, SFM3
Mfr Package Description

	TO-220, 3 PIN
REACH Compliant	Yes
Status	Discontinued
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Adjustability	FIXED
Dropout Voltage1-Nom	0.37 V
Dropout Voltage1-Max	0.6 V
Input Voltage Absolute-Max	60.0 V
Input Voltage-Min	4.3 V
Input Voltage-Max	26.0 V
JESD-30 Code	R-XSFM-T3
JESD-609 Code	e0
Line Regulation-Max	0.0165 V
Load Regulation-Max	0.033 V
Number of Functions	1
Number of Outputs	1.0
Number of Terminals	3
Operating Temperature, TJ-Min	-40.0 Cel
Operating Temperature, TJ-Max	125.0 Cel
Output Current1-Max	3.0 A
Output Voltage1-Nom	3.3 V
Output Voltage1-Min	3.234 V
Output Voltage1-Max	3.366 V
Package Body Material	UNSPECIFIED
Package Code	TO-220
Package Equivalence Code	SIP3,.1TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	Tin/Lead (Sn85Pb15)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Voltage Tolerance-Max	2.0 %
