(5 PCS) MCR225-2FP MOT 25A, 50V, SCR
Tax included.

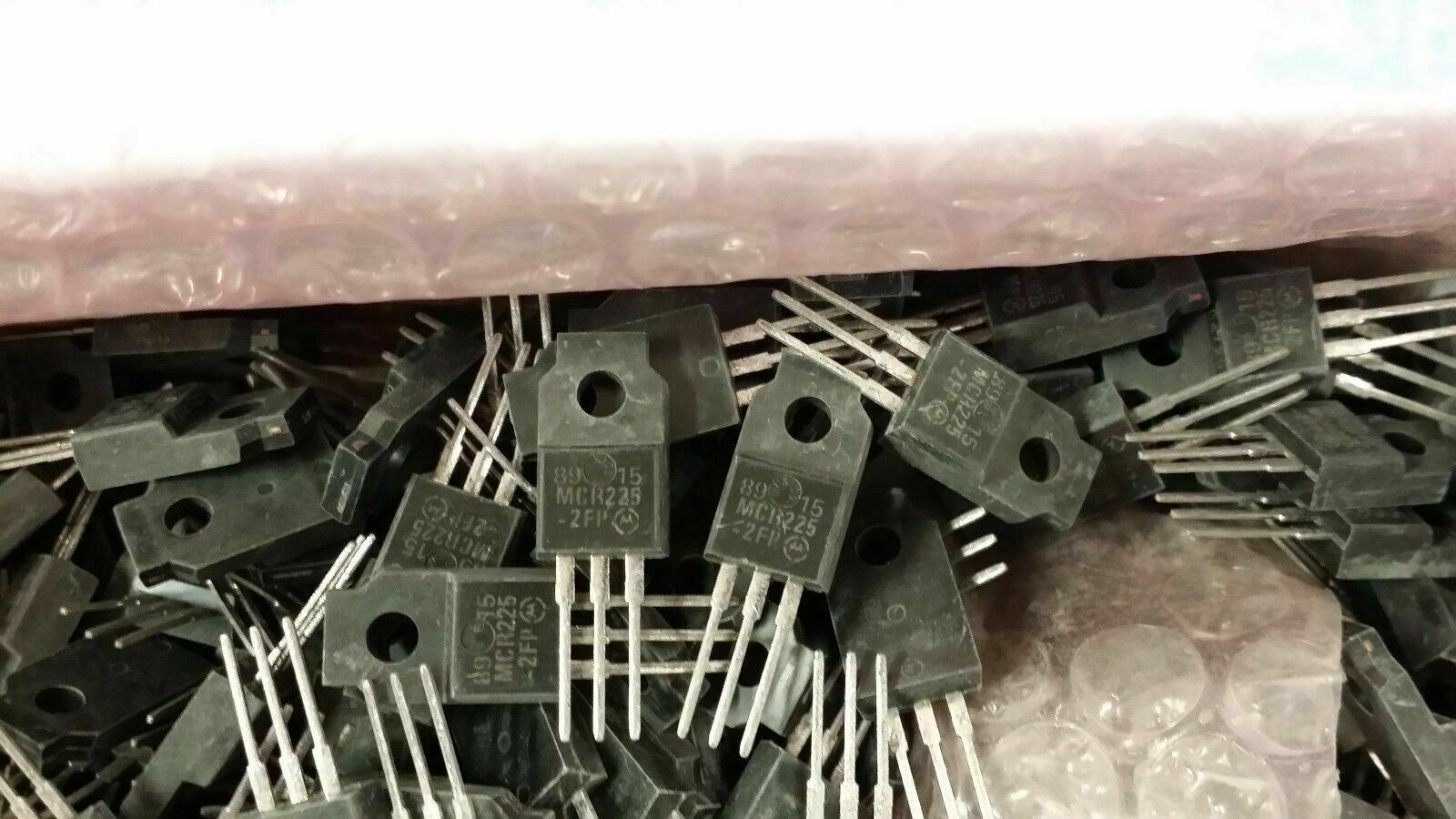

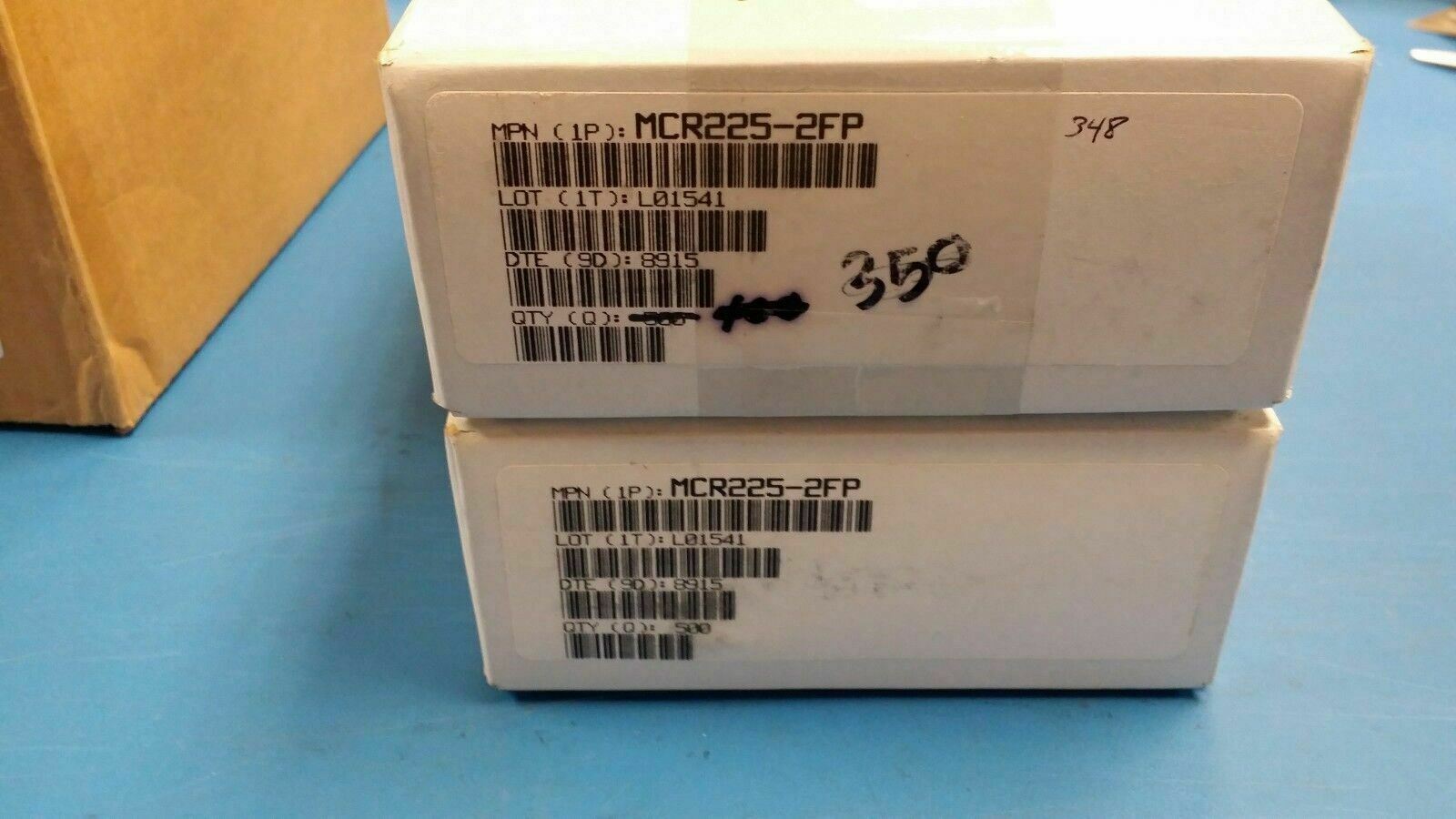

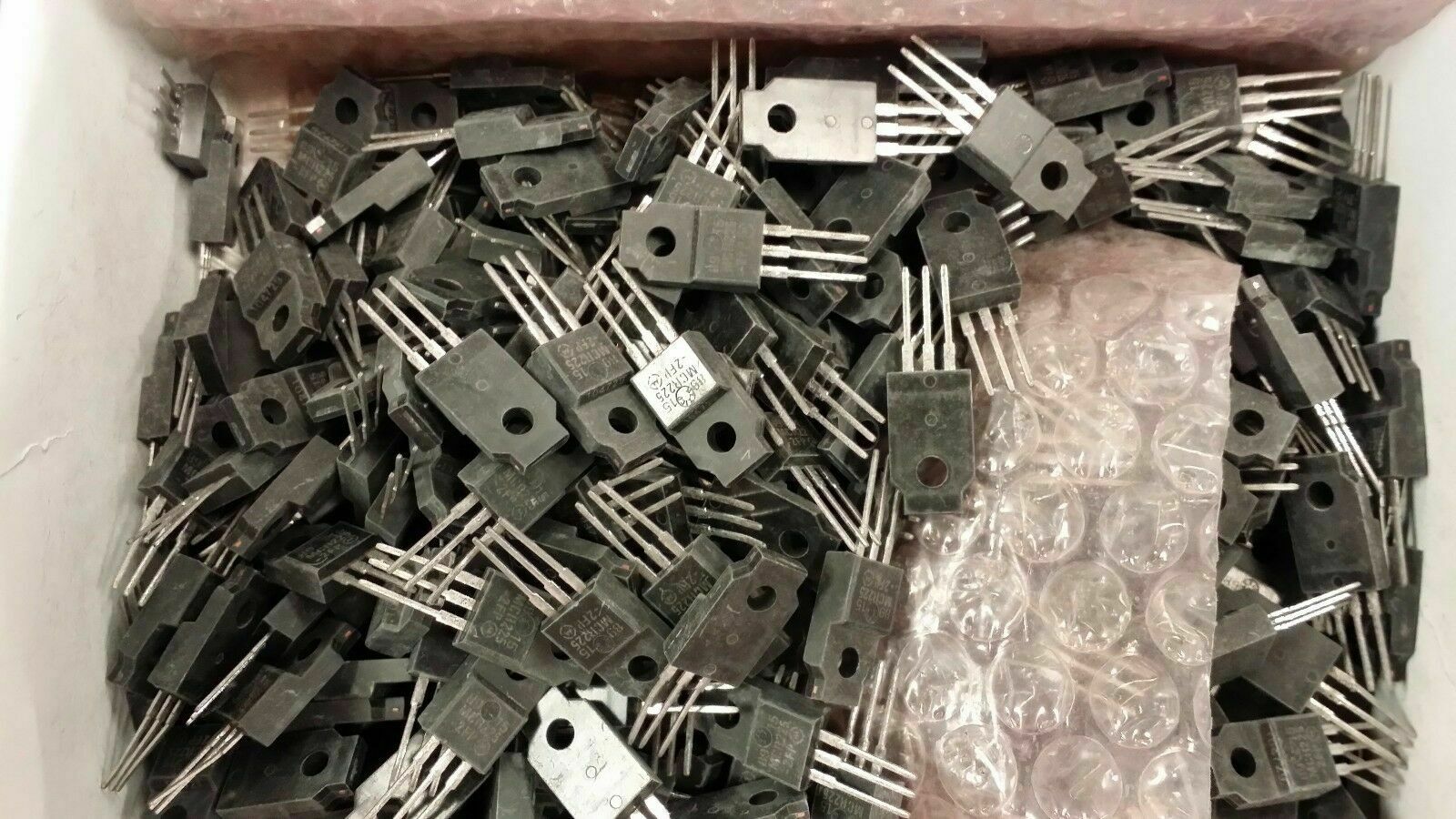

THIS LISTING IS FOR (5 PCS) OF MCR225-2FP BY MOT
25A, 50V, SCR
Part Category: Trigger Devices
Manufacturer: Motorola Solutions, Inc.
Description: 25A, 50V, SCR
Manufacturer: Motorola Solutions, Inc.
Description: 25A, 50V, SCR
SPECIFICATIONS
| Status | Transferred |
| Trigger Device Type | SCR |
| Case Connection | ISOLATED |
| Circuit Commutated Turn-off Time-Nom | 15.0 µs |
| Configuration | SINGLE |
| DC Gate Trigger Current-Max | 40.0 mA |
| DC Gate Trigger Voltage-Max | 1.5 V |
| Holding Current-Max | 40.0 mA |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e0 |
| Leakage Current-Max | 2.0 mA |
| Non-Repetitive Pk On-state Cur | 300.0 A |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| On-State Current-Max | 25000.0 mA |
| On-State Voltage-Max | 1.8 V |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Leakage Current-Max | 10.0 µA |
| Repetitive Peak Off-state Voltage | 50.0 V |
| Repetitive Peak Reverse Voltage | 50.0 V |
| RMS On-state Current-Max | 25.0 A |
| Sub Category | Silicon Controlled Rectifiers |
| Surface Mount | NO |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
