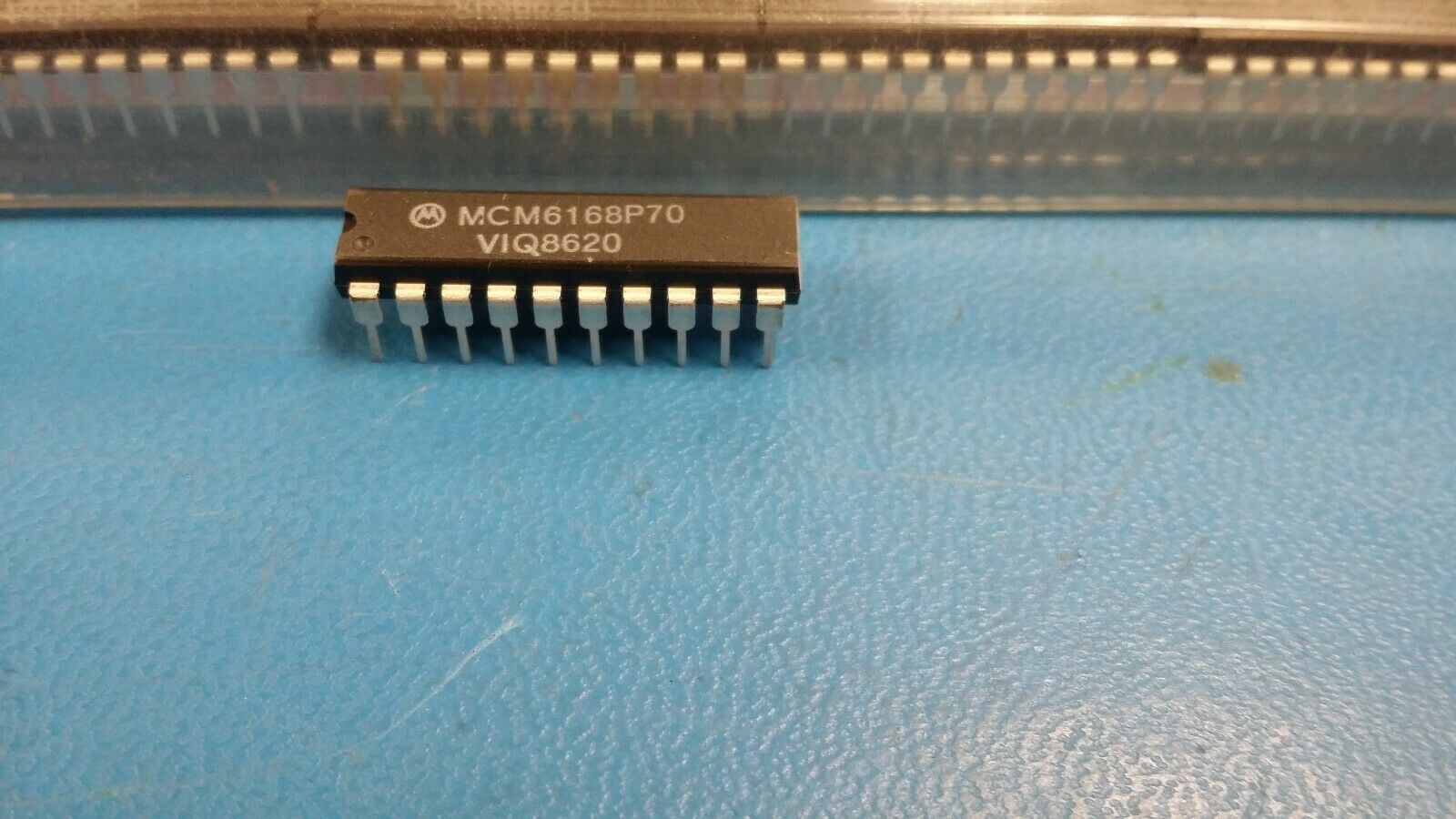

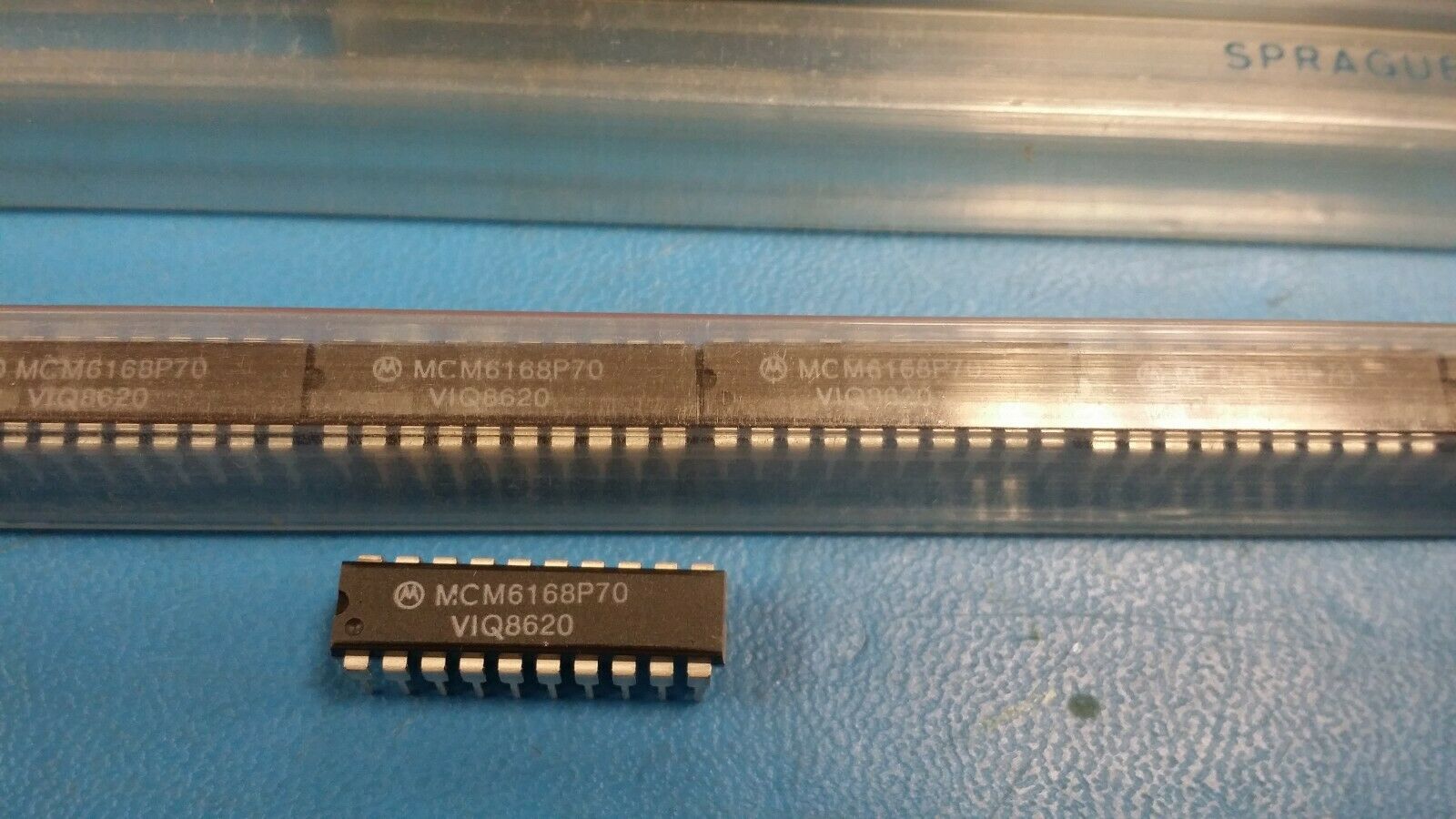

(5 PCS) MCM6168P70 MOT Standard SRAM, 4KX4, 60ns, CMOS, PDIP20
(5 PCS) MCM6168P70 MOT Standard SRAM, 4KX4, 60ns, CMOS, PDIP20

(5 PCS) MCM6168P70 MOT Standard SRAM, 4KX4, 60ns, CMOS, PDIP20

Tax included.
Only 40 left!
THIS LISTING IS FOR (5 PCS) OF MCM6168P70 BY MOT
Standard SRAM, 4KX4, 60ns, CMOS, PDIP20

Part #: MCM6168P70
Part Category: Memory ICs
Manufacturer: Motorola Solutions, Inc.
Description: Standard SRAM, 4KX4, 60ns, CMOS, PDIP20

Mfr Package Description 0.300 INCH, PLASTIC, DIP-20
Status Discontinued
Sub Category SRAMs
Access Time-Max 60.0  ns
I/O Type COMMON
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Memory Density 16384.0  bit
Memory IC Type STANDARD SRAM
Memory Width 4
Number of Functions 1
Number of Ports 1
Number of Terminals 20
Number of Words 4096.0  words
Number of Words Code 4K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 4KX4
Output Characteristics 3-STATE
Output Enable NO
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 4.57  mm
Standby Voltage-Min 4.5  V
Supply Current-Max 0.08  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
