(5 PCS) MC74HC367AN Buffer/Line Driver 6-CH Non-Inverting 3-ST CMOS PDIP16
Tax included.

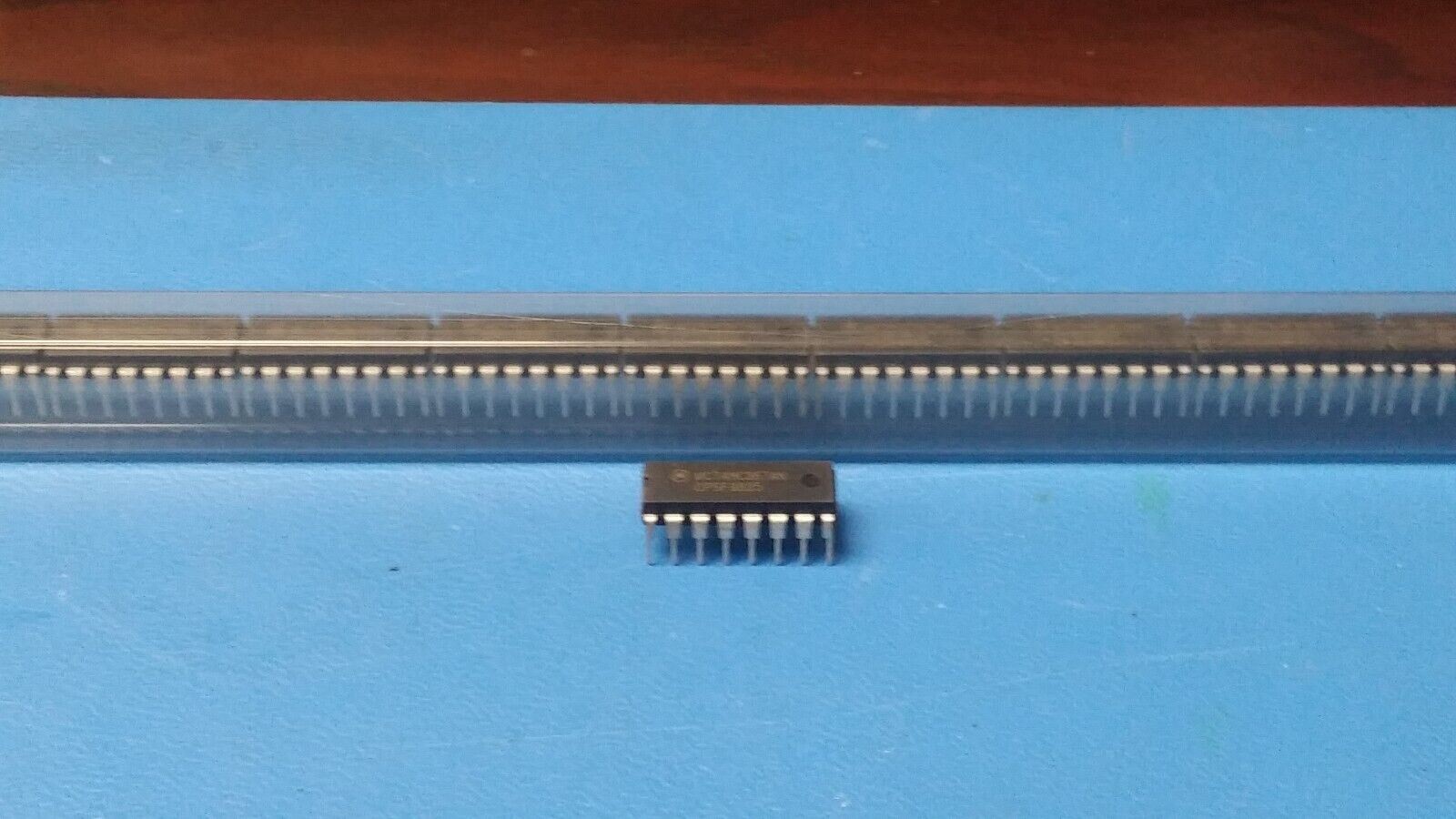

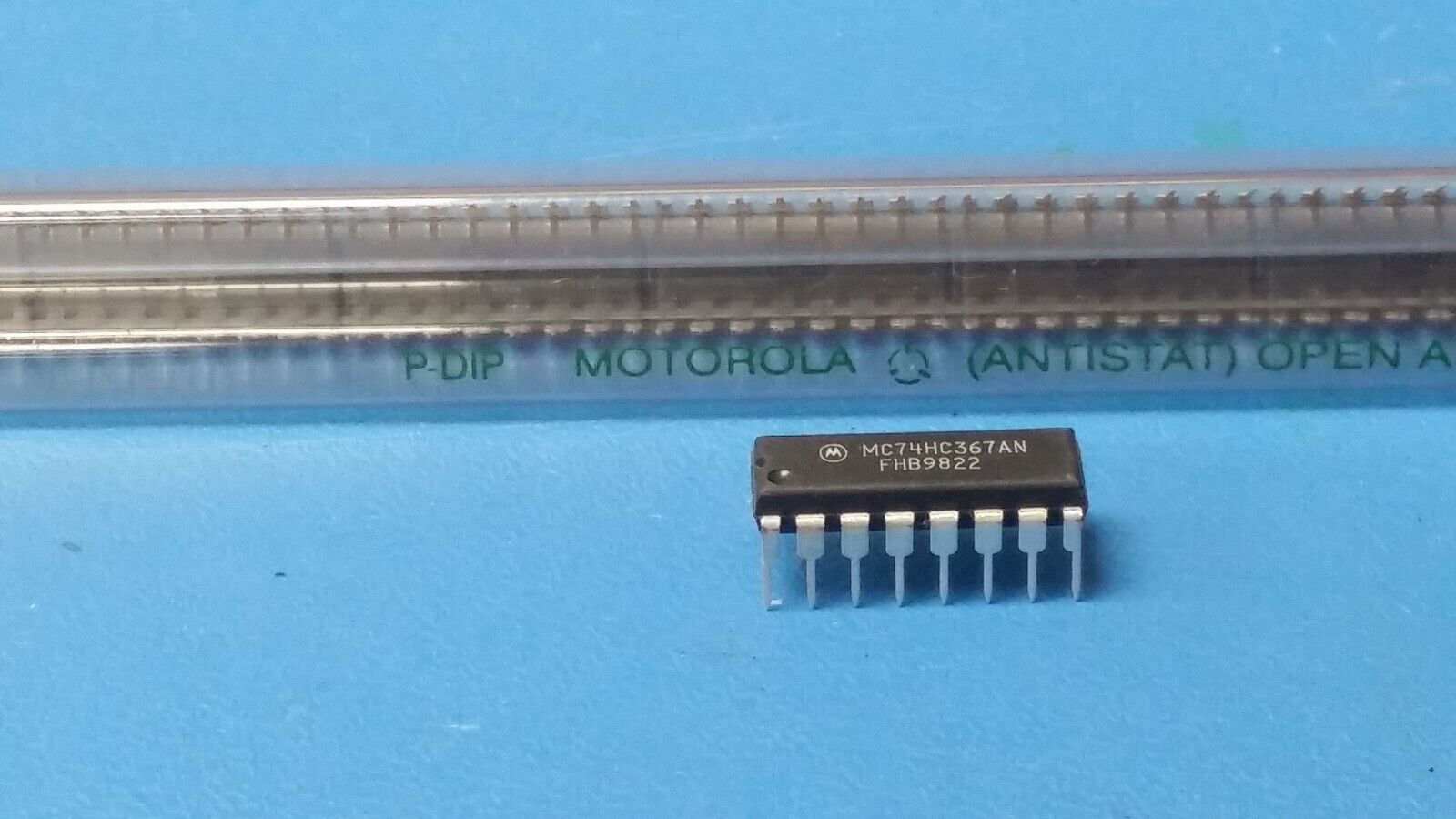

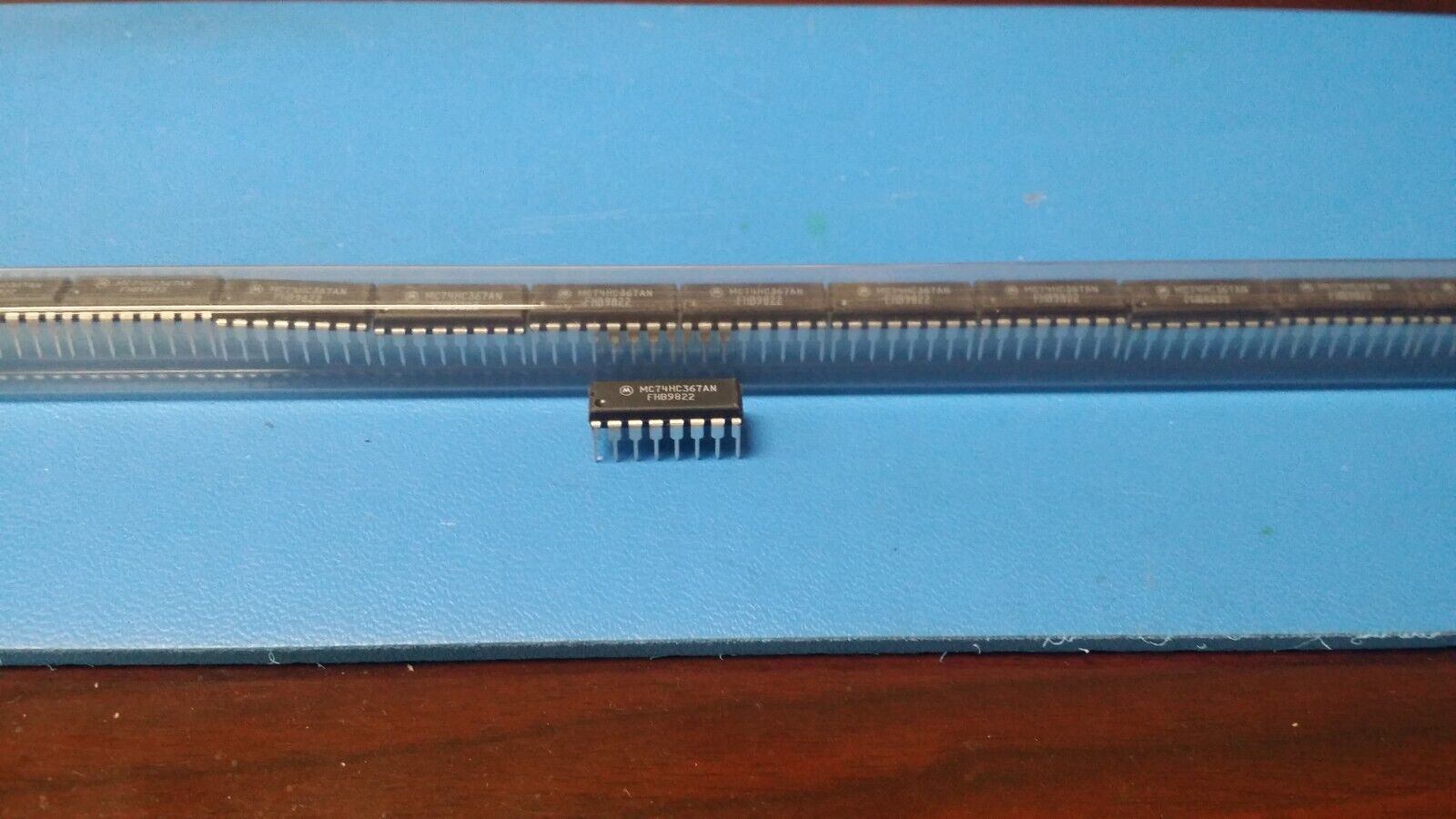

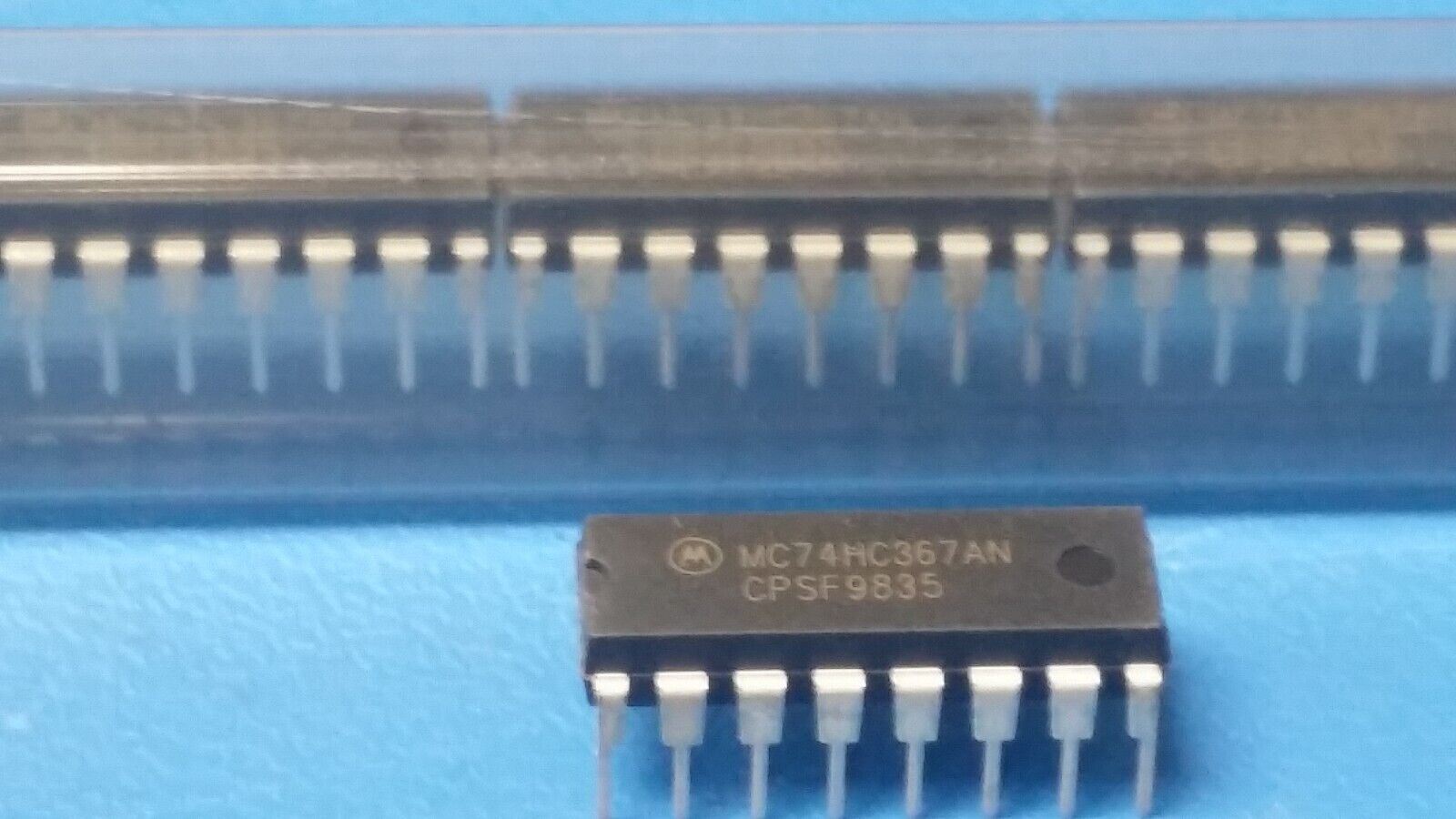

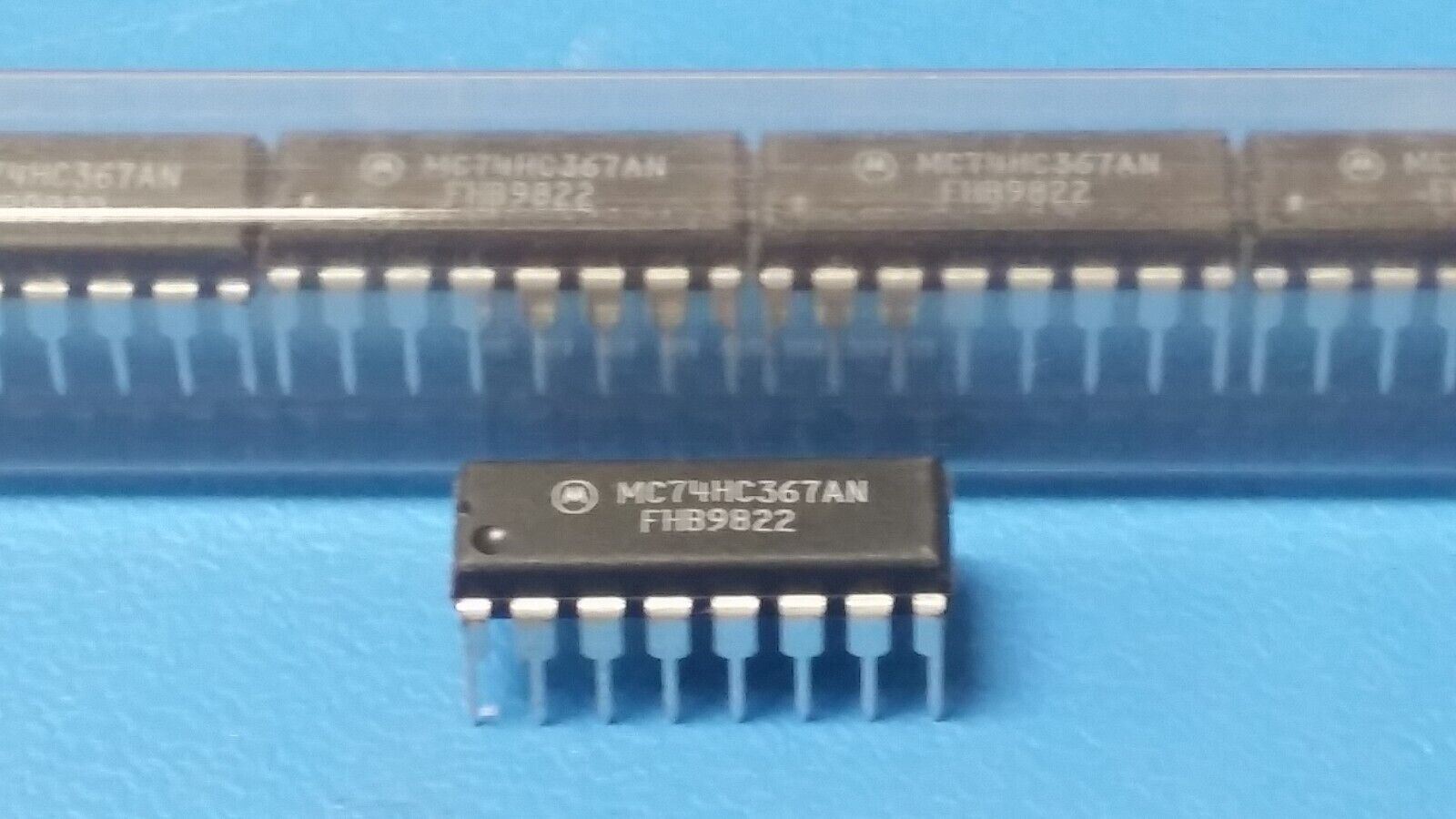

THIS IS FOR (5 PCS) OF MC74HC367AN BY MOTOROLA
Buffer/Line Driver 6-CH Non-Inverting 3-ST CMOS PDIP16
Part #: MC74HC367AN
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: Bus Driver, HC/UH Series, 1-Func, 6-Bit, True Output, CMOS, PDIP16
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE LOW
Family HC/UH
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.0036 Amp
Number of Bits 6
Number of Functions 1
Number of Ports 2
Number of Terminals 16
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Prop. Delay@Nom-Sup 90.0 ns
Propagation Delay (tpd) 180.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.44 mm
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 6.0 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.175 mm
Width 7.62 mm
Additional Feature ONE FUNCTION WITH TWO BITS
