(5 PCS) MC14076BCLD MOT POSITIVE EDGE TRIGGERED D FLIP-FLOP TRUE OUTPUT CDIP16
Tax included.

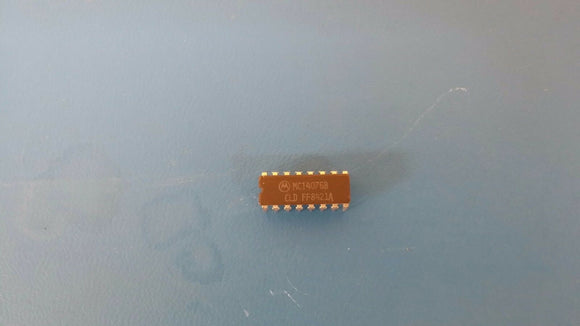

THIS LISTING IS FOR (5 PCS) OF MC14076BCLD BY MOT
POSITIVE EDGE TRIGGERED D FLIP-FLOP TRUE OUTPUT CDIP16
Part #: MC14076BCLD
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: 4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16
Manufacturer: Motorola Solutions, Inc.
Description: 4000/14000/40000 SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16
| Mfr Package Description | 620-09 |
| Status | Discontinued |
| Logic IC Type | D FLIP-FLOP |
| Family | 4000/14000/40000 |
| fmax-Min | 1.8 MHz |
| JESD-30 Code | R-GDIP-T16 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 50.0 pF |
| Number of Bits | 4 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Propagation Delay (tpd) | 600.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.19 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 3.0 V |
| Supply Voltage-Max (Vsup) | 18.0 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trigger Type | POSITIVE EDGE |
| Length | 19.3 mm |
| Width | 7.62 mm |
| Additional Feature | WITH HOLD MODE |
