(5 PCS) MC10117P MOT IC GATE AND/OR INVERTER PDIP-16

$6.95
Unit price per

Tax included.

THIS IS FOR (5 PCS) OF MC10117P BY MOT

IC GATE AND/OR INVERTER PDIP-16

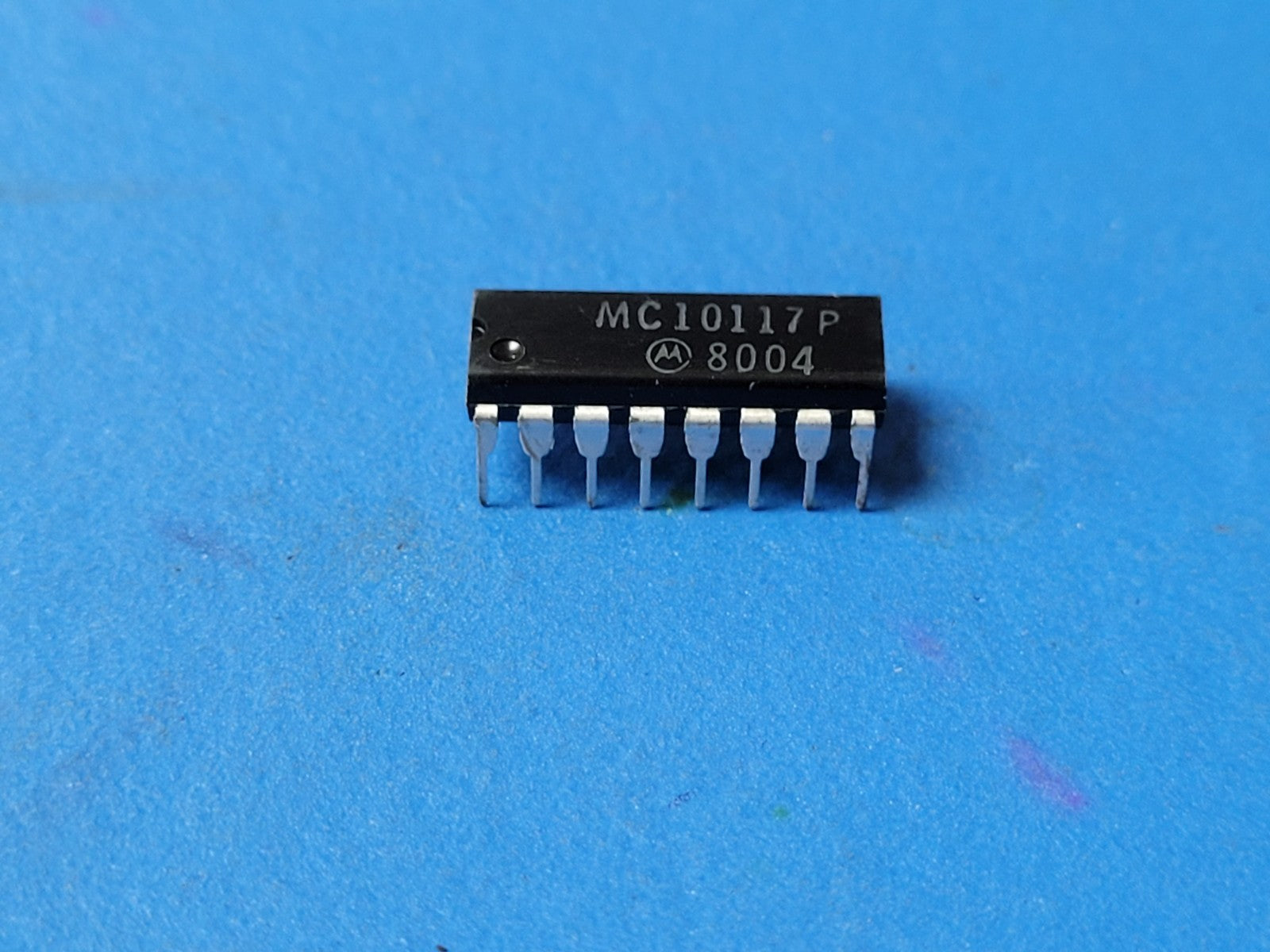

Part #: MC10117P

Part Category: Logic ICs

Manufacturer: Motorola Solutions, Inc.

Description: OR-AND/OR-AND-Invert Gate, 10K Series, 2-Func, 5-Input, ECL, PDIP16

Mfr Package Description PLASTIC, DIP-16

Status Transferred

Logic IC Type OR-AND/OR-AND-INVERT GATE

Sub Category Gates

Family 10K

JESD-30 Code R-PDIP-T16

JESD-609 Code e0

Number of Functions 2

Number of Inputs 5.0

Number of Terminals 16

Operating Temperature-Min -30.0 Cel

Operating Temperature-Max 85.0 Cel

Output Characteristics OPEN-EMITTER

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Power Supply Current-Max (ICC) 29.0 mA

Prop. Delay@Nom-Sup 3.8 ns

Propagation Delay (tpd) 3.8 ns

Qualification Status Not Qualified

Schmitt Trigger NO

Seated Height-Max 4.44 mm

Surface Mount NO

Technology ECL

Temperature Grade OTHER

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Length 19.175 mm

Width 7.62 mm

Additional Feature COMMON INPUT
