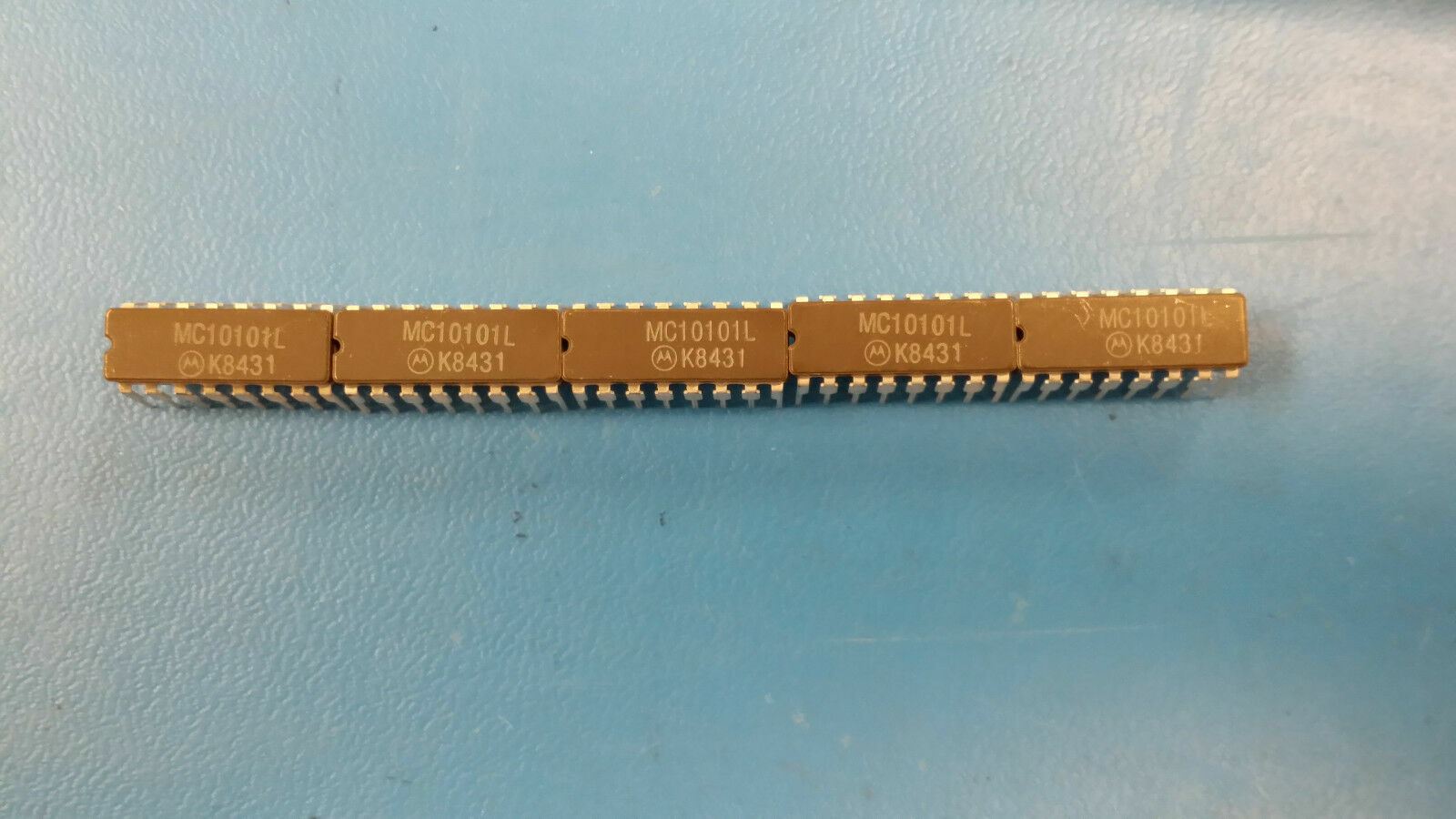

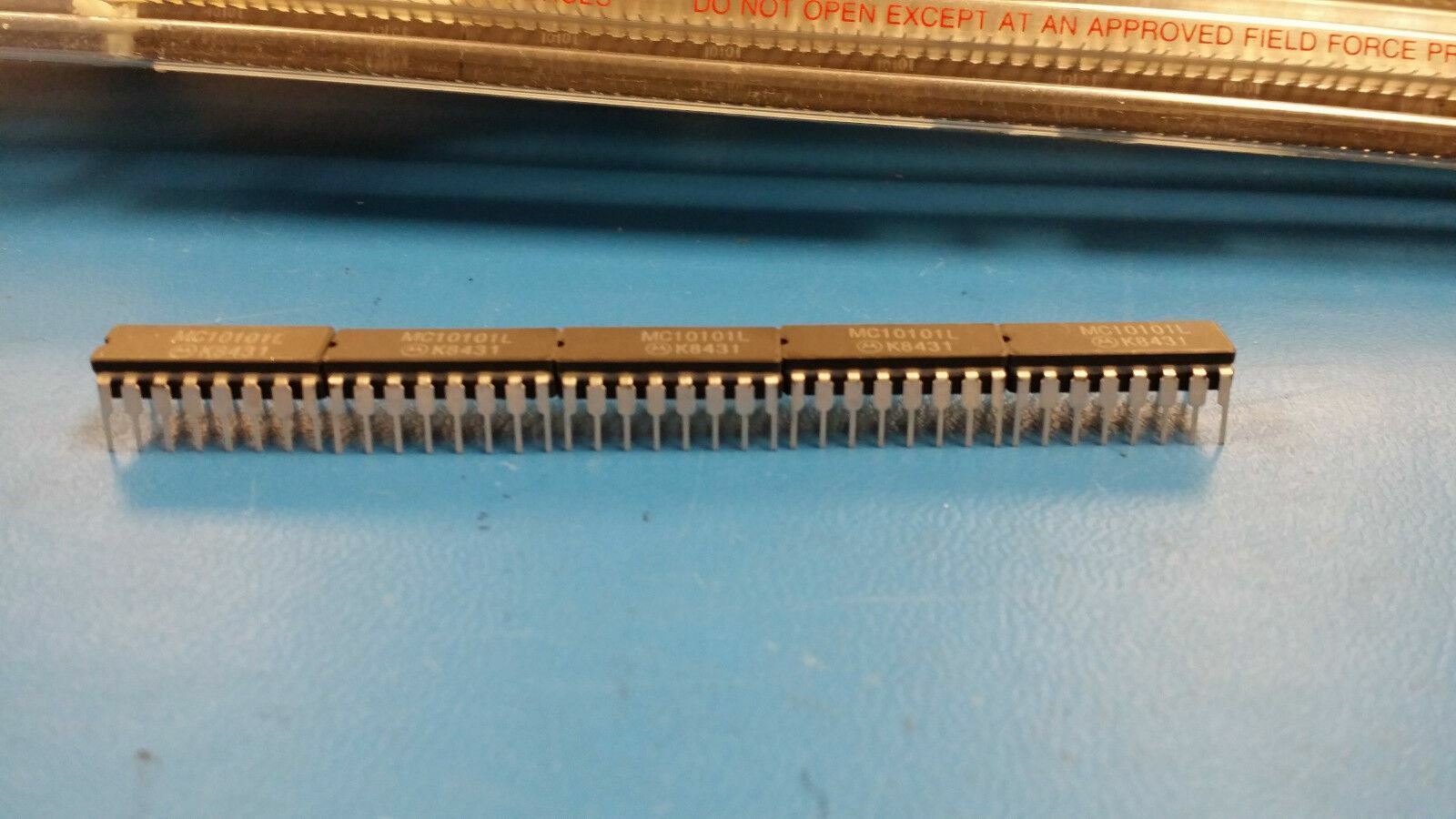

(5 PCS) MC10101L MOTOROLA QUAD 1-INPUT INV/NINV GATE CDIP16
Tax included.
THIS LISTING IS FOR (5 PCS) OF MC10101L BY MOTOROLA
QUAD 1-INPUT INV/NINV GATE CDIP16
Manufacturer: Motorola Solutions, Inc.
Description: 10K SERIES, QUAD 1-INPUT INV/NINV GATE, CDIP16
QUAD 1-INPUT INV/NINV GATE CDIP16
Part #: MC10101L
Part Category: Logic ICsManufacturer: Motorola Solutions, Inc.
Description: 10K SERIES, QUAD 1-INPUT INV/NINV GATE, CDIP16
SPECIFICATIONS
| Mfr Package Description | CERAMIC, DIP-16 |
| Status | Transferred |
| Logic IC Type | INVERTER/BUFFER |
| Sub Category | Gates |
| Family | 10K |
| JESD-30 Code | R-GDIP-T16 |
| JESD-609 Code | e0 |
| Number of Functions | 4 |
| Number of Inputs | 1.0 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -30.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Characteristics | OPEN-EMITTER |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supplies (V) | -5.2 |
| Power Supply Current-Max (ICC) | 29.0 mA |
| Prop. Delay@Nom-Sup | 3.3 ns |
| Propagation Delay (tpd) | 3.3 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 5.08 mm |
| Surface Mount | NO |
| Technology | ECL |
| Temperature Grade | OTHER |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Length | 19.495 mm |
| Width | 7.62 mm |
| Additional Feature | STROBED OUTPUTS |
