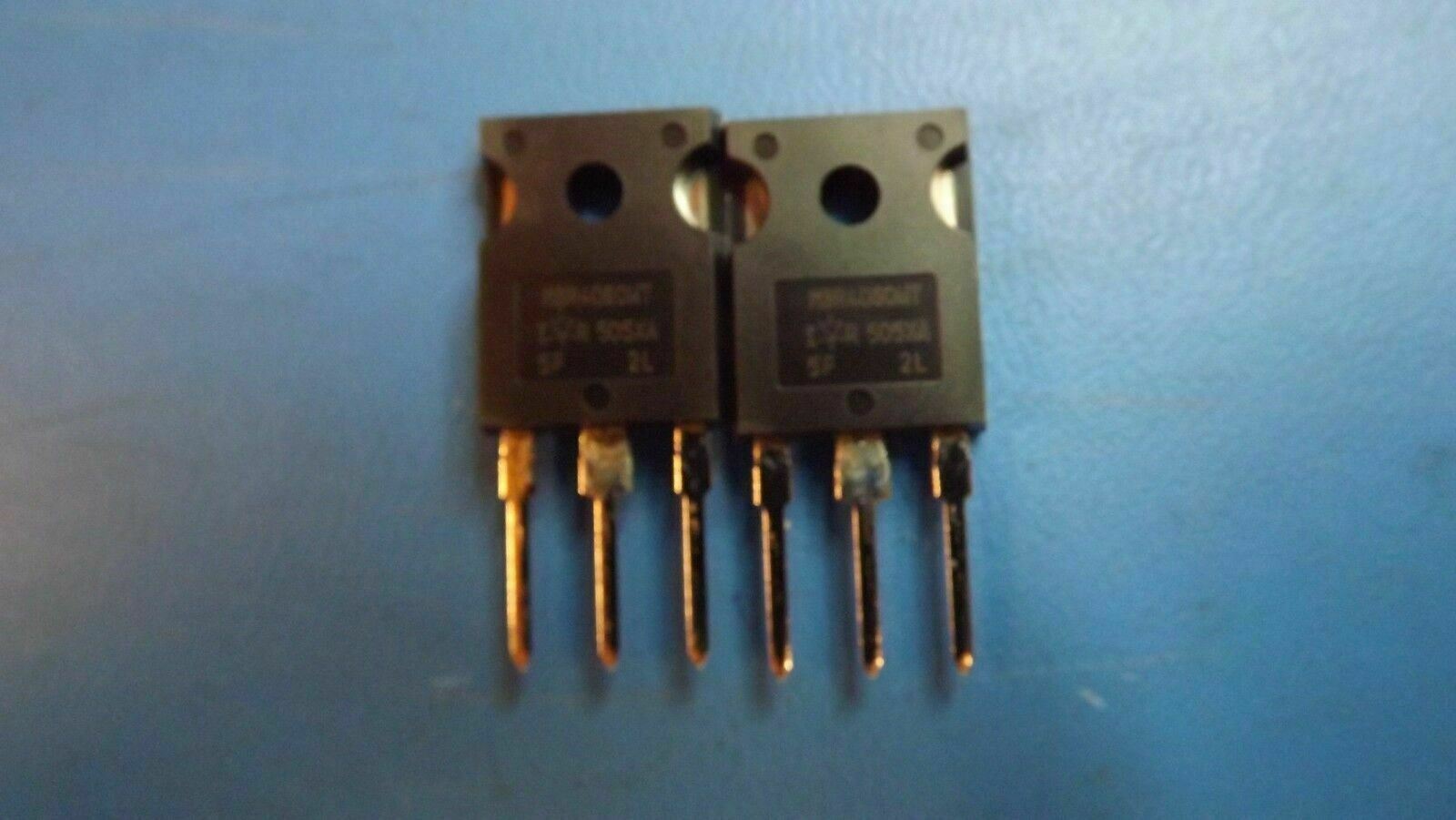

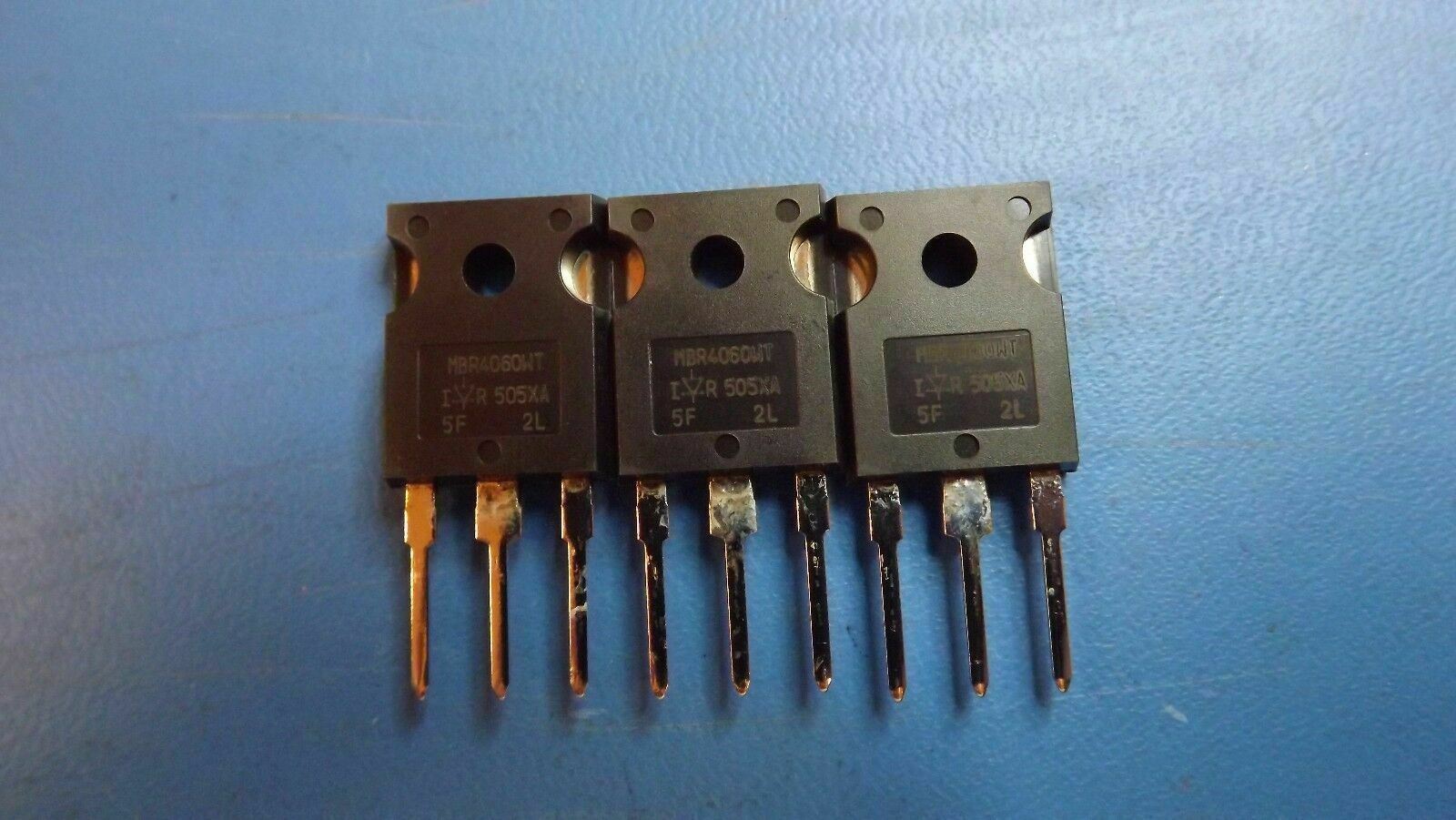

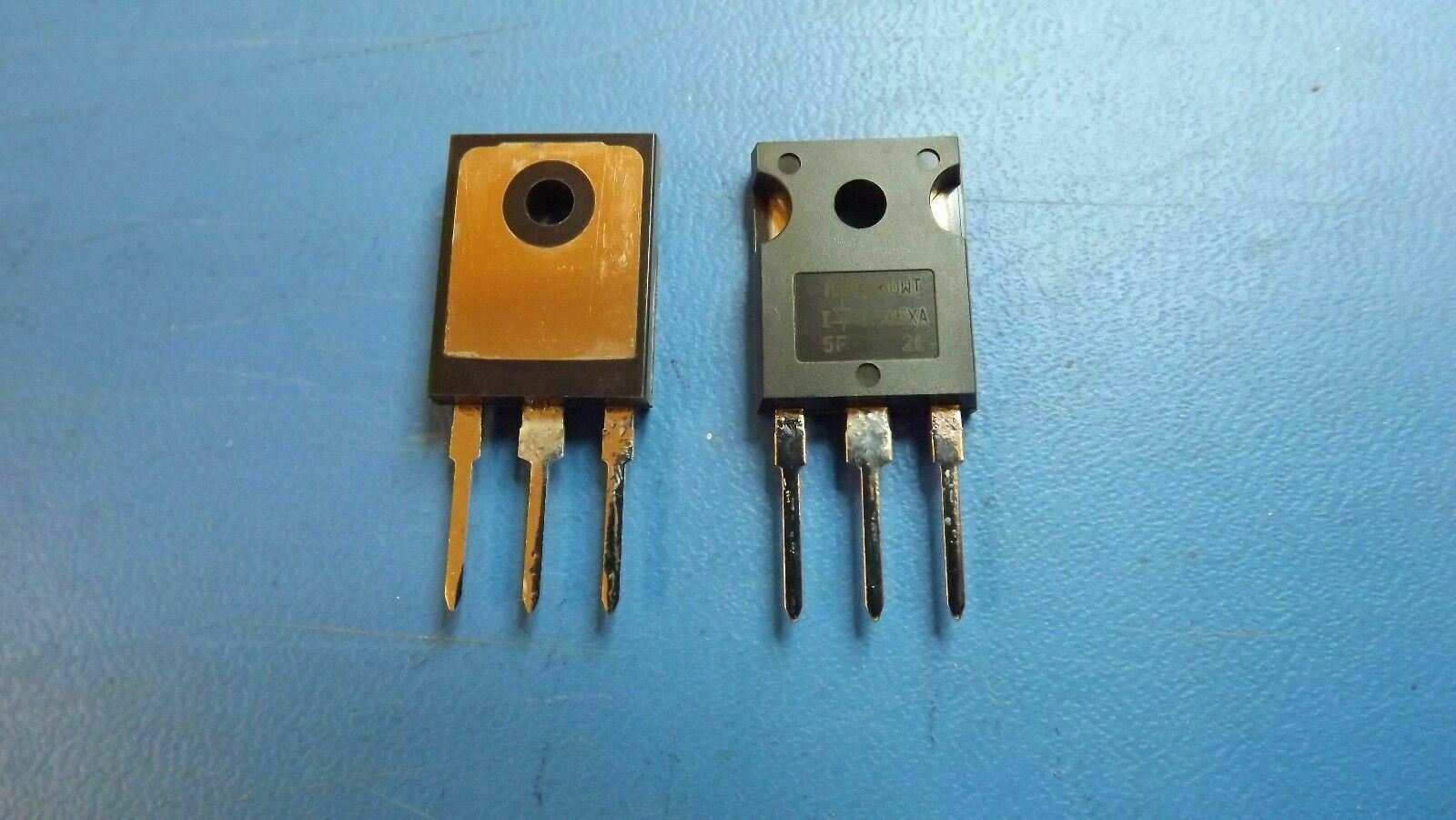

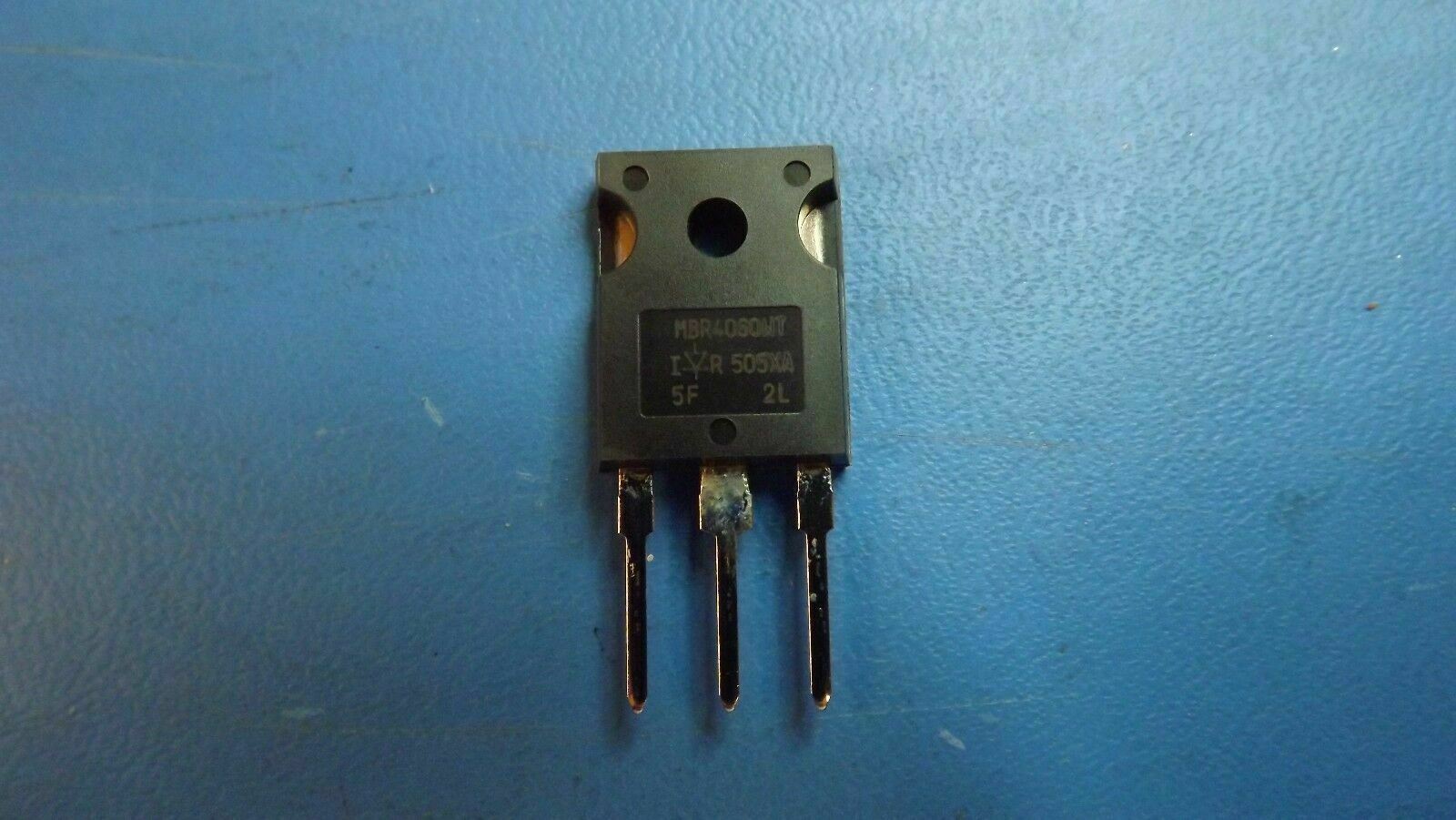

(5 PCS) MBR4060WT Diode Schottky 60V 40A 3-Pin(3+Tab) TO-247AC
Tax included.
THIS LISTING IS FOR (5 PCS) OF MBR4060WT BY INTERNATIONAL RECTIFIER
SPECIFICATIONS
| Mfr Package Description | SIMILAR TO TO-247AD, 3 PIN |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | RECTIFIER DIODE |
| Application | EFFICIENCY |
| Case Connection | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode Element Material | SILICON |
| JESD-30 Code | R-PSFM-T3 |
| Moisture Sensitivity Level | NOT SPECIFIED |
| Non-rep Pk Forward Current-Max | 400.0 A |
| Number of Elements | 2.0 |
| Number of Phases | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Output Current-Max | 20.0 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 60.0 V |
| Surface Mount | NO |
| Technology | SCHOTTKY |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | LOW POWER LOSS |
