(5 PCS) MAX1886EZK-T Liquid Crystal Driver, 1-Segment, BICMOS, TSOT23-5

$7.95
Unit price per

Tax included.

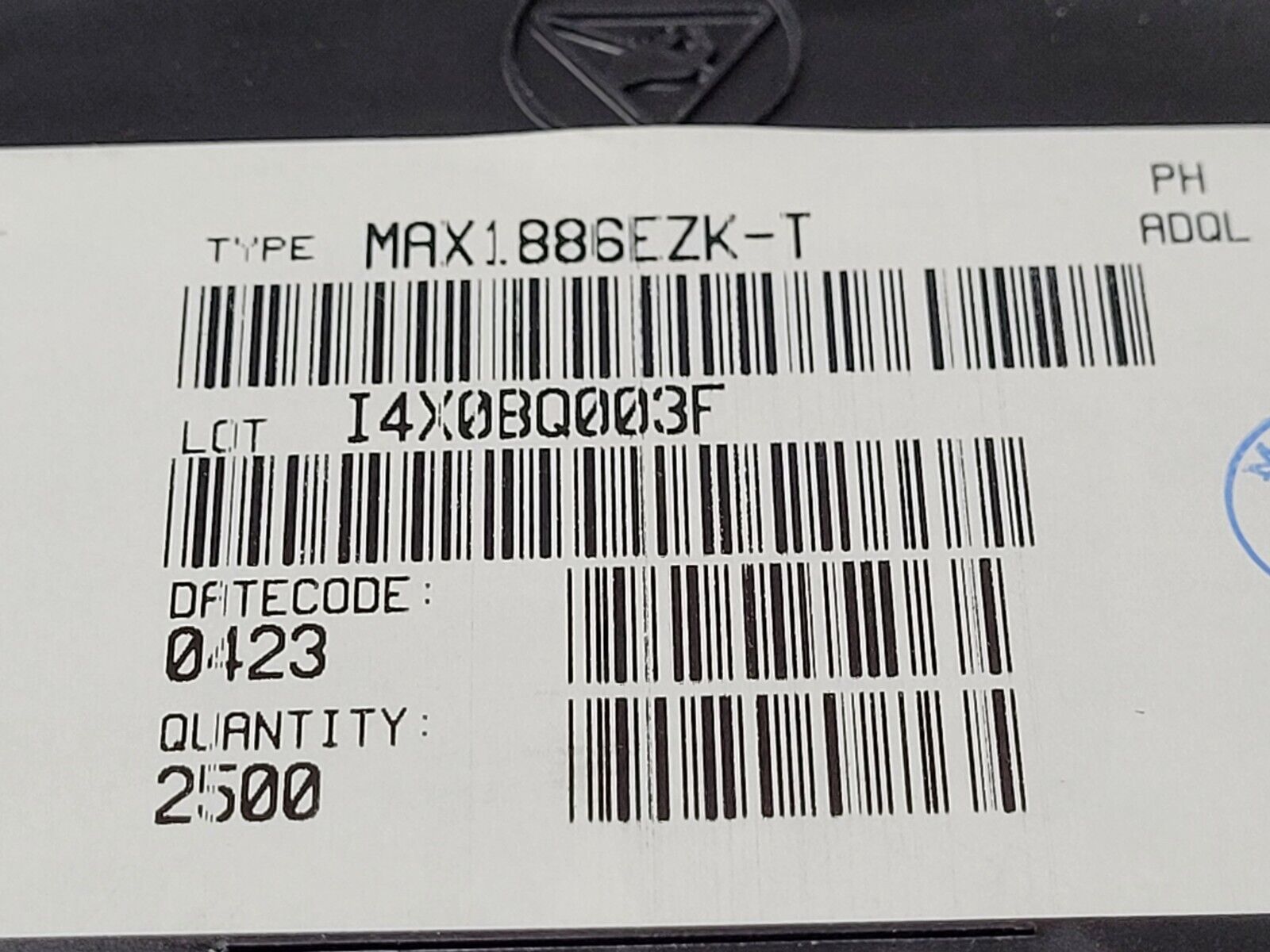

THIS IS FOR (5 PCS) OF MAX1886EZK-T BY MAXIM

Liquid Crystal Driver, 1-Segment, BICMOS, TSOT23-5

Part #: MAX1886EZK-T

Part Category: Interface ICs

Manufacturer: Hytronics

Description: Liquid Crystal Driver, 1-Segment, BICMOS, PDSO5

Mfr Package Description 1.10 MM HEIGHT, SOT-23, 5 PIN

REACH Compliant Yes

Status Discontinued

Interface IC Type LIQUID CRYSTAL DISPLAY DRIVER

Data Input Mode PARALLEL

Display Mode DOT MATRIX

JESD-30 Code R-PDSO-G5

JESD-609 Code e0

Moisture Sensitivity Level 1

Multiplexed Display Capability NO

Number of Functions 1

Number of Segments 1.0

Number of Terminals 5

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Package Body Material PLASTIC/EPOXY

Package Code TSSOP

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

Peak Reflow Temperature (Cel) 245

Qualification Status Not Qualified

Seated Height-Max 1.1 mm

Supply Voltage-Nom 10.0 V

Supply Voltage-Min 4.5 V

Supply Voltage-Max 13.0 V

Surface Mount YES

Technology BICMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch 0.95 mm

Terminal Position DUAL

Length 2.9 mm

Width 1.6 mm

Additional Feature BACKPLANE DRIVER FOR ACTIVE MATRIX TFT LCD
