(5 PCS) M28W320CT70ZB6T STMICRO Flash, 2MX16, 70ns, BGA47
Tax included.

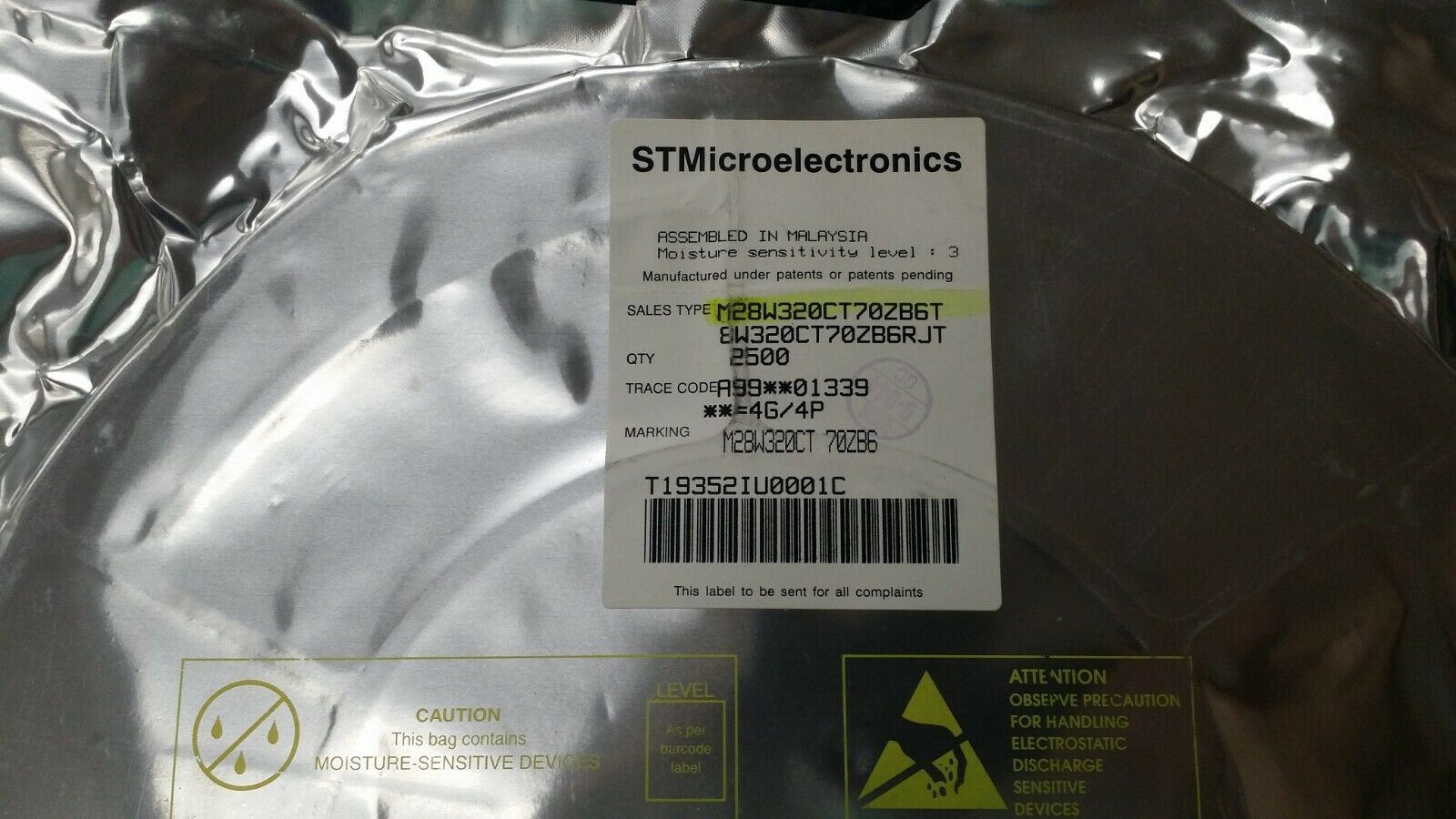

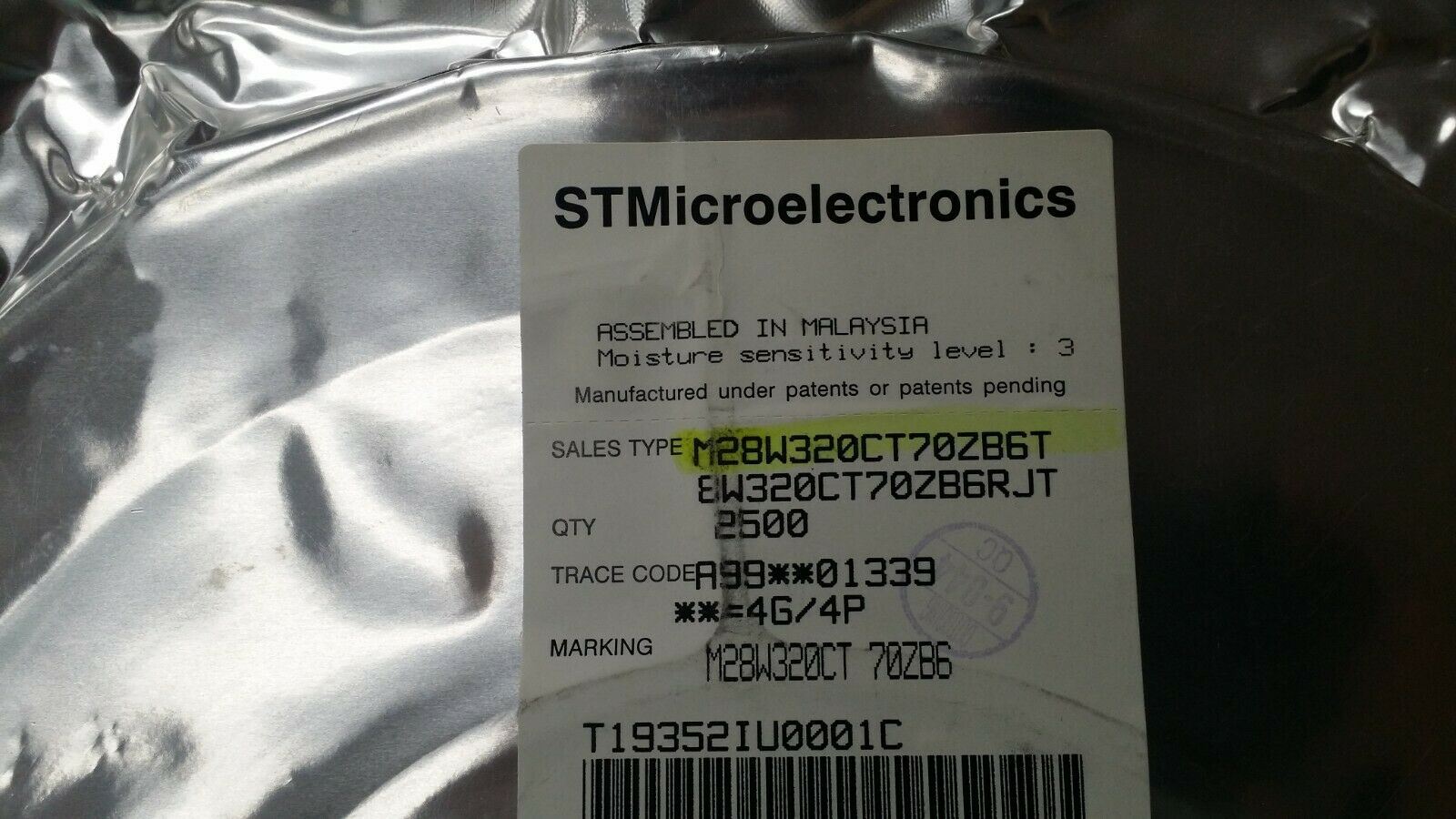

THIS LISTING IS FOR (5 PCS) OF M28W320CT70ZB6T BY STMICRO
Flash, 2MX16, 70ns, BGA47
Part #: M28W320CT70ZB6T
Part Category: Memory ICs
Manufacturer: STMicroelectronics, Inc.
Description: Flash, 2MX16, 70ns, PBGA47
Mfr Package Description 6.39 X 10.50 MM, 0.75 MM PITCH, TFBGA-47
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 70.0 ns
Boot Block TOP
Command User Interface YES
Common Flash Interface YES
Data Polling NO
JESD-30 Code R-PBGA-B47
JESD-609 Code e1
Memory Density 3.3554432E7 bit
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Sectors/Size 8,63
Number of Terminals 47
Number of Words 2097152.0 words
Number of Words Code 2M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 2MX16
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Equivalence Code BGA47,6X8,30
Package Shape RECTANGULAR
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.02 Amp
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal Form BALL
Terminal Pitch 0.75 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Toggle Bit NO
Length 10.5 mm
Width 6.39 mm
Additional Feature TOP BOOT BLOCK
