(5 PCS) M28F102-150XK3 STMICRO 64KX16 FLASH 12V PROM 150ns PLCC44 -40C to +125C

  • $15.95
    Unit price per
Tax included.

Only 86 left!

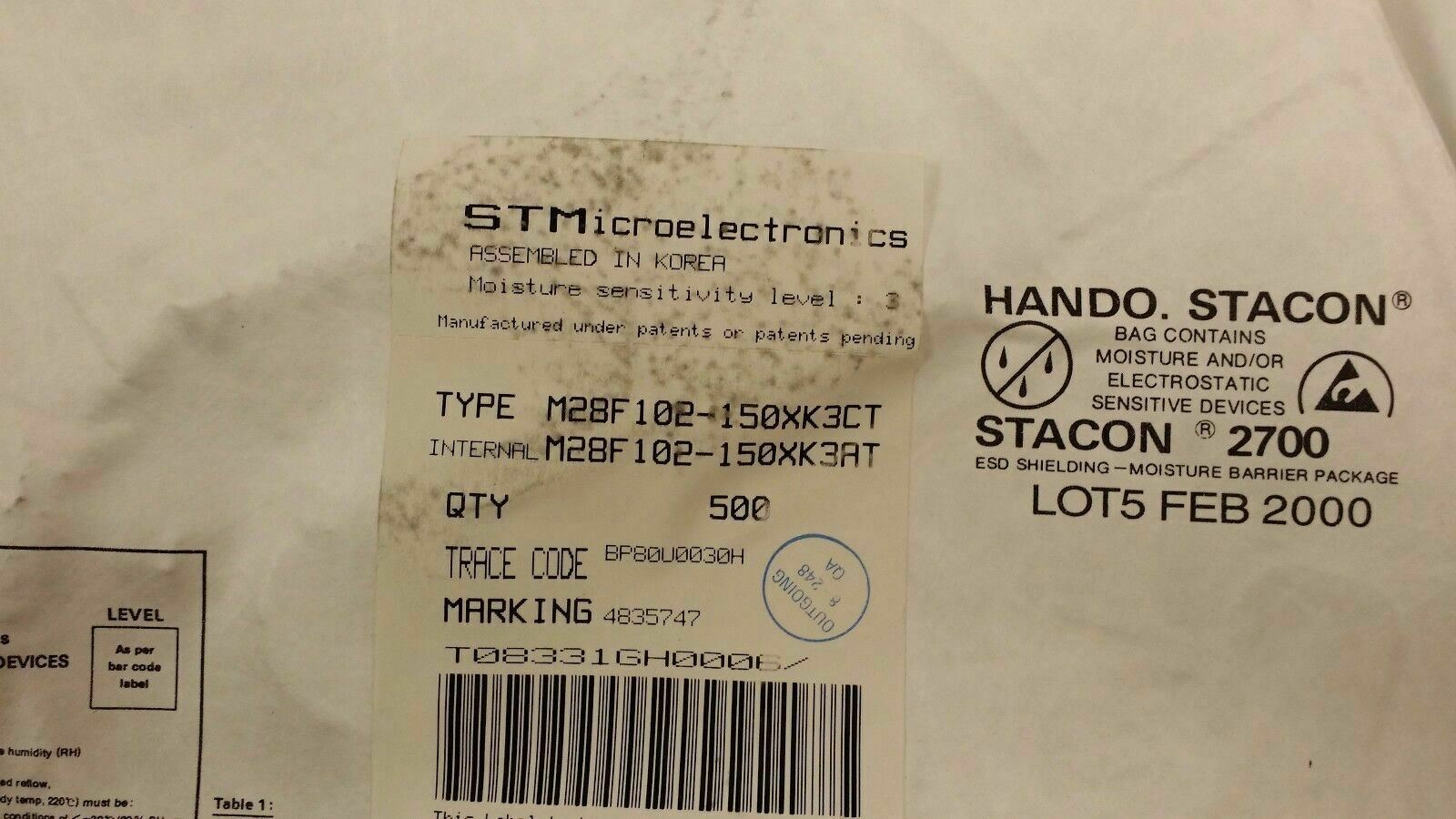

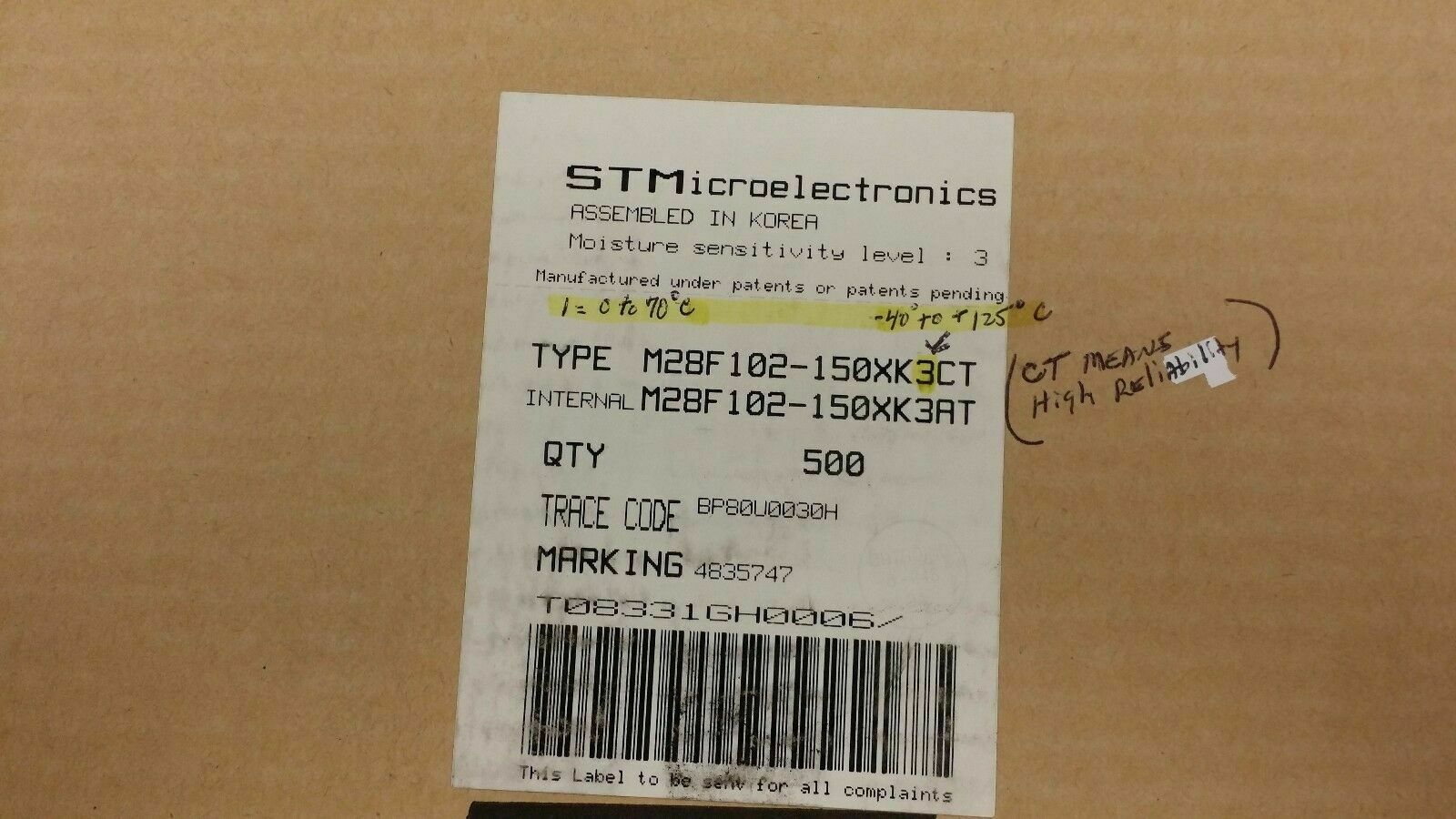

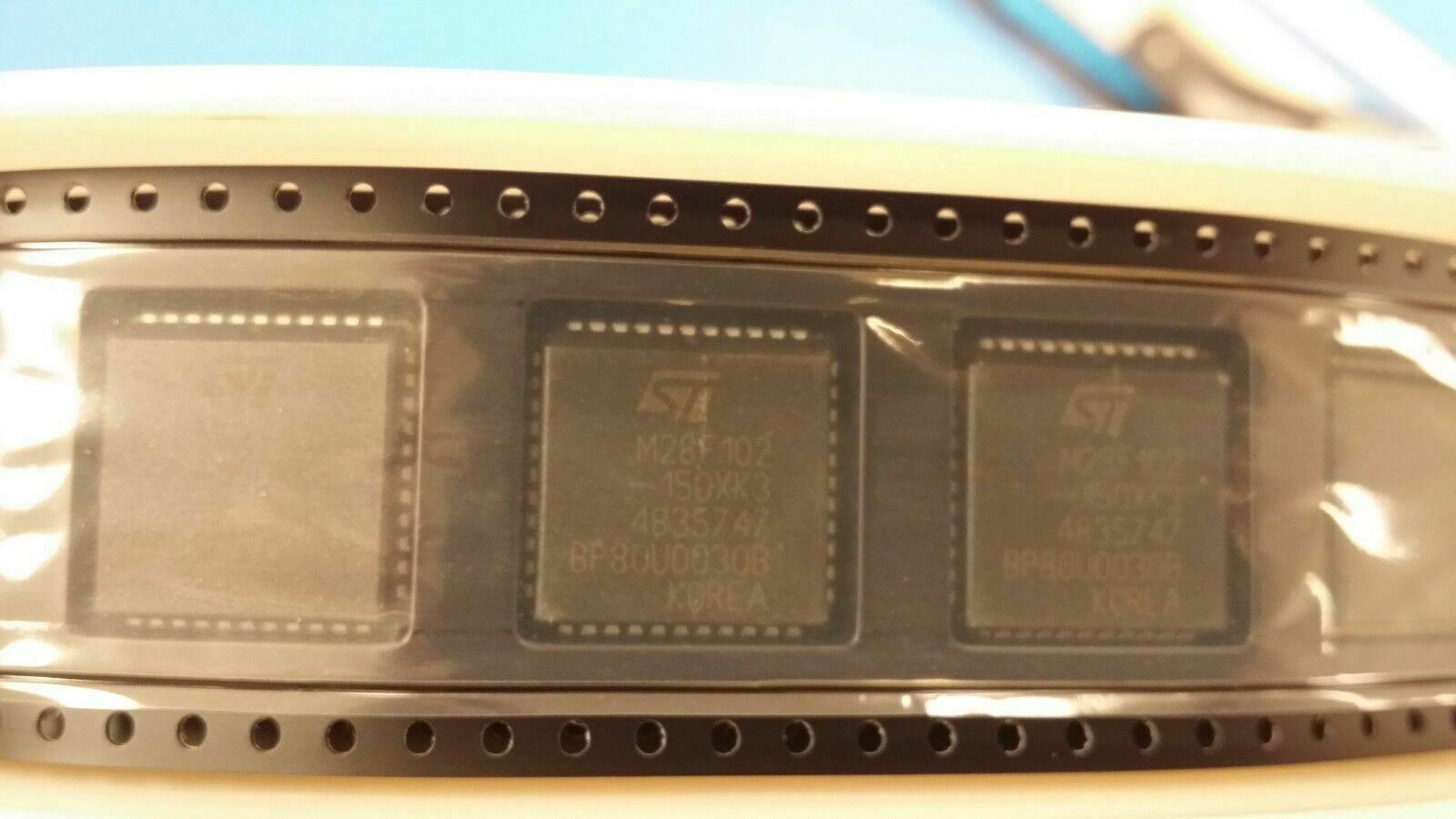

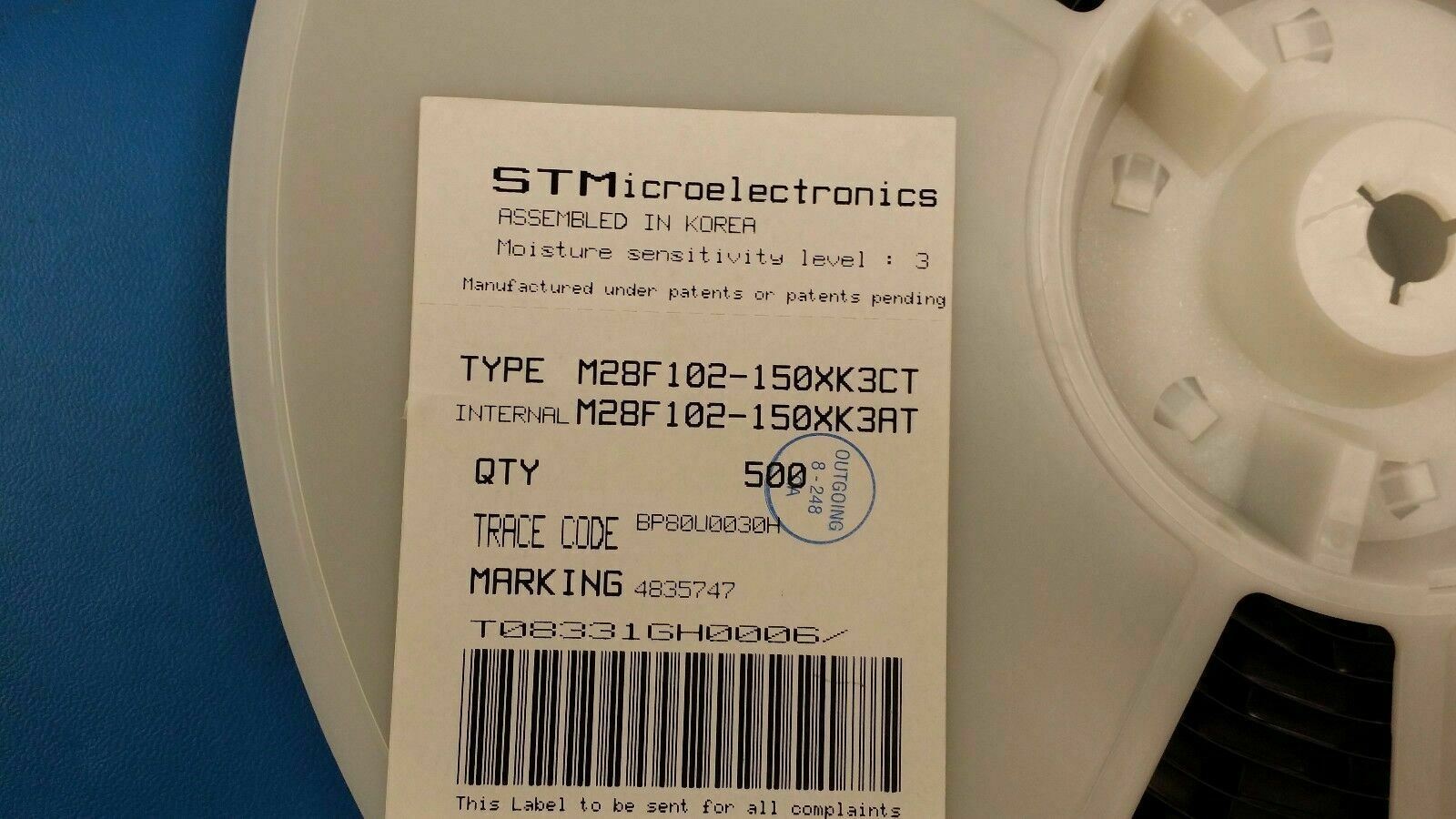

THIS LISTING IS FOR (5 PCS) OF M28F102-150XK3 BY STMICRO
64KX16 FLASH 12V PROM 150ns PLCC44 -40C to +125C
Mfr Package Description PLASTIC, LCC-44
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 150.0 ns
Command User Interface YES
Data Polling NO
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
Memory Density 1048576.0 bit
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Terminals 44
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Organization 64KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies (V) 5
Programming Voltage (V) 12
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.05 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Toggle Bit NO
Length 16.5862 mm
Width 16.5862 mm
