(5 PCS) LM306P TI Comparator Single ±12V 8-Pin PDIP
Tax included.

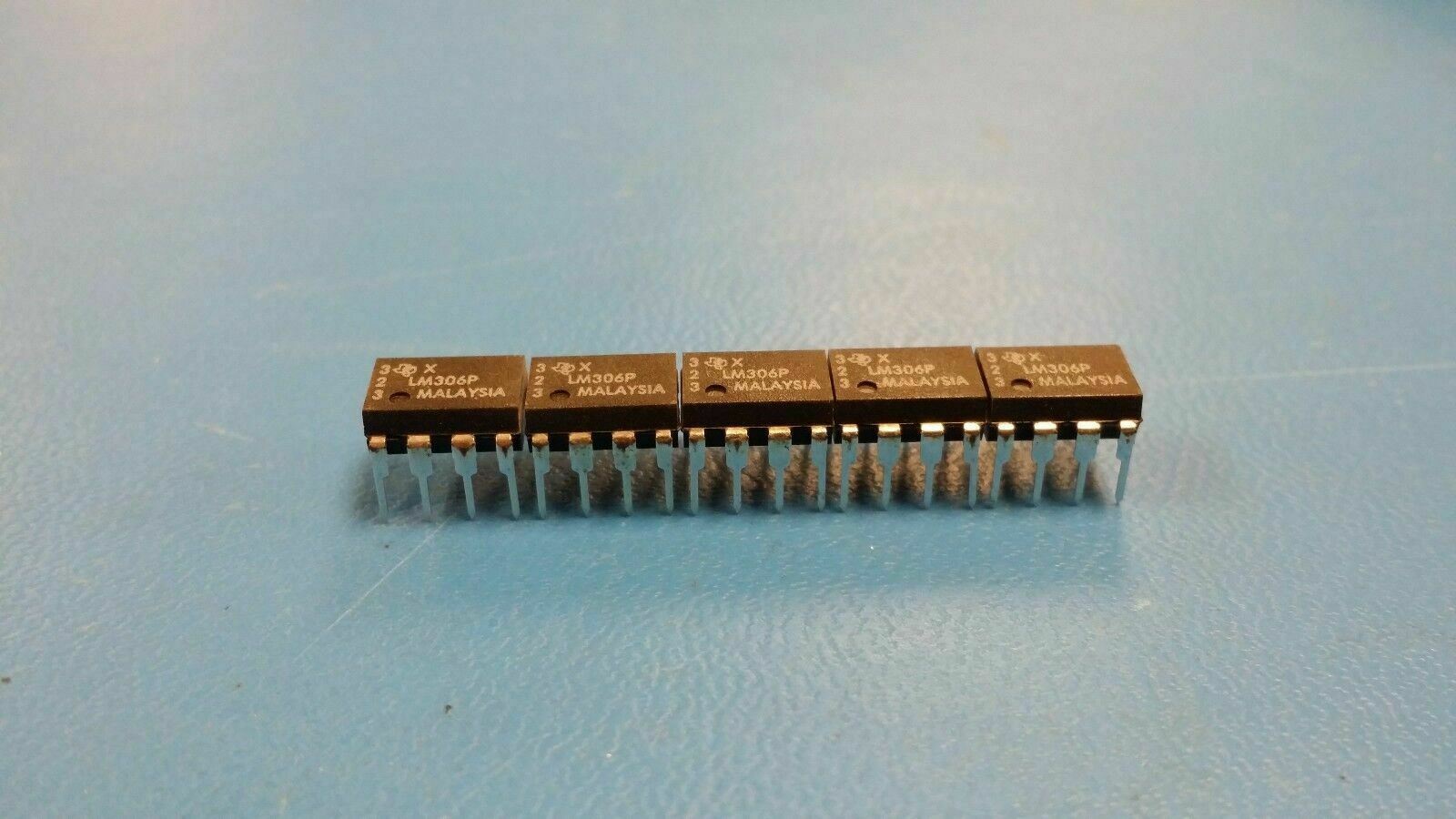

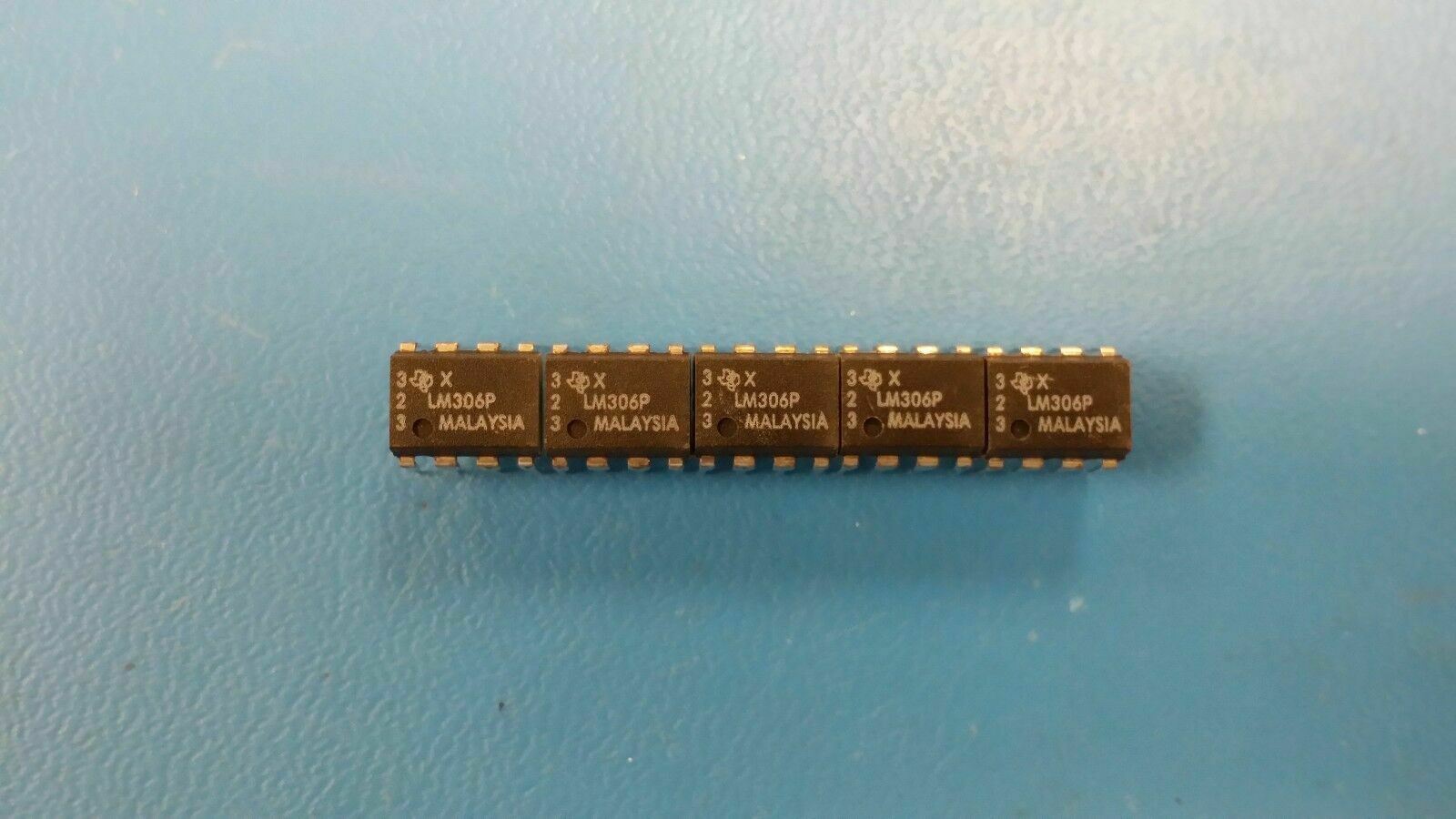

THIS LISTING IS FOR (5 PCS) OF LM306P BY TI
Comparator Single ±12V 8-Pin PDIP
| Product Category: | Analog Comparators | |
| Manufacturer: | Texas Instruments | |
| RoHS: | NO | |
| Mounting Style: | Through Hole | |
| Package / Case: | PDIP-8 | |
| Comparator Type: | Differential | |
| Number of Channels: | 1 Channel | |
| Output Type: | Push-Pull | |
| Output Current per Channel: | 100 mA | |
| Ib - Input Bias Current: | 25 uA | |
| Vos - Input Offset Voltage: | 5 mV | |
| Supply Voltage - Max: | 24 V | |
| Supply Voltage - Min: | 15 V | |
| Operating Supply Current: | 10 mA | |
| Response Time: | 28 ns | |
| Maximum Operating Temperature: | + 70 C | |
| Minimum Operating Temperature: | 0 C | |
| Packaging: | Tube | |
| Brand: | Texas Instruments | |
| Dual Supply Voltage: | +/- 9 V | |
| GBP - Gain Bandwidth Product: | - | |
| Height: | 4.57 mm | |
| Ios - Input Offset Current: | 5 mA | |
| Length: | 9.81 mm | |
| Maximum Dual Supply Voltage: | +/- 12 V | |
| Minimum Dual Supply Voltage: | +/- 7.5 V | |
| Operating Supply Voltage: | 15 V to 24 V | |
| Pd - Power Dissipation: | 600 mW | |
| Product: | Analog Comparators | |
| Reference Voltage: | No | |
| Series: | LM306 | |
| Shutdown: | No Shutdown | |
| Supply Type: | Dual | |
| Technology: | Bipolar | |
| Type: | Differential Comparator | |
| Vcm - Common Mode Voltage: | - 5 V to 5 V | |
| Voltage Gain dB: | 92.04 dB | |
