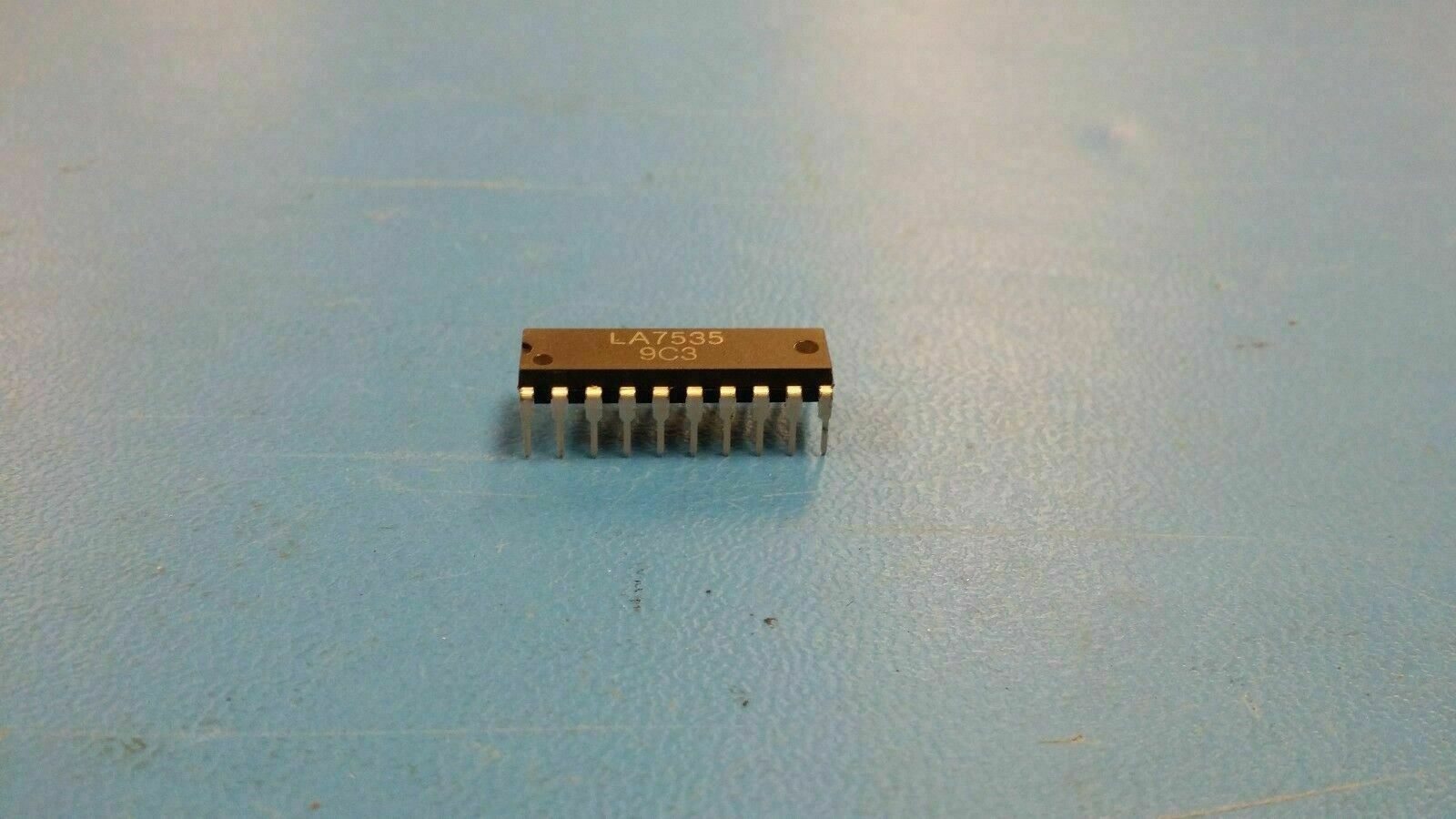

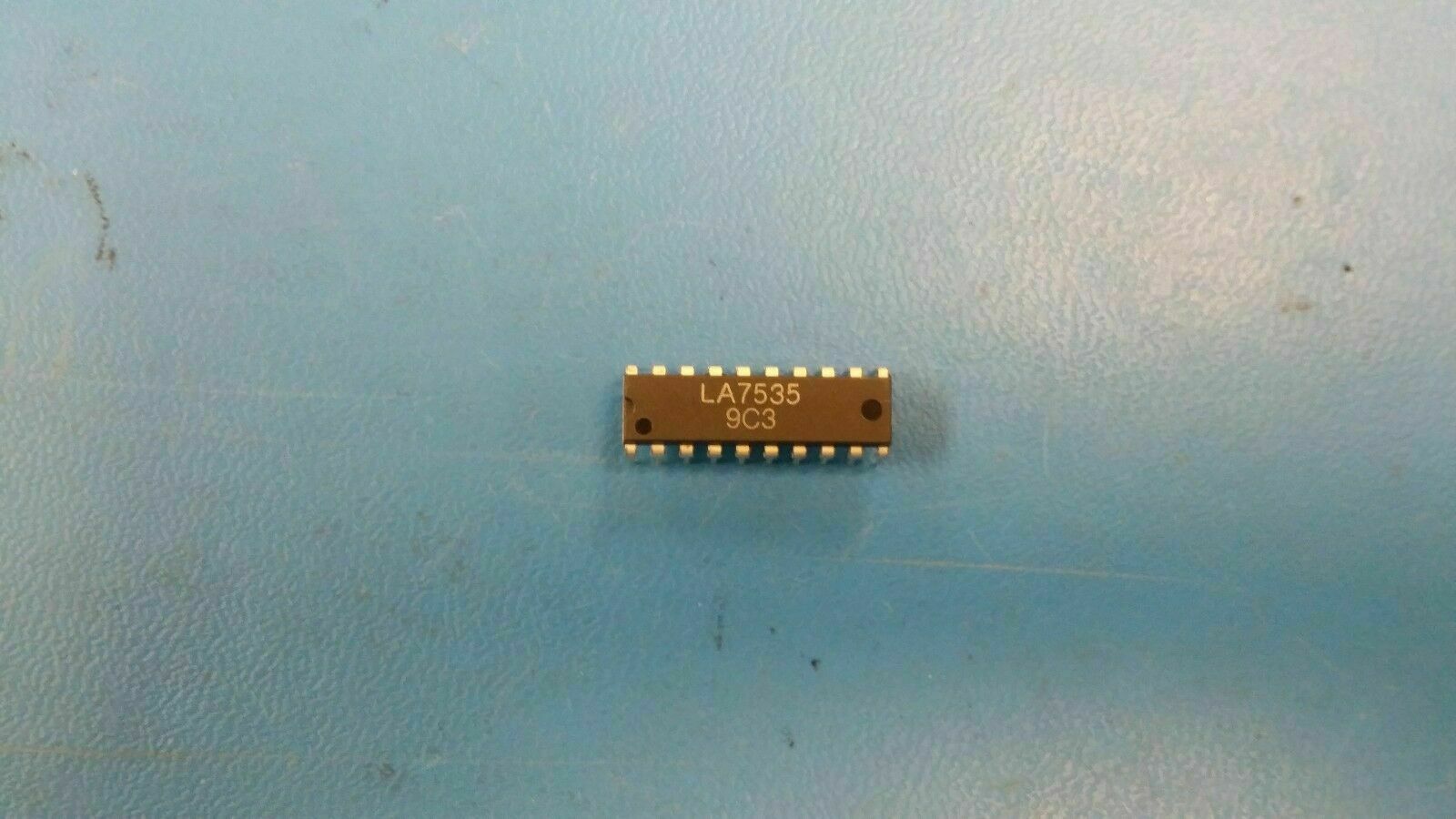

(5 PCS) LA7535 SANYO AM/FM, AUDIO/VIDEO DEMODULATOR, PDIP20
Tax included.
THIS LISTING IS FOR (5 PCS) OF LA7535 BY SANYO
AM/FM, AUDIO/VIDEO DEMODULATOR, PDIP20
Part #: LA7535
Part Category: Consumer ICs
Manufacturer: SANYO Electric Co., Ltd.
Description: AM/FM, AUDIO/VIDEO DEMODULATOR, PDIP20
Manufacturer: SANYO Electric Co., Ltd.
Description: AM/FM, AUDIO/VIDEO DEMODULATOR, PDIP20
| Mfr Package Description | SLIM, DIP-20 |
| Status | Discontinued |
| Consumer IC Type | AUDIO/VIDEO DEMODULATOR |
| Demodulation Type | AM/FM |
| Harmonic Distortion | 0.5 % |
| JESD-30 Code | R-PDIP-T20 |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Operating Temperature-Min | -20.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Voltage-Nom (AM) | 2200.0 mV |
| Output Voltage-Nom (FM) | 680.0 mV |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 12 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.9 mm |
| Sub Category | Other Consumer ICs |
| Supply Current-Max | 74.0 mA |
| Supply Voltage-Min (Vsup) | 9.0 V |
| Supply Voltage-Max (Vsup) | 13.2 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 24.2 mm |
| Width | 7.62 mm |
| Additional Feature | 12V NOMINAL POWER SUPPLY |
