(5 PCS) L7C174WC15 LOGIC Devices Cache Tag SRAM, 8KX8, 15ns, CMOS, SOJ28
(5 PCS) L7C174WC15 LOGIC Devices Cache Tag SRAM, 8KX8, 15ns, CMOS, SOJ28
(5 PCS) L7C174WC15 LOGIC Devices Cache Tag SRAM, 8KX8, 15ns, CMOS, SOJ28

(5 PCS) L7C174WC15 LOGIC Devices Cache Tag SRAM, 8KX8, 15ns, CMOS, SOJ28

Tax included.
Only 64 left!

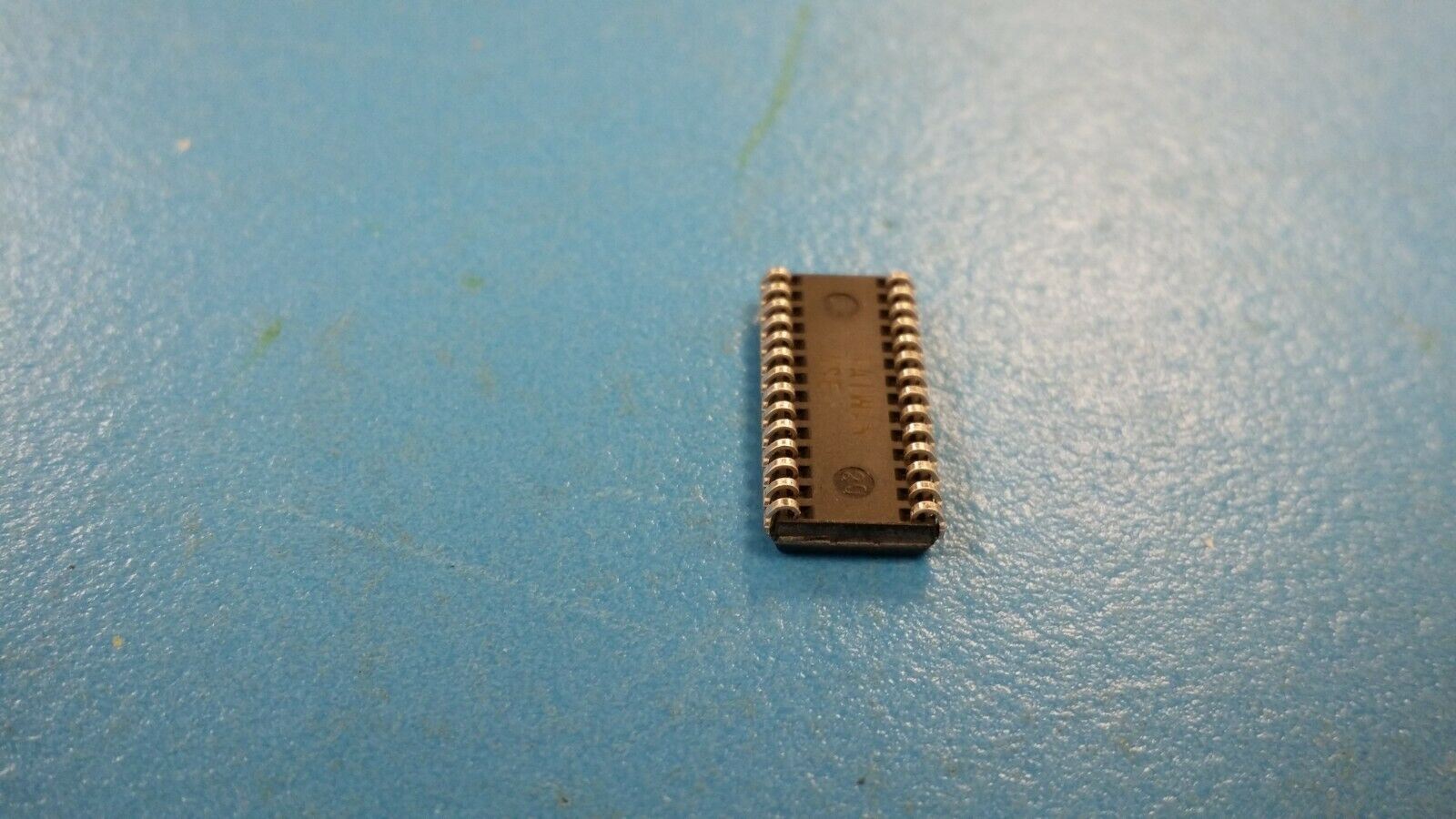

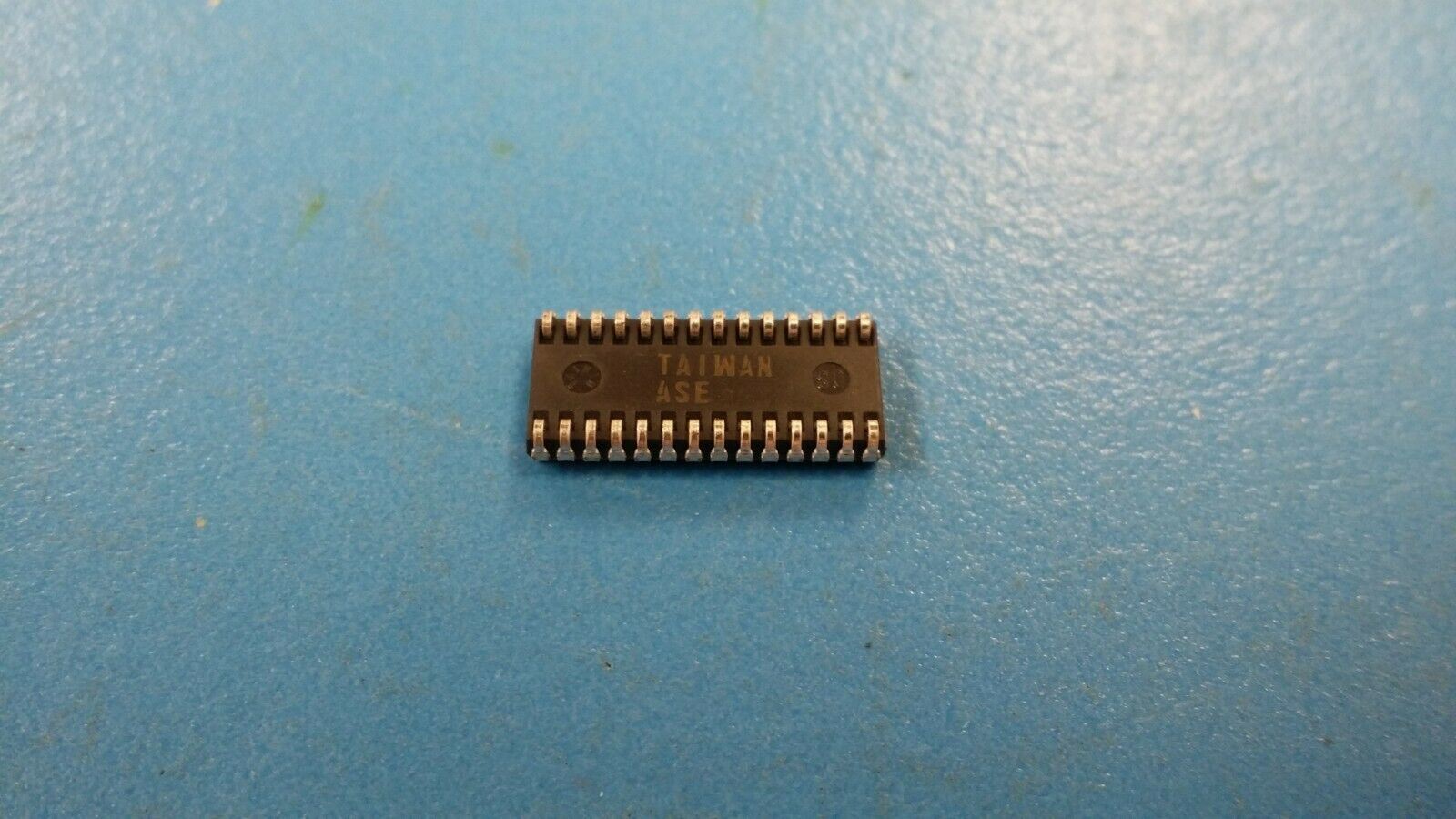

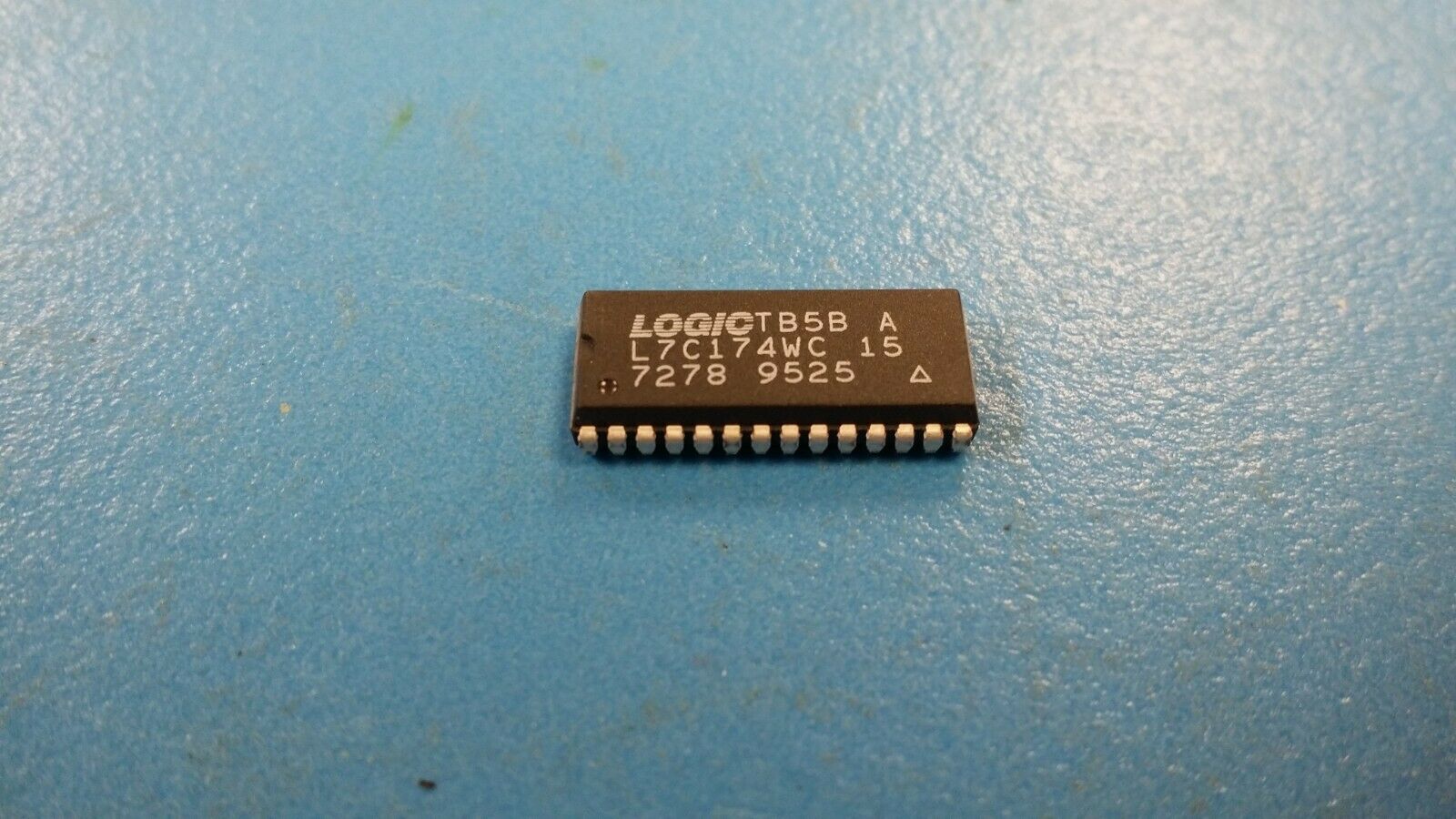

THIS LISTING IS FOR (5 PCS) OF L7C174WC15 BY LOGIC Devices
Cache Tag SRAM, 8KX8, 15ns, CMOS, SOJ28

Part #: L7C174WC15
Part Category: Memory ICs
Manufacturer: LOGIC Devices, Inc.
Description: Cache Tag SRAM, 8KX8, 15ns, CMOS, PDSO28

Mfr Package Description 0.300 INCH, PLASTIC, SOJ-28
Status Discontinued
Sub Category SRAMs
Access Time-Max 15.0  ns
JESD-30 Code R-PDSO-J28
JESD-609 Code e0
Memory Density 65536.0  bit
Memory IC Type CACHE TAG SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 1
Number of Terminals 28
Number of Words 8192.0  words
Number of Words Code 8K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 8KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ28,.34
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 3.556  mm
Standby Current-Max 2.0E-4  Amp
Standby Voltage-Min 2.0  V
Supply Current-Max 0.165  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 17.91  mm
Width 7.5057  mm
Additional Feature MATCH OUTPUT
