(2 PCS) KM44V16104BK-6 SAMSUNG EDO DRAM, 16MX4, 60ns, CMOS, SOJ-32
(2 PCS) KM44V16104BK-6 SAMSUNG EDO DRAM, 16MX4, 60ns, CMOS, SOJ-32
(2 PCS) KM44V16104BK-6 SAMSUNG EDO DRAM, 16MX4, 60ns, CMOS, SOJ-32
(2 PCS) KM44V16104BK-6 SAMSUNG EDO DRAM, 16MX4, 60ns, CMOS, SOJ-32

(2 PCS) KM44V16104BK-6 SAMSUNG EDO DRAM, 16MX4, 60ns, CMOS, SOJ-32

Tax included.
Only 46 left!

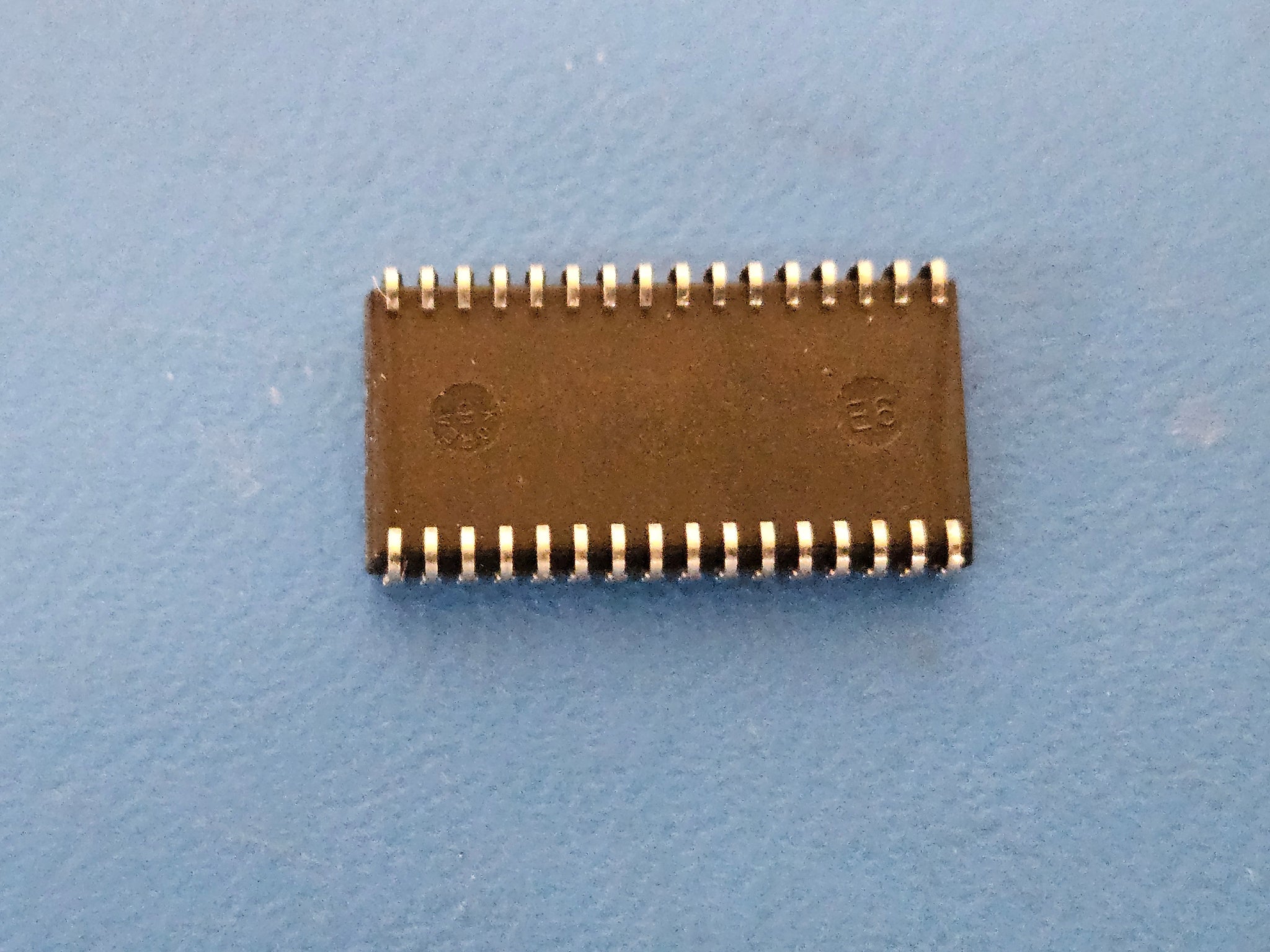

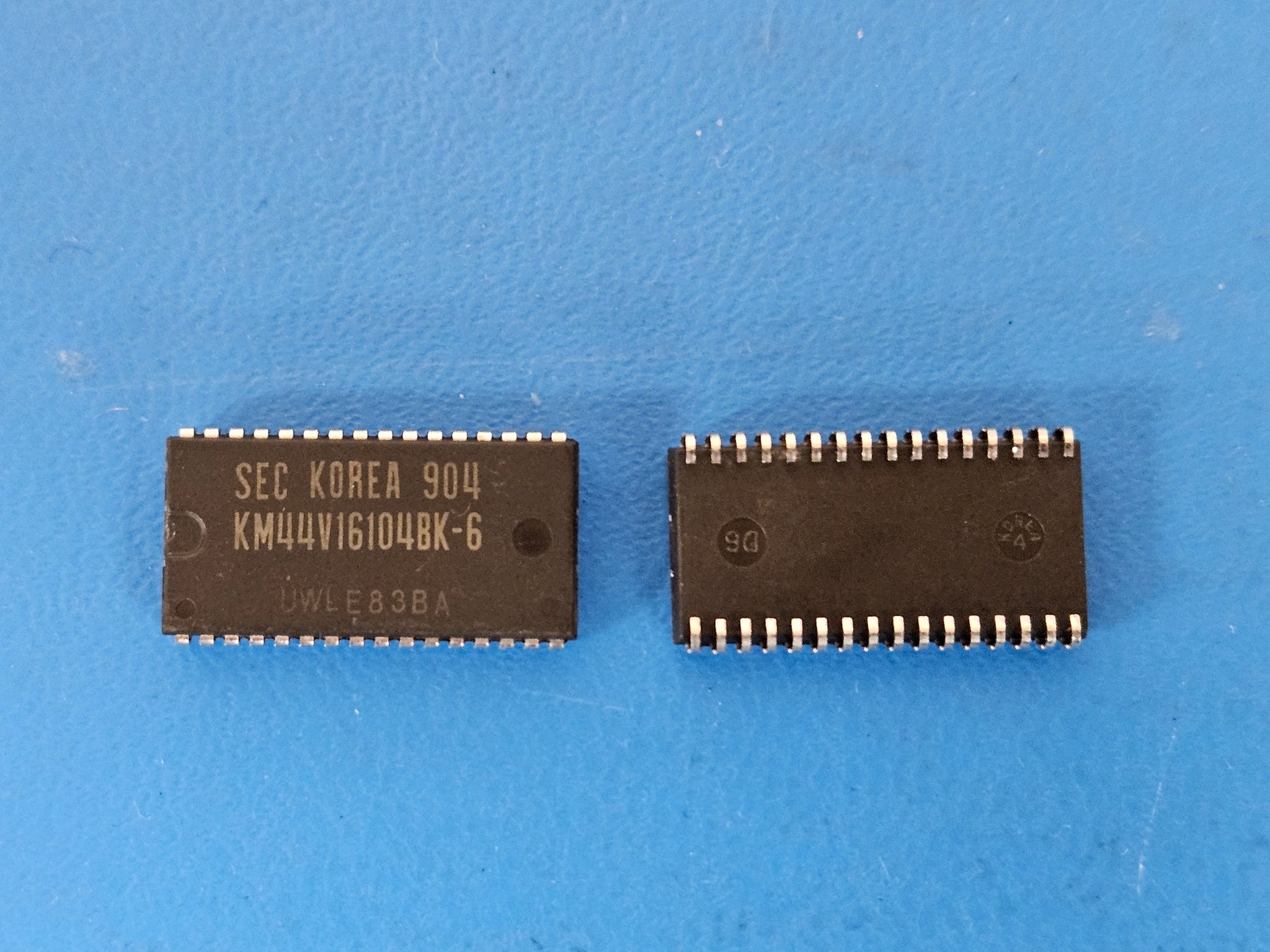

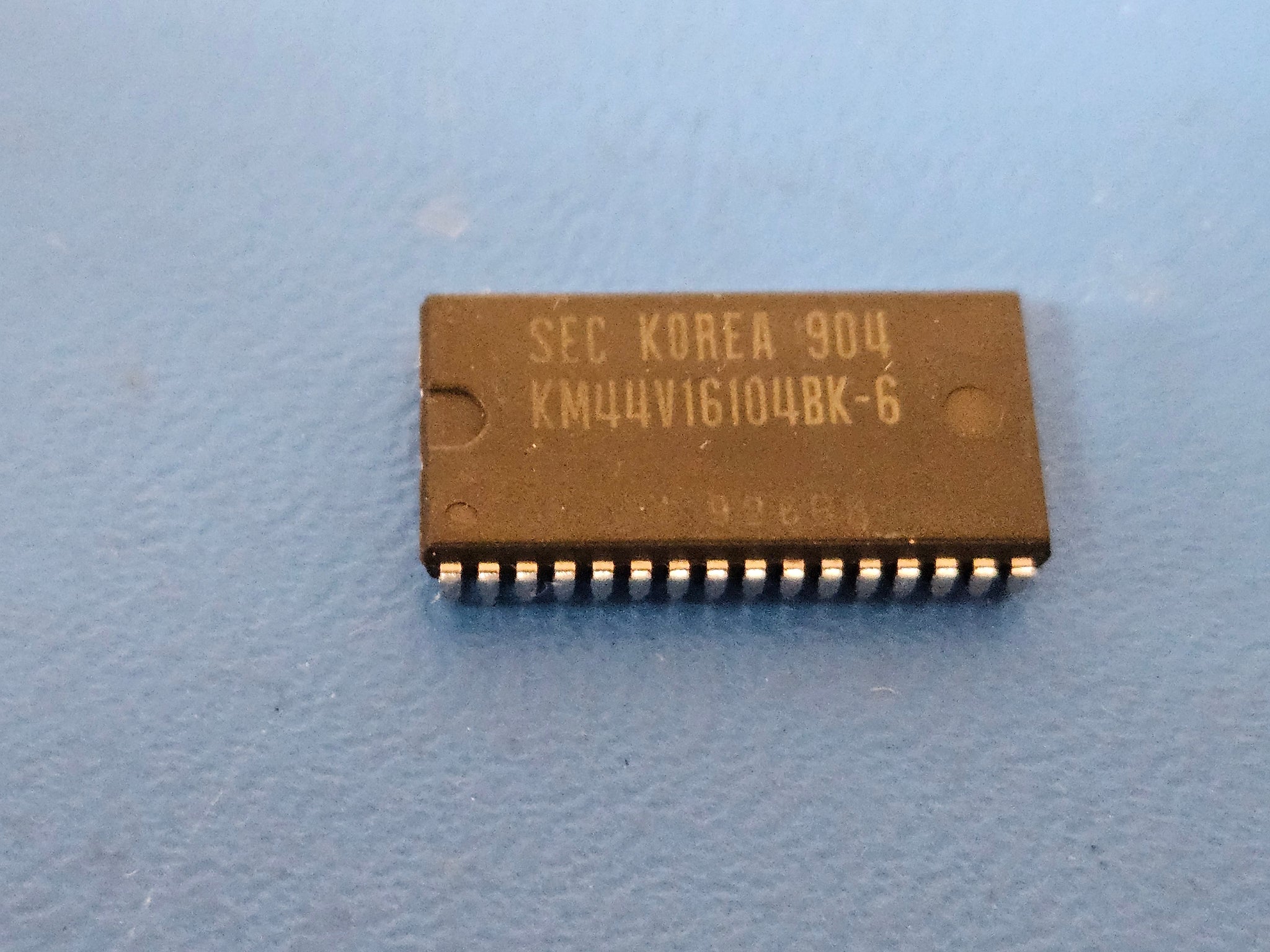

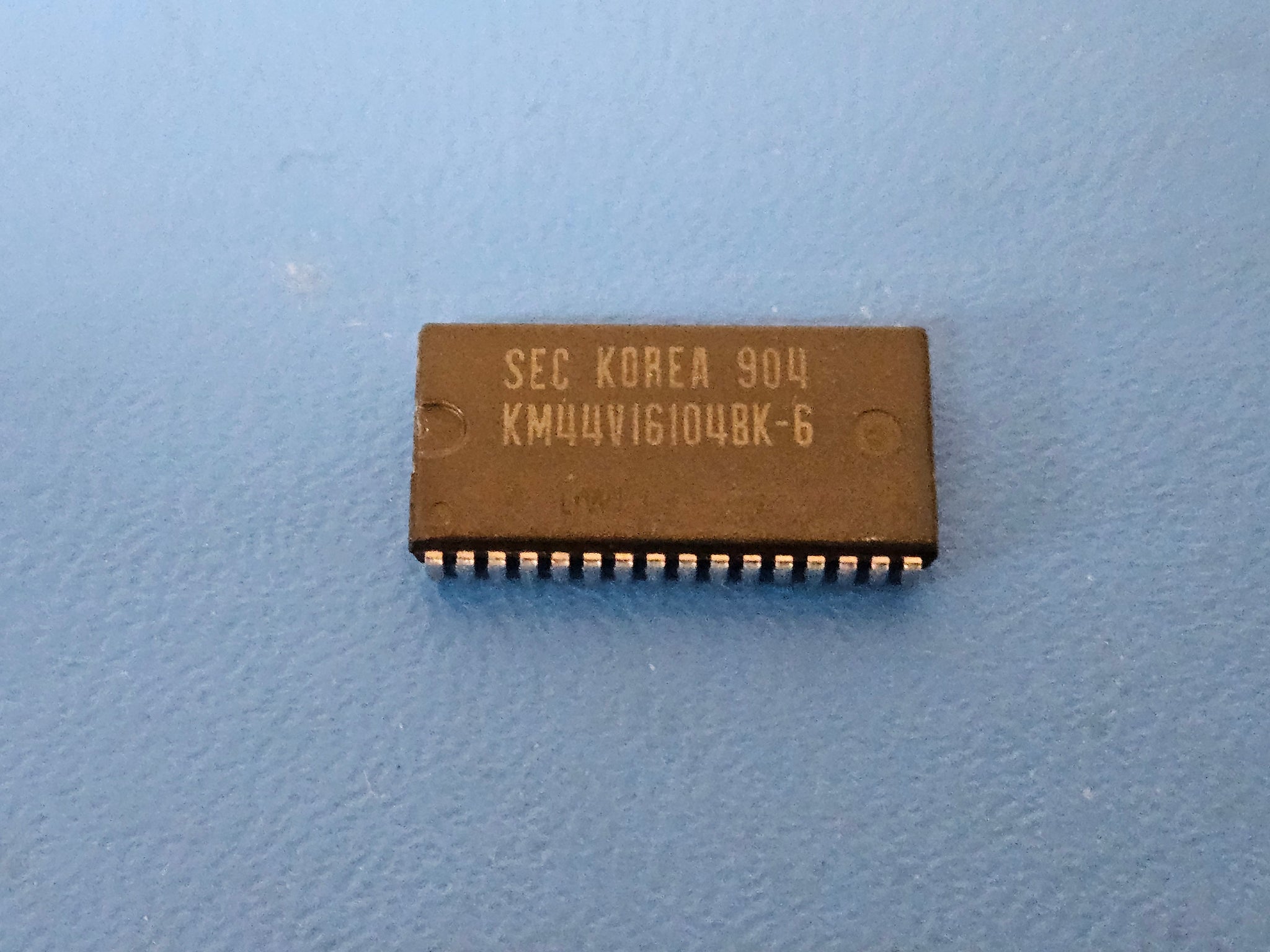

THIS IS FOR (2 PCS) OF KM44V16104BK-6 BY SAMSUNG

EDO DRAM, 16MX4, 60ns, CMOS, SOJ-32
Part #: KM44V16104BK-6
Part Category: Memory ICs
Manufacturer: Samsung Semiconductor Division
Description: EDO DRAM, 16MX4, 60ns, CMOS, PDSO32

Mfr Package Description 0.400 INCH, PLASTIC, SOJ-32
Status Discontinued
Sub Category DRAMs
Access Mode FAST PAGE WITH EDO
Access Time-Max 60.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-J32
JESD-609 Code e0
Memory Density 6.7108864E7 bit
Memory IC Type EDO DRAM
Memory Width 4
Number of Functions 1
Number of Ports 1
Number of Terminals 32
Number of Words 1.6777216E7 words
Number of Words Code 16M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 16MX4
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ32,.44
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Refresh Cycles 4096.0
Seated Height-Max 3.76 mm
Self Refresh NO
Standby Current-Max 5.0E-4 Amp
Supply Current-Max 0.11 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 20.96 mm
Width 10.16 mm
Additional Feature RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
