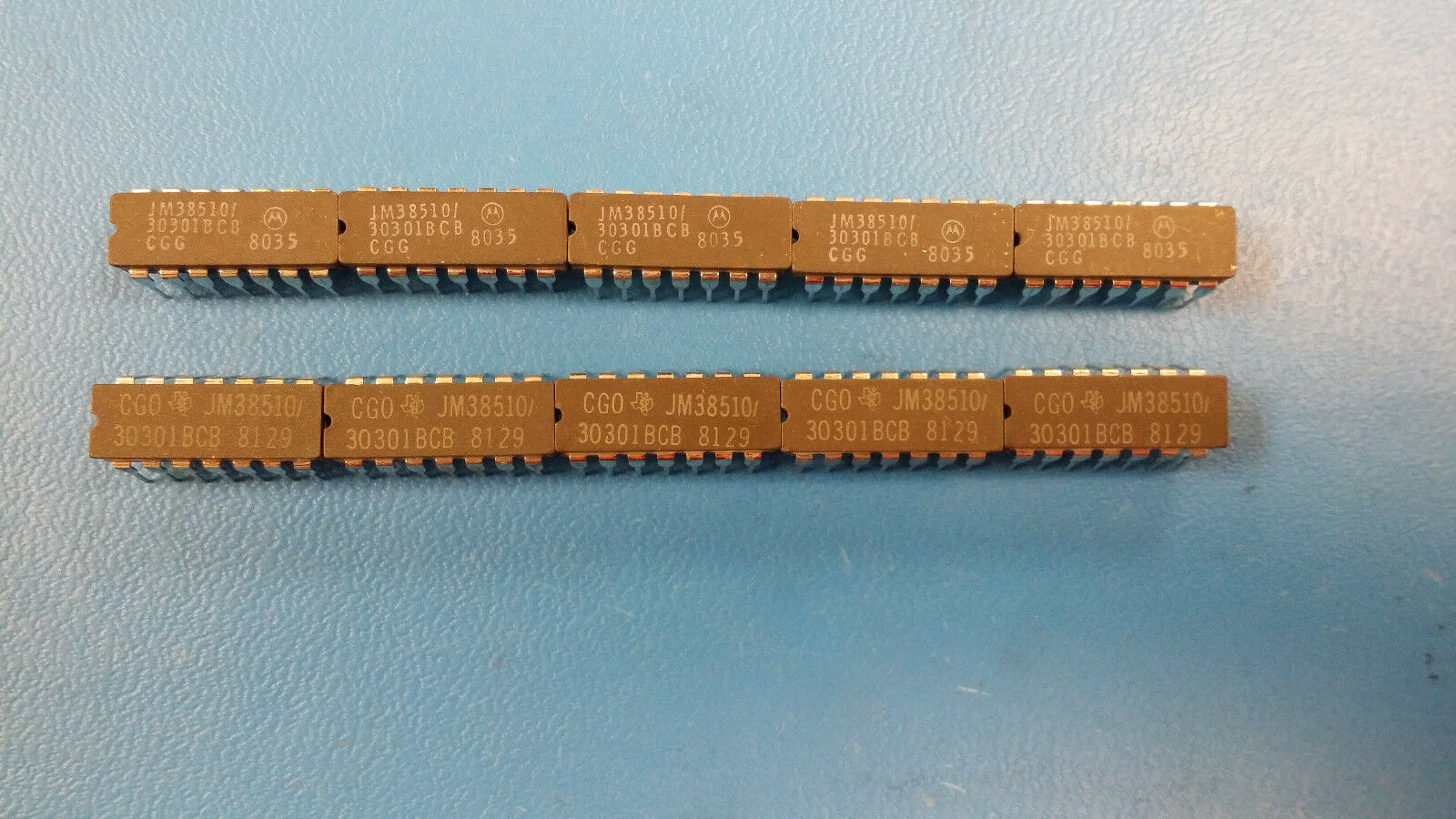

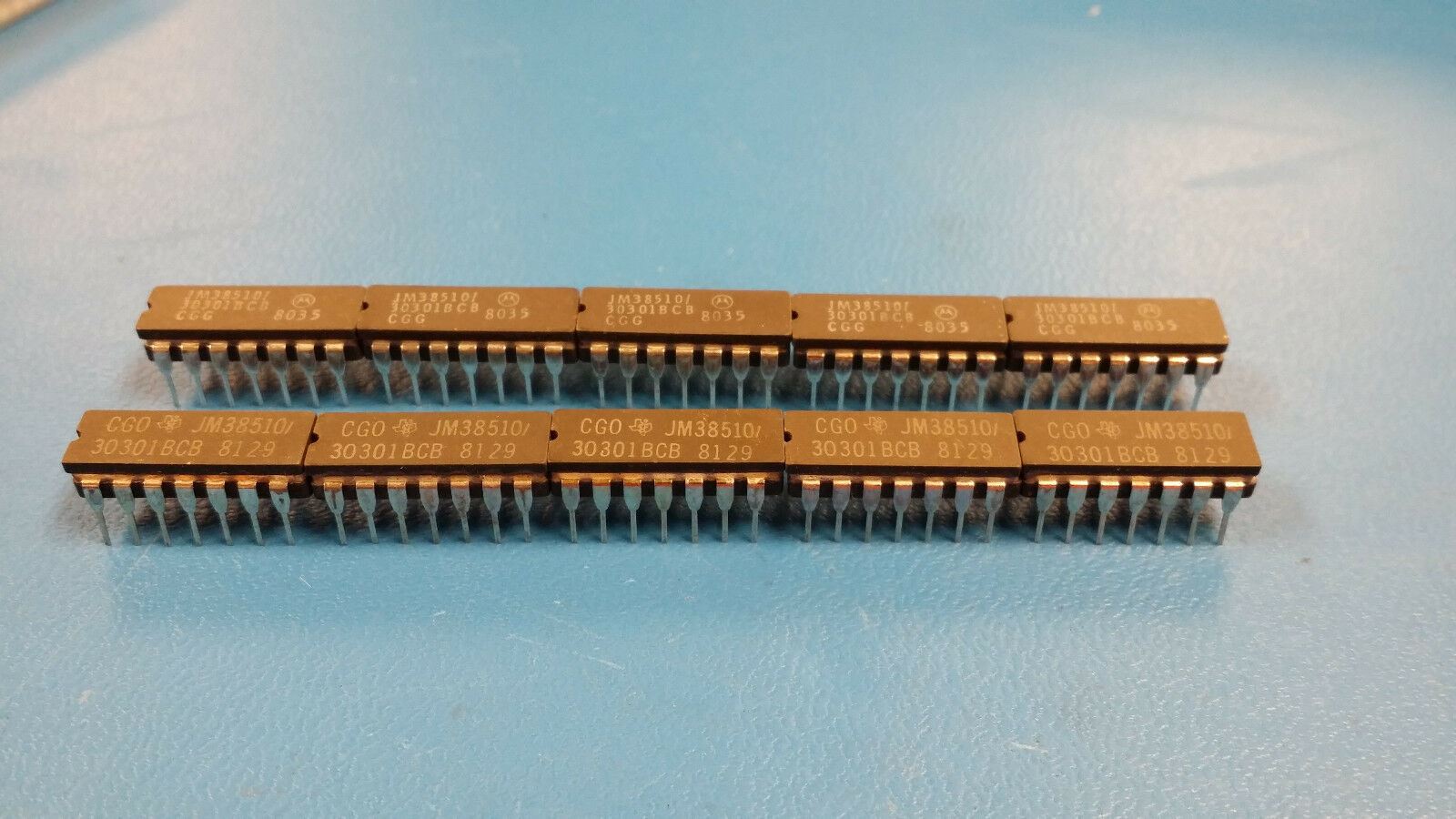

Part #: JM38510/30301BCA

 Part Category: Logic ICs

Manufacturer: Texas Instruments High-Performance Analog

Description: LS SERIES, QUAD 2-INPUT NOR GATE, CDIP14

Mfr Package Description

CERAMIC, DIP-14

REACH Compliant Yes

Status Active

Logic IC Type NOR GATE

Family LS

JESD-30 Code R-GDIP-T14

Number of Functions 4

Number of Inputs 2.0

Number of Terminals 14

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 125.0 Cel

Package Body Material CERAMIC, GLASS-SEALED

Package Code DIP

Package Shape RECTANGULAR

Package Style IN-LINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Propagation Delay (tpd) 15.0 ns

Qualification Status Not Qualified

Screening Level MIL-M-38510 Class B

Seated Height-Max 5.08 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.5 V

Supply Voltage-Max (Vsup) 5.5 V

Surface Mount NO

Technology TTL

Temperature Grade MILITARY

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 19.56 mm

Width 7.62 mm

Additional Feature LG-MAX
