(5 PCS) ISL6431CB INTERSIL SWITCHING CONTROLLER 300kHz SWITCHING FREQ-MAX SOIC88
Tax included.

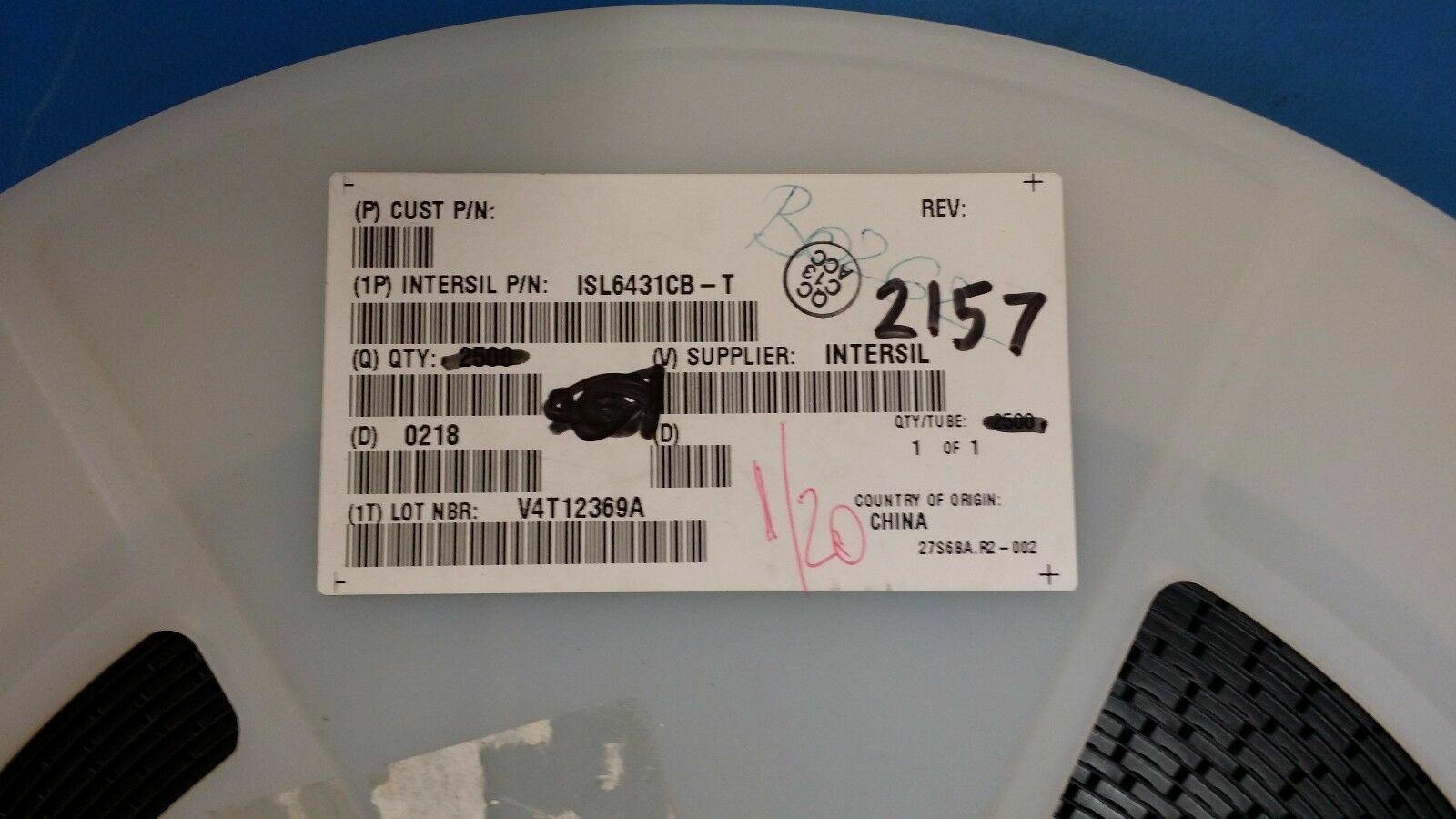

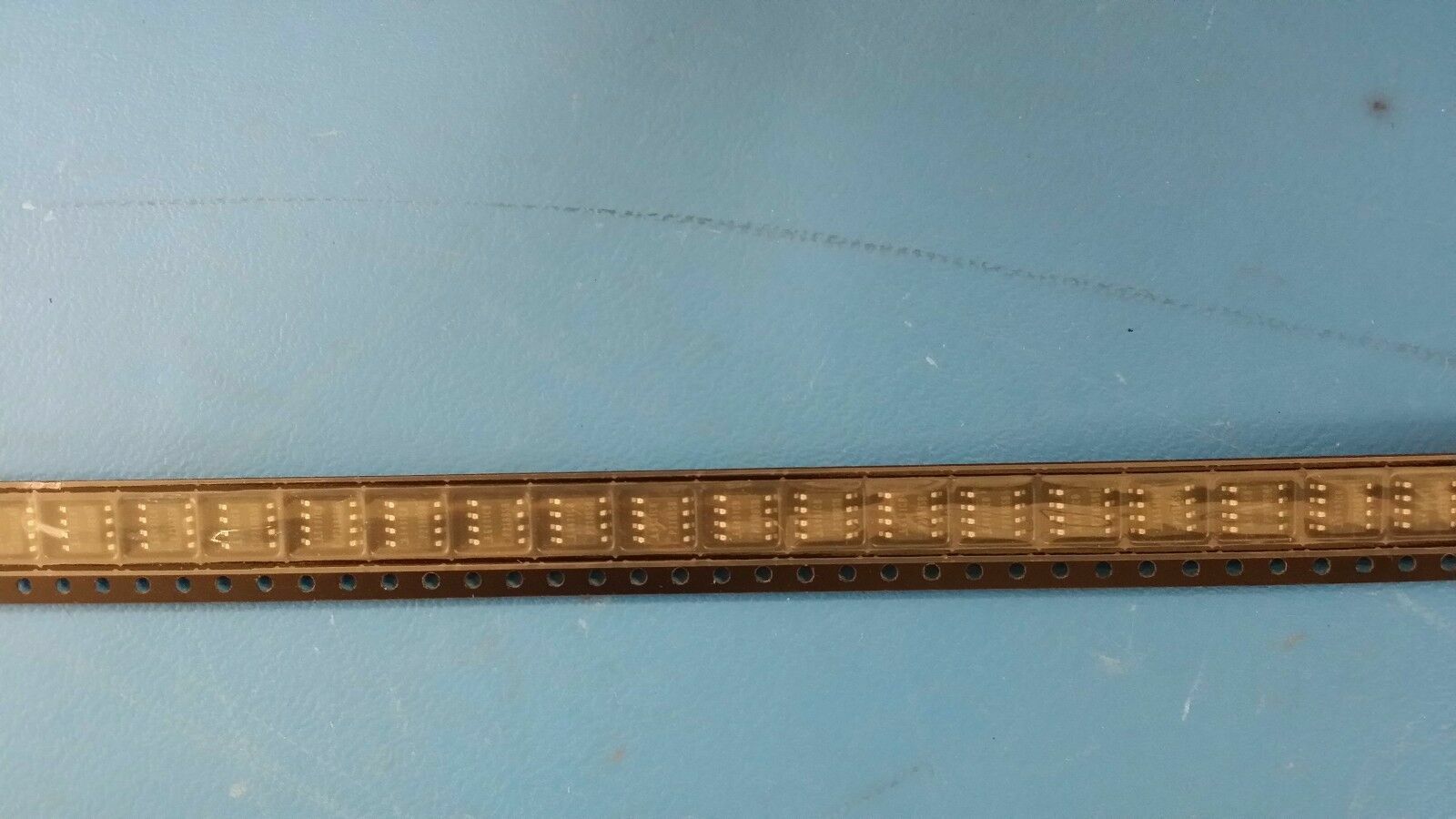

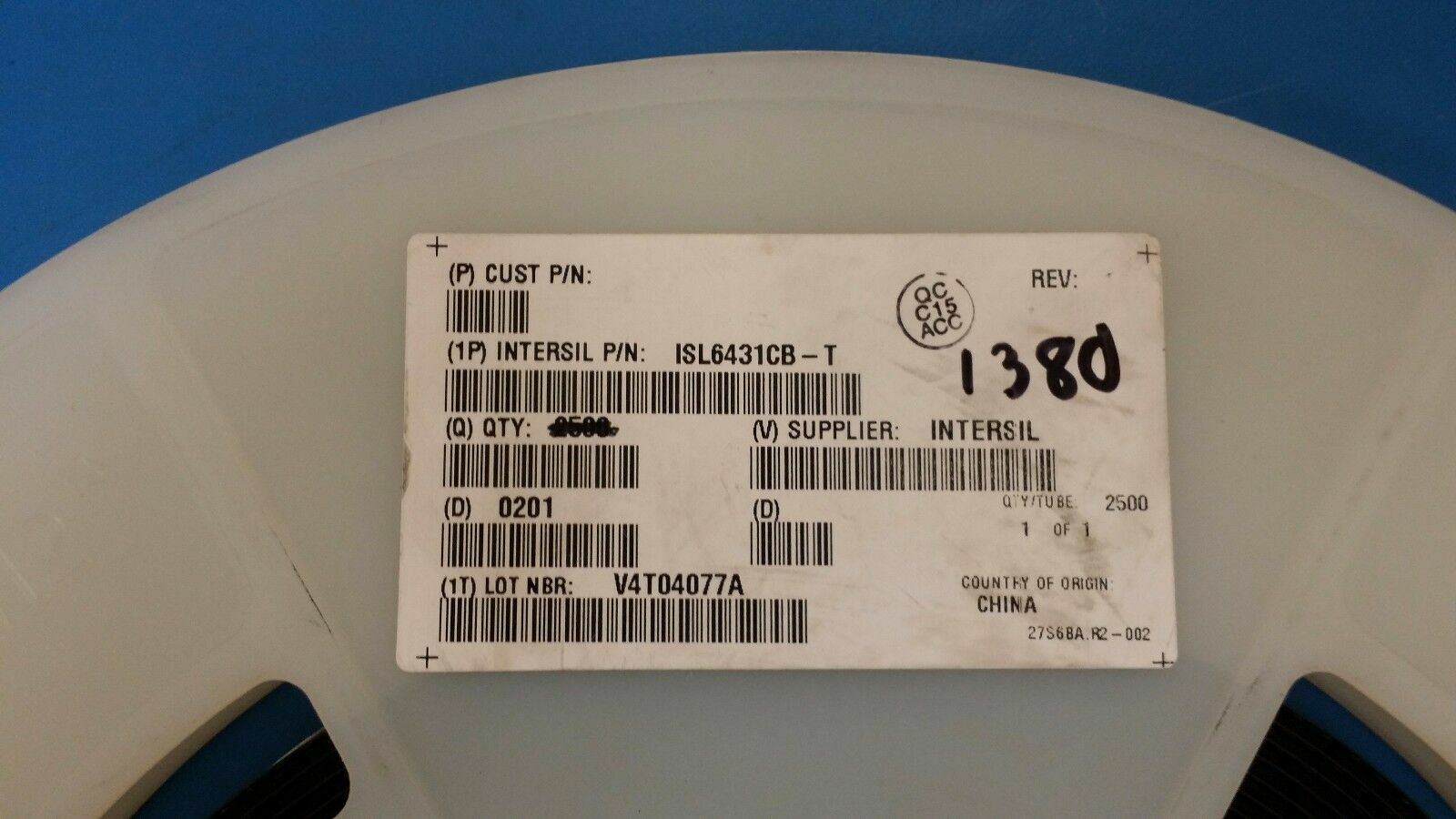

THIS LISTING IS FOR (5 PCS) OF ISL6431CB-T BY INTERSIL
SWITCHING CONTROLLER 300kHz SWITCHING FREQ-MAX SOIC8
Part #: ISL6431CB-T
Part Category: Other Semiconductors
Manufacturer: Intersil Corporation
Description: Switching Controller, Voltage-mode, 300kHz Switching Freq-Max, PDSO8
Mfr Package Description PLASTIC, MS-012AA, SOIC-8
Status Discontinued
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Nom 5.0 V
Input Voltage-Min 4.5 V
Input Voltage-Max 5.5 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Surface Mount YES
Switcher Configuration PUSH-PULL
Switching Frequency-Max 300.0 kHz
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 4.9 mm
Width 3.9 mm
